Web Configuration

This section outlines all information specific to configuring IP modules in a web server.

WARNING!

Please note that web configuration features are available only for IP versions for the multiprotocol I/O modules.

Web Server Access

All IP version modules are equipped with a built-in web server, which allows for showing the status of the module and for changing the configuration.

To access the web server, open a browser, and enter the IP address of the module; the default address for a new module is 192.168.1.123. Please use the following default credentials:

Username: admin

Password: 1000 (by default)

Note: The web server can be disabled by setting the HTTP port to 0. This option is available for firmware versions 6.5 and up.

Device Page

This page contains device technical information. Basic Information section includes information about the type of the module, its firmware version and uptime.

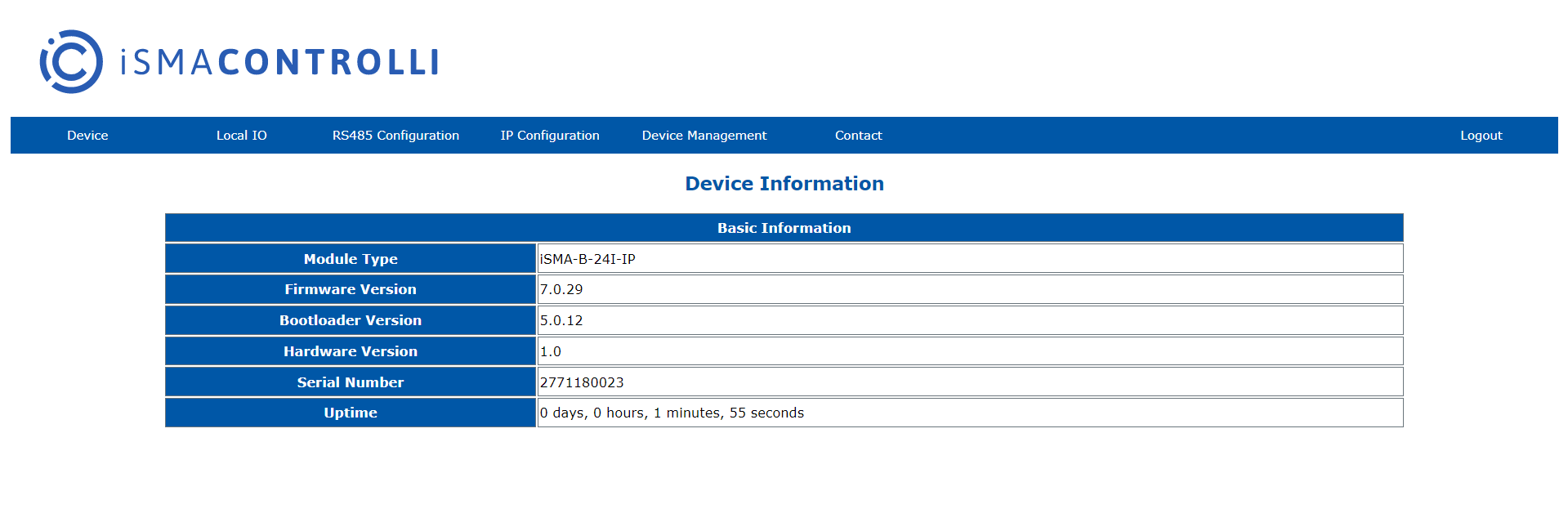

The 24I-IP device page
