Power Supply

The device is designed to work with 24 V AC/DC separated power supply.

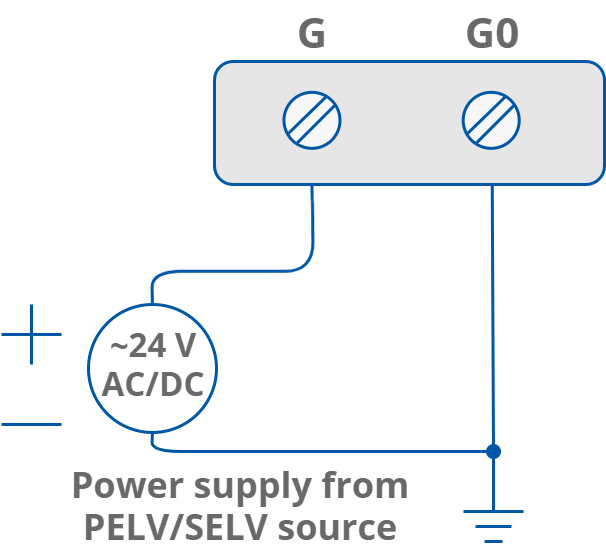

Power supply connection

Earth Grounding

Earth grounding protects from electrostatic discharge or other forms of EMI. Connecting the controller’s ground spade lug to nearby earth ground is possible in hardware versions below 2.1.
