iSMA-B-MAC36NL User Manual


Introduction

iSMA-B-MAC36NL is a compact Master Application Controller with built-in different types of I/O and operating in the Niagara Framework environment. Using the specific local I/O set of 16 UI, 8 AO, 4 DI, and 8 DO allows to use the device in different applications. The controller provides control, data logging, alarming, scheduling, integration, and visualization.

To allow the IP connectivity there are 2 Fast Ethernet ports, which operate independently. Built-in 1 RS485 can be used to expand the number of I/O by connecting MINI or MIX series I/O modules or to integrate with other subsystems.

Dedicated microSD card stores real-time data, history logs, and alarms as well as the operating system, Niagara Framework, and licenses.

There are 2 USB ports, one of them operates as a host port and the other one in the OTG mode.

Revision History


Rev.

Date

Description

1.0

1 Oct 2018

First edition

1.1

10 Dec 2018

  • Data Recovery Service

  • Support of the Niagara 4.6 and later

1.2

1 Apr 2019

  • HDMI support

  • Restore to factory defaults

1.3

31 Oct 2019

Updated universal input supported sensors list

1.4

31 Mar 2020

  • Support of Niagara 4.8

  • Change of passphrase saving destination

  • User fonts support

  • Pop-up control for the HDMI display

  • Auto-detection of the device extension

  • Log saving to the Niagara home directory

  • M-Bus support

1.5

27 Apr 2020

Controller system update–Chapter 3.7

1.6

16 Dec 2020

  • Document updated with support of the Niagara 4.9 information

  • Chapter 3.11.4 updated with the web service configuration for HDMI support

1.7

24 Jun 2021

Document updated with support of the Niagara 4.10 information

1.8

25 May 2022

Rebranded


Revision history

Key Features

  • Niagara 4.4, 4.6, 4.7, 4.8, 4.9, and 4.10;

  • real-time programming;

  • 2 Fast Ethernet (independent);

  • 1 RS485 (opto-isolated), optional extension as second RS485 port;

  • optional M-Bus extension;

  • 2 USB (1 OTG, 1 Host);

  • 16 UI, 8 AO, 4 DI, and 8 DO;

  • HDMI to connect an external display;

  • built-in web server provides graphical user interface available from the web browser level;

  • SD card to collect real-time data, history logs, and alarms;

  • hardware replacement by SD card;

  • different licensing models for various application types.

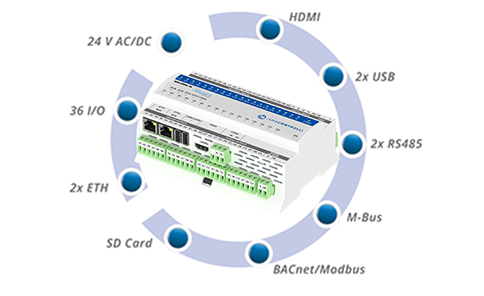

Key features of the iSMA-B-MAC36NL controller
