Step 8: Selecting Type of Fan Used Within the Project and its Connection Details

There are many fan types the iSMA-B-FCU supports, and it can be configured for the fan coil unit used in the project.

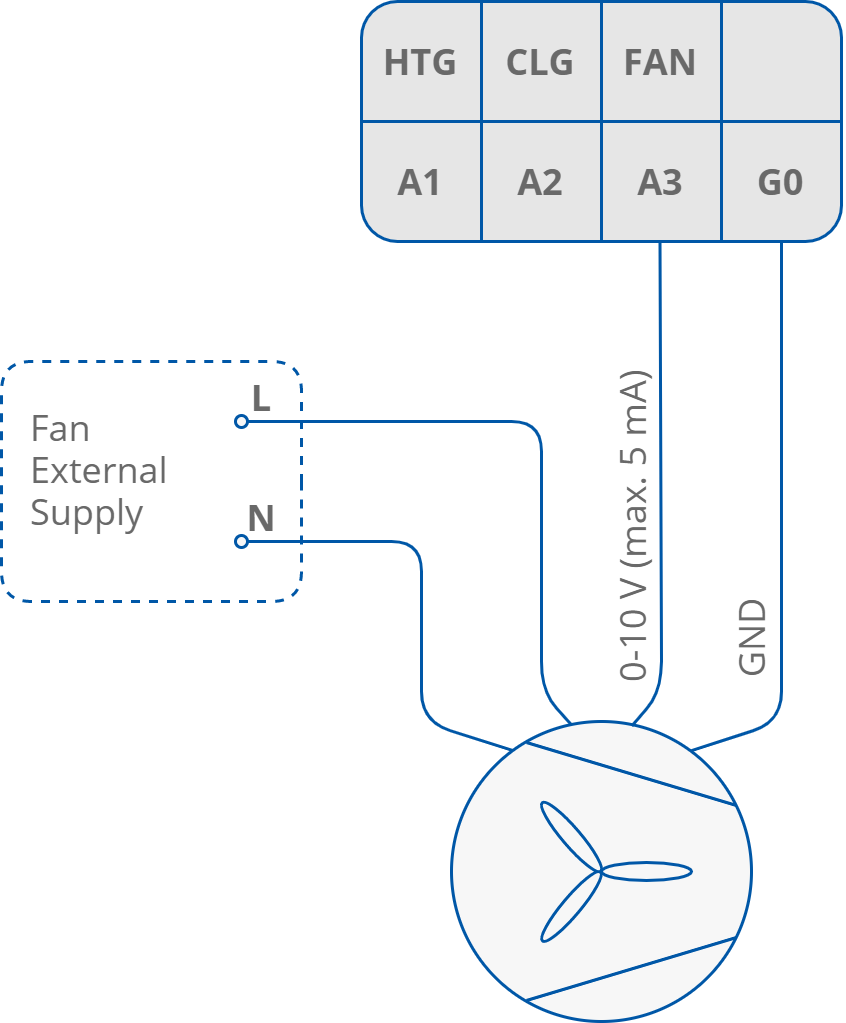

Analog Controlled Fan Connection

36 Analog controlled fan DIP.png

37 Analog controlled fan.png

Analog controlled fan connection

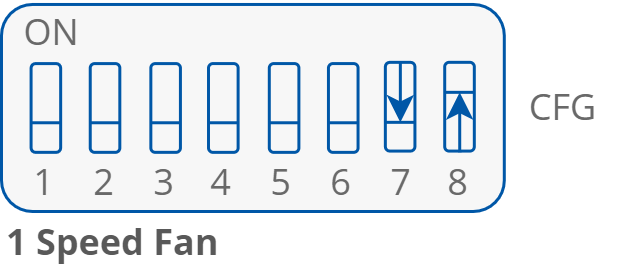

1 Speed Fan Connection

38 1 Speed fan DIP.png

39 1 Speed fan.png

1 speed fan connection

2 Speeds Fan Connection

40 2 Speeds fan DIP.png

41 2 Speeds fan.png

2 speeds fan connection

3 Speeds Fan Connection

42 3 Speeds fan DIP.png

43 3 Speeds fan.png

3 speeds fan connection
