All Configurations for FCU Default Application
DIP Switch | 5 | 6 | 7 | 8 | Setting |
|---|---|---|---|---|---|
Temperature source | OFF | OFF | iSMA-B-LP/Touch Point/FP room panel | ||
OFF | ON | Room sensor (SI3) | |||
ON | OFF | Returning air temperature sensor (SI1) | |||
ON | ON | Temperature from Modbus network | |||
Fan | OFF | OFF | Analog control | ||
OFF | ON | 1 speed | |||
ON | OFF | 2 speeds | |||
ON | ON | 3 speeds | |||

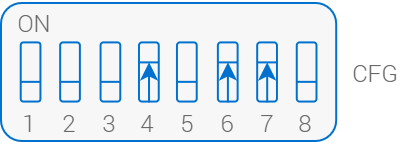

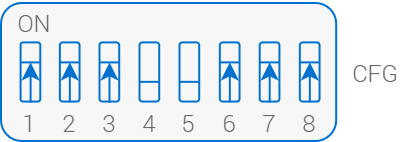

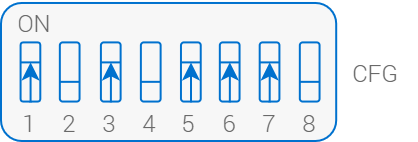

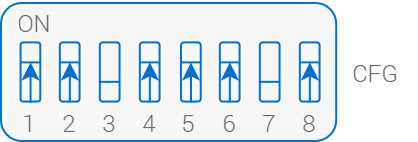

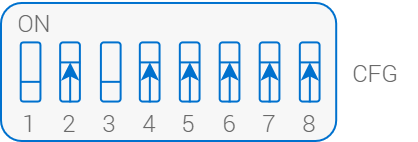

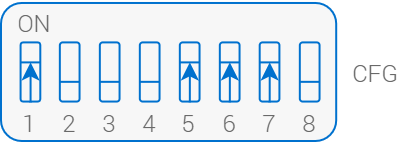

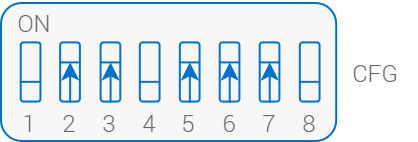

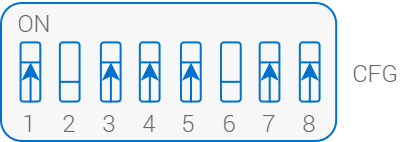

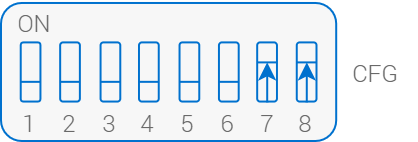

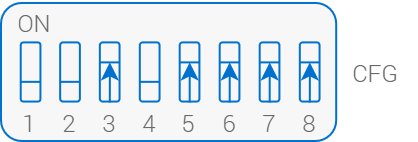

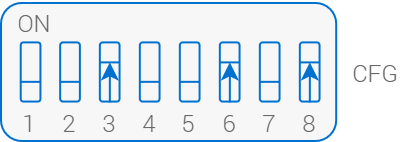

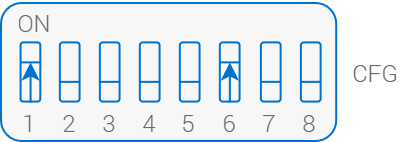

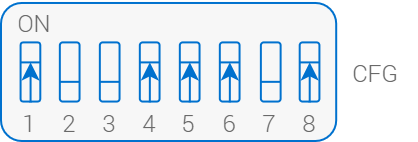

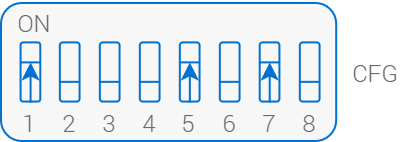

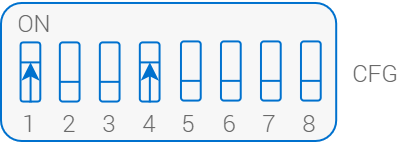

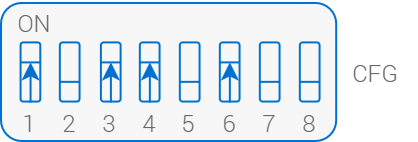

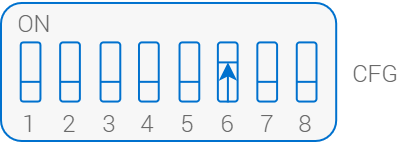

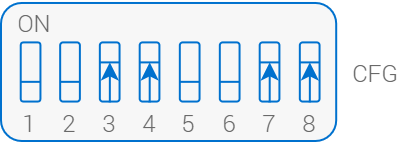

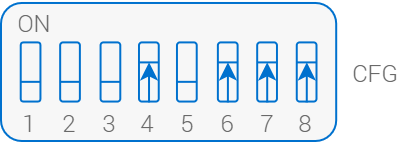

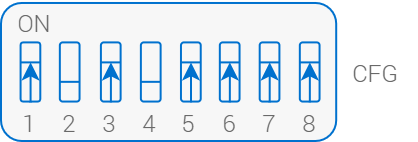

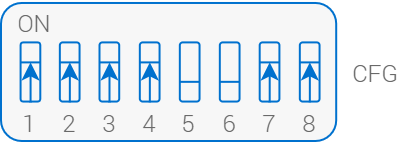

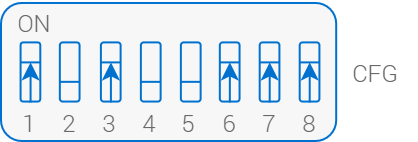

DIP Switch | 1 | 2 | 3 | 4 | 5 & 6 | 7 & 8 | |
|---|---|---|---|---|---|---|---|
Function | FCU Pipe Mode | Heating | Cooling | Control | Temperature source | Fan | |
Off (4-pipe) | Off (1-stage) | Off (1-stage) | Off (digital) | For configuration see table above | For configuration see table above | ||
1 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | Analog control |
|
2 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 1 speed |
|
3 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds |
|
4 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds |
|
5 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | Analog control |
|
6 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 1 speed |
|

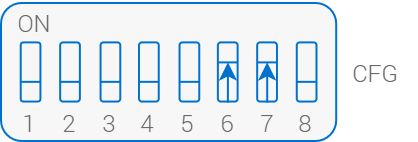

7 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 2 speeds |
|
8 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 3 speeds |
|
9 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | Analog control |
|
10 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 1 speed |
|
11 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 2 speeds |
|
12 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 3 speeds |
|
13 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | Analog control |
|

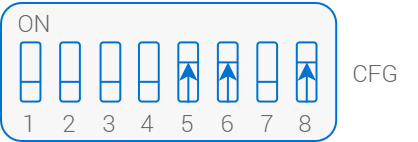

14 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 1 speed |
|

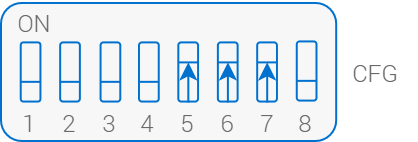

15 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 2 speeds |
|
16 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 3 speeds |
|
17 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | Analog control |  |
18 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 1 speed |
|
19 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds |
|

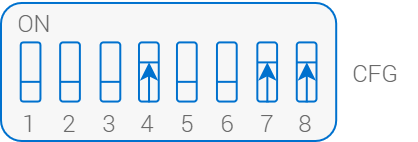

20 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds |  |
21 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | Analog control |
|
22 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 1 speed |
|
23 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 2 speeds |
|
24 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 3 speeds |
|
25 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | Analog control |
|
26 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 1 speed |
|
27 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 2 speeds |
|
28 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 3 speeds |
|
29 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | Analog control |
|
30 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 1 speed |
|

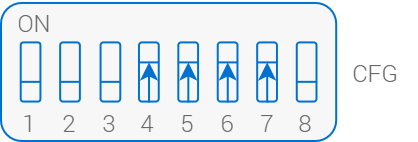

31 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 2 speeds |
|

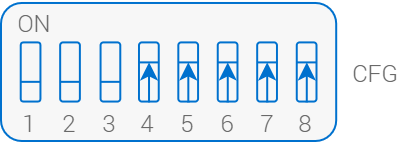

32 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 3 speeds |
|
33 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | Analog control |
|
34 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 1 speed |
|
35 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds |
|
36 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds |
|
37 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | Analog control |
|
38 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 1 speed |
|
39 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 2 speeds |
|
40 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 3 speeds |
|
41 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | Analog control |
|
42 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 1 speed |
|
43 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 2 speeds |
|
44 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 3 speeds |
|
45 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | Analog control |
|

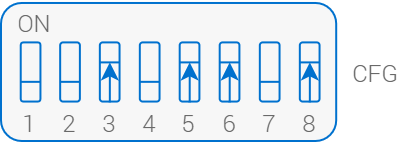

46 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 1 speed |
|
47 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 2 speeds |
|
48 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 3 speeds |
|

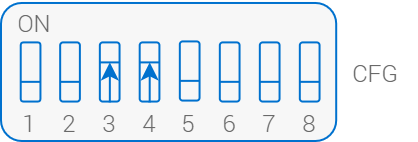

49 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | Analog control |
|
50 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 1 speed |
|
51 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds |
|
52 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds |
|
53 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | Analog control |
|
54 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 1 speed |
|
55 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 2 speeds |
|
56 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 3 speeds |
|
57 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | Analog control |
|
58 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 1 speed |
|
59 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 2 speeds |
|
60 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 3 speeds |
|
61 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | Analog control |
|
62 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 1 speed |
|
63 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 2 speeds |
|
64 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 3 speeds |
|
65 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | Analog control |
|
66 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 1 speed |
|
67 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds |
|
68 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds |
|
69 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | Analog control |
|
70 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 1 speed |
|
71 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 2 speeds |
|
72 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 3 speeds |
|
73 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | Analog control |
|
74 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 1 speed |
|
75 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 2 speeds |
|
76 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 3 speeds |
|

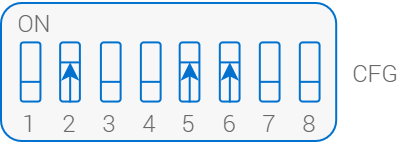

77 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | Analog control |
|
78 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 1 speed |
|
79 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 2 speeds |
|
80 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 3 speeds |
|
81 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | Analog control |
|
82 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 1 speed |
|
83 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds |
|
84 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds |
|
85 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | Analog control |
|
86 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 1 speed |
|
87 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 2 speeds |
|

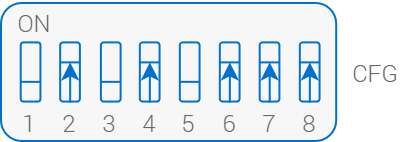

88 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 3 speeds |
|
89 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | Analog control |
|
90 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 1 speed |
|
91 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 2 speeds |
|
92 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 3 speeds |
|
93 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | Analog control |
|
94 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 1 speed |
|
95 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 2 speeds |
|
96 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 3 speeds |
|

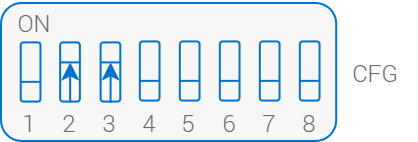

97 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | Analog control |
|
98 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 1 speed |
|
99 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds |
|

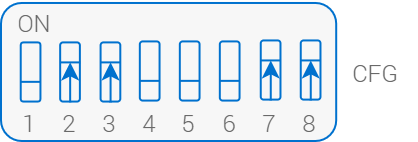

100 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds |
|
101 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | Analog control |
|

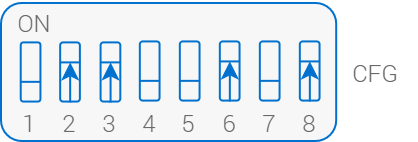

102 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 1 speed |
|

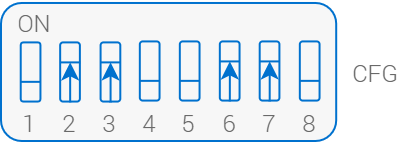

103 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 2 speeds |
|
104 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 3 speeds |
|
105 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | Analog control |
|
106 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 1 speed |
|
107 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 2 speeds |
|

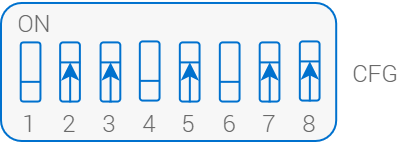

108 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 3 speeds |
|

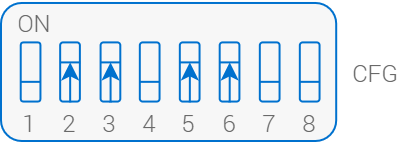

109 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | Analog control |
|
110 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 1 speed |
|
111 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 2 speeds |
|
112 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 3 speeds |
|
113 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | Analog control |
|
114 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 1 speed |
|
115 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds |
|
116 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds |
|

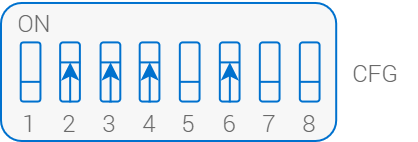

117 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | Analog control |
|
118 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 1 speed |
|
119 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 2 speeds |
|
120 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 3 speeds |
|
121 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | Analog control |
|
122 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 1 speed |
|
123 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 2 speeds |
|
124 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 3 speeds |
|
125 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | Analog control |
|
126 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 1 speed |
|
127 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 2 speeds |
|
128 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 3 speeds |
|
129 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | Analog control |
|
130 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 1 speed |
|
131 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds |
|
132 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds |
|
133 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | Analog control |
|
134 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 1 speed |
|
135 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 2 speeds |
|
136 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 3 speeds |
|
137 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | Analog control |
|
138 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 1 speed |
|
139 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 2 speeds |
|
140 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 3 speeds |
|
141 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | Analog control |
|
142 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 1 speed |
|
143 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 2 speeds |
|

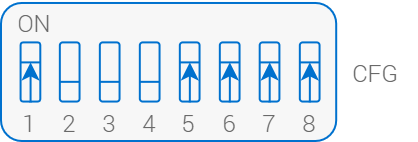

144 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 3 speeds |
|
145 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | Analog control |
|
146 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 1 speed |
|
147 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds |
|
148 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds |
|
149 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | Analog control |
|
150 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 1 speed |
|
151 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 2 speeds |
|
152 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 3 speeds |
|

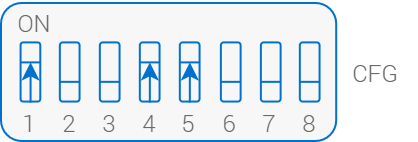

153 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | Analog control |
|
154 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 1 speed |
|
155 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 2 speeds |
|
156 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 3 speeds |
|

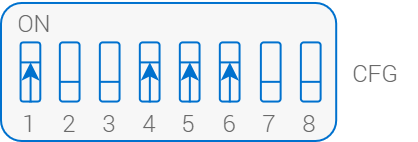

157 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | Analog control |
|
158 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 1 speed |
|
159 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 2 speeds |
|
160 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 3 speeds |
|
161 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | Analog control |
|

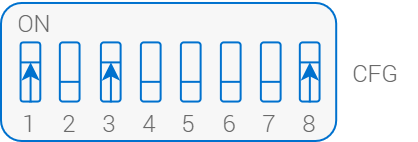

162 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 1 speed |
|
163 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds |
|
164 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds |  |
165 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | Analog control |
|

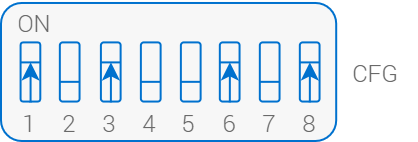

166 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 1 speed |
|

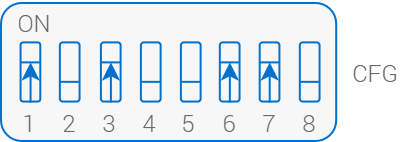

167 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 2 speeds |
|
168 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 3 speeds |
|
169 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | Analog control |
|
170 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 1 speed |
|

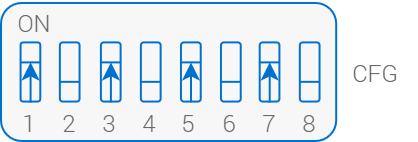

171 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 2 speeds |
|
172 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 3 speeds |
|

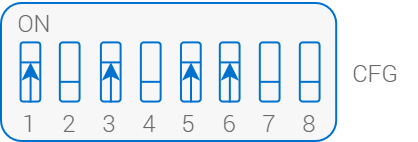

173 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | Analog control |
|
174 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 1 speed |
|
175 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 2 speeds |
|
176 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 3 speeds |
|

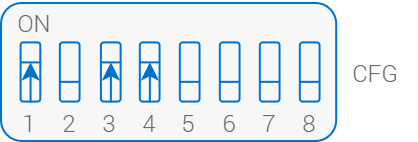

177 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | Analog control |
|
178 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 1 speed |
|
179 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds |
|

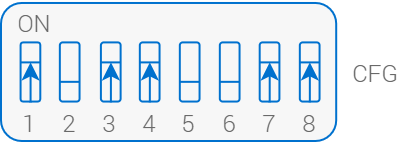

180 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds |
|
181 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | Analog control |
|
182 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 1 speed |
|
183 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 2 speeds |
|
184 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 3 speeds |
|

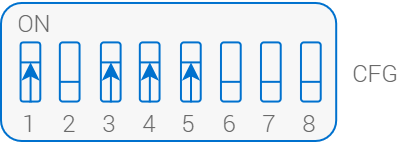

185 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | Analog control |
|
186 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 1 speed |
|
187 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 2 speeds |
|
188 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 3 speeds |
|
189 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | Analog control |
|
190 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 1 speed |
|
191 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 2 speeds |
|
192 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 3 speeds |
|
193 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | Analog control |
|

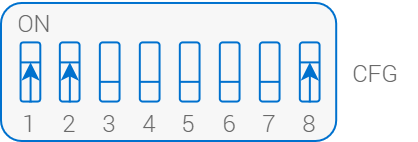

194 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 1 speed |
|
195 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds |
|
196 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds |
|
197 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | Analog control |
|
198 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 1 speed |
|
199 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 2 speeds |
|

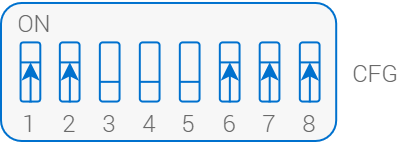

200 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 3 speeds |
|
201 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | Analog control |
|
202 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 1 speed |
|

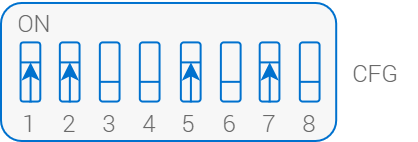

203 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 2 speeds |
|
204 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 3 speeds |
|
205 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | Analog control |
|
206 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 1 speed |
|
207 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 2 speeds |
|

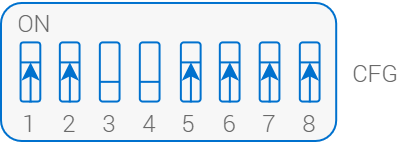

208 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 3 speeds |
|

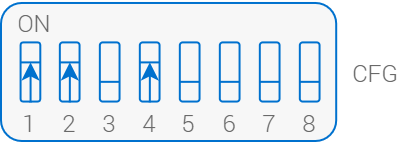

209 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | Analog control |
|
210 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 1 speed |
|
211 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds |
|
212 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds |
|
213 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | Analog control |
|
214 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 1 speed |
|

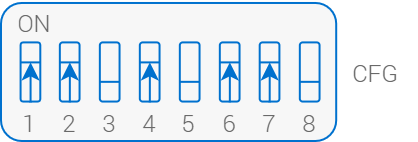

215 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 2 speeds |
|
216 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 3 speeds |
|
217 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | Analog control |
|
218 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 1 speed |
|
219 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 2 speeds |
|
220 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 3 speeds |
|
221 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | Analog control |
|
222 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 1 speed |
|
223 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 2 speeds |
|
224 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 3 speeds |
|

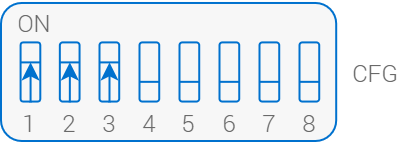

225 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | Analog control |
|
226 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 1 speed |
|
227 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds |
|

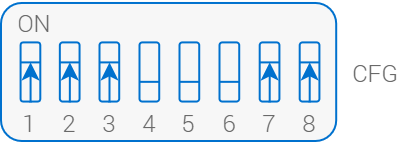

228 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds |
|
229 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | Analog control |
|
230 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 1 speed |
|
231 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 2 speeds |
|
232 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 3 speeds |
|
233 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | Analog control |
|
234 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 1 speed |
|
235 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 2 speeds |
|
236 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 3 speeds |
|
237 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | Analog control |
|
238 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 1 speed |
|
239 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 2 speeds |
|
240 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 3 speeds |
|
241 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | Analog control |
|
242 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 1 speed |
|

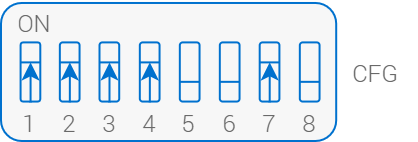

243 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds |
|
244 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds |
|
245 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | Analog control |
|
246 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 1 speed |
|
247 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 2 speeds |
|
248 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 3 speeds |
|

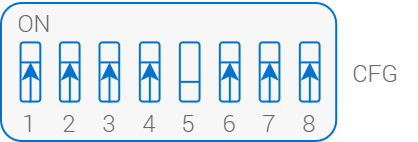

249 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | Analog control |
|
250 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 1 speed |
|
251 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 2 speeds |
|
252 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 3 speeds |
|
253 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | Analog control |
|

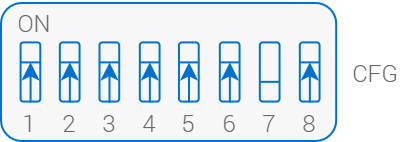

254 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 1 speed |
|
255 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 2 speeds |
|

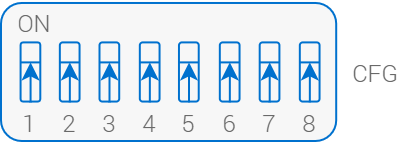

256 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 3 speeds |
|
