Examples: Connecting Actuators and Sensors to the Controller

Connections Overview

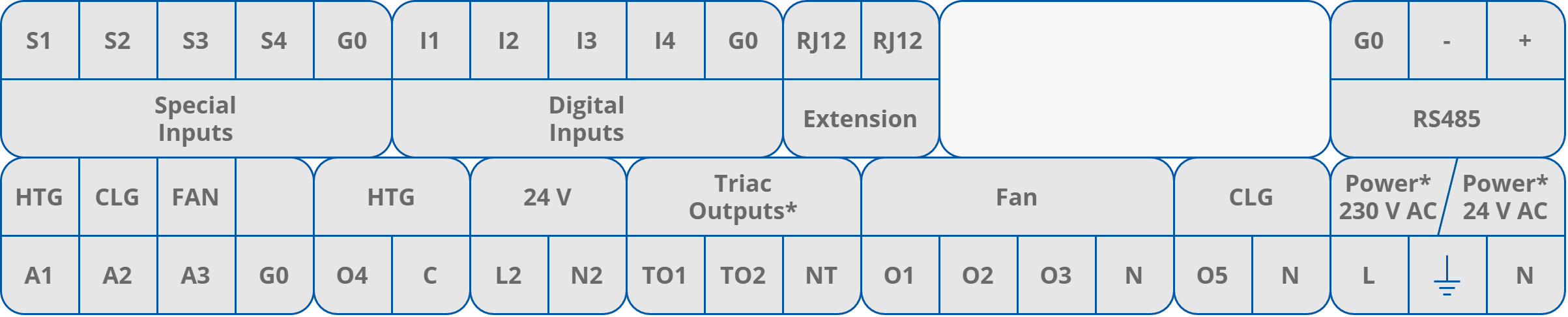

44 IO overview.png

Inputs and outputs overview

Connection Examples

The examples below do not include selection of the temperature control value source. Connecting the temperature control value source is described in Step 7 of this manual. In examples, DIP switch sections 5 and 6 are set to OFF.

The 24 V power source for heater and cooler actuators can be taken from L2/N2 connectors.

If 2^nd stages of heating or cooling is used, check Step 6 for connection information.

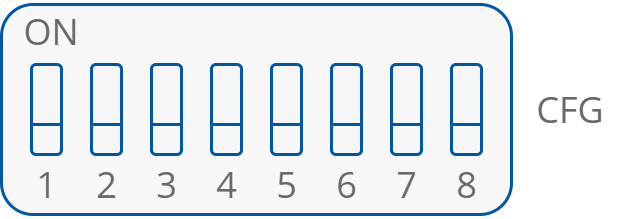

4-Pipe Installation with 1 Stage Digital Controlled Heating and Cooling and Analog Controlled Fan

45a DIP config.png

45 4-pipe 1 stage dig HTG_CLG an FAN.png

4-pipe installation with 1 stage digital controlled heating and cooling and analog controlled fan

4-Pipe Installation with 1 Stage Digital Controlled Heating and Cooling and 1 Speed Fan

46a DIP config.png

46 4-pipe 1 stage dig HTG_CLG 1 speed fan.png

4-pipe installation with 1 stage digital controlled heating and cooling and 1 speed fan

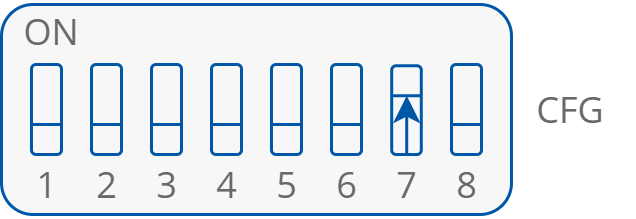

4-Pipe Installation with 1 Stage Digital Controlled Heating and Cooling and 2 Speeds Fan

47a DIP config.png

47 4-pipe 1 stage dig HTG_CLG 2 speeds fan.png

4-pipe installation with 1 stage digital controlled heating and cooling and 2 speeds fan

4-Pipe Installation with 1 Stage Digital Controlled Heating and Cooling and 3 Speeds Fan

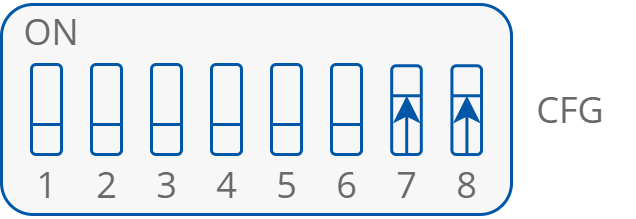

48a DIP config.png

48 4-pipe 1 stage dig HTG_CLG 3 speeds fan.png

4-pipe installation with 1 stage digital controlled heating and cooling and 3 speeds fan

4-Pipe Installation with 1 Stage Analog Controlled Heating and Cooling and Analog Controlled Fan

48a DIP config.png

49 4-pipe 1 stage an HTG_CLG an fan.png

4-pipe installation with 1 stage analog controlled heating and cooling and analog controlled fan

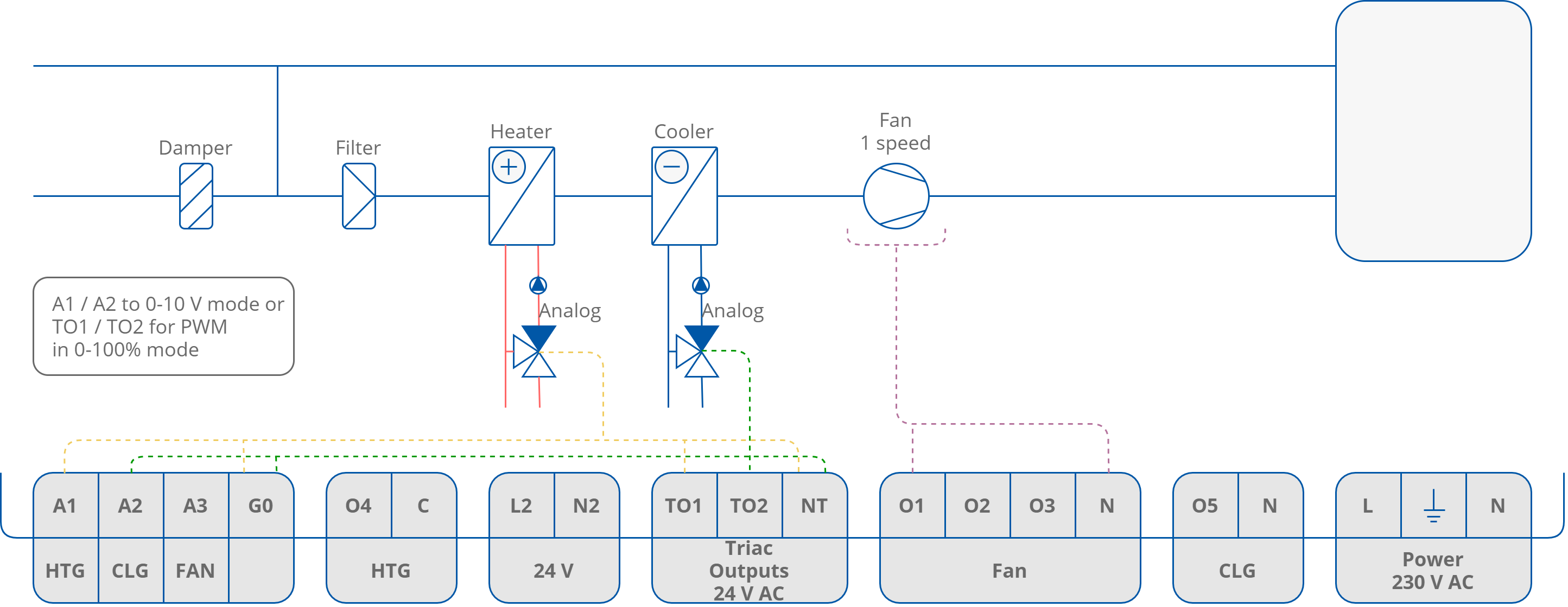

4-Pipe Installation with 1 Stage Analog Controlled Heating and Cooling and 1 Speed Fan

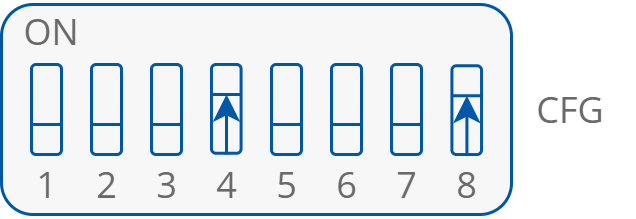

50a DIP config.png

50 4-pipe 1 stage an HTG_CLG 1 speed fan.png

4-pipe installation with 1 stage analog controlled heating and cooling and 1 speed fan

4-Pipe Installation with 1 Stage Analog Controlled Heating and Cooling and 2 Speeds Fan

51a DIP config.png

51 4-pipe 1 stage an HTG_CLG 2 speeds fan.png

4-pipe installation with 1 stage analog controlled heating and cooling and 2 speeds fan

4-Pipe Installation with 1 Stage Analog Controlled Heating and Cooling and 3 Speeds Fan

52a DIP config.png

52 4-pipe 1 stage an HTG_CLG 3 speeds fan.png

4-pipe installation with 1 stage analog controlled heating and cooling and 3 speeds fan

2-Pipe Installation with 1 Stage Digital Controlled Cooling and Analog Controlled Fan

53a DIP config.png

53 2-pipe 1 stage dig CLG an fan.png

2-pipe installation with 1 stage digital controlled cooling and analog controlled fan

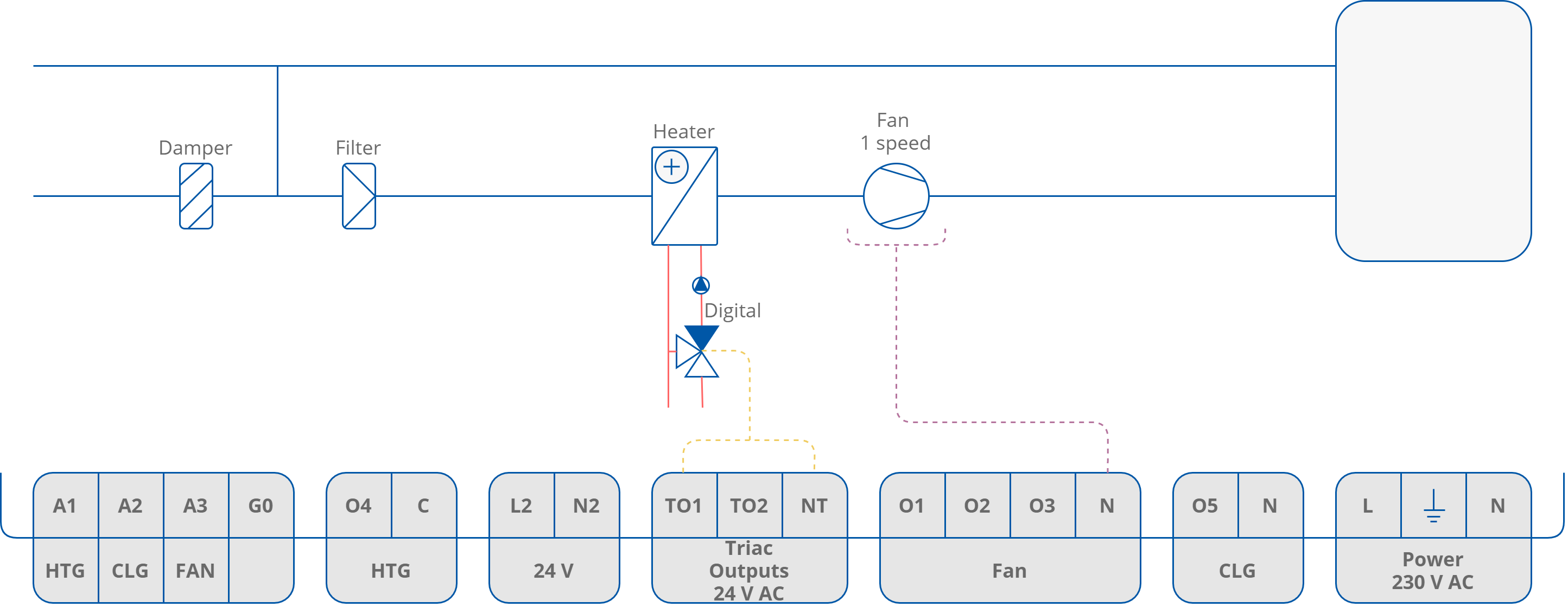

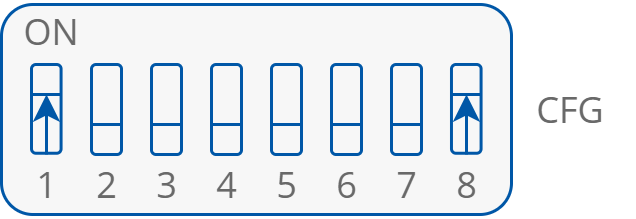

2-Pipe Installation with 1 Stage Digital Controlled Heating and 1 Speed Fan

54a DIP config.png

54 2-pipe 1 stage dig HTG 1 speed fan.png

2-pipe installation with 1 stage digital controlled heating and 1 speed fan

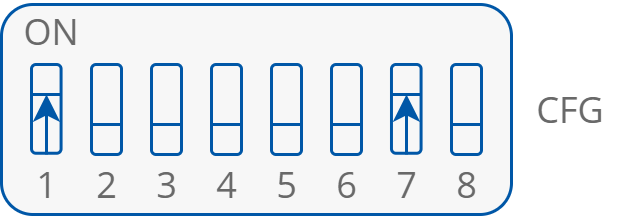

2-Pipe Installation with 1 Stage Digital Controlled Cooling and 2 Speeds Fan

55a DIP config.png

55 2-pipe 1 stage dig CLG 2 speeds fan.png

2-pipe installation with 1 stage digital controlled cooling and 2 speeds fan

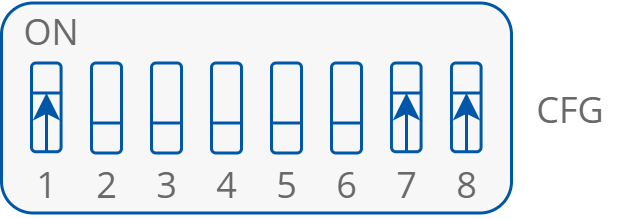

2-Pipe Installation with 1 Stage Digital Controlled Heating and 3 Speeds Fan

56a DIP config.png

56 2-pipe 1 stage dig HTG 3 speeds fan.png

2-pipe installation with 1 stage digital controlled heating and 3 speeds fan

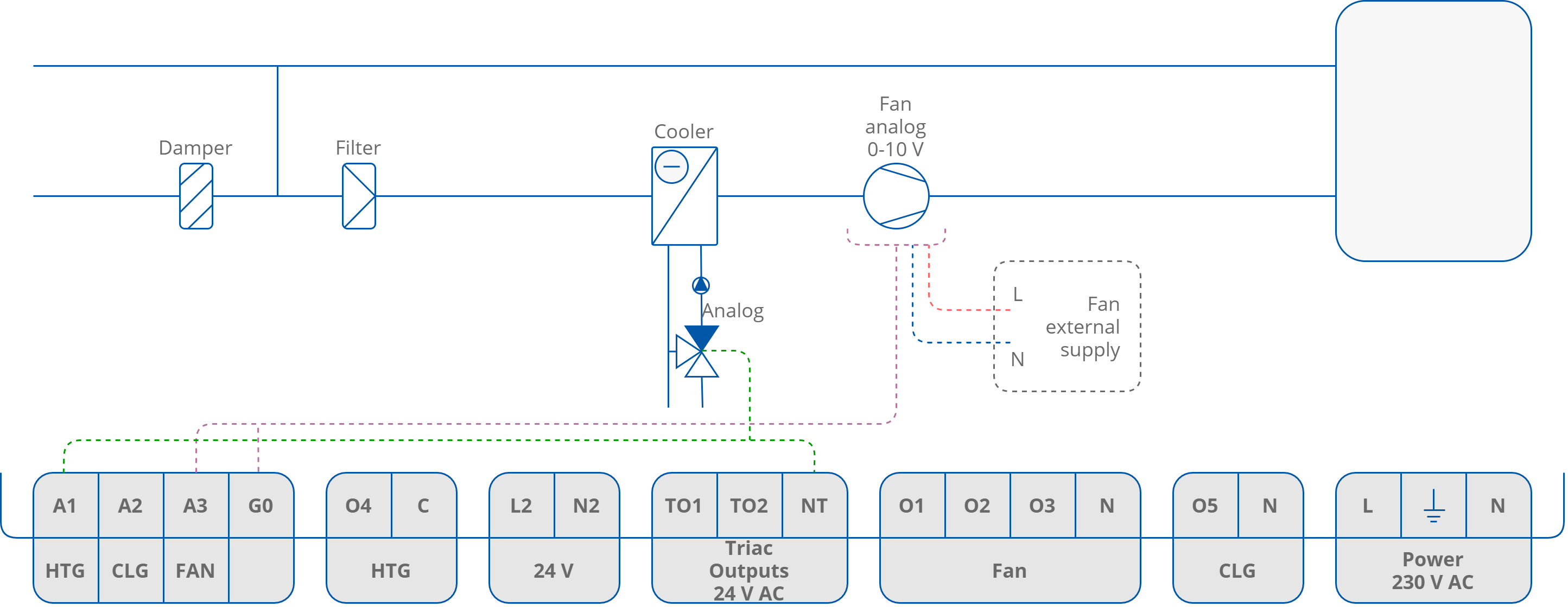

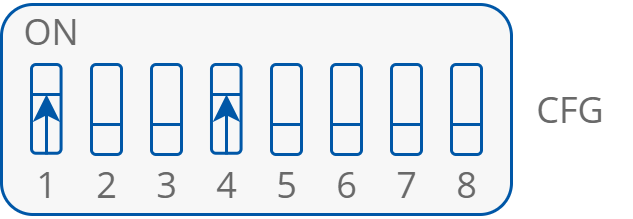

2-Pipe Installation with 1 Stage Analog Controlled Cooling and Analog Controlled Fan

57a DIP config.png

57 2-pipe 1 stage an CLG an fan.png

2-pipe installation with 1 stage analog controlled cooling and analog controlled fan

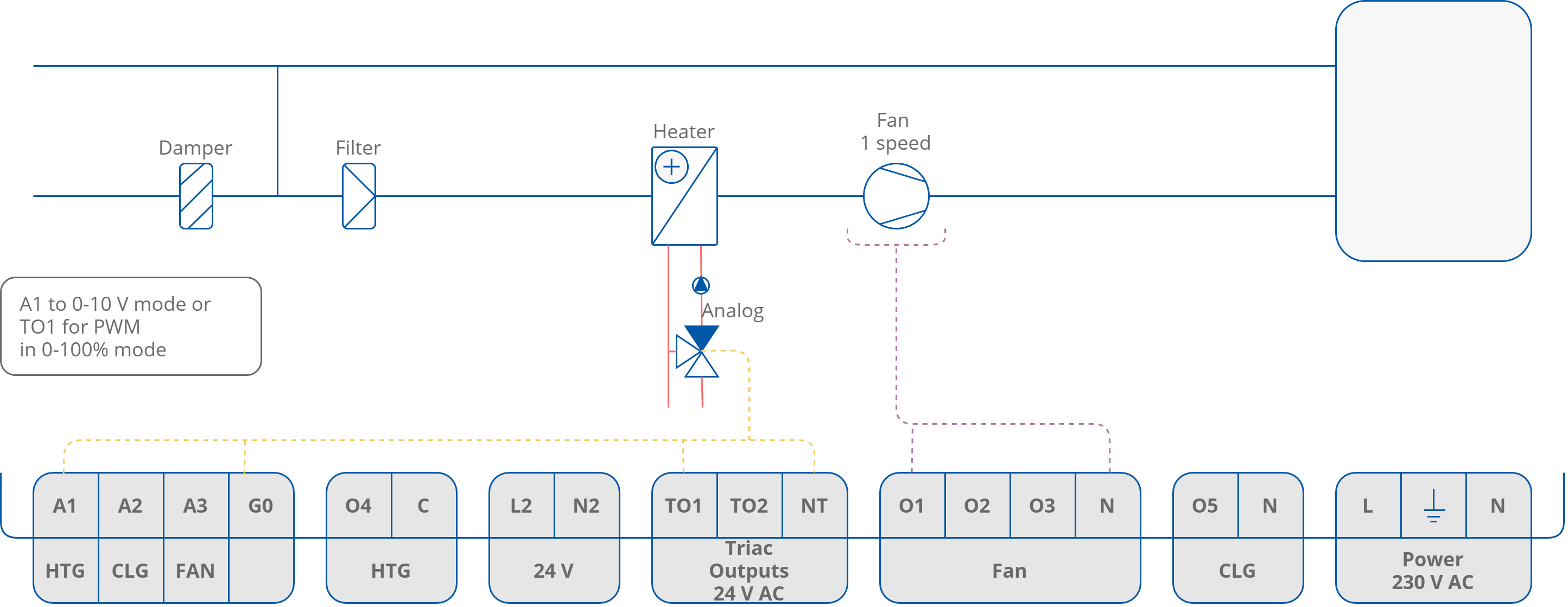

2-Pipe Installation with 1 Stage Analog Controlled Heating and 1 Speed Fan

58a DIP config.png

58 2-pipe 1 stage an HTG 1 speed fan.png

2-pipe installation with 1 stage analog controlled heating and 1 speed fan

2-Pipe Installation with 1 Stage Analog Controlled Cooling and 2 Speeds Fan

59a DIP config.png

59 2-pipe 1 stage an CLG 2 speeds fan.png

2-pipe installation with 1 stage analog controlled cooling and 2 speeds fan

2-Pipe Installation with 1 Stage Analog Controlled Heating and 3 Speeds Fan

60a DIP config.png

60 2-pipe 1 stage an HTG 3 speeds fan.png

2-pipe installation with 1 stage analog controlled heating and 3 speeds fan
