Palette Structure
The iSMA_CONTROLLI_Library palette is structured into folders by functionalities, and each main folder has subfolders categorized by solutions to facilitate identification of a required device. The main folders of the palette are the following:
ModbusAsync: contains device components and pre-configured network points for iC devices working in the Modbus Acync network;
ModbusTCPGateway: contains device components and pre-configured network points for iC devices working as the Modbus TCP gateway;
ModbusTCP: contains device components and pre-configured network points for iC devices working in the Modbus TCP network;
Components: contains components including all digital inputs/outputs (or inputs/outputs working in the digital mode) for the available devices;
BACnetNetwork: contains device components and pre-configured network points for iC devices working in the BACnet network.

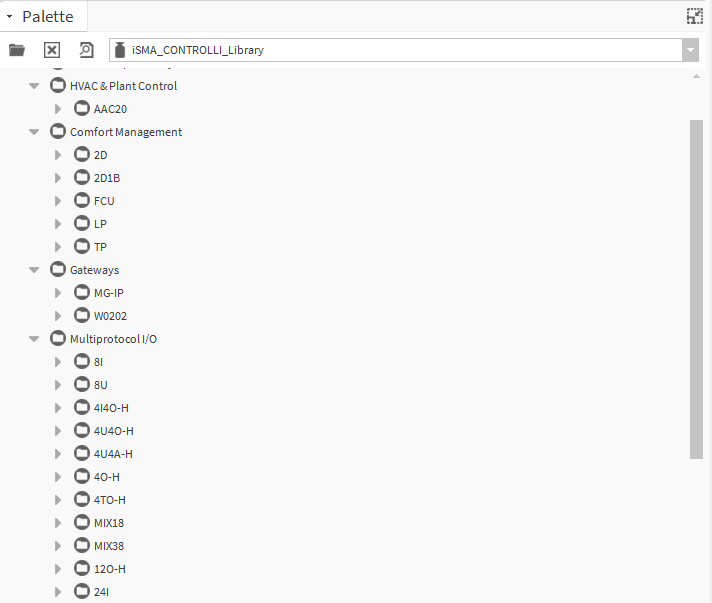

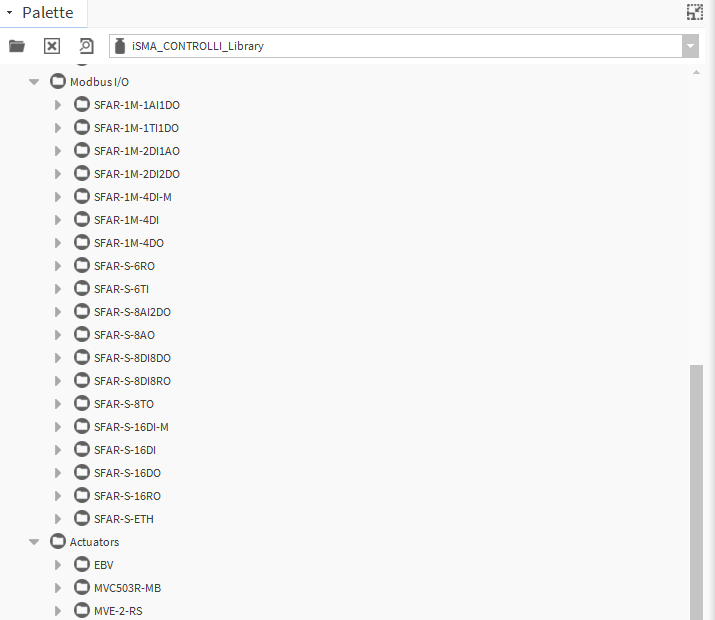

Modbus Devices
Components and points for the Modbus protocol are available for the following devices:
- iSMA-B-AAC20 (iSMA solution: HVAC & Plant Control);
- iSMA-B-2D (Comfort Management);
- iSMA-B-2D1B (Comfort Management);
- iSMA-B-FCU (Comfort Management);
- iSMA-B-LP (Comfort Management);
- Touch Point (Comfort Management);
- iSMA-B-MG-IP (Gateways);
- iSMA-B-W0202 (Gateways);
- iSMA-B-8I (Multiprotocol I/O Modules);
- iSMA-B-8U (Multiprotocol I/O Modules);
- iSMA-B-4I4O-H (Multiprotocol I/O Modules);
- iSMA-B-4U4O-H (Multiprotocol I/O Modules);
- iSMA-B-4U4A-H (Multiprotocol I/O Modules);
- iSMA-B-4O-H (Multiprotocol I/O Modules);
- iSMA-B-4TO-H (Multiprotocol I/O Modules);
- iSMA-B-MIX18 (Multiprotocol I/O Modules);
- iSMA-B-MIX38 (Multiprotocol I/O Modules);
- iSMA-B-12O-H (Multiprotocol I/O Modules);
- iSMA-B-24I (Multiprotocol I/O Modules);
- SfAR-1M-1AI1DO (Modbus I/O Modules);
- SfAR-1M-1TI1DO (Modbus I/O Modules);
- SfAR-1M-2DI1AO (Modbus I/O Modules);
- SfAR-1M-2DI2DO (Modbus I/O Modules);
- SfAR-1M-4DI (Modbus I/O Modules);
- SfAR-1M-4DI-M (Modbus I/O Modules);
- SfAR-1M-4DO (Modbus I/O Modules);
- SfAR-S-6RO (Modbus I/O Modules);
- SfAR-S-6TI (Modbus I/O Modules);
- SfAR-S-8AI2DO (Modbus I/O Modules);
- SfAR-S-8AO (Modbus I/O Modules);
- SfAR-S-8DI8DO (Modbus I/O Modules);
- SfAR-S-8DI8RO (Modbus I/O Modules);
- SfAR-S-8TO (Modbus I/O Modules);
- SfAR-S-16D (Modbus I/O Modules)I;
- SfAR-S-16DI-M (Modbus I/O Modules);
- SfAR-S-16DO (Modbus I/O Modules);
- SfAR-S-16RO (Modbus I/O Modules);
- SfAR-S-ETH (Modbus I/O Modules);
- EBV (Actuators);
- MVC503R-MB (Actuators);
- MVE-2-RS (Actuators).

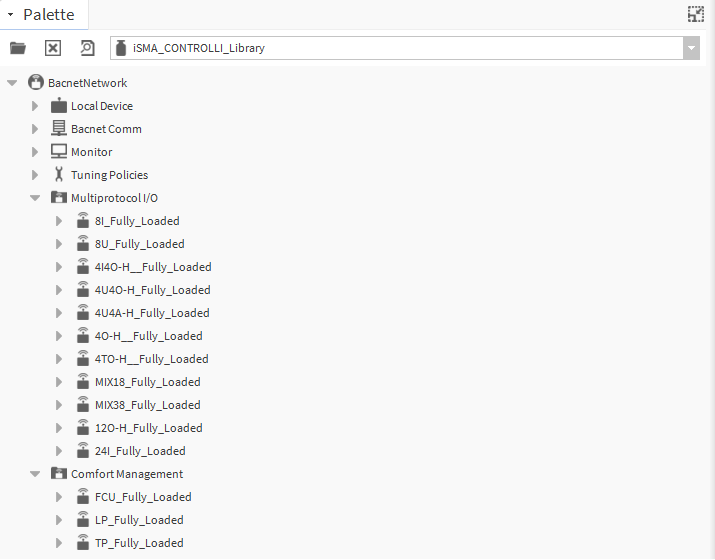

BACnet Devices
Components and points for the BACnet protocol are available for the following devices:
- iSMA-B-8I (iSMA solution: Multiprotocol I/O Modules);
- iSMA-B-8U (Multiprotocol I/O Modules);
- iSMA-B-4I4O-H (Multiprotocol I/O Modules);
- iSMA-B-4U4O-H (Multiprotocol I/O Modules);
- iSMA-B-4U4A-H (Multiprotocol I/O Modules);
- iSMA-B-4O-H (Multiprotocol I/O Modules);
- iSMA-B-4TO-H (Multiprotocol I/O Modules);
- iSMA-B-MIX18 (Multiprotocol I/O Modules);
- iSMA-B-MIX38 (Multiprotocol I/O Modules);
- iSMA-B-12O-H (Multiprotocol I/O Modules);
- iSMA-B-24I (Multiprotocol I/O Modules);
- iSMA-B-FCU (Comfort Management);
- iSMA-B-LP (Comfort Management);
- Touch Point (Comfort Management).
