iSMA-B-2D

For the iSMA-B-2D Light Controller, the iClib palette includes input points for controlling light switches and DALI networks, PIR sensors in the LLC mode, motion sensors, and presence detectors and output points for controlling light outputs.


Points for the iSMA-B-2D controller

iSMA-B-2D1B

For the iSMA-B-2D1B Light and Blind Controller, the iClib palette includes input points for controlling light switches and DALI networks, blind movement, motion sensors, and presence detectors and output points for controlling light and blind outputs.


Points for the iSMA-B-2D1B controller

iSMA-B-FCU

For the iSMA-B-FCU Fan Coil Unit controller, the iClib palette includes points for controlling temperature and fan, second stage heating/cooling, inputs and outputs management, LCD operating, and network settings.


Points for the iSMA-B-FCU controller

iSMA-B-LP

For the iSMA-B-LP room panel, the iClib palette includes points for controlling temperature, CO2, and humidity sensors, occupancy and fan menus settings, LCD and keypad settings, and time and device configuration.

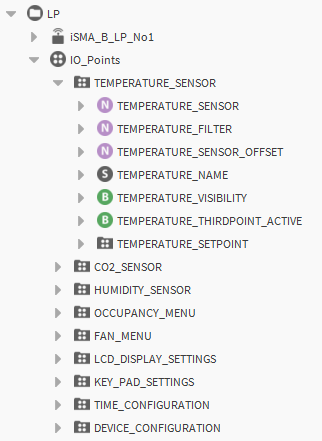

Points for the iSMA-B-LP panel

Touch Point

For the Touch Point panel, the iClib palette includes points for controlling temperature, CO2, and humidity sensors, occupancy and fan menus settings, LCD and keypad settings, and time and device configuration.

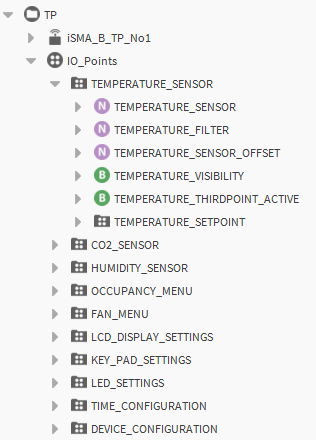

Points for the Touch Point panel

iSMA-B-MG-IP

For the MG-IP Meter Gateway, the iClib palette includes points for M-Bus network and module settings.


Points for the iSMA-B-MG-IP gateway

iSMA-B-W0202

For the iSMA-B-W0202 wireless module, the iClib palette includes points for inputs, outputs, and device configuration.


Points for the iSMA-B-W0202 module

MINI/MIX/MAX Modules

For the iSMA-B-MINI/MIX/MAX modules, the iClib palette includes points for inputs, outputs, and device configuration.

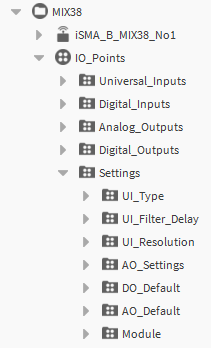

Points for the iSMA-B-MINI/MIX/MAX modules



Points for the iSMA-B-4TO-H module

SfAR-S/SfAR-1M

For SfAR-S and SfAR-1M Modbus modules, the iClib palette includes points for inputs, outputs, and device configuration.


Points for the SfAR-S-6TI module



Points for the SfAR-S-8AI2DO module



Points for the SfAR-S-8DI8DO module



Points for the SfAR-S-8TO module



Points for the SfAR-S-8AO module



Points for the SfAR-S-ETH module

EBV

For the EBV actuators, the iClib palette includes points for device configuration, alarms and diagnostics configuration, input points for modulating control and output points for feedback output signal, configuration of the dynamic balancing functions and temperature control loop, and for energy functions and power control.


Points for the EBV valves

MVC503R-MB

For MVC actuators, the iClib palette includes points for device configuration, alarms and diagnostics configuration, and inputs and outputs configuration.


Points for the MVC actuators

MVE-2-RS

For the MVE actuators, the iClib palette includes points for device configuration, alarms and diagnostics configuration, input points for modulating control and output points for feedback output signal, configuration of setpoints, temperature sensors, and temperature control loop, and for energy functions.


Points for the MVE actuators
