iSMA-B-AAC20 Visualization Web Server User Manual

Introduction

This user manual contains information about the visualization web server for the iSMA-B-AAC20 controllers.

The visualization web server allows to present basic information about an application controlled by the iSMA-B-AAC20 controllers. The web server is based on .html files and works together with an existing built-in web server administrator platform. Visualizations can be customized and must be loaded separately.
The visualization web server is composed of a main page and up to four subpages intended for time schedules control.

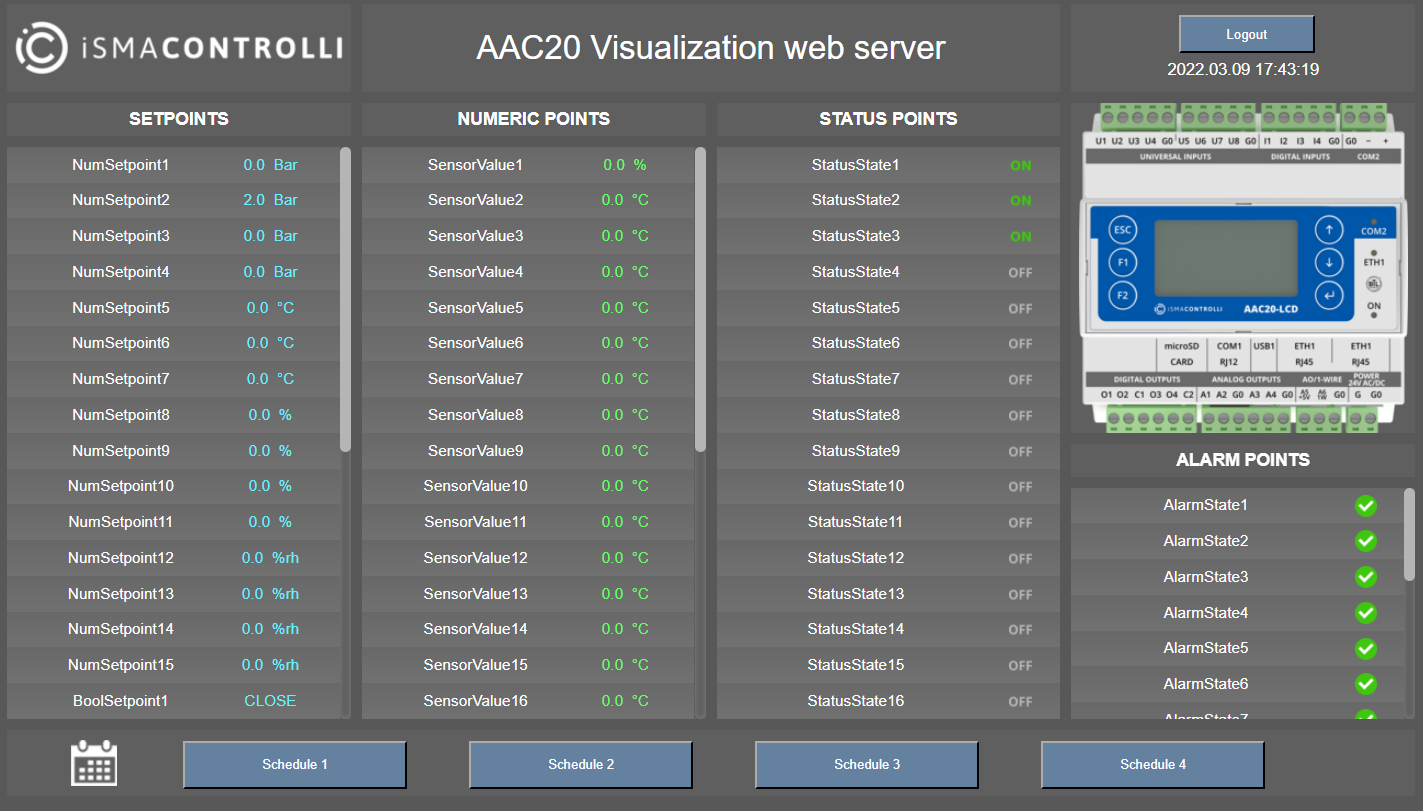

Main page of the visualization web server

Revision History

Rev.

Date

Description

1.1

17 Apr 2023

Improvements:

added description of the ModbusNumericSchedule and ModbusBooleanSchedule components;
enhanced description of using the Visualization demo application;
enhanced description of the Visualization web server view;
editorial corrections.

1.0

28 Feb 2022

First edition

Revision history

Overview

On the default main page there are 4 containers, which can be fully adjusted with the Visualization_configurator.xlsm file:

setpoints;
numeric points;
status points;
alarm points.

There are also 4 buttons opening additional subpages, responsible for schedules, which types (numeric or Boolean) can also be configured using the iSMA Tool software.

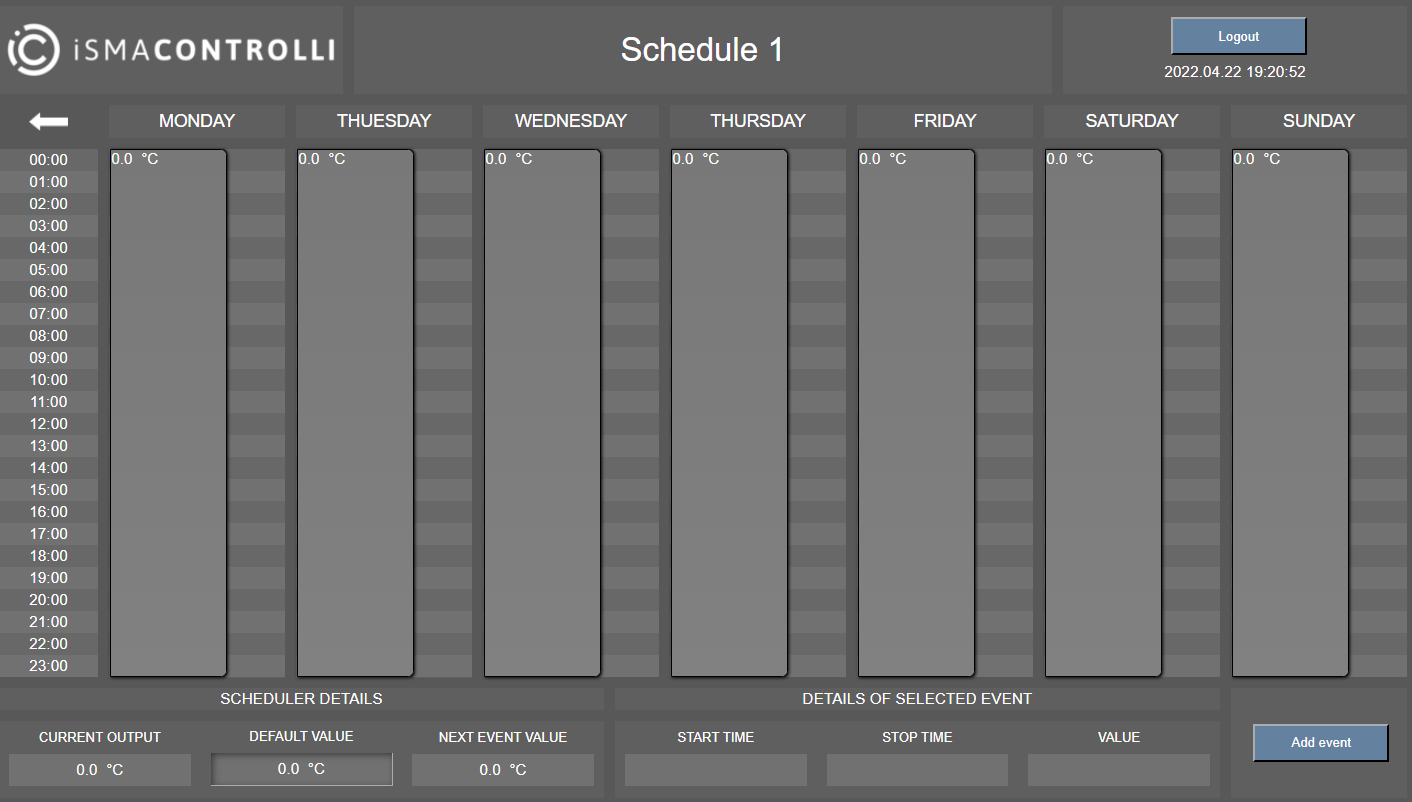

Schedule view of visualization
