Inputs and Outputs

The iSMA-B-W0202 module is equipped with:

• 2 special inputs;

• 2 digital outputs.

Special Inputs

Voltage Measurement (0-10 V)

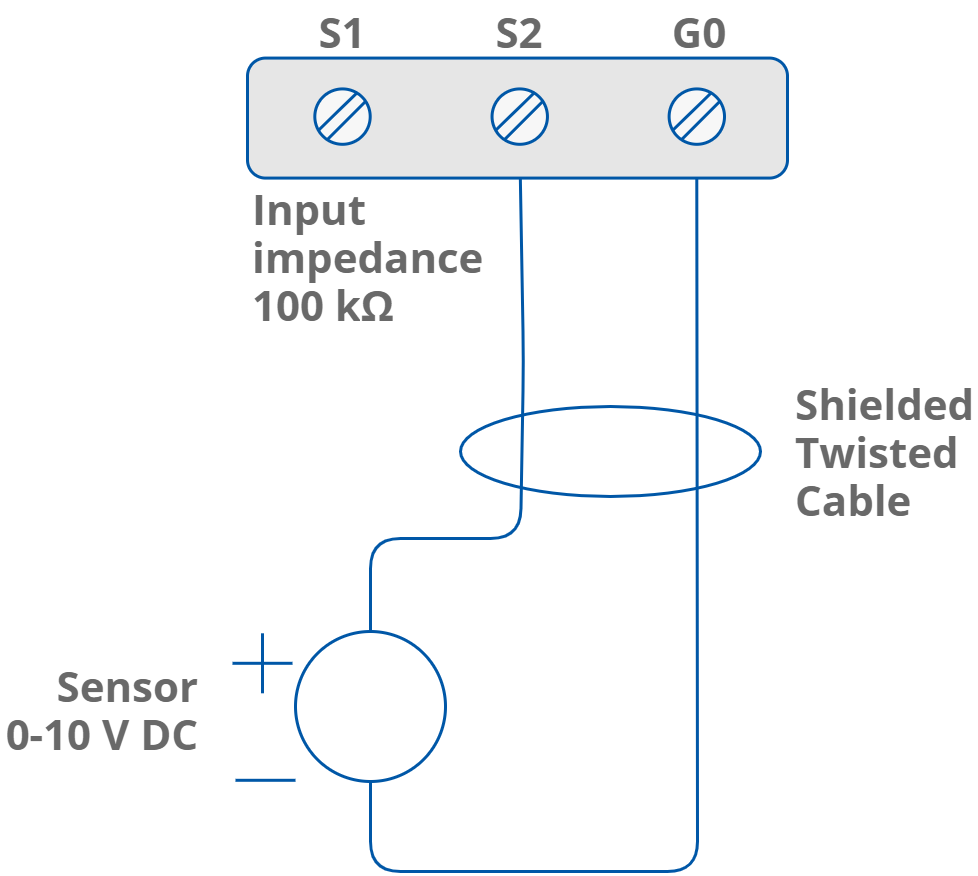

A special input voltage connection

Temperature Measurement

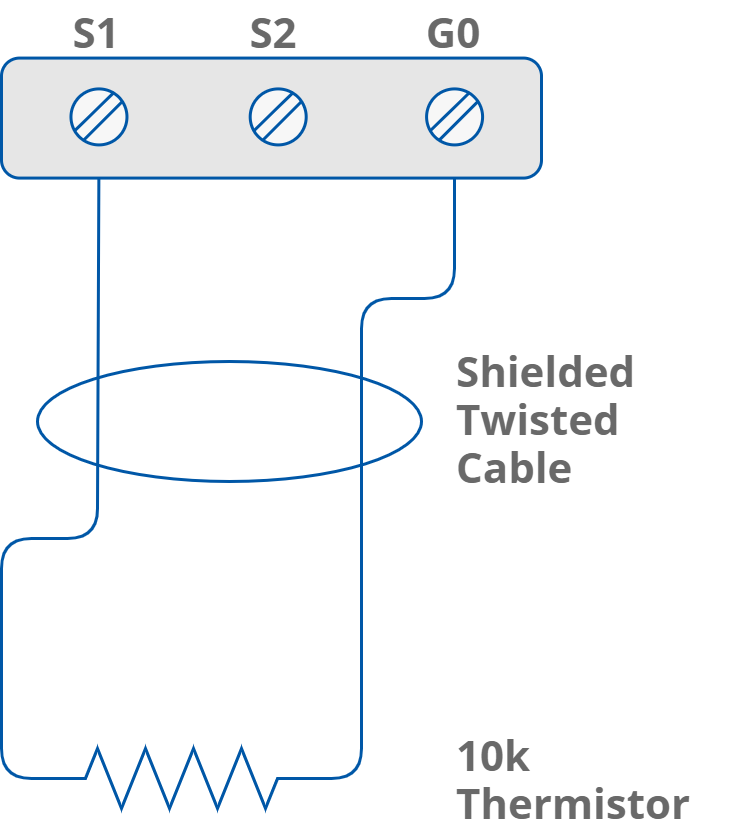

A special input temperature connection

Dry Contact

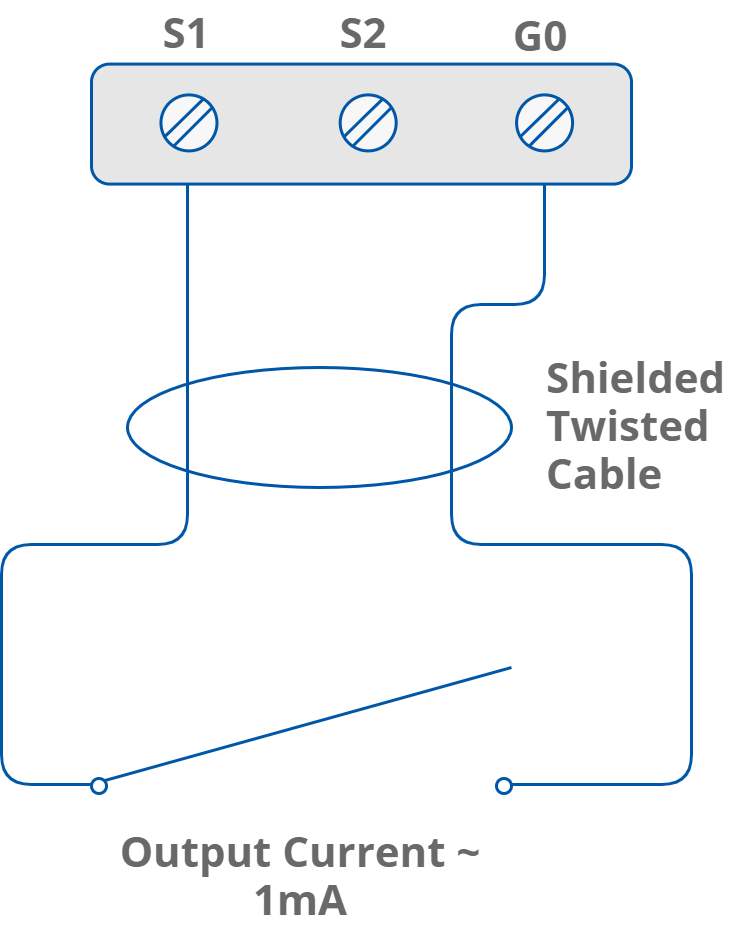

A special input dry contact connection

Digital Outputs

Solenoid Valve

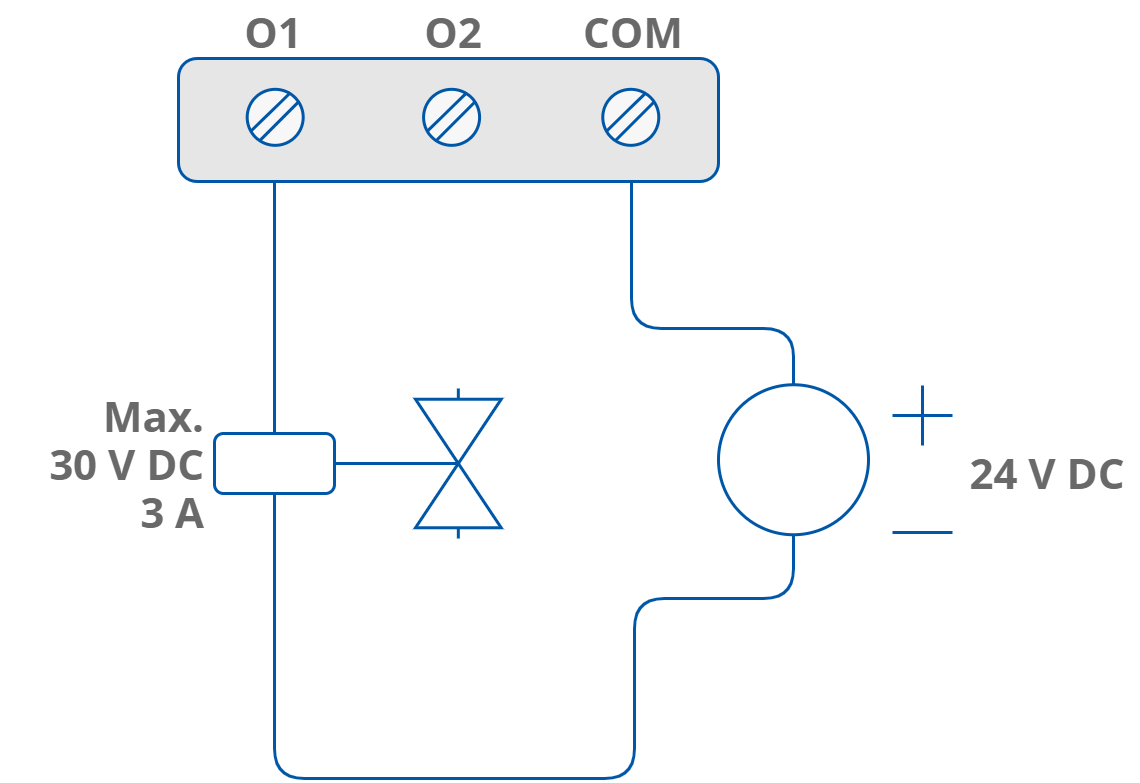

A solenoid valve connection

Resistive Load

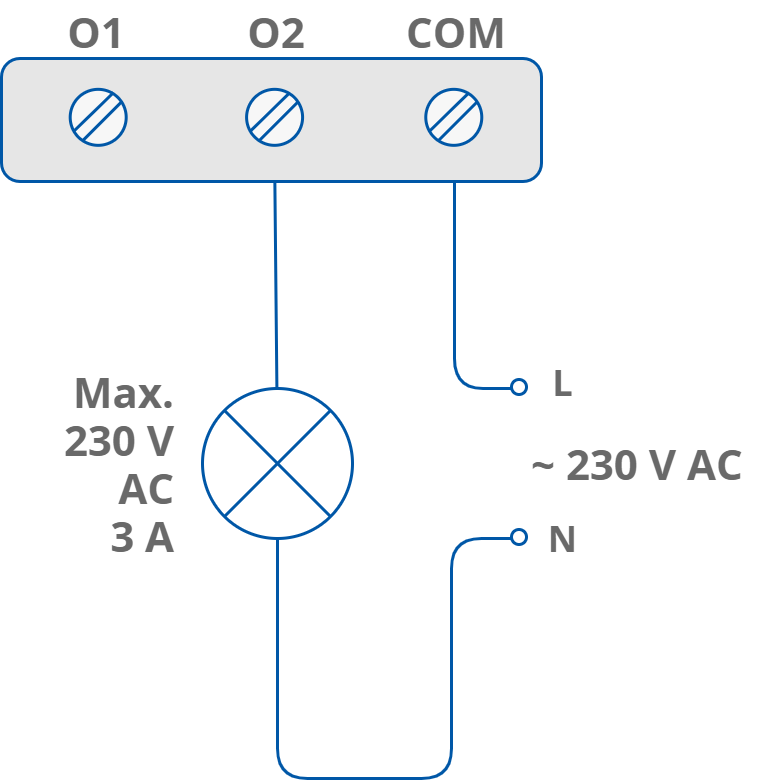

A resistive load connection
