Hardware Specification

The RAC18-IP is equipped with:

• 18 inputs and outputs;
• 2 Ethernet fail-safe protected ports;
• RS485 interface (RJ45 and screwless connectors).

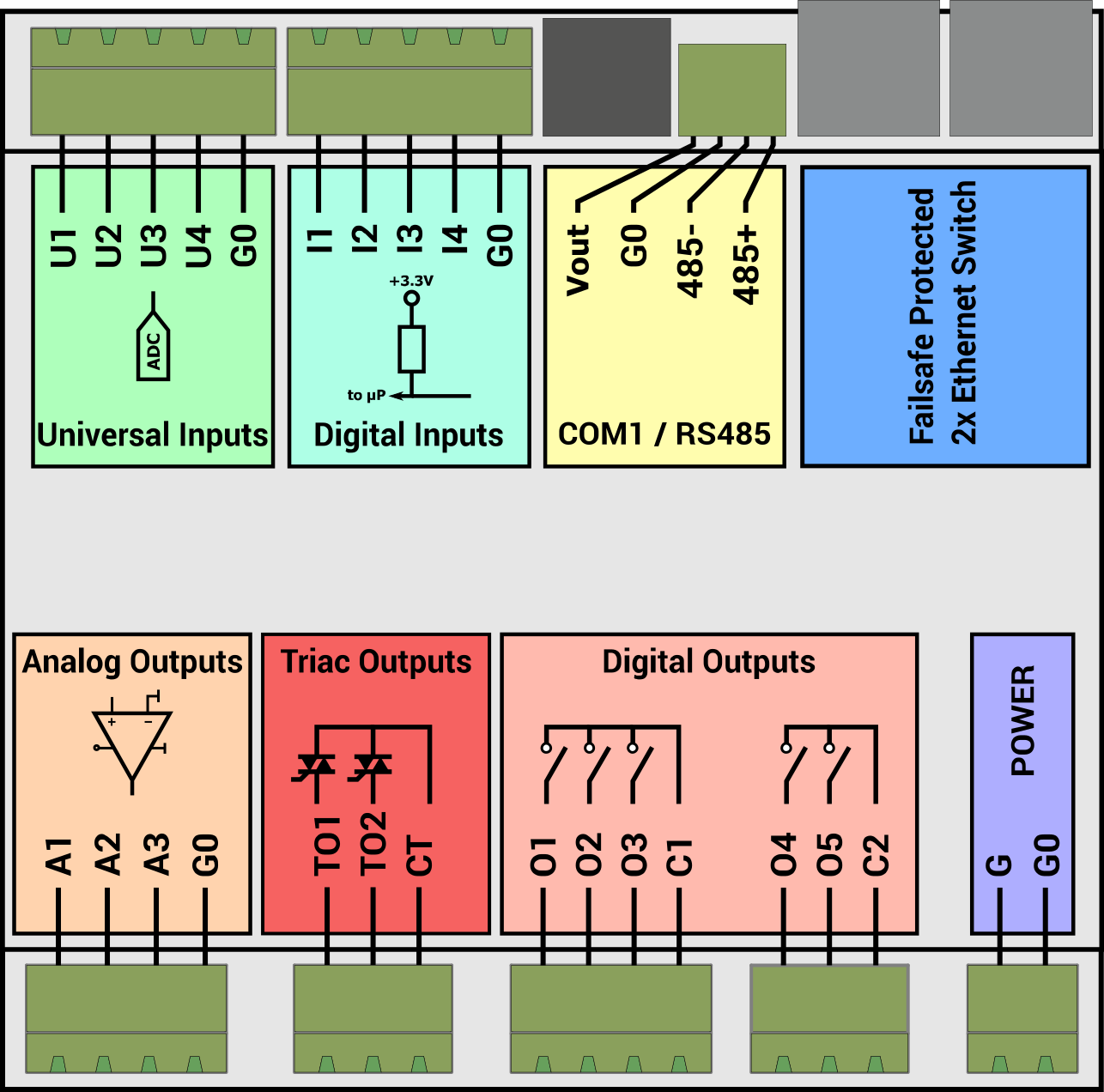

The RAC18-IP diagram

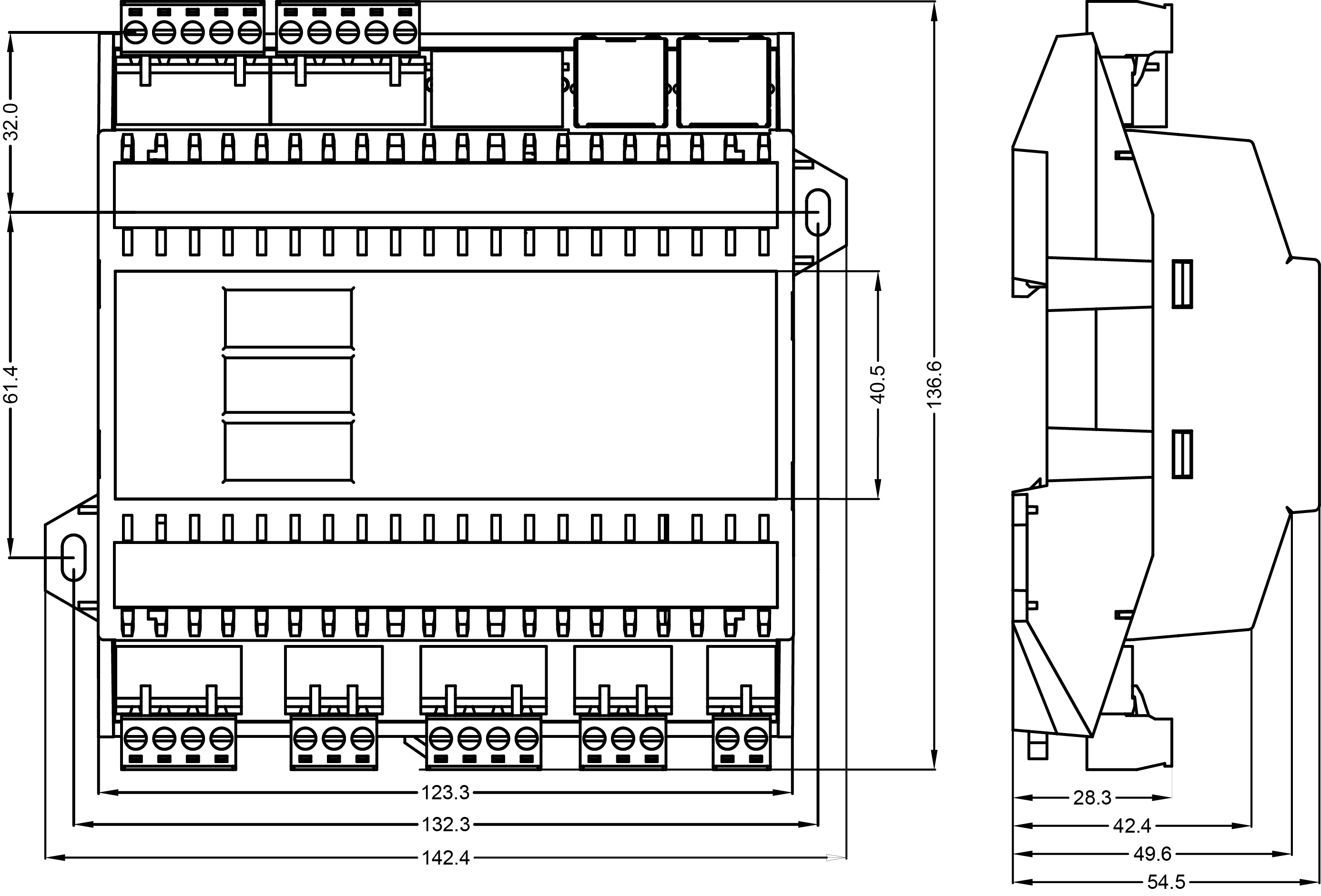

Dimensions

Dimensions in mm

Power Supply

The RAC18-IP device requires 24 V AC/DC power supply.

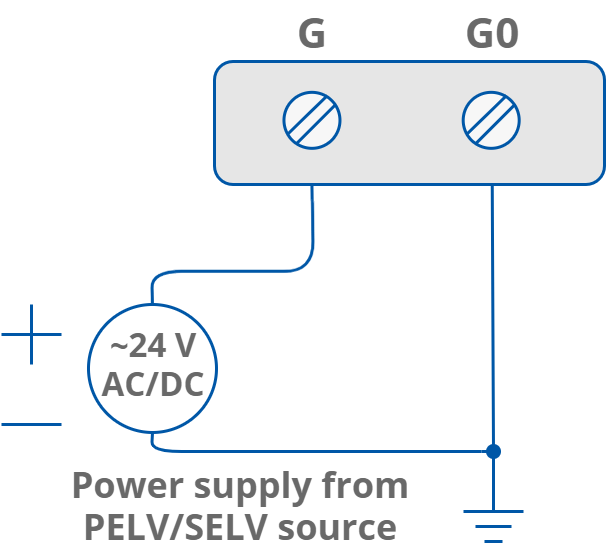

The power supply connection
