Installation

PA-LED10

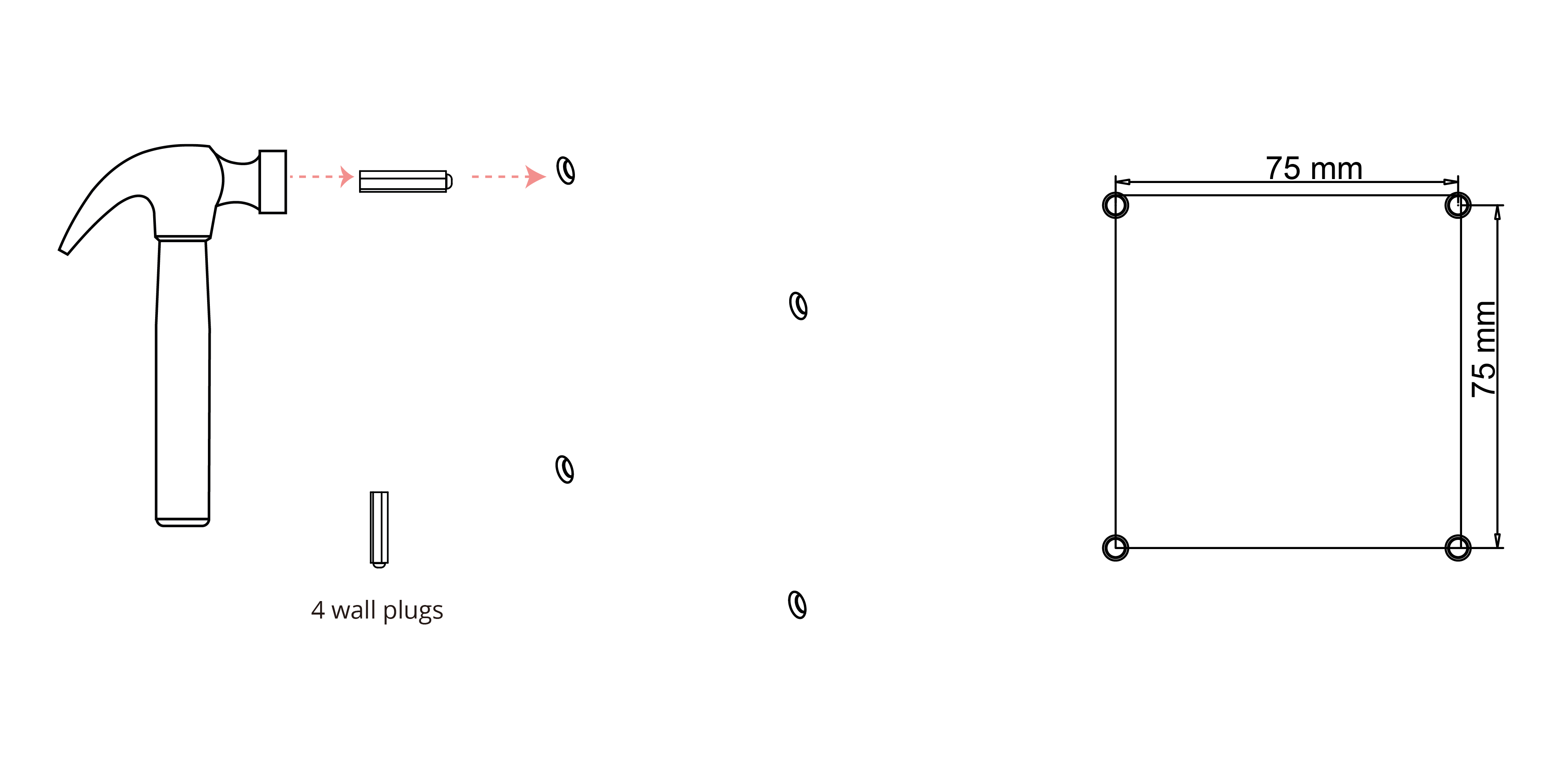

  • Insert 4 expansion plugs in the wall, 75 mm separate from each other:

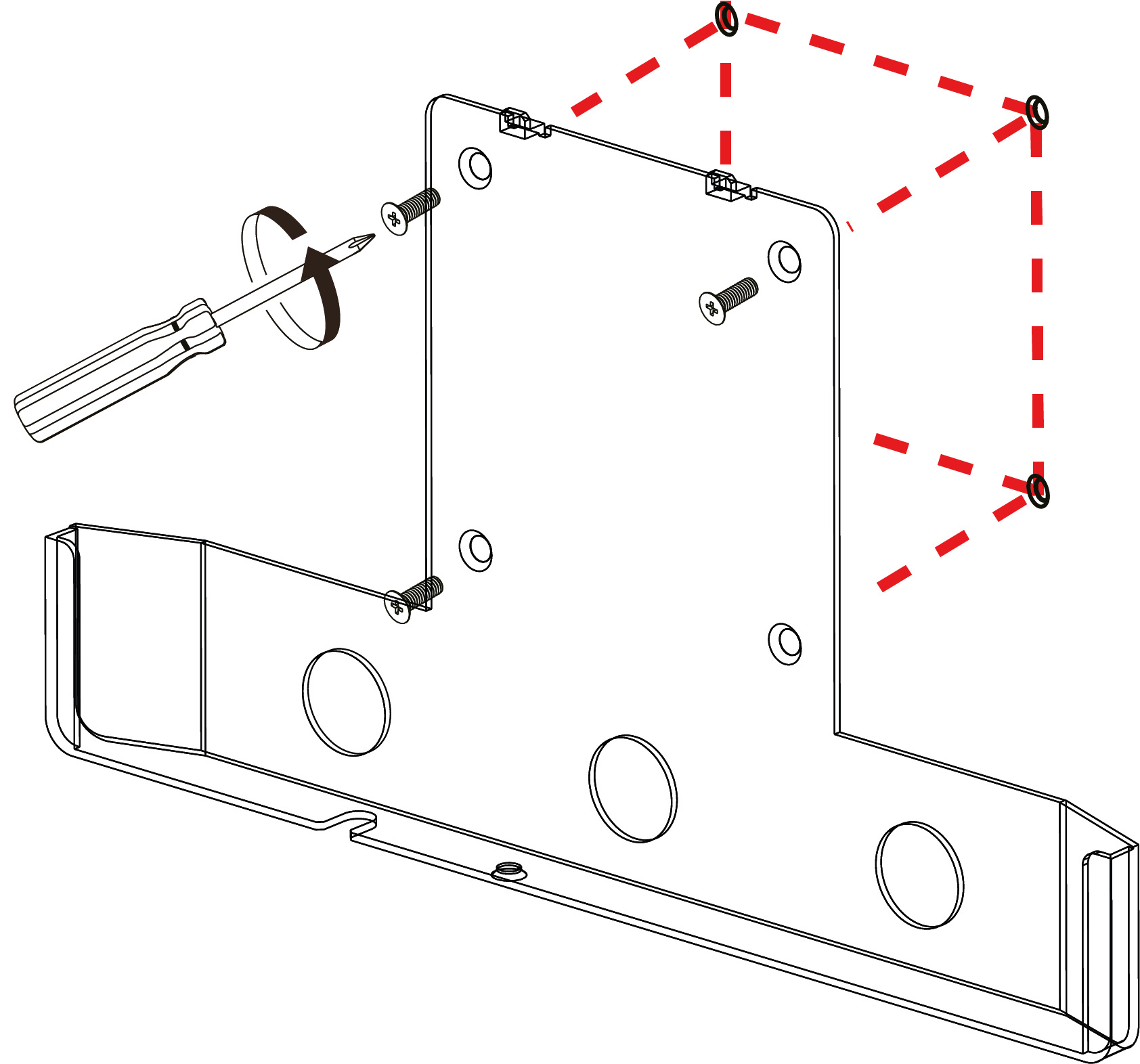

  • Screw the metal mounting plate to the expansion plugs:

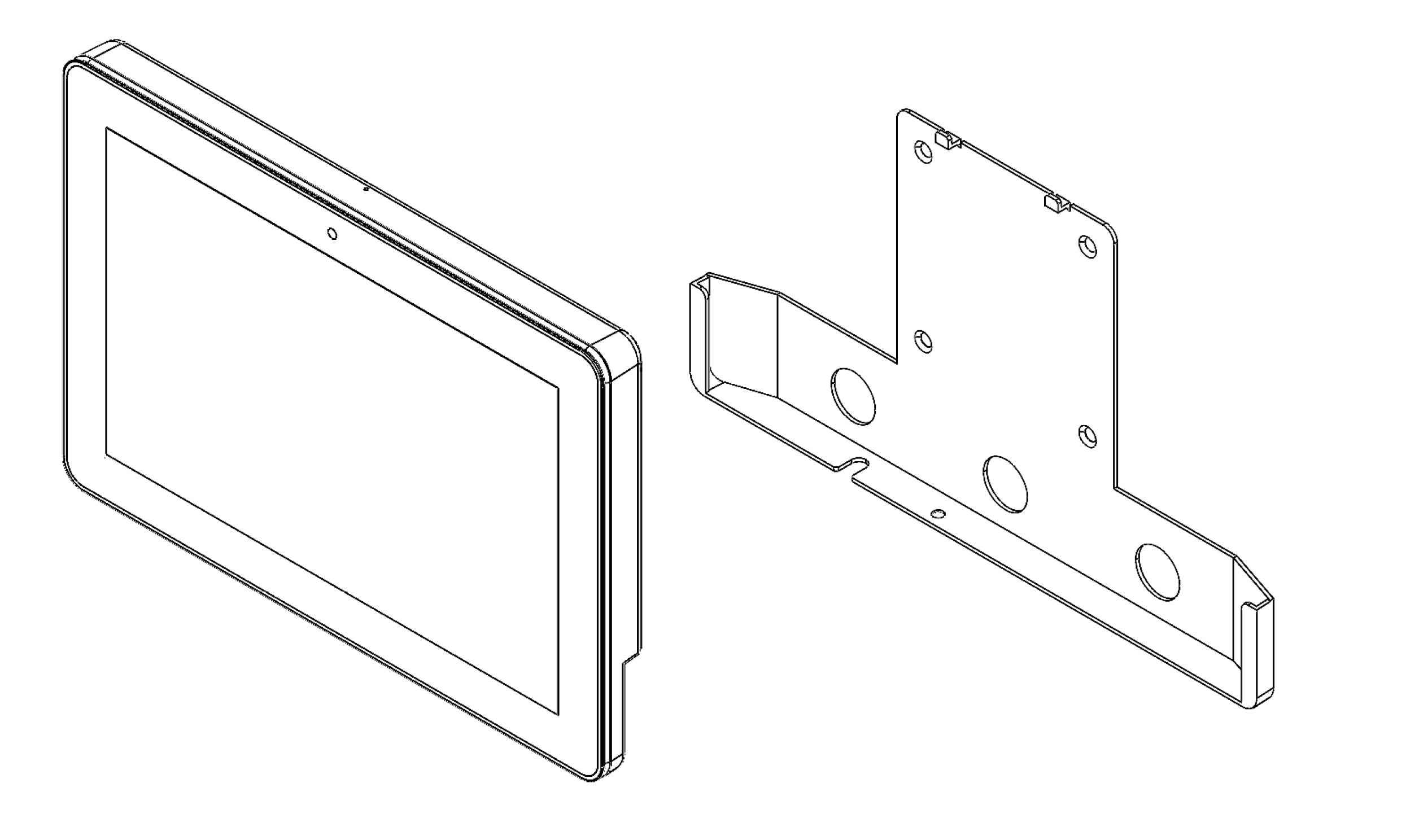

  • Connect the power/communication cables and mount the panel on the mounting plate:

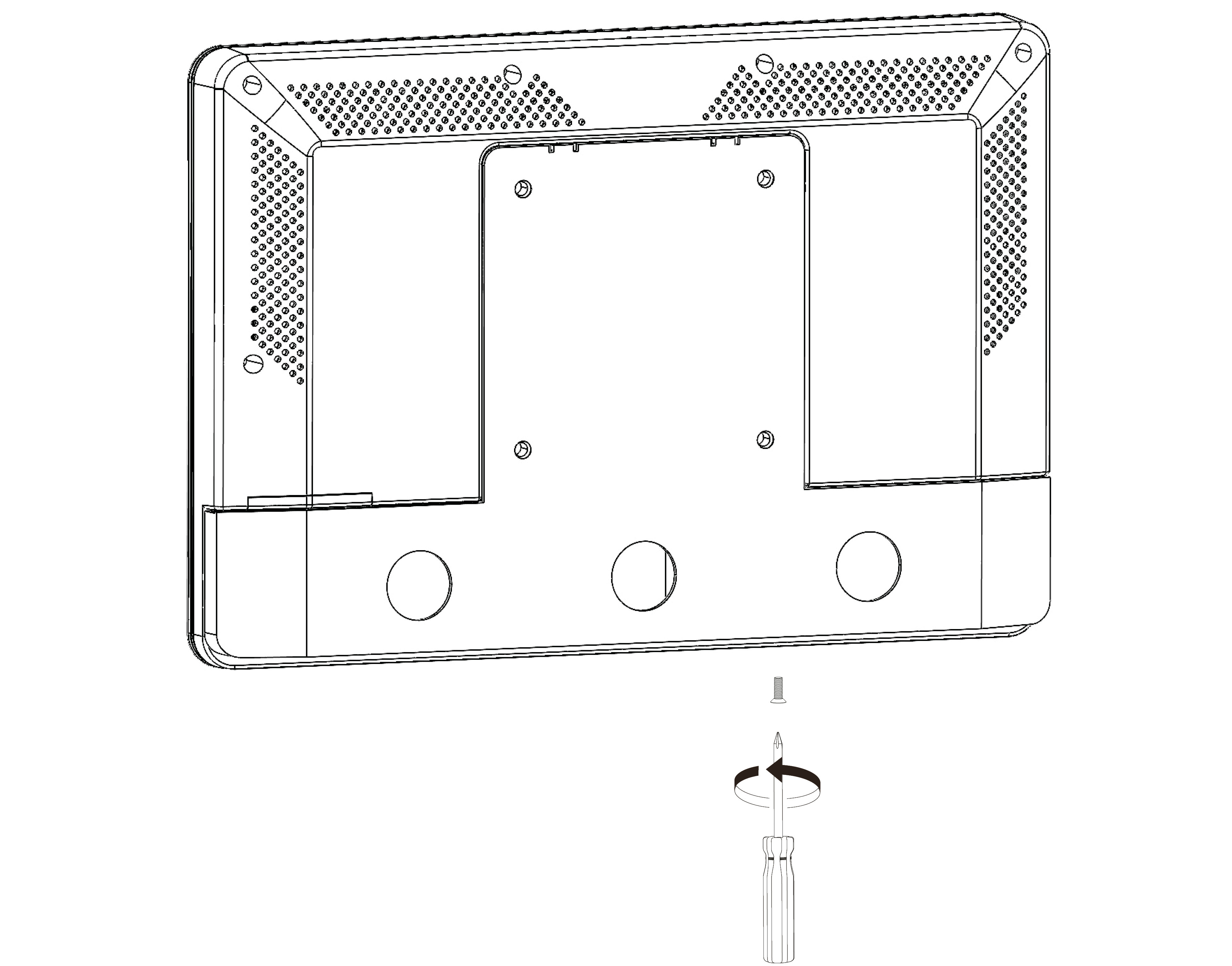

  • Screw in the retaining screw to secure the panel:



PA-LED13

  • Insert 4 expansion plugs in the wall, 75 mm separate from each other:

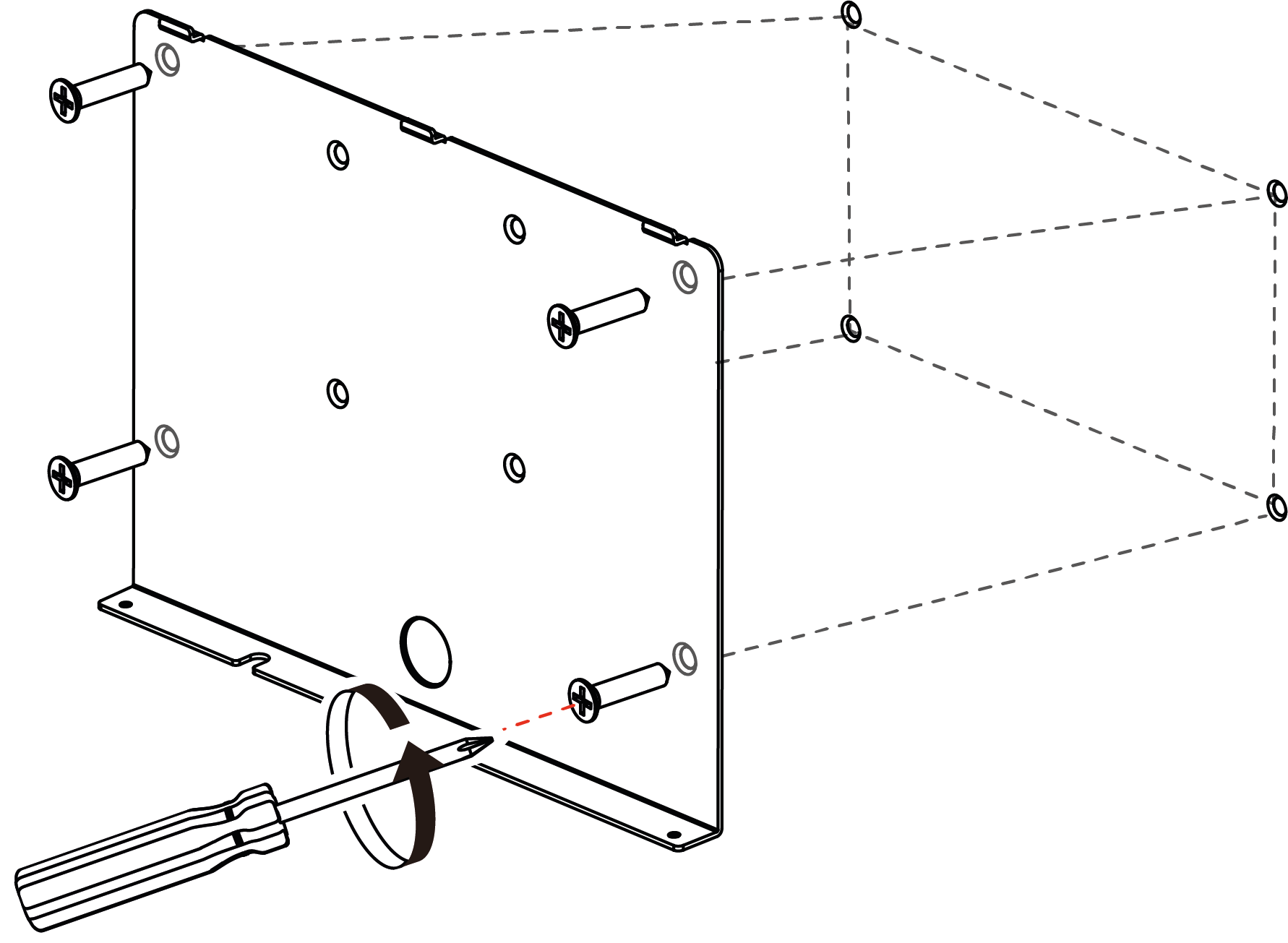

  • Screw in the retaining screw to secure the panel:

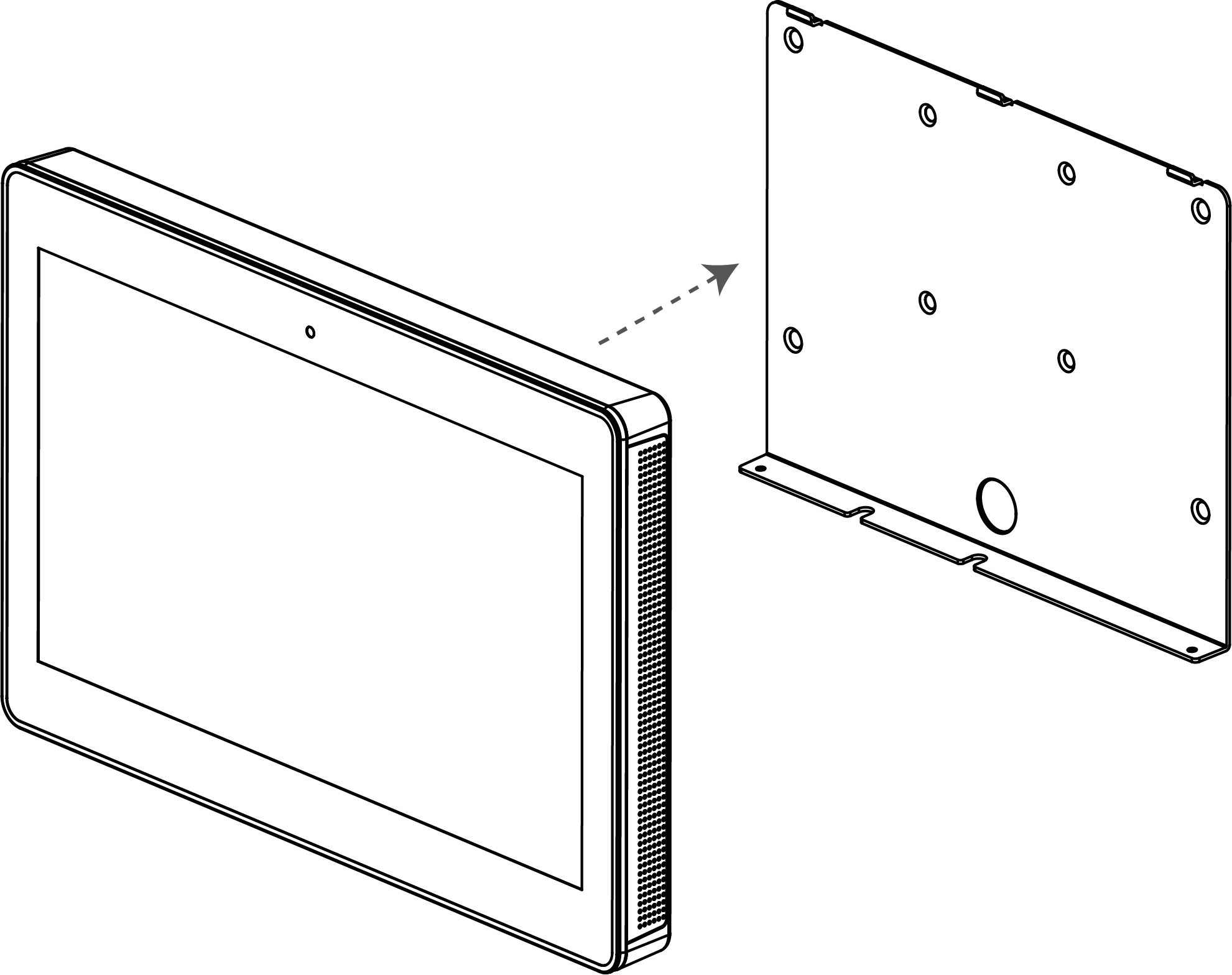

  • Connect the power/communication cables and mount the panel on the mounting plate:

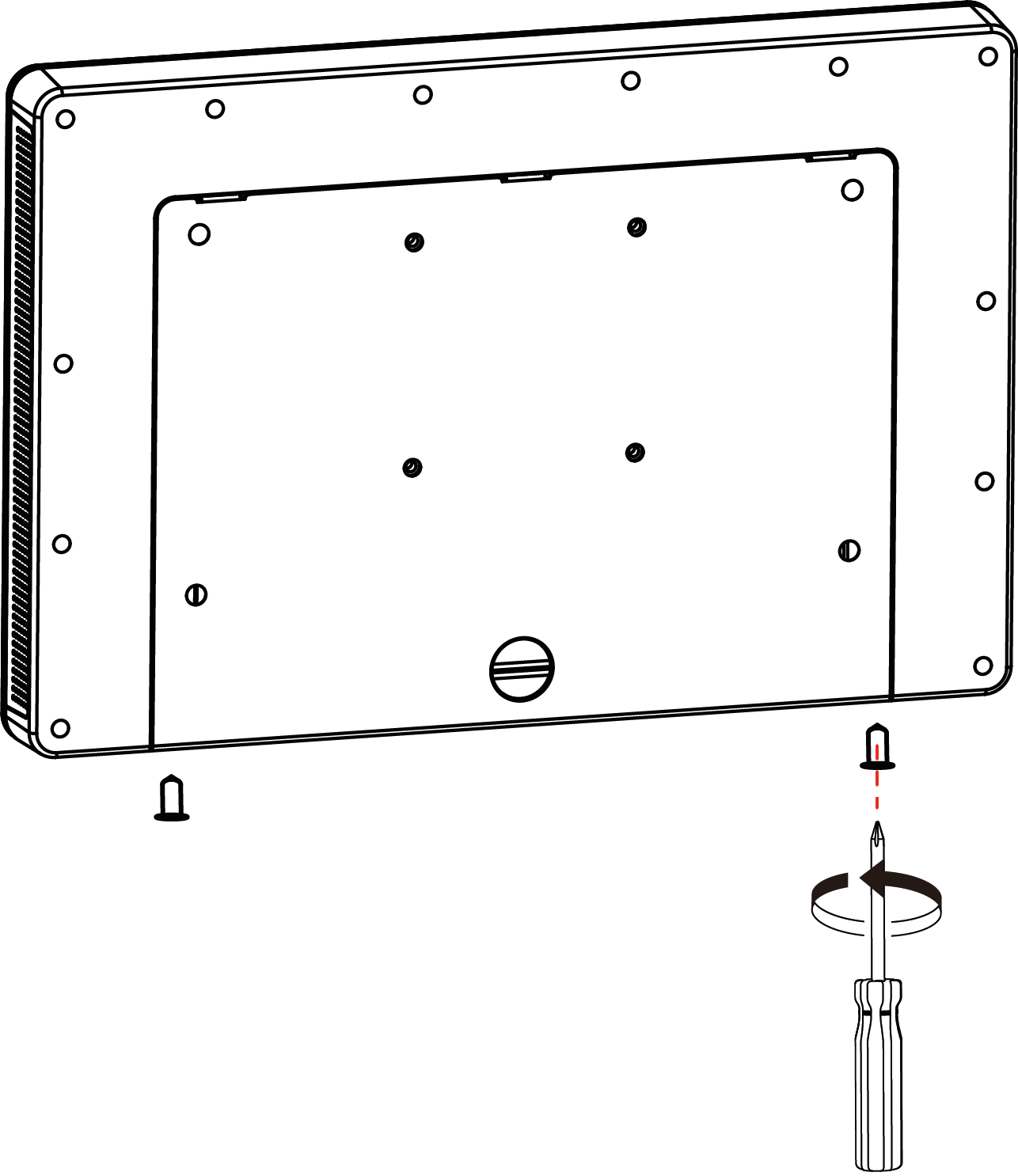

  • Screw in the retaining screw to secure the panel:
