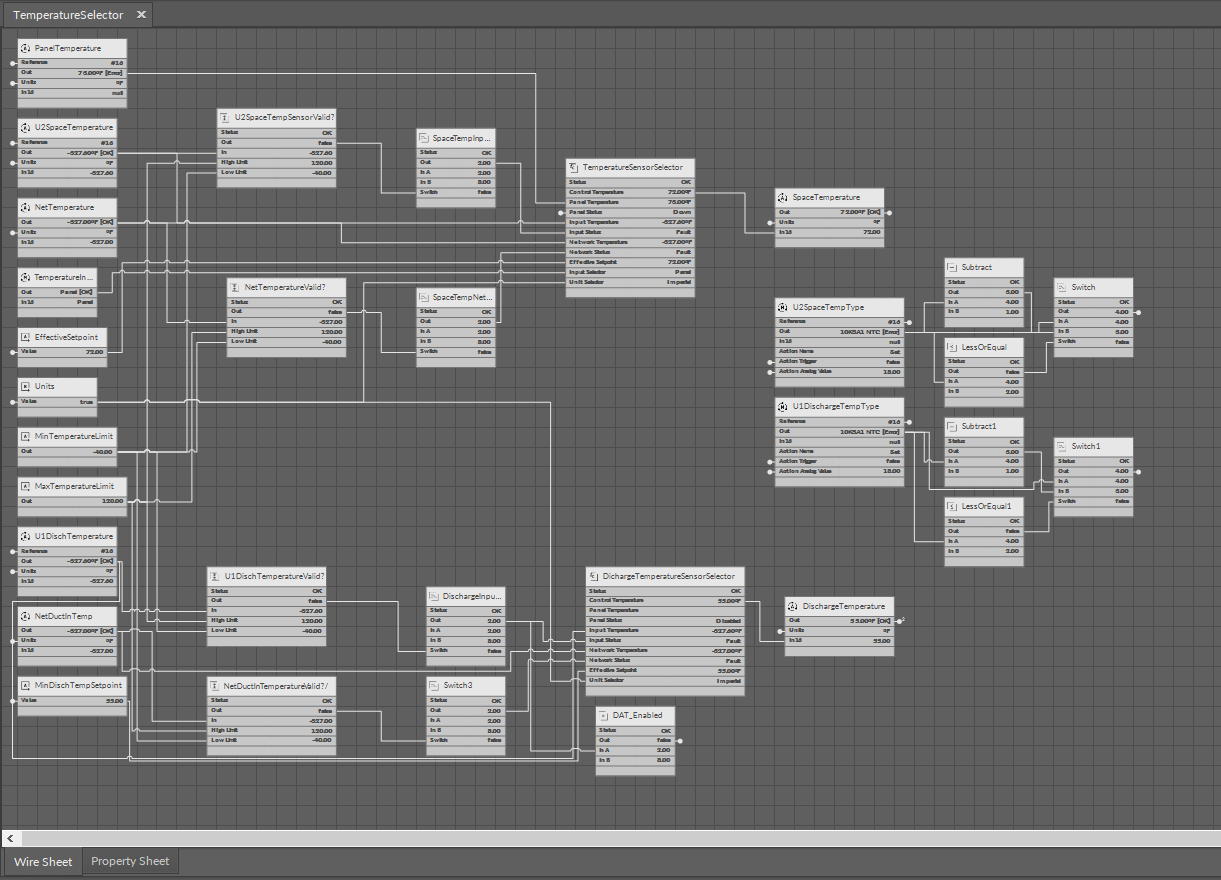

TemperatureSensorSelector

The TemperatureSensorSelector component is used to determine the temperature signal from the priority source, starting from the room panel, then the input, network, and constant value.

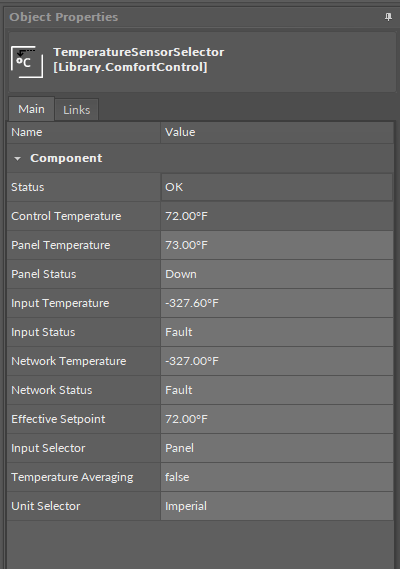

The TemperatureSensorSelector component has the following slots:

• Status: informs about the status of the component, if one of the Status-type slots in the component (Panel Status/Input Status/Network Status) has a null value, then the status is fault;

  • Available statues: OK, Fault, Disabled, Unlicensed, Down, Error;

• Control Temperature: calculates the control temperature based on selected and available temperature inputs (or using effective setpoint if not);

• Panel Temperature: receives the temperature read from the local room panel;

• Panel Status: shows the status of the local panel; if it is OK then the Panel Temperature is used, otherwise, it is ignored;

• Input Temperature: receives the temperature read from the universal input of the VAV controller;

• Input Status: shows the status of the universal input of the VAV controller; if it is OK then the Input Temperature is used, otherwise, it is ignored;

• Network Temperature: receives the temperature read from the network controller;

• Network Status: shows the status of the network controller; if it is OK then the Network Temperature is used, otherwise, it is ignored;

• Effective Setpoint: allows to link or set the effective setpoint value to be used if no temperature measurement is available;

• Input Selector: allows to select a preferred input signal of the temperature - panel, input, network;

• Temperature Averaging: allows to set the temperature as a calculation of an average of available temperature inputs;

• Unit Selector: allows to set the unit type.
