Applicable to OS V1.0-1.4

The iFnet component provides information about the TCP port number that the user connects with the device from the iC Tool. The default port number is set to 88, and it can be changed after the device’s restart.

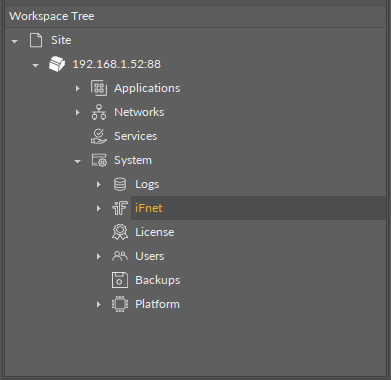

The iFnet component

The iFnet component has the following slots:

  • Info: informs about a required device restart after changing the port’s number;
  • Port: shows the default communication port number and allows to change it manually.

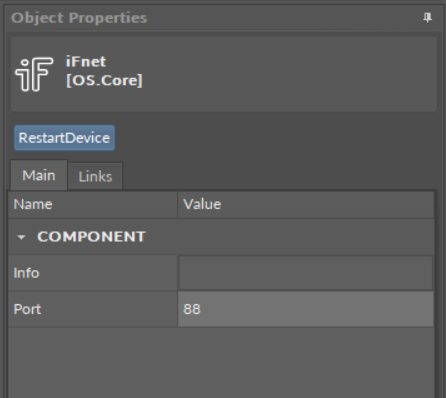

The iFnet component's slots

The iFnet port number can be changed by the user. Once the change is introduced, it requires saving and restarting the device. Before saving the component provides a notice:

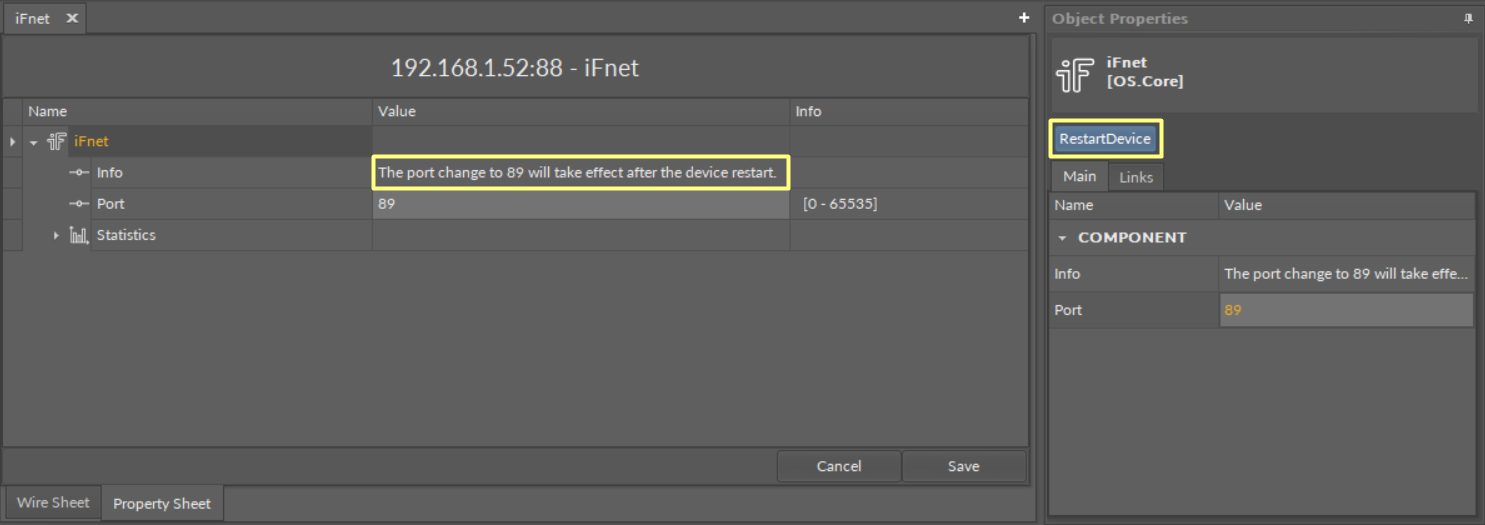

The restart notice and RestartDevice action

The iFnet component has a component's extension–the Statistics.
