Digital Outputs

Relay outputs (NO) have max. resistive load up to 3 A @ 230 V AC and 3 A @ 30 V DC.

Resistive Load Connection

The digital output connection of a resistive load

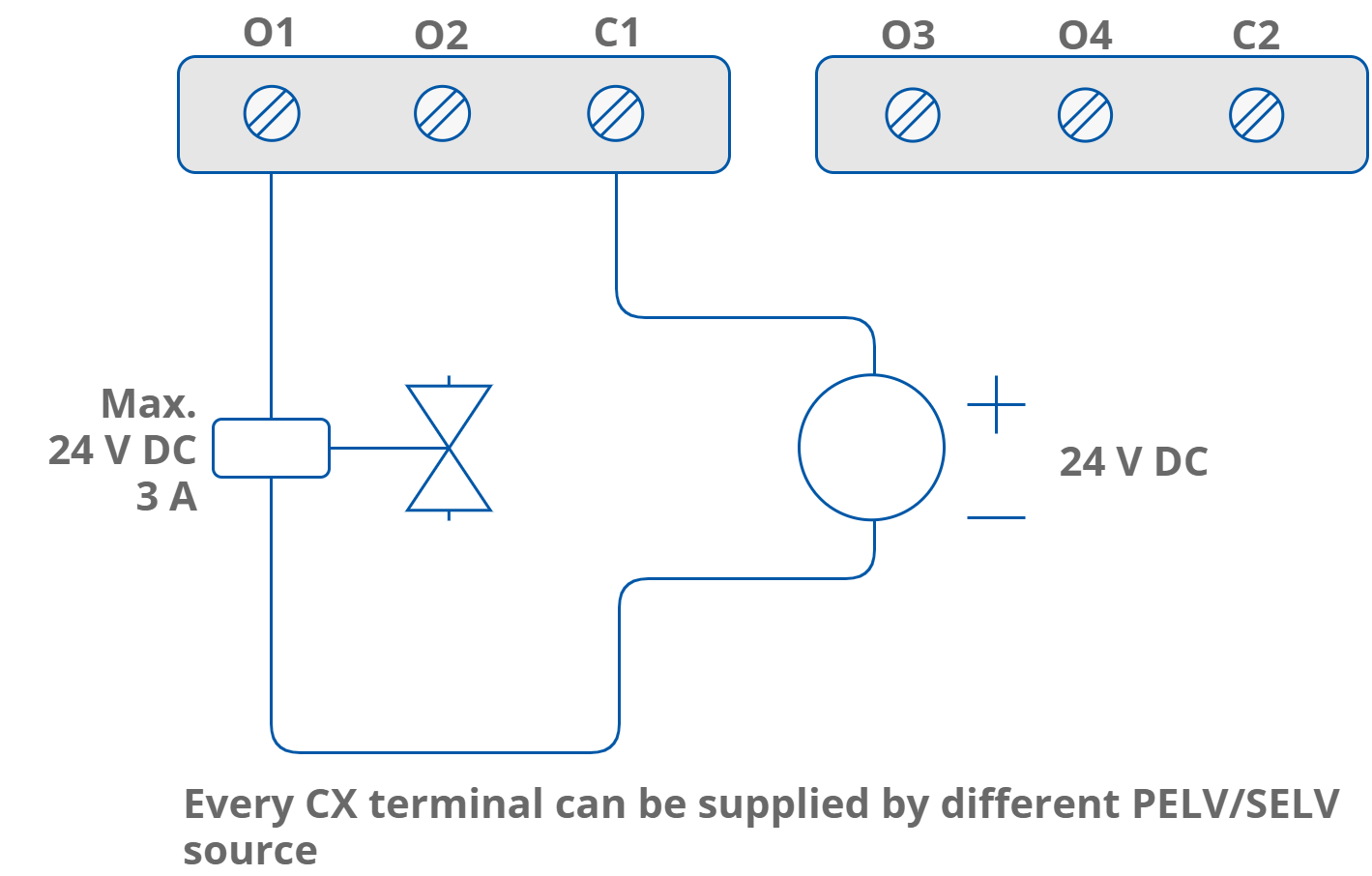

Solenoid Valve Connection

The digital output connection of a solenoid valve
