Step 3: Choosing the FCU Pipe Type

The iSMA-B-FCU can be used in 4-pipe installations as well as in 2-pipe installations. In order for the controller to operate correctly in the application, it is necessary to know the fan coil pipe type and set the CFG DIP switch to the corresponding settings as described below.

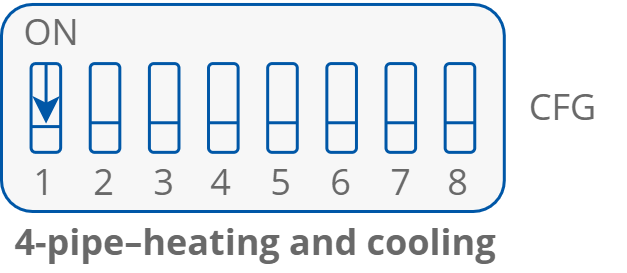

4-Pipe Heating and Cooling

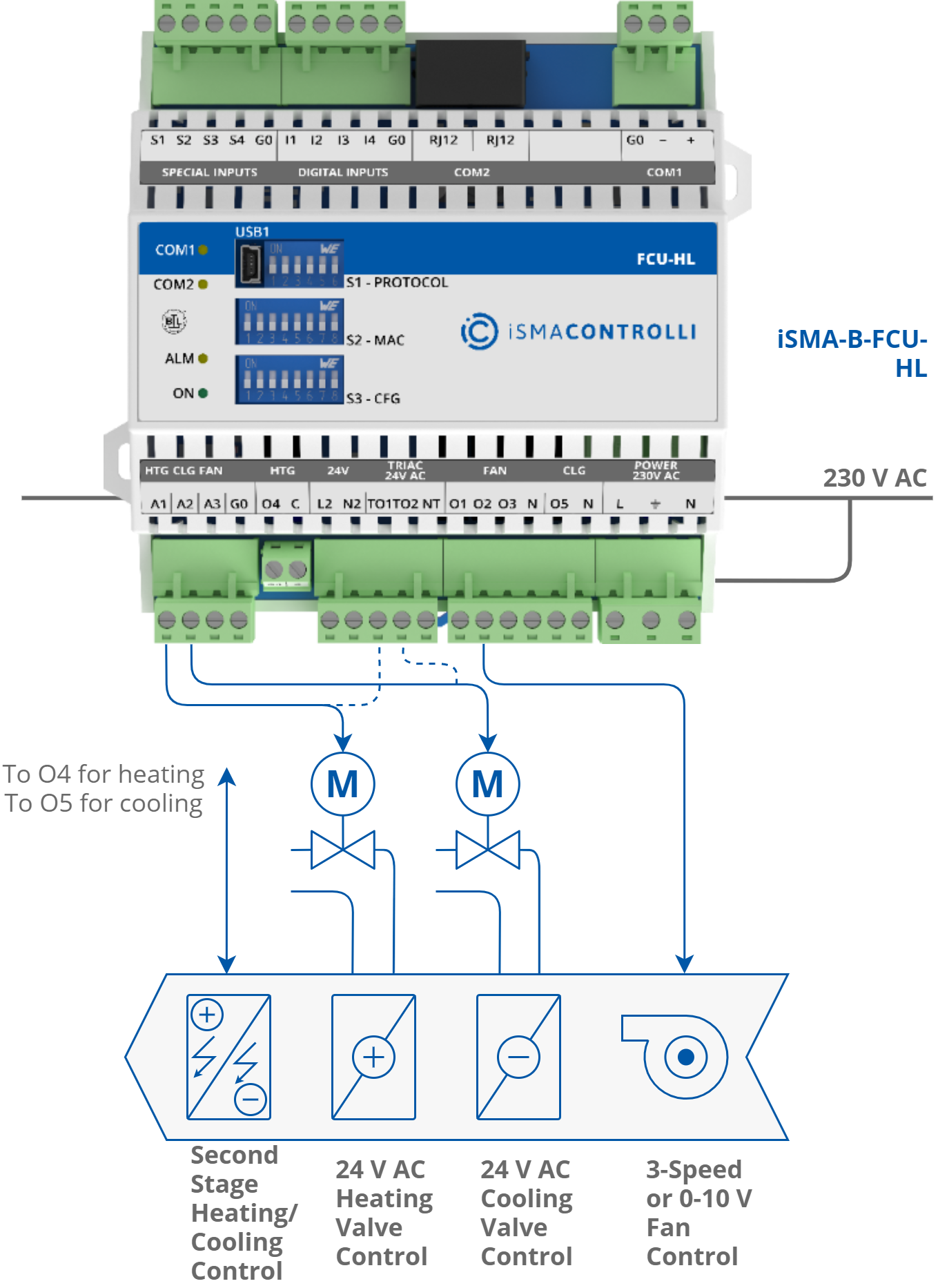

4-pipe FCU installation

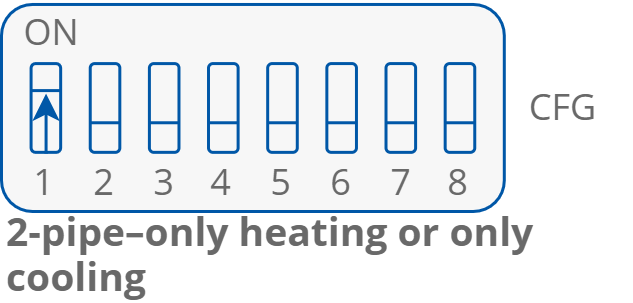

2-Pipe Only Heating or Only Cooling

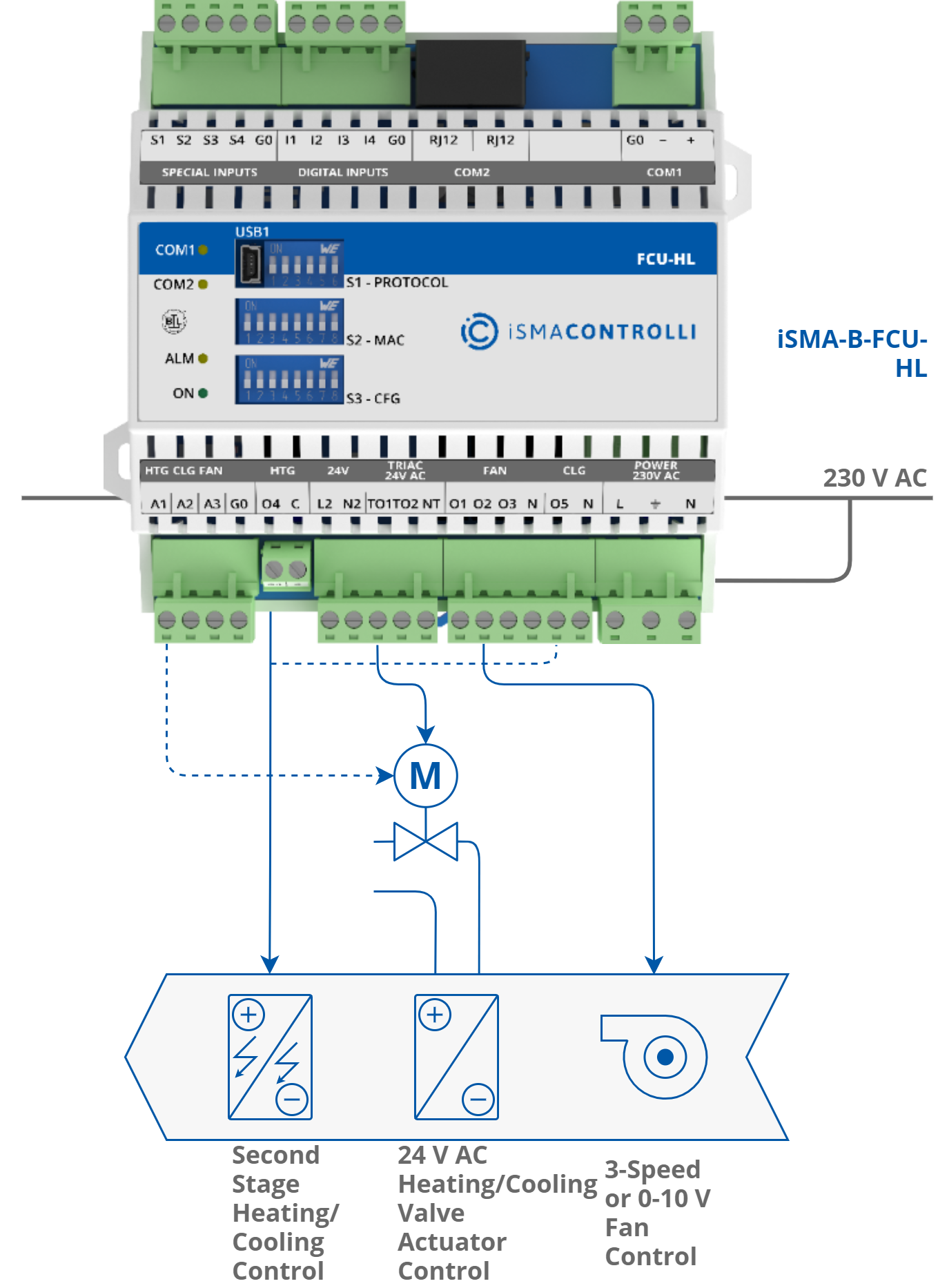

2-pipe FCU installation

For connection details go to steps 6, 7, and 8.

For more information on configuring the FCU pipe types, check the FCU Application manual.
