All Configurations for FCU Default Application
DIP Switch | 5 | 6 | 7 | 8 | Setting |
---|---|---|---|---|---|
Temperature source | OFF | OFF | iSMA-B-LP/Touch Point/FP room panel | ||
OFF | ON | Room sensor (SI3) | |||
ON | OFF | Returning air temperature sensor (SI1) | |||
ON | ON | Temperature from Modbus network | |||
Fan | OFF | OFF | Analog control | ||
OFF | ON | 1 speed | |||
ON | OFF | 2 speeds | |||
ON | ON | 3 speeds |

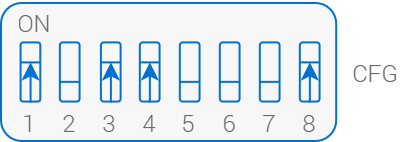

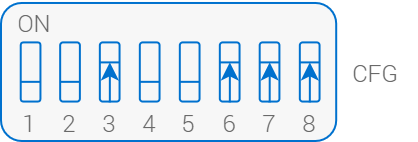

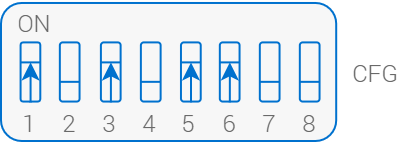

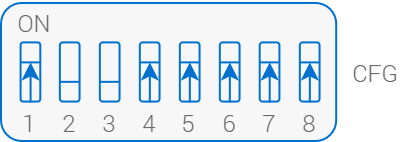

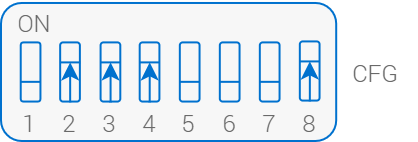

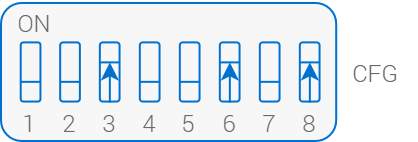

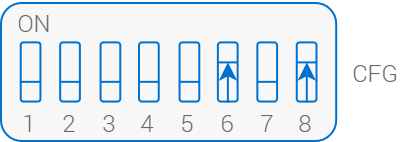

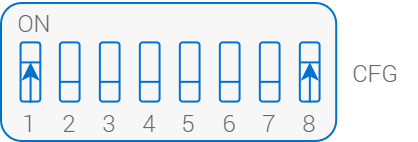

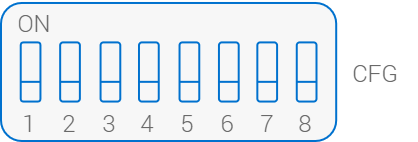

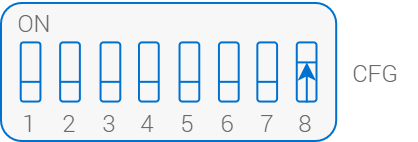

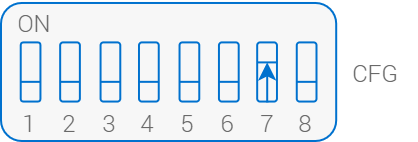

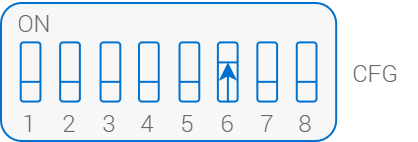

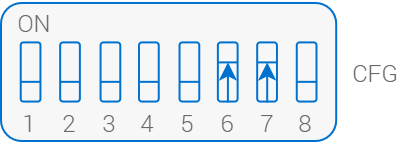

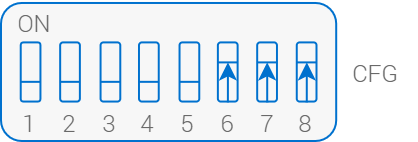

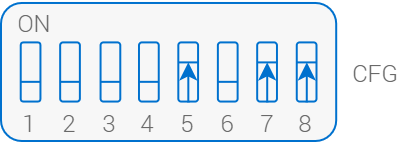

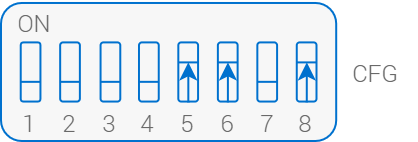

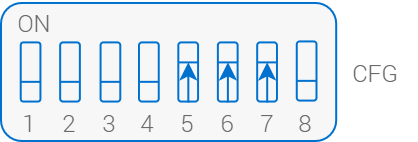

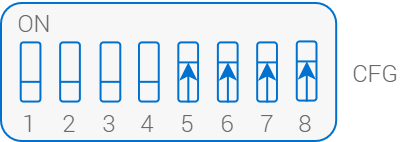

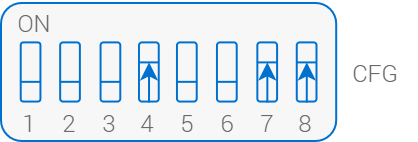

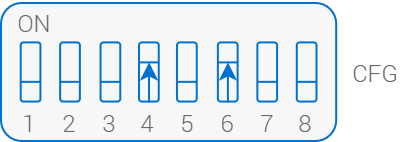

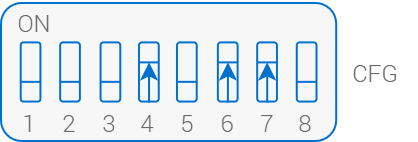

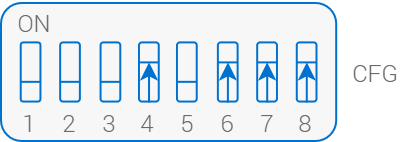

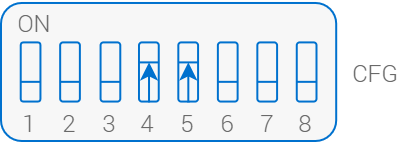

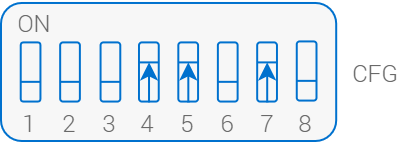

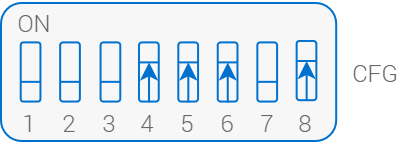

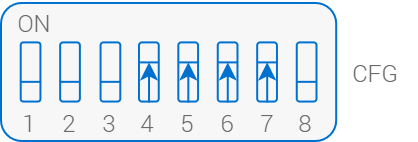

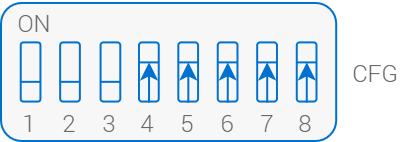

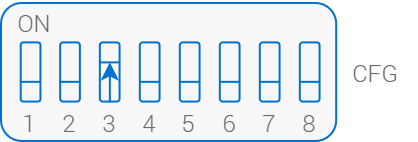

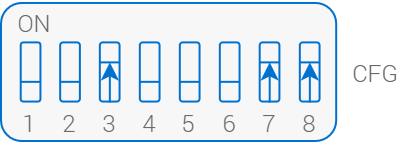

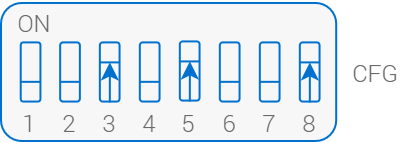

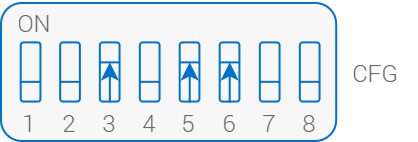

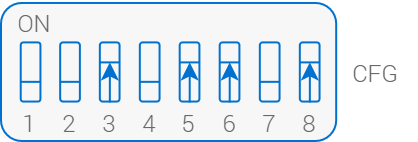

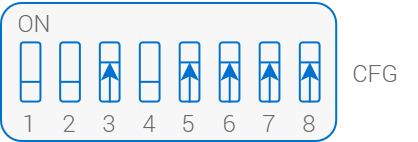

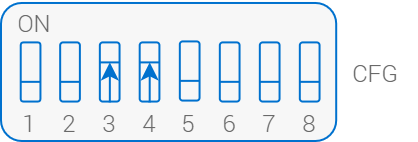

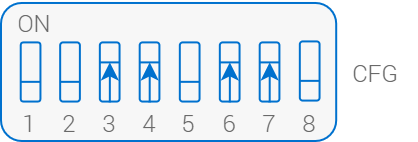

DIP Switch | 1 | 2 | 3 | 4 | 5 & 6 | 7 & 8 | |
---|---|---|---|---|---|---|---|
Function | FCU Pipe Mode | Heating | Cooling | Control | Temperature source | Fan | |
Off (4-pipe) | Off (1-stage) | Off (1-stage) | Off (digital) | For configuration see table above | For configuration see table above | ||
1 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | Analog control | |
2 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 1 speed | |
3 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds | |
4 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds | |
5 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | Analog control | |
6 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 1 speed | |
7 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 2 speeds | |
8 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 3 speeds | |
9 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | Analog control | |
10 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 1 speed | |
11 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 2 speeds | |
12 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 3 speeds | |
13 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | Analog control | |
14 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 1 speed | |
15 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 2 speeds | |
16 | 4-pipe | 1-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 3 speeds | |
17 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | Analog control | |
18 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 1 speed | |
19 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds | |
20 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds | |
21 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | Analog control | |
22 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 1 speed | |
23 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 2 speeds | |
24 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 3 speeds | |
25 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | Analog control | |
26 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 1 speed | |
27 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 2 speeds | |
28 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 3 speeds | |
29 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | Analog control | |
30 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 1 speed | |
31 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 2 speeds | |
32 | 4-pipe | 1-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 3 speeds | |
33 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | Analog control | |
34 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 1 speed | |
35 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds | |
36 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds | |
37 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | Analog control | |
38 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 1 speed | |
39 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 2 speeds | |
40 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 3 speeds | |
41 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | Analog control | |
42 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 1 speed | |
43 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 2 speeds | |
44 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 3 speeds | |
45 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | Analog control | |
46 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 1 speed | |
47 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 2 speeds | |
48 | 4-pipe | 1-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 3 speeds | |
49 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | Analog control | |
50 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 1 speed | |
51 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds | |
52 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds | |
53 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | Analog control | |
54 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 1 speed | |
55 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 2 speeds | |
56 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 3 speeds | |
57 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | Analog control | |
58 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 1 speed | |
59 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 2 speeds | |
60 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 3 speeds | |
61 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | Analog control | |

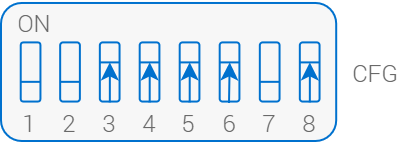

62 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 1 speed | |

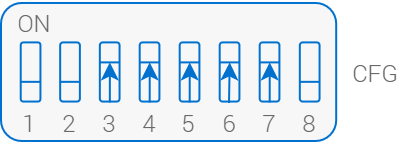

63 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 2 speeds | |

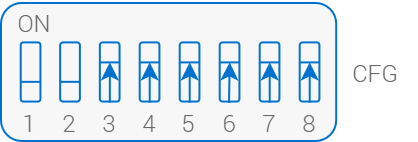

64 | 4-pipe | 1-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 3 speeds | |
65 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | Analog control | |

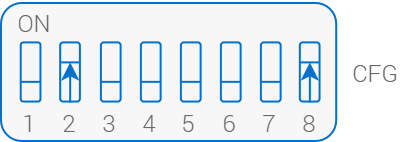

66 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 1 speed | |
67 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds | |
68 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds | |

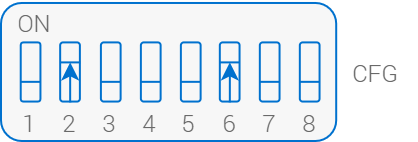

69 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | Analog control | |

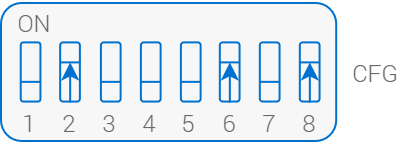

70 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 1 speed | |
71 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 2 speeds | |

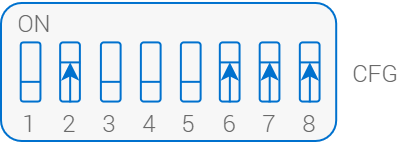

72 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 3 speeds | |

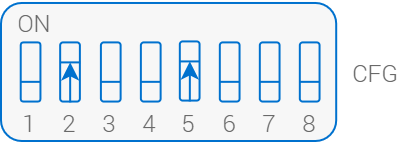

73 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | Analog control | |
74 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 1 speed | |

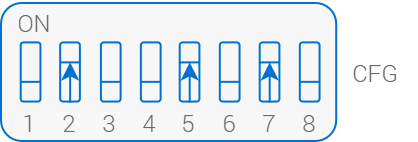

75 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 2 speeds | |
76 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 3 speeds | |
77 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | Analog control | |

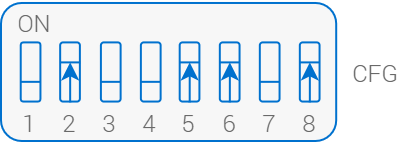

78 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 1 speed | |

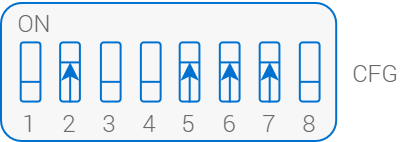

79 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 2 speeds | |
80 | 4-pipe | 2-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 3 speeds | |
81 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | Analog control | |

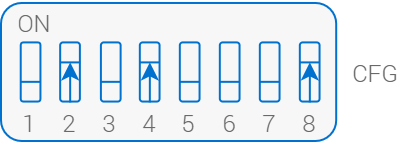

82 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 1 speed | |

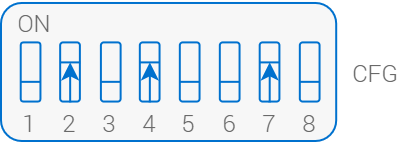

83 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds | |
84 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds | |
85 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | Analog control | |
86 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 1 speed | |
87 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 2 speeds | |

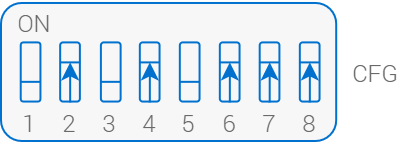

88 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 3 speeds | |

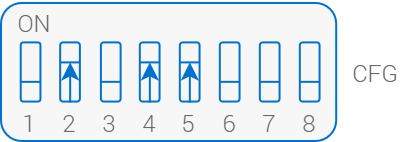

89 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | Analog control | |
90 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 1 speed | |
91 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 2 speeds | |
92 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 3 speeds | |
93 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | Analog control | |
94 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 1 speed | |
95 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 2 speeds | |

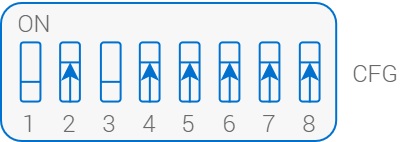

96 | 4-pipe | 2-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 3 speeds | |

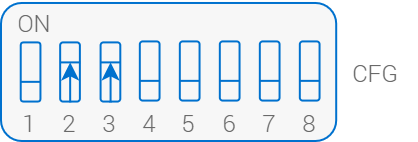

97 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | Analog control | |

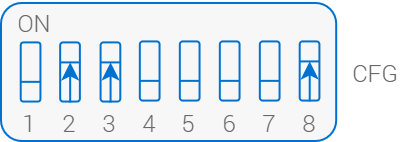

98 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 1 speed | |

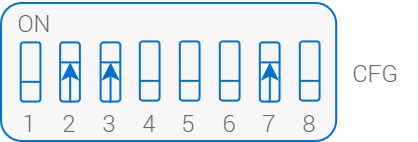

99 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds | |

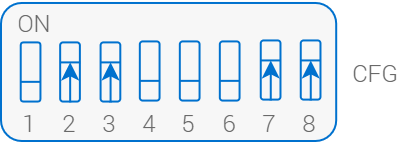

100 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds | |
101 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | Analog control | |
102 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 1 speed | |

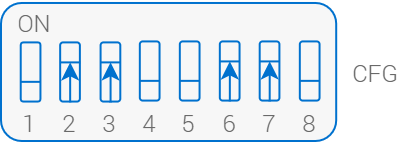

103 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 2 speeds | |

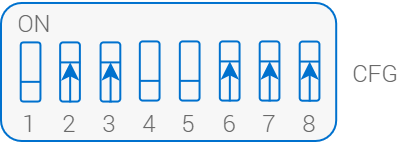

104 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 3 speeds | |

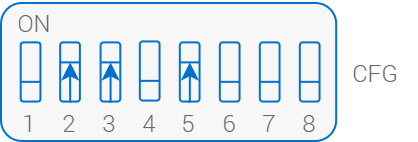

105 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | Analog control | |
106 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 1 speed | |
107 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 2 speeds | |
108 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 3 speeds | |

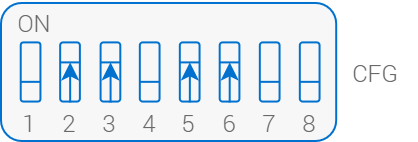

109 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | Analog control | |

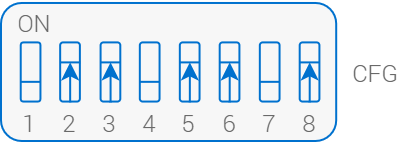

110 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 1 speed | |

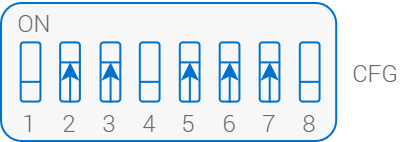

111 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 2 speeds | |
112 | 4-pipe | 2-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 3 speeds | |
113 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | Analog control | |
114 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 1 speed | |
115 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds | |

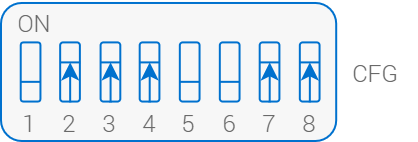

116 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds | |

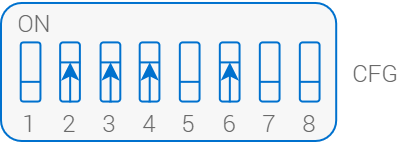

117 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | Analog control | |

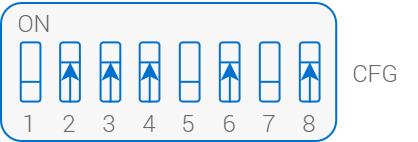

118 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 1 speed | |
119 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 2 speeds | |

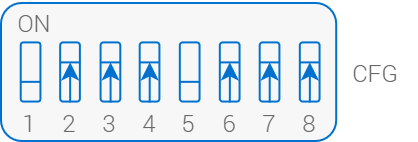

120 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 3 speeds | |
121 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | Analog control | |
122 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 1 speed | |

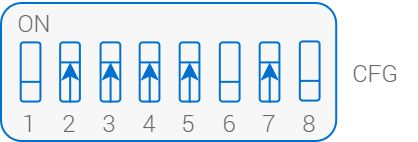

123 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 2 speeds | |
124 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 3 speeds | |

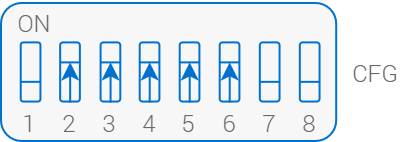

125 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | Analog control | |
126 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 1 speed | |
127 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 2 speeds | |

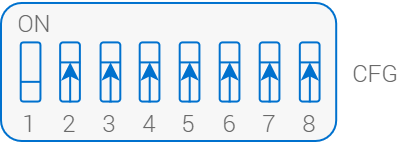

128 | 4-pipe | 2-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 3 speeds | |

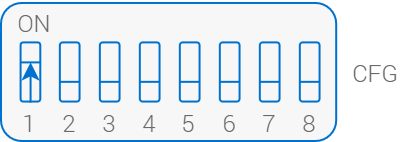

129 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | Analog control | |
130 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 1 speed | |
131 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds | |

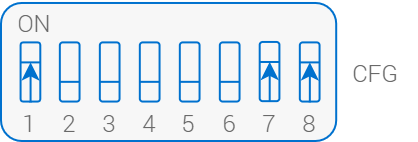

132 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds | |
133 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | Analog control | |
134 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 1 speed | |

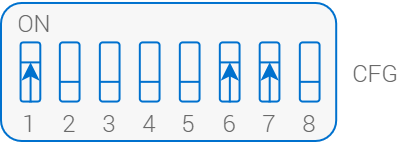

135 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 2 speeds | |
136 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 3 speeds | |

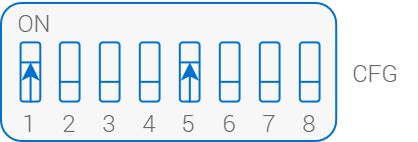

137 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | Analog control | |
138 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 1 speed | |
139 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 2 speeds | |
140 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 3 speeds | |

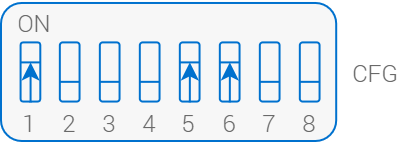

141 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | Analog control | |
142 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 1 speed | |

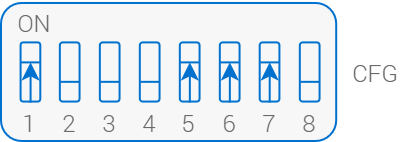

143 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 2 speeds | |

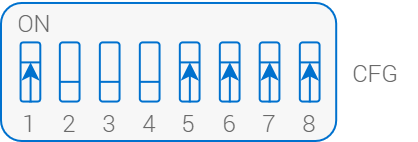

144 | 2-pipe | 1-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 3 speeds | |

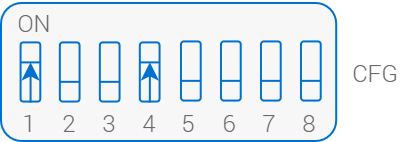

145 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | Analog control | |
146 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 1 speed | |
147 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds | |

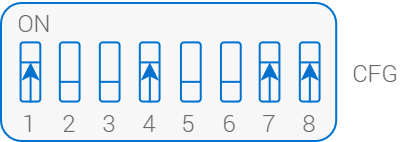

148 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds | |

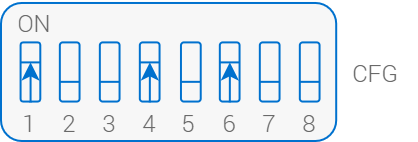

149 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | Analog control | |
150 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 1 speed | |

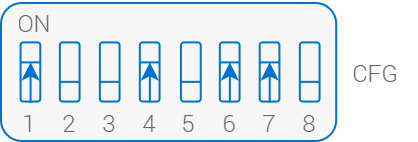

151 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 2 speeds | |
152 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 3 speeds | |

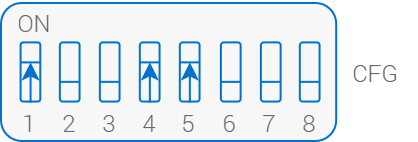

153 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | Analog control | |
154 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 1 speed | |
155 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 2 speeds | |

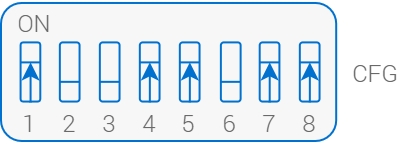

156 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 3 speeds | |

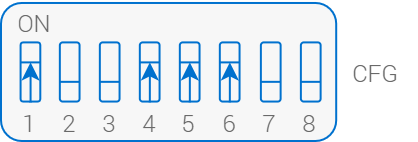

157 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | Analog control | |

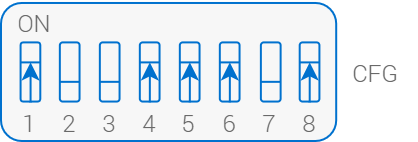

158 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 1 speed | |
159 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 2 speeds | |
160 | 2-pipe | 1-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 3 speeds | |

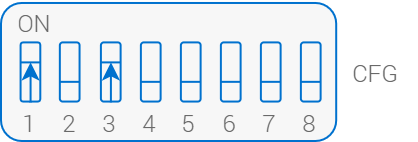

161 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | Analog control | |

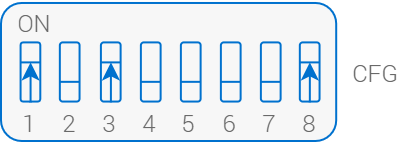

162 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 1 speed | |
163 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds | |

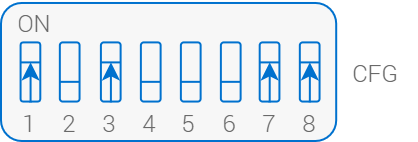

164 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds | |

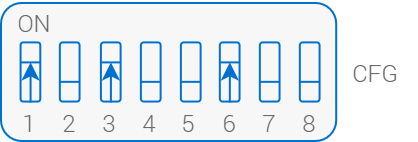

165 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | Analog control | |
166 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 1 speed | |

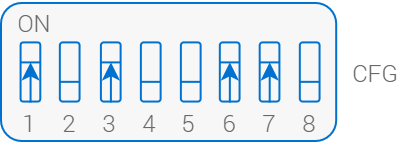

167 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 2 speeds | |

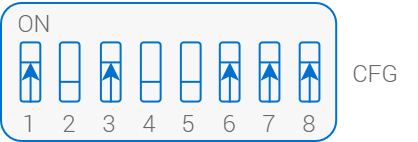

168 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 3 speeds | |
169 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | Analog control | |
170 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 1 speed | |

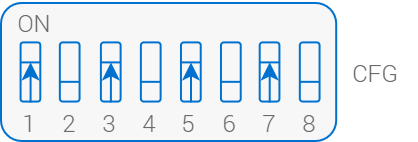

171 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 2 speeds | |
172 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 3 speeds | |
173 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | Analog control | |

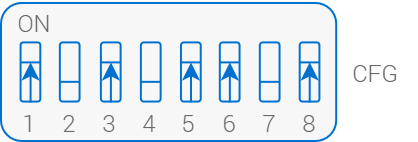

174 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 1 speed | |
175 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 2 speeds | |

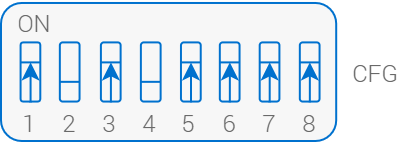

176 | 2-pipe | 1-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 3 speeds | |
177 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | Analog control | |
178 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 1 speed | |

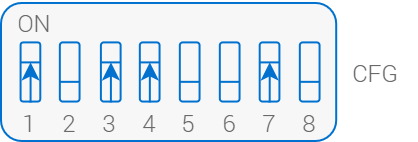

179 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds | |

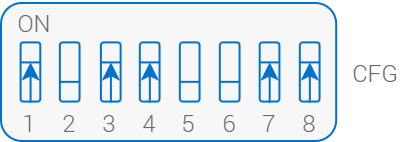

180 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds | |
181 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | Analog control | |
182 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 1 speed | |
183 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 2 speeds | |

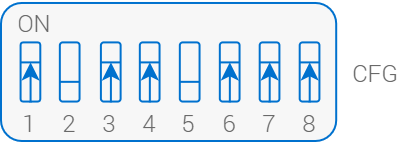

184 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 3 speeds | |
185 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | Analog control | |
186 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 1 speed | |
187 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 2 speeds | |
188 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 3 speeds | |
189 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | Analog control | |
190 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 1 speed | |

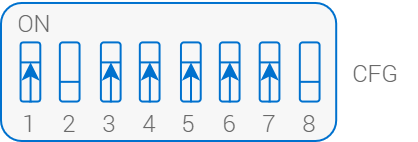

191 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 2 speeds | |
192 | 2-pipe | 1-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 3 speeds | |
193 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | Analog control | |
194 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 1 speed | |

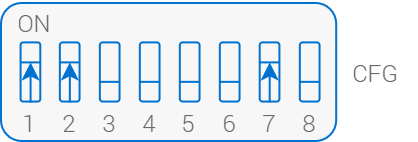

195 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds | |

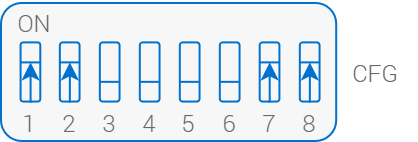

196 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds | |
197 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | Analog control | |
198 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 1 speed | |

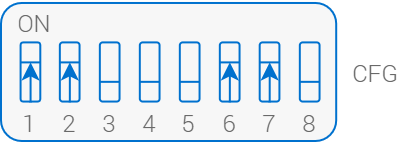

199 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 2 speeds | |
200 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Room sensor (SI3) | 3 speeds | |
201 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | Analog control | |

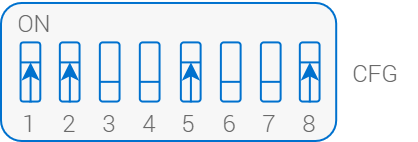

202 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 1 speed | |

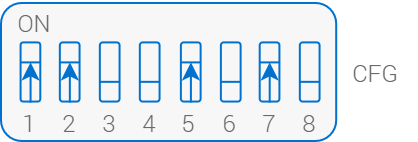

203 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 2 speeds | |

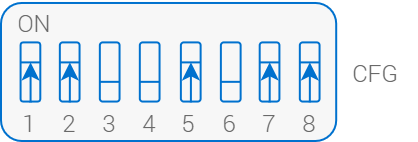

204 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Returning air temperature sensor (SI1) | 3 speeds | |
205 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | Analog control | |
206 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 1 speed | |

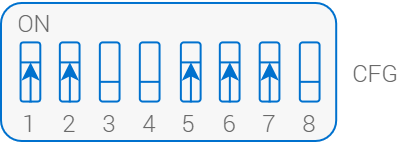

207 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 2 speeds | |
208 | 2-pipe | 2-stage heating | 1-stage cooling | Digital control | Temperature from Modbus network | 3 speeds | |
209 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | Analog control | |
210 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 1 speed | |
211 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds | |
212 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds | |

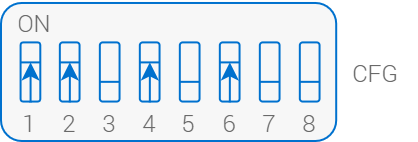

213 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | Analog control | |

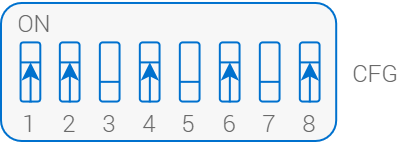

214 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 1 speed | |
215 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 2 speeds | |
216 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Room sensor (SI3) | 3 speeds | |
217 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | Analog control | |
218 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 1 speed | |

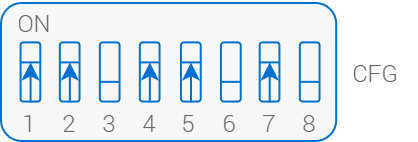

219 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 2 speeds | |
220 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Returning air temperature sensor (SI1) | 3 speeds | |
221 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | Analog control | |

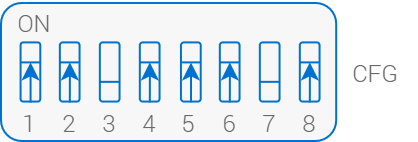

222 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 1 speed | |

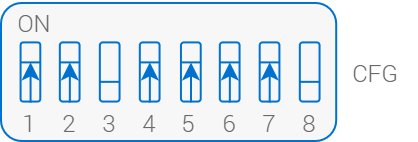

223 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 2 speeds | |
224 | 2-pipe | 2-stage heating | 1-stage cooling | Analog control | Temperature from Modbus network | 3 speeds | |

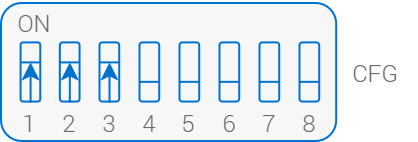

225 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | Analog control | |

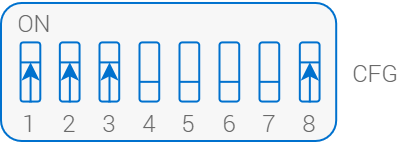

226 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 1 speed | |
227 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds | |

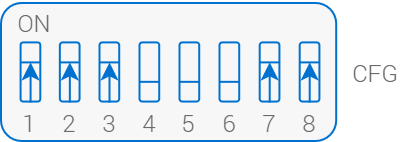

228 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds | |

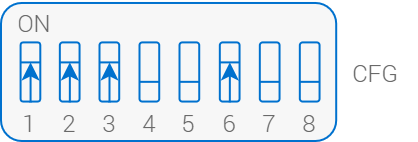

229 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | Analog control | |

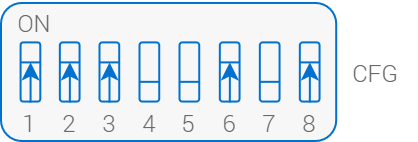

230 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 1 speed | |

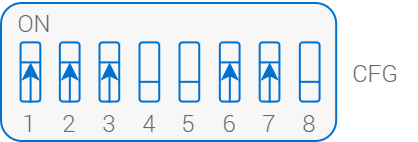

231 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 2 speeds | |

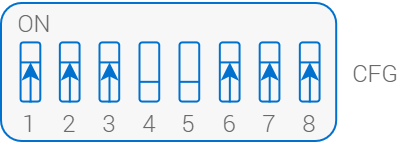

232 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Room sensor (SI3) | 3 speeds | |

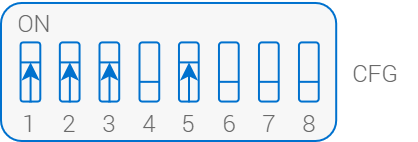

233 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | Analog control | |
234 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 1 speed | |

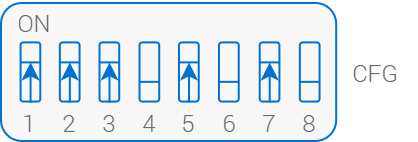

235 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 2 speeds | |
236 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Returning air temperature sensor (SI1) | 3 speeds | |
237 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | Analog control | |
238 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 1 speed | |
239 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 2 speeds | |
240 | 2-pipe | 2-stage heating | 2-stage cooling | Digital control | Temperature from Modbus network | 3 speeds | |
241 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | Analog control | |
242 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 1 speed | |
243 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 2 speeds | |

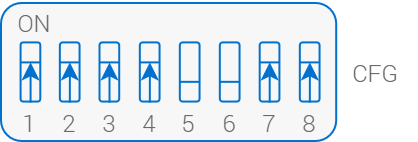

244 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | iSMA-B-LP/Touch Point/FP room panel | 3 speeds | |
245 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | Analog control | |

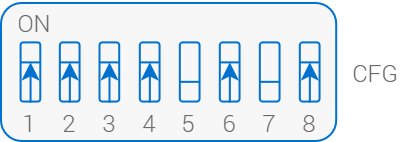

246 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 1 speed | |
247 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 2 speeds | |
248 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Room sensor (SI3) | 3 speeds | |
249 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | Analog control | |
250 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 1 speed | |
251 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 2 speeds | |

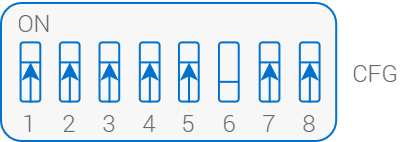

252 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Returning air temperature sensor (SI1) | 3 speeds | |

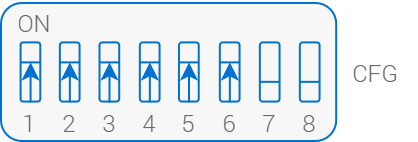

253 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | Analog control | |
254 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 1 speed | |

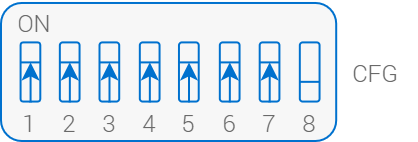

255 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 2 speeds | |

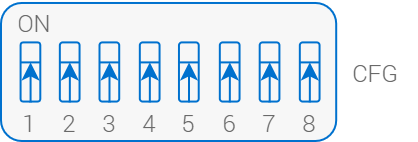

256 | 2-pipe | 2-stage heating | 2-stage cooling | Analog control | Temperature from Modbus network | 3 speeds |
