Examples: Connecting Actuators and Sensors to the Controller

Connections Overview

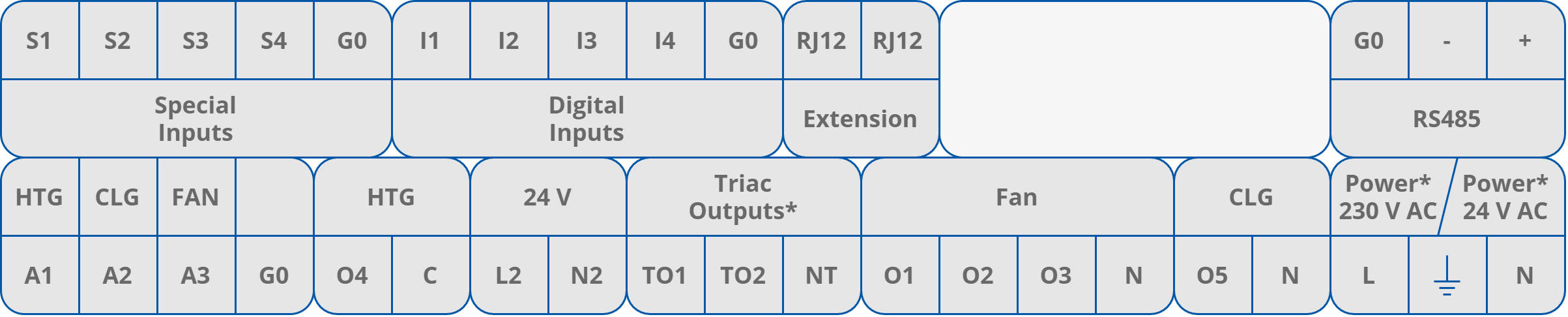

Inputs and outputs overview

Connection Examples

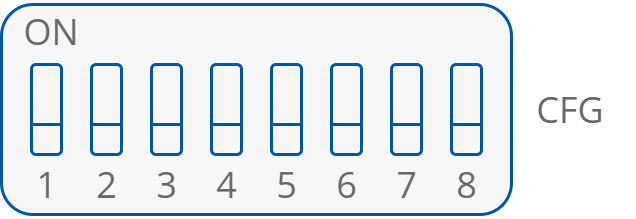

The examples below do not include selection of the temperature control value source. Connecting the temperature control value source is described in Step 7 of this manual. In examples, DIP switch sections 5 and 6 are set to OFF.

The 24 V power source for heater and cooler actuators can be taken from L2/N2 connectors.

If 2nd stages of heating or cooling is used, check Step 6 for connection information.

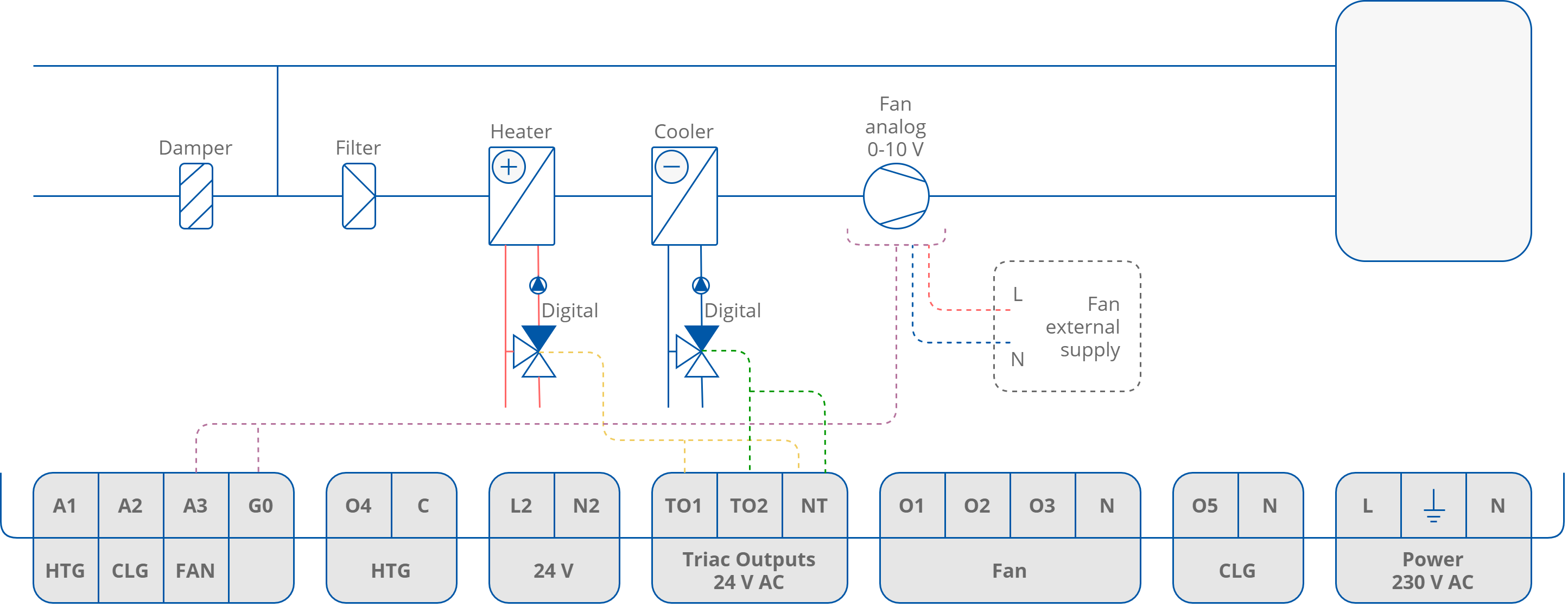

4-Pipe Installation with 1 Stage Digital Controlled Heating and Cooling and Analog Controlled Fan

4-pipe installation with 1 stage digital controlled heating and cooling and analog controlled fan

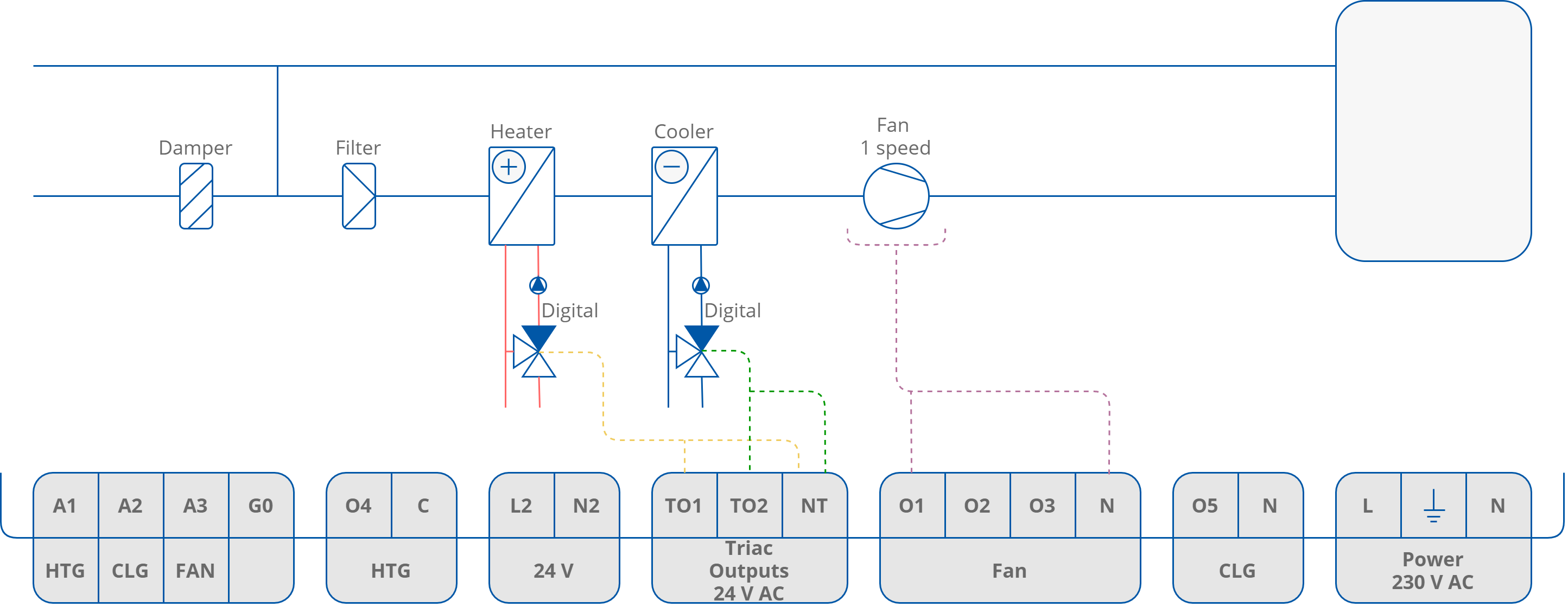

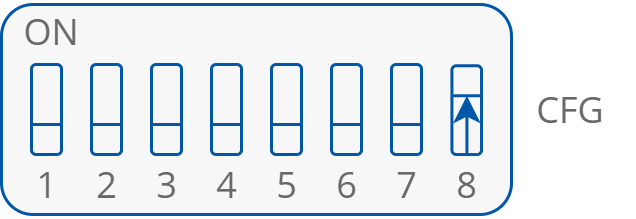

4-Pipe Installation with 1 Stage Digital Controlled Heating and Cooling and 1 Speed Fan

4-pipe installation with 1 stage digital controlled heating and cooling and 1 speed fan

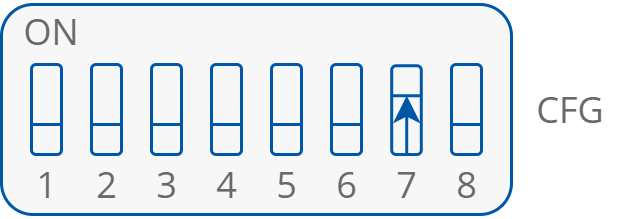

4-Pipe Installation with 1 Stage Digital Controlled Heating and Cooling and 2 Speeds Fan

4-pipe installation with 1 stage digital controlled heating and cooling and 2 speeds fan

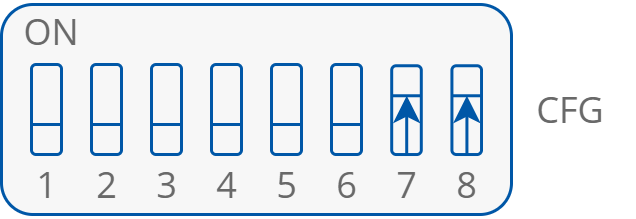

4-Pipe Installation with 1 Stage Digital Controlled Heating and Cooling and 3 Speeds Fan

4-pipe installation with 1 stage digital controlled heating and cooling and 3 speeds fan

4-Pipe Installation with 1 Stage Analog Controlled Heating and Cooling and Analog Controlled Fan

4-pipe installation with 1 stage analog controlled heating and cooling and analog controlled fan

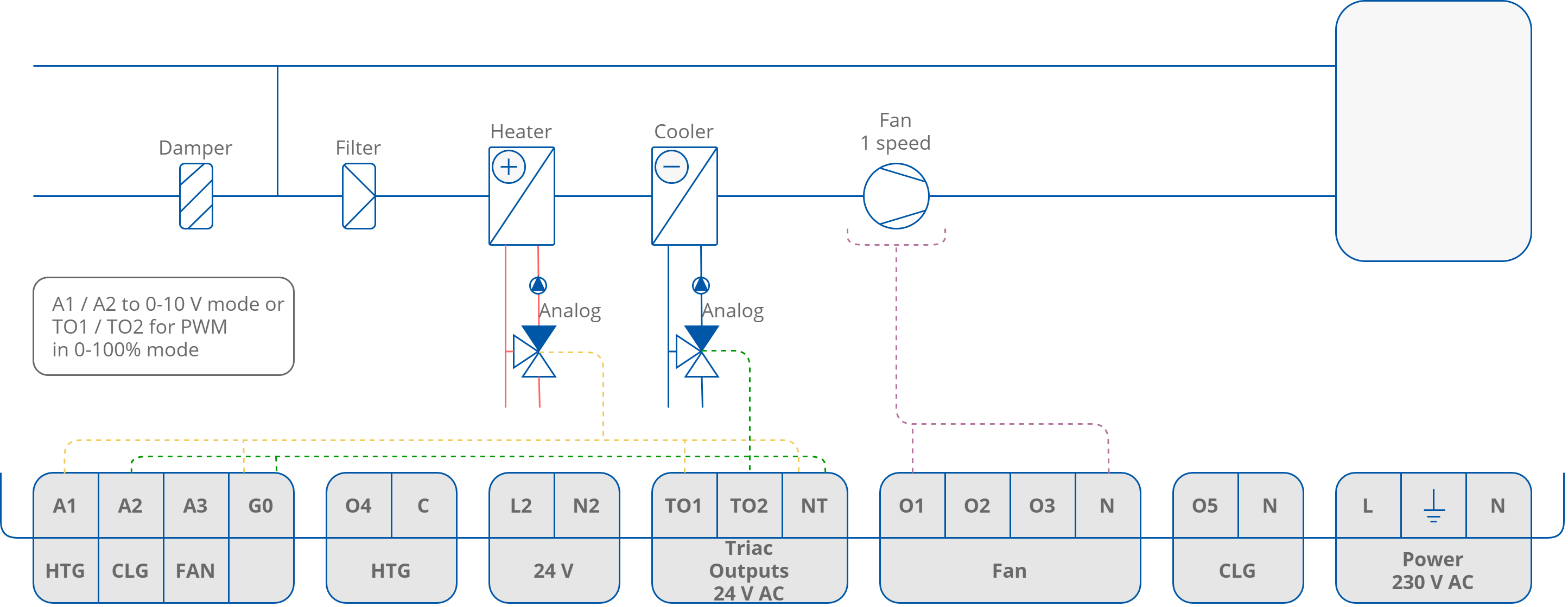

4-Pipe Installation with 1 Stage Analog Controlled Heating and Cooling and 1 Speed Fan

4-pipe installation with 1 stage analog controlled heating and cooling and 1 speed fan

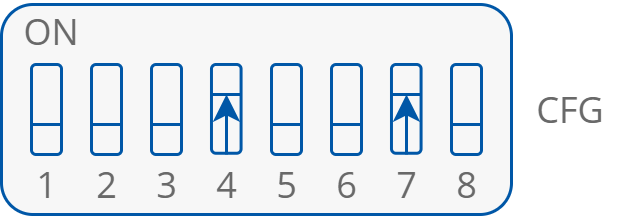

4-Pipe Installation with 1 Stage Analog Controlled Heating and Cooling and 2 Speeds Fan

4-pipe installation with 1 stage analog controlled heating and cooling and 2 speeds fan

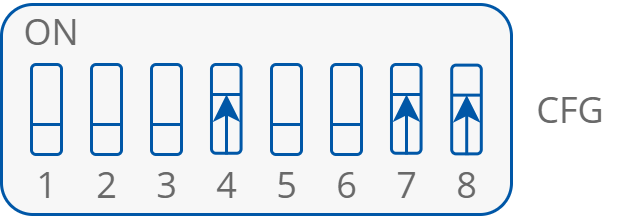

4-Pipe Installation with 1 Stage Analog Controlled Heating and Cooling and 3 Speeds Fan

4-pipe installation with 1 stage analog controlled heating and cooling and 3 speeds fan

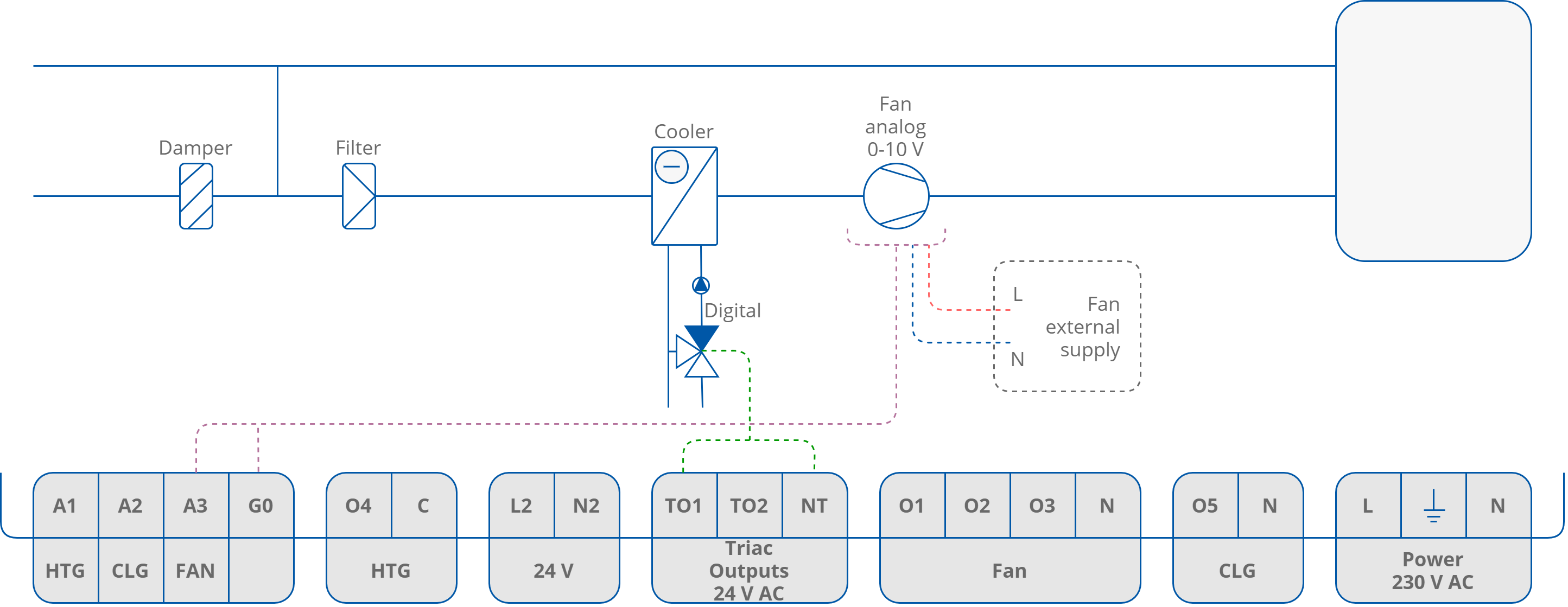

2-Pipe Installation with 1 Stage Digital Controlled Cooling and Analog Controlled Fan

2-pipe installation with 1 stage digital controlled cooling and analog controlled fan

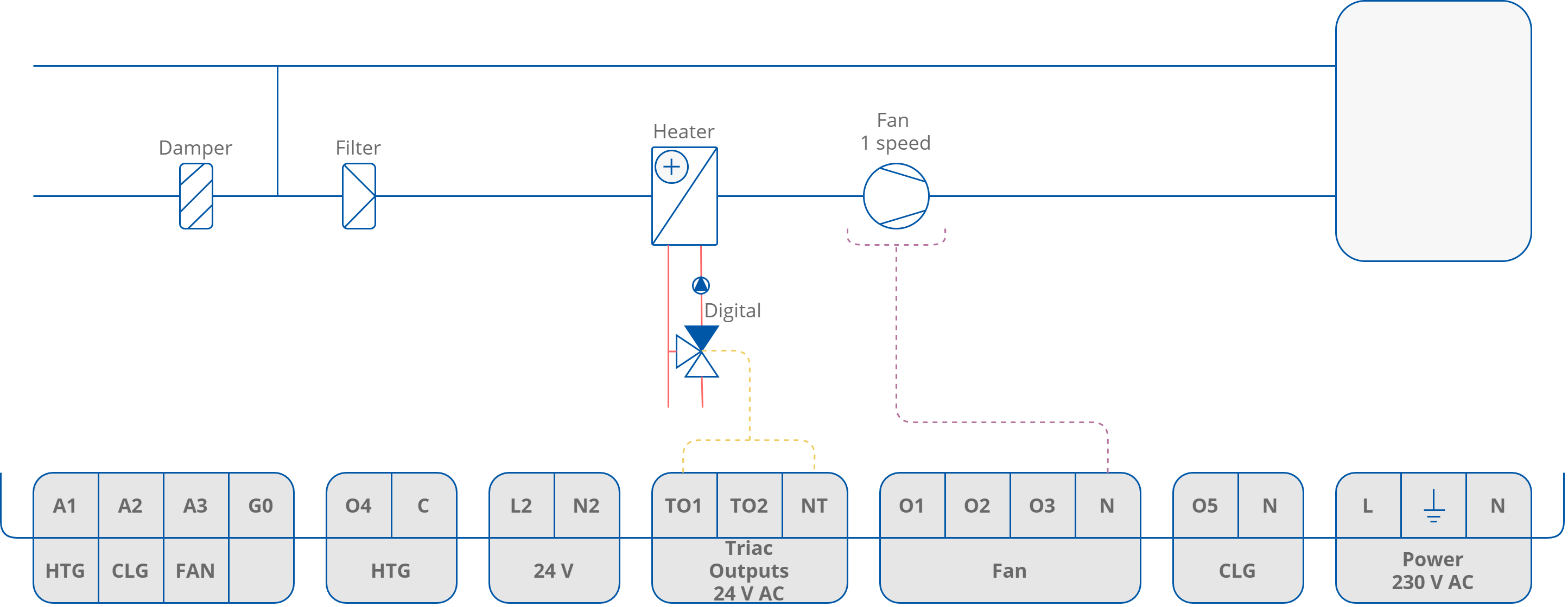

2-Pipe Installation with 1 Stage Digital Controlled Heating and 1 Speed Fan

2-pipe installation with 1 stage digital controlled heating and 1 speed fan

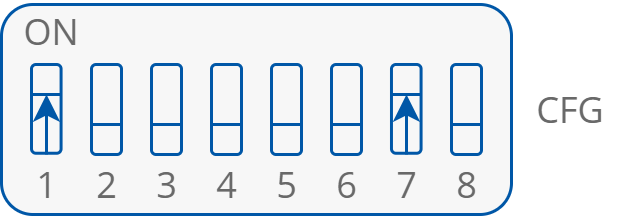

2-Pipe Installation with 1 Stage Digital Controlled Cooling and 2 Speeds Fan

2-pipe installation with 1 stage digital controlled cooling and 2 speeds fan

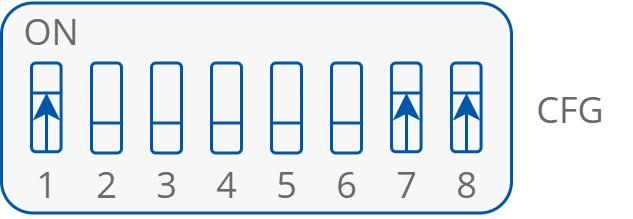

2-Pipe Installation with 1 Stage Digital Controlled Heating and 3 Speeds Fan

2-pipe installation with 1 stage digital controlled heating and 3 speeds fan

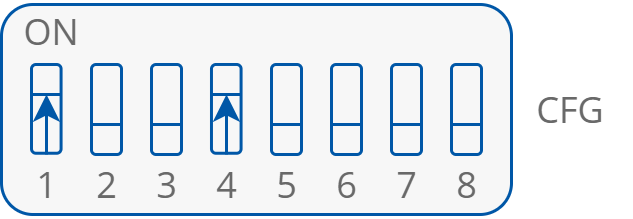

2-Pipe Installation with 1 Stage Analog Controlled Cooling and Analog Controlled Fan

2-pipe installation with 1 stage analog controlled cooling and analog controlled fan

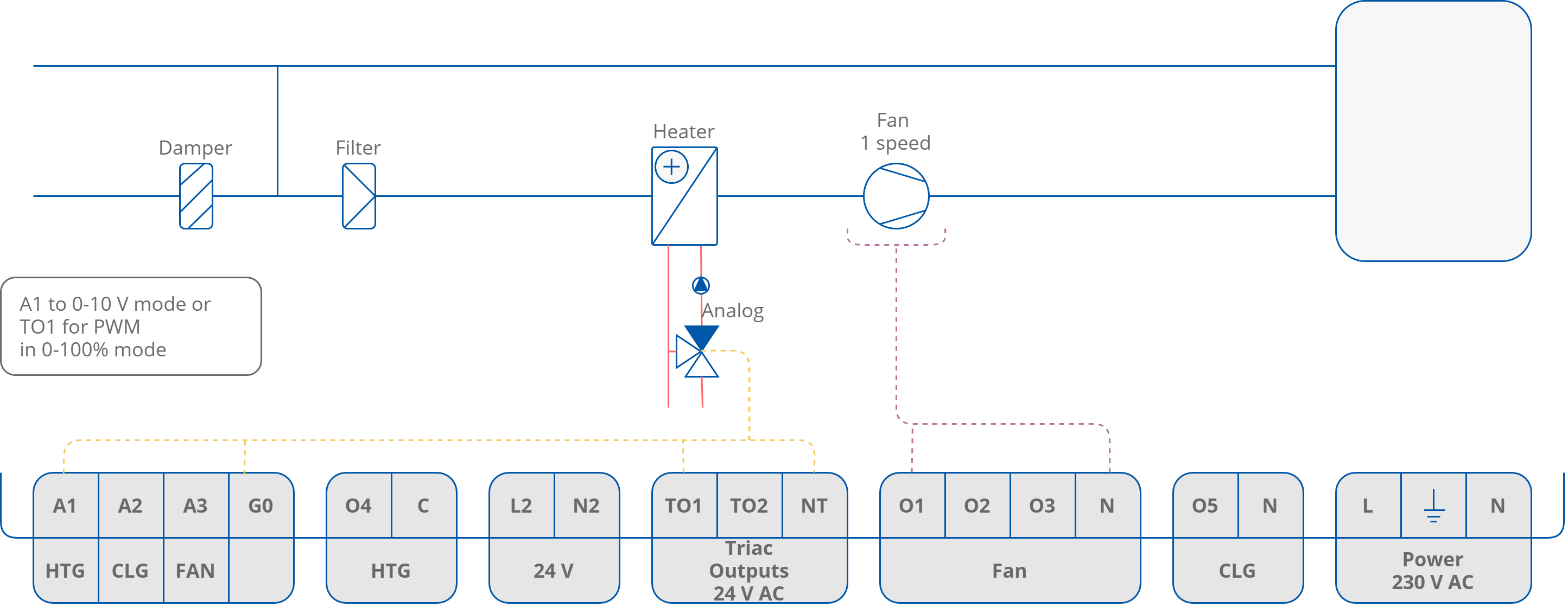

2-Pipe Installation with 1 Stage Analog Controlled Heating and 1 Speed Fan

2-pipe installation with 1 stage analog controlled heating and 1 speed fan

2-Pipe Installation with 1 Stage Analog Controlled Cooling and 2 Speeds Fan

2-pipe installation with 1 stage analog controlled cooling and 2 speeds fan

2-Pipe Installation with 1 Stage Analog Controlled Heating and 3 Speeds Fan

2-pipe installation with 1 stage analog controlled heating and 3 speeds fan
