All Configurations for FCU Default Application

DIP Switch

5

6

7

8

Setting

Temp. source




OFF

OFF


iSMA-B-LP/Touch Point room panel

OFF

ON

Room sensor (SI3)

ON

OFF

Returning air temperature sensor (SI1)

ON

ON

Temperature from Modbus network

Fan









OFF

OFF

Analog control

OFF

ON

1 speed

ON

OFF

2 speeds

ON

ON

3 speeds

DIP switch settings for selecting a temperature source and fan type

DIP Switch

1

2

3

4

5 & 6

7 & 8


Function

FCU Pipe Mode

Heating

Cooling

Control

Temperature source

Fan


Off (4-pipe)

On (2-pipe)

Off (1-stage)

On (2-stage)

Off (1-stage)

On (2-stage)

Off (digital)

On (analog)

For configuration see table above

For configuration see table above

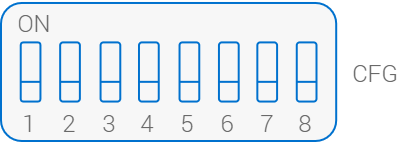

1

4-pipe

1-stage heating

1-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

Analog control

2

4-pipe

1-stage heating

1-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

1 speed

3

4-pipe

1-stage heating

1-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

2 speeds

4

4-pipe

1-stage heating

1-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

3 speeds

5

4-pipe

1-stage heating

1-stage cooling

Digital control

Room sensor (SI3)

Analog control

6

4-pipe

1-stage heating

1-stage cooling

Digital control

Room sensor (SI3)

1 speed

7

4-pipe

1-stage heating

1-stage cooling

Digital control

Room sensor (SI3)

2 speeds

8

4-pipe

1-stage heating

1-stage cooling

Digital control

Room sensor (SI3)

3 speeds

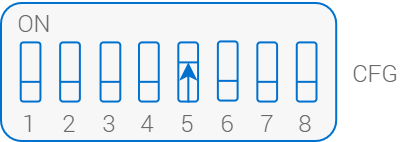

9

4-pipe

1-stage heating

1-stage cooling

Digital control

Returning air temperature sensor (SI1)

Analog control

10

4-pipe

1-stage heating

1-stage cooling

Digital control

Returning air temperature sensor (SI1)

1 speed

11

4-pipe

1-stage heating

1-stage cooling

Digital control

Returning air temperature sensor (SI1)

2 speeds

12

4-pipe

1-stage heating

1-stage cooling

Digital control

Returning air temperature sensor (SI1)

3 speeds

13

4-pipe

1-stage heating

1-stage cooling

Digital control

Temperature from Modbus network

Analog control

14

4-pipe

1-stage heating

1-stage cooling

Digital control

Temperature from Modbus network

1 speed

15

4-pipe

1-stage heating

1-stage cooling

Digital control

Temperature from Modbus network

2 speeds

16

4-pipe

1-stage heating

1-stage cooling

Digital control

Temperature from Modbus network

3 speeds

17

4-pipe

1-stage heating

1-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

Analog control

18

4-pipe

1-stage heating

1-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

1 speed

19

4-pipe

1-stage heating

1-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

2 speeds

20

4-pipe

1-stage heating

1-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

3 speeds

21

4-pipe

1-stage heating

1-stage cooling

Analog control

Room sensor (SI3)

Analog control

22

4-pipe

1-stage heating

1-stage cooling

Analog control

Room sensor (SI3)

1 speed

23

4-pipe

1-stage heating

1-stage cooling

Analog control

Room sensor (SI3)

2 speeds

24

4-pipe

1-stage heating

1-stage cooling

Analog control

Room sensor (SI3)

3 speeds

25

4-pipe

1-stage heating

1-stage cooling

Analog control

Returning air temperature sensor (SI1)

Analog control

26

4-pipe

1-stage heating

1-stage cooling

Analog control

Returning air temperature sensor (SI1)

1 speed

27

4-pipe

1-stage heating

1-stage cooling

Analog control

Returning air temperature sensor (SI1)

2 speeds

28

4-pipe

1-stage heating

1-stage cooling

Analog control

Returning air temperature sensor (SI1)

3 speeds

29

4-pipe

1-stage heating

1-stage cooling

Analog control

Temperature from Modbus network

Analog control

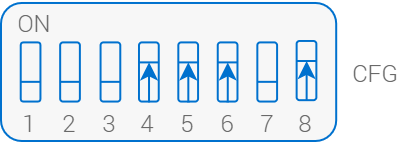

30

4-pipe

1-stage heating

1-stage cooling

Analog control

Temperature from Modbus network

1 speed

31

4-pipe

1-stage heating

1-stage cooling

Analog control

Temperature from Modbus network

2 speeds

32

4-pipe

1-stage heating

1-stage cooling

Analog control

Temperature from Modbus network

3 speeds

33

4-pipe

1-stage heating

2-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

Analog control

34

4-pipe

1-stage heating

2-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

1 speed

35

4-pipe

1-stage heating

2-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

2 speeds

36

4-pipe

1-stage heating

2-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

3 speeds

37

4-pipe

1-stage heating

2-stage cooling

Digital control

Room sensor (SI3)

Analog control

38

4-pipe

1-stage heating

2-stage cooling

Digital control

Room sensor (SI3)

1 speed

39

4-pipe

1-stage heating

2-stage cooling

Digital control

Room sensor (SI3)

2 speeds

40

4-pipe

1-stage heating

2-stage cooling

Digital control

Room sensor (SI3)

3 speeds

41

4-pipe

1-stage heating

2-stage cooling

Digital control

Returning air temperature sensor (SI1)

Analog control

42

4-pipe

1-stage heating

2-stage cooling

Digital control

Returning air temperature sensor (SI1)

1 speed

43

4-pipe

1-stage heating

2-stage cooling

Digital control

Returning air temperature sensor (SI1)

2 speeds

44

4-pipe

1-stage heating

2-stage cooling

Digital control

Returning air temperature sensor (SI1)

3 speeds

45

4-pipe

1-stage heating

2-stage cooling

Digital control

Temperature from Modbus network

Analog control

46

4-pipe

1-stage heating

2-stage cooling

Digital control

Temperature from Modbus network

1 speed

47

4-pipe

1-stage heating

2-stage cooling

Digital control

Temperature from Modbus network

2 speeds

48

4-pipe

1-stage heating

2-stage cooling

Digital control

Temperature from Modbus network

3 speeds

49

4-pipe

1-stage heating

2-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

Analog control

50

4-pipe

1-stage heating

2-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

1 speed

51

4-pipe

1-stage heating

2-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

2 speeds

52

4-pipe

1-stage heating

2-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

3 speeds

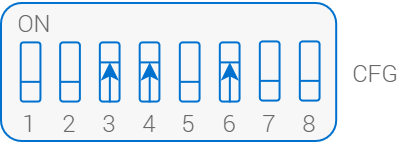

53

4-pipe

1-stage heating

2-stage cooling

Analog control

Room sensor (SI3)

Analog control

54

4-pipe

1-stage heating

2-stage cooling

Analog control

Room sensor (SI3)

1 speed

55

4-pipe

1-stage heating

2-stage cooling

Analog control

Room sensor (SI3)

2 speeds

56

4-pipe

1-stage heating

2-stage cooling

Analog control

Room sensor (SI3)

3 speeds

57

4-pipe

1-stage heating

2-stage cooling

Analog control

Returning air temperature sensor (SI1)

Analog control

58

4-pipe

1-stage heating

2-stage cooling

Analog control

Returning air temperature sensor (SI1)

1 speed

59

4-pipe

1-stage heating

2-stage cooling

Analog control

Returning air temperature sensor (SI1)

2 speeds

60

4-pipe

1-stage heating

2-stage cooling

Analog control

Returning air temperature sensor (SI1)

3 speeds

61

4-pipe

1-stage heating

2-stage cooling

Analog control

Temperature from Modbus network

Analog control

62

4-pipe

1-stage heating

2-stage cooling

Analog control

Temperature from Modbus network

1 speed

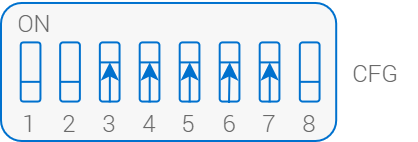

63

4-pipe

1-stage heating

2-stage cooling

Analog control

Temperature from Modbus network

2 speeds

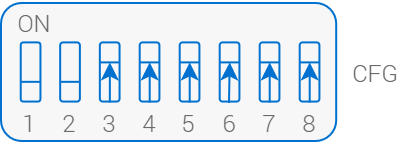

64

4-pipe

1-stage heating

2-stage cooling

Analog control

Temperature from Modbus network

3 speeds

65

4-pipe

2-stage heating

1-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

Analog control

66

4-pipe

2-stage heating

1-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

1 speed

67

4-pipe

2-stage heating

1-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

2 speeds

68

4-pipe

2-stage heating

1-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

3 speeds

69

4-pipe

2-stage heating

1-stage cooling

Digital control

Room sensor (SI3)

Analog control

70

4-pipe

2-stage heating

1-stage cooling

Digital control

Room sensor (SI3)

1 speed

71

4-pipe

2-stage heating

1-stage cooling

Digital control

Room sensor (SI3)

2 speeds

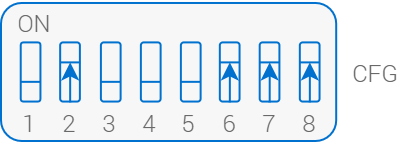

72

4-pipe

2-stage heating

1-stage cooling

Digital control

Room sensor (SI3)

3 speeds

73

4-pipe

2-stage heating

1-stage cooling

Digital control

Returning air temperature sensor (SI1)

Analog control

74

4-pipe

2-stage heating

1-stage cooling

Digital control

Returning air temperature sensor (SI1)

1 speed

75

4-pipe

2-stage heating

1-stage cooling

Digital control

Returning air temperature sensor (SI1)

2 speeds

76

4-pipe

2-stage heating

1-stage cooling

Digital control

Returning air temperature sensor (SI1)

3 speeds

77

4-pipe

2-stage heating

1-stage cooling

Digital control

Temperature from Modbus network

Analog control

78

4-pipe

2-stage heating

1-stage cooling

Digital control

Temperature from Modbus network

1 speed

79

4-pipe

2-stage heating

1-stage cooling

Digital control

Temperature from Modbus network

2 speeds

80

4-pipe

2-stage heating

1-stage cooling

Digital control

Temperature from Modbus network

3 speeds

81

4-pipe

2-stage heating

1-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

Analog control

82

4-pipe

2-stage heating

1-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

1 speed

83

4-pipe

2-stage heating

1-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

2 speeds

84

4-pipe

2-stage heating

1-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

3 speeds

85

4-pipe

2-stage heating

1-stage cooling

Analog control

Room sensor (SI3)

Analog control

86

4-pipe

2-stage heating

1-stage cooling

Analog control

Room sensor (SI3)

1 speed

87

4-pipe

2-stage heating

1-stage cooling

Analog control

Room sensor (SI3)

2 speeds

88

4-pipe

2-stage heating

1-stage cooling

Analog control

Room sensor (SI3)

3 speeds

89

4-pipe

2-stage heating

1-stage cooling

Analog control

Returning air temperature sensor (SI1)

Analog control

90

4-pipe

2-stage heating

1-stage cooling

Analog control

Returning air temperature sensor (SI1)

1 speed

91

4-pipe

2-stage heating

1-stage cooling

Analog control

Returning air temperature sensor (SI1)

2 speeds

92

4-pipe

2-stage heating

1-stage cooling

Analog control

Returning air temperature sensor (SI1)

3 speeds

93

4-pipe

2-stage heating

1-stage cooling

Analog control

Temperature from Modbus network

Analog control

94

4-pipe

2-stage heating

1-stage cooling

Analog control

Temperature from Modbus network

1 speed

95

4-pipe

2-stage heating

1-stage cooling

Analog control

Temperature from Modbus network

2 speeds

96

4-pipe

2-stage heating

1-stage cooling

Analog control

Temperature from Modbus network

3 speeds

97

4-pipe

2-stage heating

2-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

Analog control

98

4-pipe

2-stage heating

2-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

1 speed

99

4-pipe

2-stage heating

2-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

2 speeds

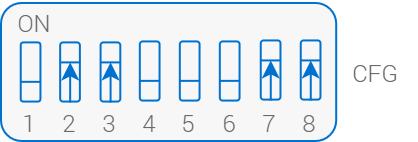

100

4-pipe

2-stage heating

2-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

3 speeds

101

4-pipe

2-stage heating

2-stage cooling

Digital control

Room sensor (SI3)

Analog control

102

4-pipe

2-stage heating

2-stage cooling

Digital control

Room sensor (SI3)

1 speed

103

4-pipe

2-stage heating

2-stage cooling

Digital control

Room sensor (SI3)

2 speeds

104

4-pipe

2-stage heating

2-stage cooling

Digital control

Room sensor (SI3)

3 speeds

105

4-pipe

2-stage heating

2-stage cooling

Digital control

Returning air temperature sensor (SI1)

Analog control

106

4-pipe

2-stage heating

2-stage cooling

Digital control

Returning air temperature sensor (SI1)

1 speed

107

4-pipe

2-stage heating

2-stage cooling

Digital control

Returning air temperature sensor (SI1)

2 speeds

108

4-pipe

2-stage heating

2-stage cooling

Digital control

Returning air temperature sensor (SI1)

3 speeds

109

4-pipe

2-stage heating

2-stage cooling

Digital control

Temperature from Modbus network

Analog control

110

4-pipe

2-stage heating

2-stage cooling

Digital control

Temperature from Modbus network

1 speed

111

4-pipe

2-stage heating

2-stage cooling

Digital control

Temperature from Modbus network

2 speeds

112

4-pipe

2-stage heating

2-stage cooling

Digital control

Temperature from Modbus network

3 speeds

113

4-pipe

2-stage heating

2-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

Analog control

114

4-pipe

2-stage heating

2-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

1 speed

115

4-pipe

2-stage heating

2-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

2 speeds

116

4-pipe

2-stage heating

2-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

3 speeds

117

4-pipe

2-stage heating

2-stage cooling

Analog control

Room sensor (SI3)

Analog control

118

4-pipe

2-stage heating

2-stage cooling

Analog control

Room sensor (SI3)

1 speed

119

4-pipe

2-stage heating

2-stage cooling

Analog control

Room sensor (SI3)

2 speeds

120

4-pipe

2-stage heating

2-stage cooling

Analog control

Room sensor (SI3)

3 speeds

121

4-pipe

2-stage heating

2-stage cooling

Analog control

Returning air temperature sensor (SI1)

Analog control

122

4-pipe

2-stage heating

2-stage cooling

Analog control

Returning air temperature sensor (SI1)

1 speed

123

4-pipe

2-stage heating

2-stage cooling

Analog control

Returning air temperature sensor (SI1)

2 speeds

124

4-pipe

2-stage heating

2-stage cooling

Analog control

Returning air temperature sensor (SI1)

3 speeds

125

4-pipe

2-stage heating

2-stage cooling

Analog control

Temperature from Modbus network

Analog control

126

4-pipe

2-stage heating

2-stage cooling

Analog control

Temperature from Modbus network

1 speed

127

4-pipe

2-stage heating

2-stage cooling

Analog control

Temperature from Modbus network

2 speeds

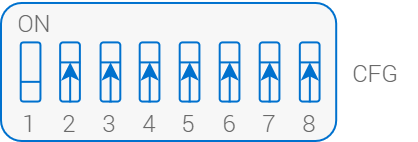

128

4-pipe

2-stage heating

2-stage cooling

Analog control

Temperature from Modbus network

3 speeds

129

2-pipe

1-stage heating

1-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

Analog control

130

2-pipe

1-stage heating

1-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

1 speed

131

2-pipe

1-stage heating

1-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

2 speeds

132

2-pipe

1-stage heating

1-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

3 speeds

133

2-pipe

1-stage heating

1-stage cooling

Digital control

Room sensor (SI3)

Analog control

134

2-pipe

1-stage heating

1-stage cooling

Digital control

Room sensor (SI3)

1 speed

135

2-pipe

1-stage heating

1-stage cooling

Digital control

Room sensor (SI3)

2 speeds

136

2-pipe

1-stage heating

1-stage cooling

Digital control

Room sensor (SI3)

3 speeds

137

2-pipe

1-stage heating

1-stage cooling

Digital control

Returning air temperature sensor (SI1)

Analog control

138

2-pipe

1-stage heating

1-stage cooling

Digital control

Returning air temperature sensor (SI1)

1 speed

139

2-pipe

1-stage heating

1-stage cooling

Digital control

Returning air temperature sensor (SI1)

2 speeds

140

2-pipe

1-stage heating

1-stage cooling

Digital control

Returning air temperature sensor (SI1)

3 speeds

141

2-pipe

1-stage heating

1-stage cooling

Digital control

Temperature from Modbus network

Analog control

142

2-pipe

1-stage heating

1-stage cooling

Digital control

Temperature from Modbus network

1 speed

143

2-pipe

1-stage heating

1-stage cooling

Digital control

Temperature from Modbus network

2 speeds

144

2-pipe

1-stage heating

1-stage cooling

Digital control

Temperature from Modbus network

3 speeds

145

2-pipe

1-stage heating

1-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

Analog control

146

2-pipe

1-stage heating

1-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

1 speed

147

2-pipe

1-stage heating

1-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

2 speeds

148

2-pipe

1-stage heating

1-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

3 speeds

149

2-pipe

1-stage heating

1-stage cooling

Analog control

Room sensor (SI3)

Analog control

150

2-pipe

1-stage heating

1-stage cooling

Analog control

Room sensor (SI3)

1 speed

151

2-pipe

1-stage heating

1-stage cooling

Analog control

Room sensor (SI3)

2 speeds

152

2-pipe

1-stage heating

1-stage cooling

Analog control

Room sensor (SI3)

3 speeds

153

2-pipe

1-stage heating

1-stage cooling

Analog control

Returning air temperature sensor (SI1)

Analog control

154

2-pipe

1-stage heating

1-stage cooling

Analog control

Returning air temperature sensor (SI1)

1 speed

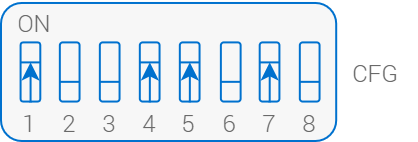

155

2-pipe

1-stage heating

1-stage cooling

Analog control

Returning air temperature sensor (SI1)

2 speeds

156

2-pipe

1-stage heating

1-stage cooling

Analog control

Returning air temperature sensor (SI1)

3 speeds

157

2-pipe

1-stage heating

1-stage cooling

Analog control

Temperature from Modbus network

Analog control

158

2-pipe

1-stage heating

1-stage cooling

Analog control

Temperature from Modbus network

1 speed

159

2-pipe

1-stage heating

1-stage cooling

Analog control

Temperature from Modbus network

2 speeds

160

2-pipe

1-stage heating

1-stage cooling

Analog control

Temperature from Modbus network

3 speeds

161

2-pipe

1-stage heating

2-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

Analog control

162

2-pipe

1-stage heating

2-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

1 speed

163

2-pipe

1-stage heating

2-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

2 speeds

164

2-pipe

1-stage heating

2-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

3 speeds

165

2-pipe

1-stage heating

2-stage cooling

Digital control

Room sensor (SI3)

Analog control

166

2-pipe

1-stage heating

2-stage cooling

Digital control

Room sensor (SI3)

1 speed

167

2-pipe

1-stage heating

2-stage cooling

Digital control

Room sensor (SI3)

2 speeds

168

2-pipe

1-stage heating

2-stage cooling

Digital control

Room sensor (SI3)

3 speeds

169

2-pipe

1-stage heating

2-stage cooling

Digital control

Returning air temperature sensor (SI1)

Analog control

170

2-pipe

1-stage heating

2-stage cooling

Digital control

Returning air temperature sensor (SI1)

1 speed

171

2-pipe

1-stage heating

2-stage cooling

Digital control

Returning air temperature sensor (SI1)

2 speeds

172

2-pipe

1-stage heating

2-stage cooling

Digital control

Returning air temperature sensor (SI1)

3 speeds

173

2-pipe

1-stage heating

2-stage cooling

Digital control

Temperature from Modbus network

Analog control

174

2-pipe

1-stage heating

2-stage cooling

Digital control

Temperature from Modbus network

1 speed

175

2-pipe

1-stage heating

2-stage cooling

Digital control

Temperature from Modbus network

2 speeds

176

2-pipe

1-stage heating

2-stage cooling

Digital control

Temperature from Modbus network

3 speeds

177

2-pipe

1-stage heating

2-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

Analog control

178

2-pipe

1-stage heating

2-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

1 speed

179

2-pipe

1-stage heating

2-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

2 speeds

180

2-pipe

1-stage heating

2-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

3 speeds

181

2-pipe

1-stage heating

2-stage cooling

Analog control

Room sensor (SI3)

Analog control

182

2-pipe

1-stage heating

2-stage cooling

Analog control

Room sensor (SI3)

1 speed

183

2-pipe

1-stage heating

2-stage cooling

Analog control

Room sensor (SI3)

2 speeds

184

2-pipe

1-stage heating

2-stage cooling

Analog control

Room sensor (SI3)

3 speeds

185

2-pipe

1-stage heating

2-stage cooling

Analog control

Returning air temperature sensor (SI1)

Analog control

186

2-pipe

1-stage heating

2-stage cooling

Analog control

Returning air temperature sensor (SI1)

1 speed

187

2-pipe

1-stage heating

2-stage cooling

Analog control

Returning air temperature sensor (SI1)

2 speeds

188

2-pipe

1-stage heating

2-stage cooling

Analog control

Returning air temperature sensor (SI1)

3 speeds

189

2-pipe

1-stage heating

2-stage cooling

Analog control

Temperature from Modbus network

Analog control

190

2-pipe

1-stage heating

2-stage cooling

Analog control

Temperature from Modbus network

1 speed

191

2-pipe

1-stage heating

2-stage cooling

Analog control

Temperature from Modbus network

2 speeds

192

2-pipe

1-stage heating

2-stage cooling

Analog control

Temperature from Modbus network

3 speeds

193

2-pipe

2-stage heating

1-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

Analog control

194

2-pipe

2-stage heating

1-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

1 speed

195

2-pipe

2-stage heating

1-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

2 speeds

196

2-pipe

2-stage heating

1-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

3 speeds

197

2-pipe

2-stage heating

1-stage cooling

Digital control

Room sensor (SI3)

Analog control

198

2-pipe

2-stage heating

1-stage cooling

Digital control

Room sensor (SI3)

1 speed

199

2-pipe

2-stage heating

1-stage cooling

Digital control

Room sensor (SI3)

2 speeds

200

2-pipe

2-stage heating

1-stage cooling

Digital control

Room sensor (SI3)

3 speeds

201

2-pipe

2-stage heating

1-stage cooling

Digital control

Returning air temperature sensor (SI1)

Analog control

202

2-pipe

2-stage heating

1-stage cooling

Digital control

Returning air temperature sensor (SI1)

1 speed

203

2-pipe

2-stage heating

1-stage cooling

Digital control

Returning air temperature sensor (SI1)

2 speeds

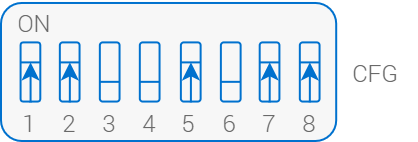

204

2-pipe

2-stage heating

1-stage cooling

Digital control

Returning air temperature sensor (SI1)

3 speeds

205

2-pipe

2-stage heating

1-stage cooling

Digital control

Temperature from Modbus network

Analog control

206

2-pipe

2-stage heating

1-stage cooling

Digital control

Temperature from Modbus network

1 speed

207

2-pipe

2-stage heating

1-stage cooling

Digital control

Temperature from Modbus network

2 speeds

208

2-pipe

2-stage heating

1-stage cooling

Digital control

Temperature from Modbus network

3 speeds

209

2-pipe

2-stage heating

1-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

Analog control

210

2-pipe

2-stage heating

1-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

1 speed

211

2-pipe

2-stage heating

1-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

2 speeds

212

2-pipe

2-stage heating

1-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

3 speeds

213

2-pipe

2-stage heating

1-stage cooling

Analog control

Room sensor (SI3)

Analog control

214

2-pipe

2-stage heating

1-stage cooling

Analog control

Room sensor (SI3)

1 speed

215

2-pipe

2-stage heating

1-stage cooling

Analog control

Room sensor (SI3)

2 speeds

216

2-pipe

2-stage heating

1-stage cooling

Analog control

Room sensor (SI3)

3 speeds

217

2-pipe

2-stage heating

1-stage cooling

Analog control

Returning air temperature sensor (SI1)

Analog control

218

2-pipe

2-stage heating

1-stage cooling

Analog control

Returning air temperature sensor (SI1)

1 speed

219

2-pipe

2-stage heating

1-stage cooling

Analog control

Returning air temperature sensor (SI1)

2 speeds

220

2-pipe

2-stage heating

1-stage cooling

Analog control

Returning air temperature sensor (SI1)

3 speeds

221

2-pipe

2-stage heating

1-stage cooling

Analog control

Temperature from Modbus network

Analog control

222

2-pipe

2-stage heating

1-stage cooling

Analog control

Temperature from Modbus network

1 speed

223

2-pipe

2-stage heating

1-stage cooling

Analog control

Temperature from Modbus network

2 speeds

224

2-pipe

2-stage heating

1-stage cooling

Analog control

Temperature from Modbus network

3 speeds

225

2-pipe

2-stage heating

2-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

Analog control

226

2-pipe

2-stage heating

2-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

1 speed

227

2-pipe

2-stage heating

2-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

2 speeds

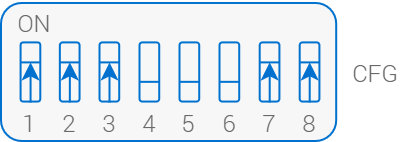

228

2-pipe

2-stage heating

2-stage cooling

Digital control

iSMA-B-LP/Touch Point room panel

3 speeds

229

2-pipe

2-stage heating

2-stage cooling

Digital control

Room sensor (SI3)

Analog control

230

2-pipe

2-stage heating

2-stage cooling

Digital control

Room sensor (SI3)

1 speed

231

2-pipe

2-stage heating

2-stage cooling

Digital control

Room sensor (SI3)

2 speeds

232

2-pipe

2-stage heating

2-stage cooling

Digital control

Room sensor (SI3)

3 speeds

233

2-pipe

2-stage heating

2-stage cooling

Digital control

Returning air temperature sensor (SI1)

Analog control

234

2-pipe

2-stage heating

2-stage cooling

Digital control

Returning air temperature sensor (SI1)

1 speed

235

2-pipe

2-stage heating

2-stage cooling

Digital control

Returning air temperature sensor (SI1)

2 speeds

236

2-pipe

2-stage heating

2-stage cooling

Digital control

Returning air temperature sensor (SI1)

3 speeds

237

2-pipe

2-stage heating

2-stage cooling

Digital control

Temperature from Modbus network

Analog control

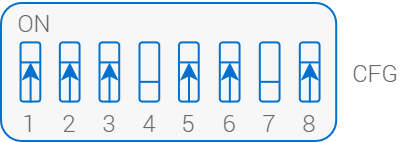

238

2-pipe

2-stage heating

2-stage cooling

Digital control

Temperature from Modbus network

1 speed

239

2-pipe

2-stage heating

2-stage cooling

Digital control

Temperature from Modbus network

2 speeds

240

2-pipe

2-stage heating

2-stage cooling

Digital control

Temperature from Modbus network

3 speeds

241

2-pipe

2-stage heating

2-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

Analog control

242

2-pipe

2-stage heating

2-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

1 speed

243

2-pipe

2-stage heating

2-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

2 speeds

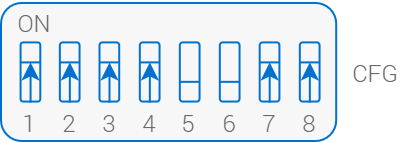

244

2-pipe

2-stage heating

2-stage cooling

Analog control

iSMA-B-LP/Touch Point room panel

3 speeds

245

2-pipe

2-stage heating

2-stage cooling

Analog control

Room sensor (SI3)

Analog control

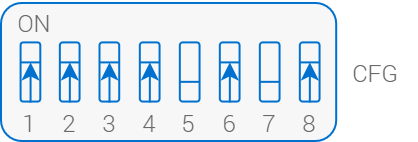

246

2-pipe

2-stage heating

2-stage cooling

Analog control

Room sensor (SI3)

1 speed

247

2-pipe

2-stage heating

2-stage cooling

Analog control

Room sensor (SI3)

2 speeds

248

2-pipe

2-stage heating

2-stage cooling

Analog control

Room sensor (SI3)

3 speeds

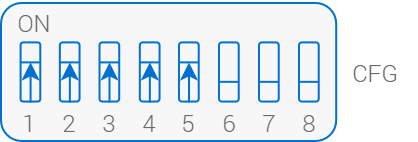

249

2-pipe

2-stage heating

2-stage cooling

Analog control

Returning air temperature sensor (SI1)

Analog control

250

2-pipe

2-stage heating

2-stage cooling

Analog control

Returning air temperature sensor (SI1)

1 speed

251

2-pipe

2-stage heating

2-stage cooling

Analog control

Returning air temperature sensor (SI1)

2 speeds

252

2-pipe

2-stage heating

2-stage cooling

Analog control

Returning air temperature sensor (SI1)

3 speeds

253

2-pipe

2-stage heating

2-stage cooling

Analog control

Temperature from Modbus network

Analog control

254

2-pipe

2-stage heating

2-stage cooling

Analog control

Temperature from Modbus network

1 speed

255

2-pipe

2-stage heating

2-stage cooling

Analog control

Temperature from Modbus network

2 speeds

256

2-pipe

2-stage heating

2-stage cooling

Analog control

Temperature from Modbus network

3 speeds

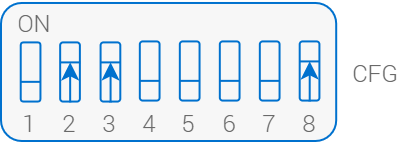

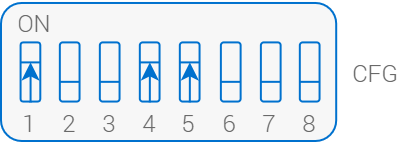

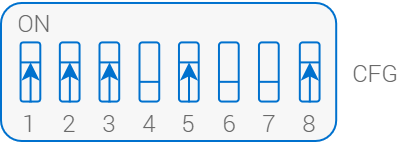

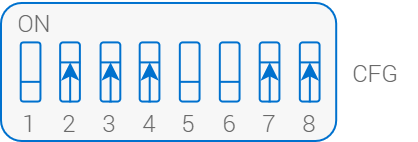

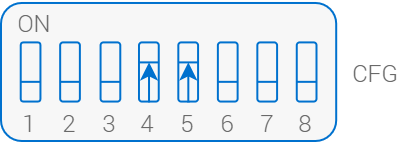

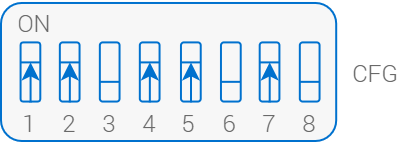

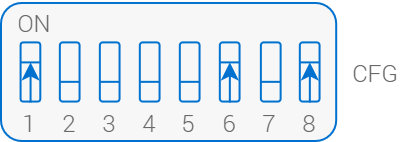

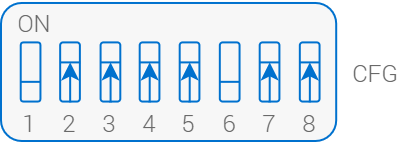

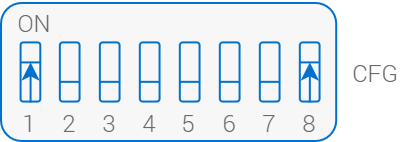

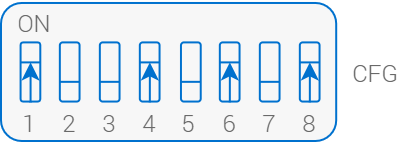

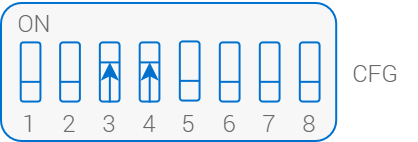

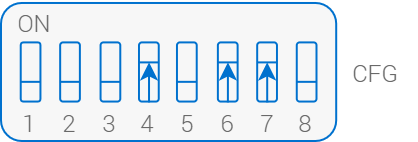

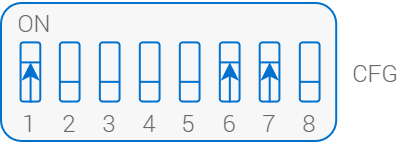

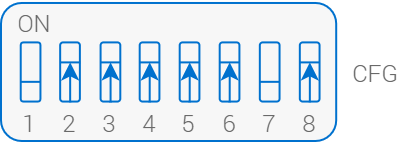

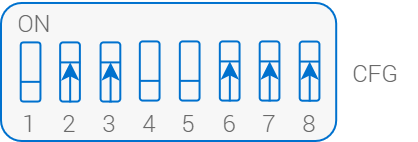

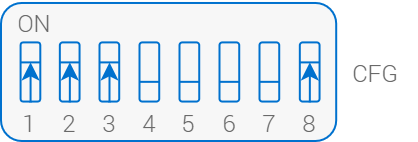

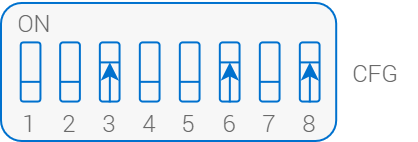

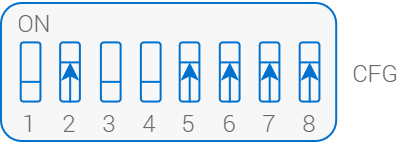

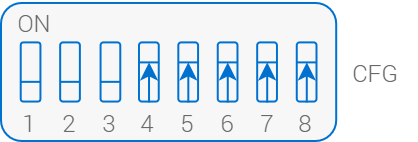

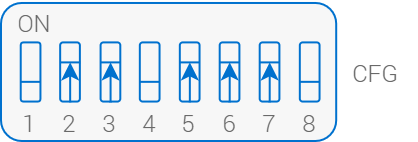

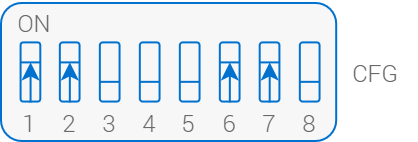

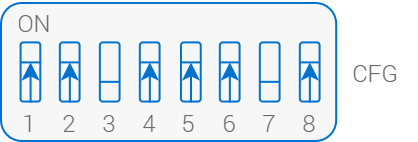

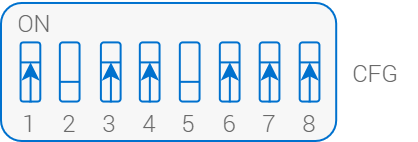

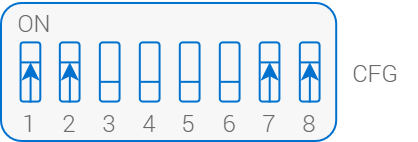

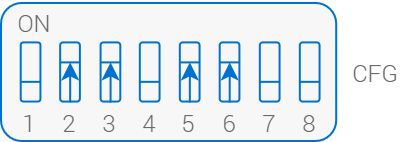

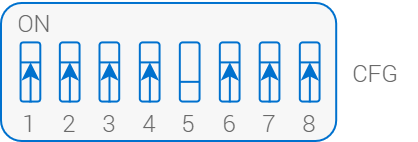

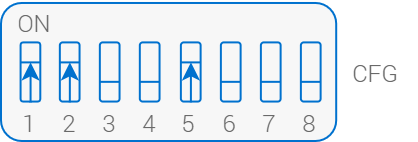

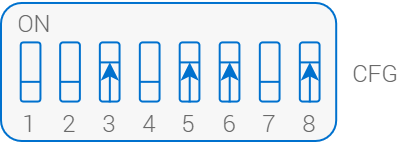

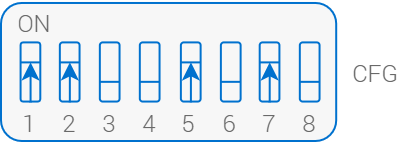

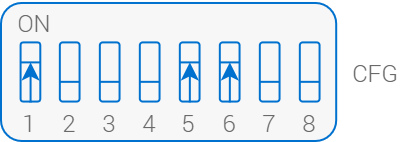

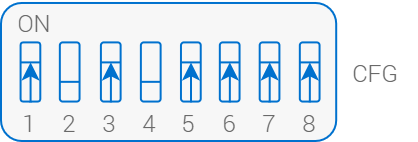

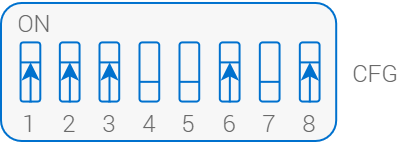

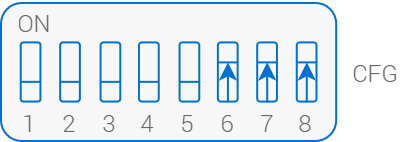

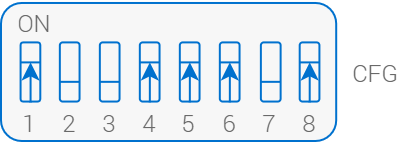

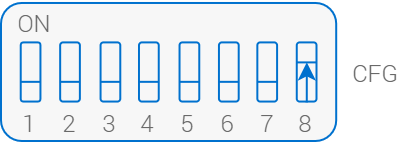

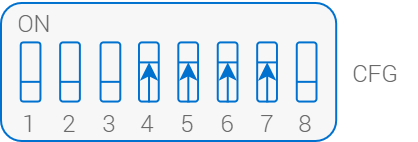

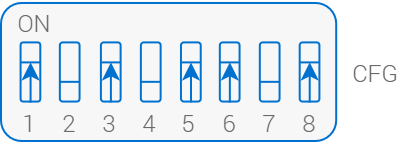

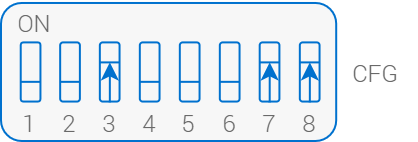

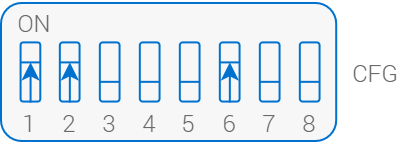

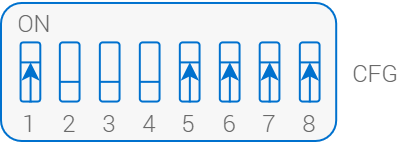

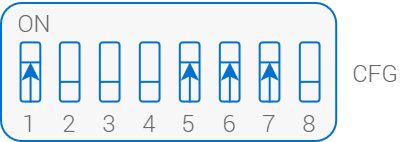

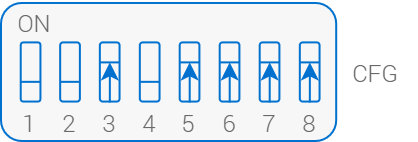

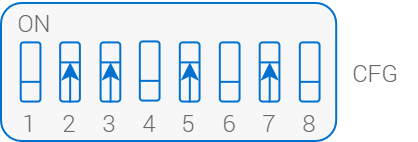

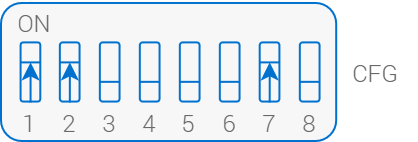

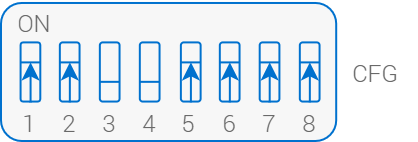

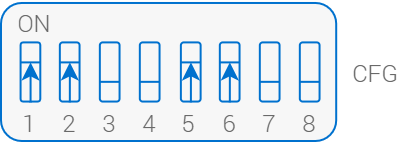

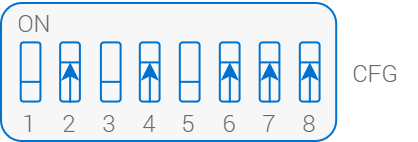

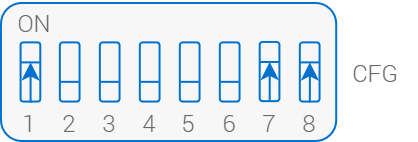

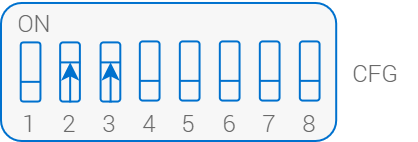

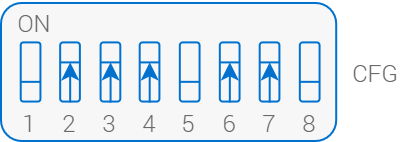

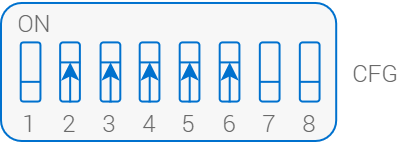

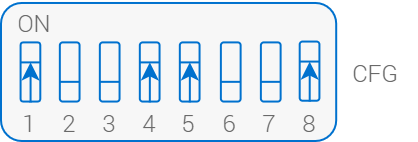

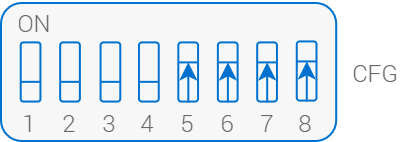

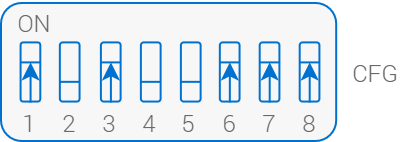

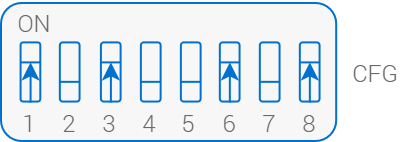

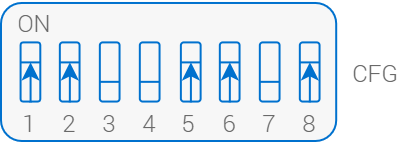

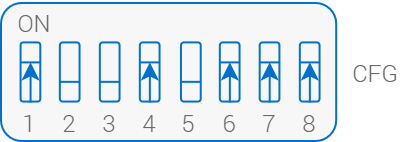

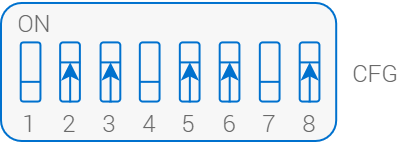

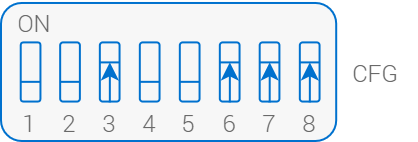

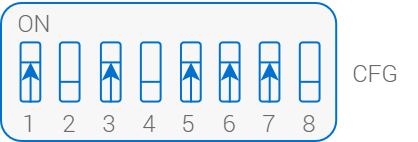

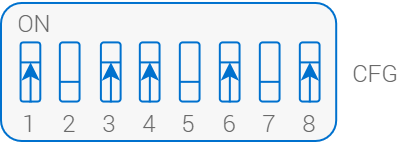

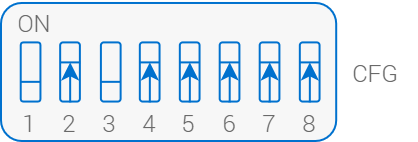

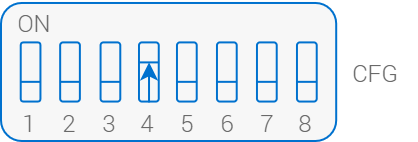

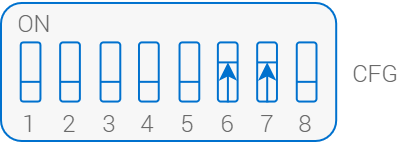

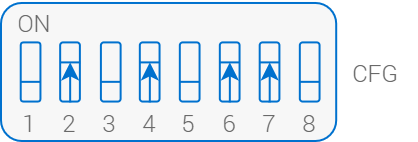

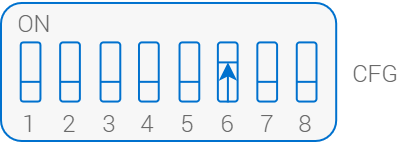

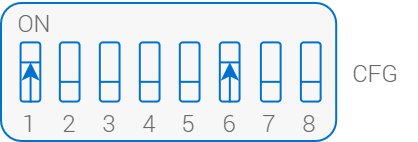

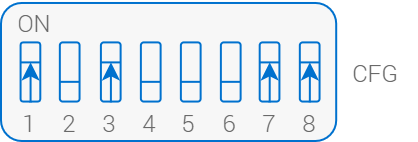

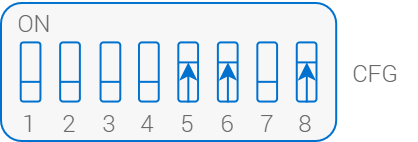

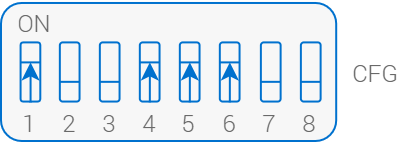

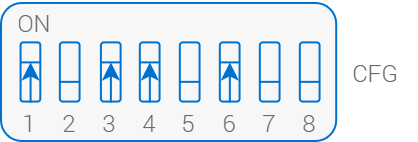

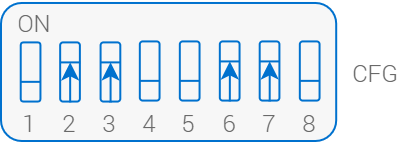

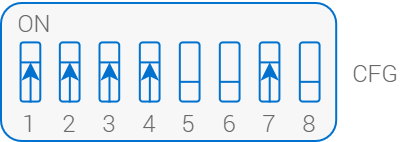

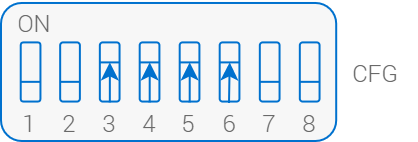

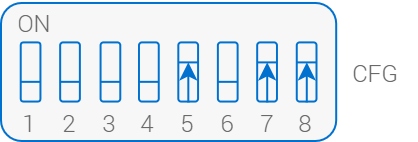

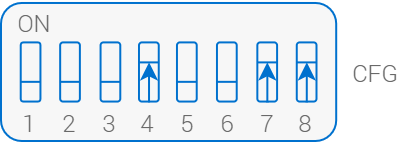

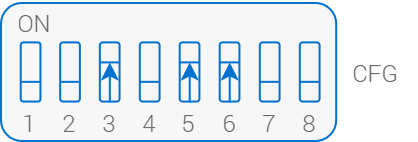

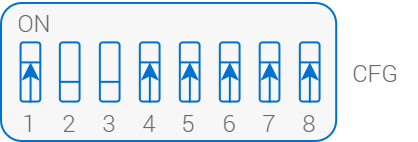

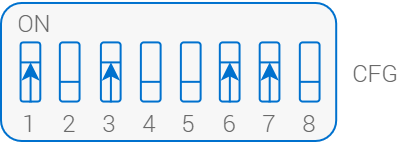

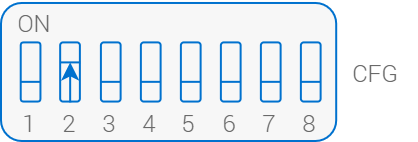

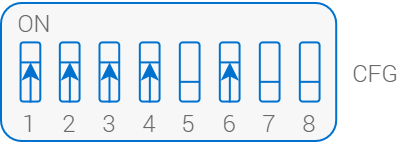

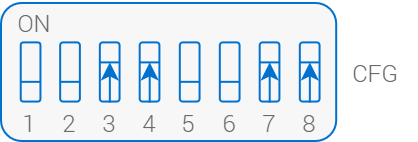

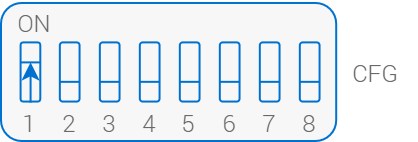

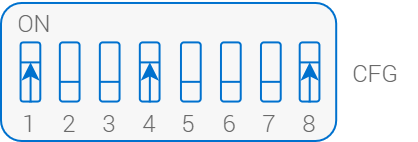

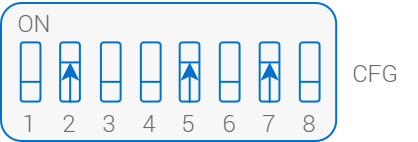

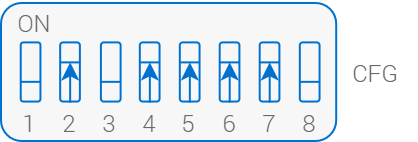

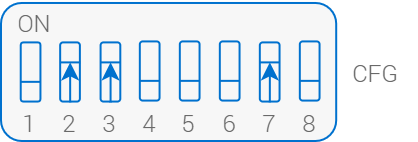

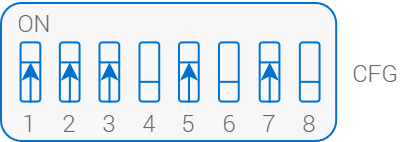

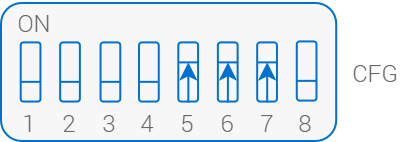

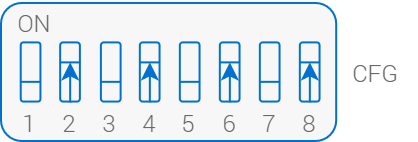

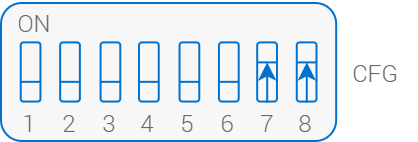

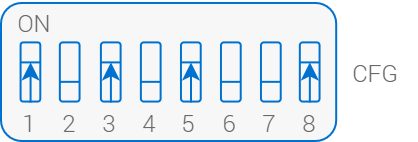

All available DIP switch configurations
JavaScript errors detected

Please note, these errors can depend on your browser setup.

If this problem persists, please contact our support.
