Introduction

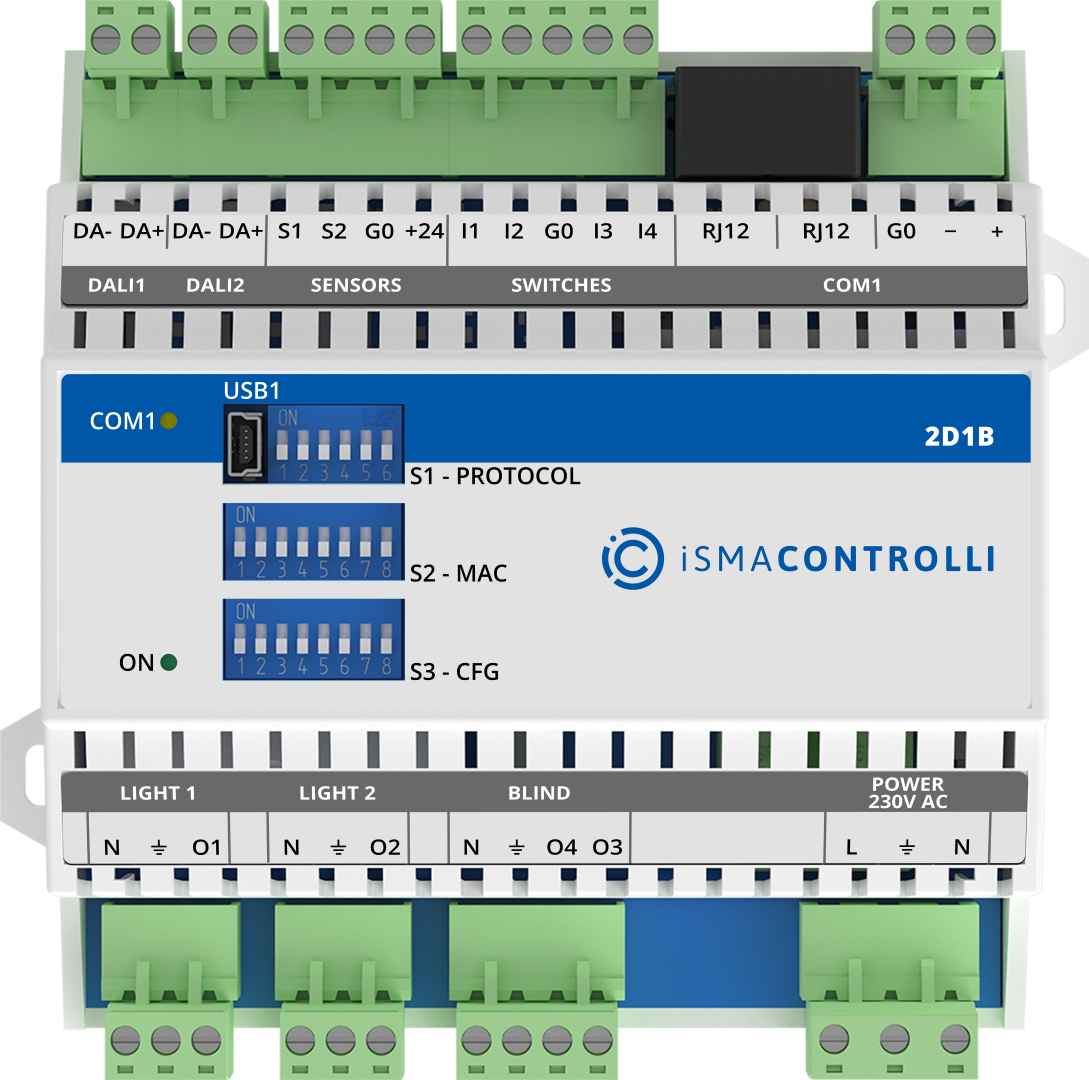

The iSMA-B-2D1B device has been built in order to control the light and blind/shutter in a single space in the building. The device is designed for controlling two separate DALI light areas with up to 32 DALI ballasts (16 ballasts for each DALI interface). Two built-in special inputs and two digital inputs are designed to connect the presence detectors and light switches. A dedicated DIP switch allows for activating a predefined inputs configuration. The device allows for controlling DALI ballasts by a common light switch and a common presence detector without the need of programming, which makes the device a unique plug & play type device designed for DALI network control.

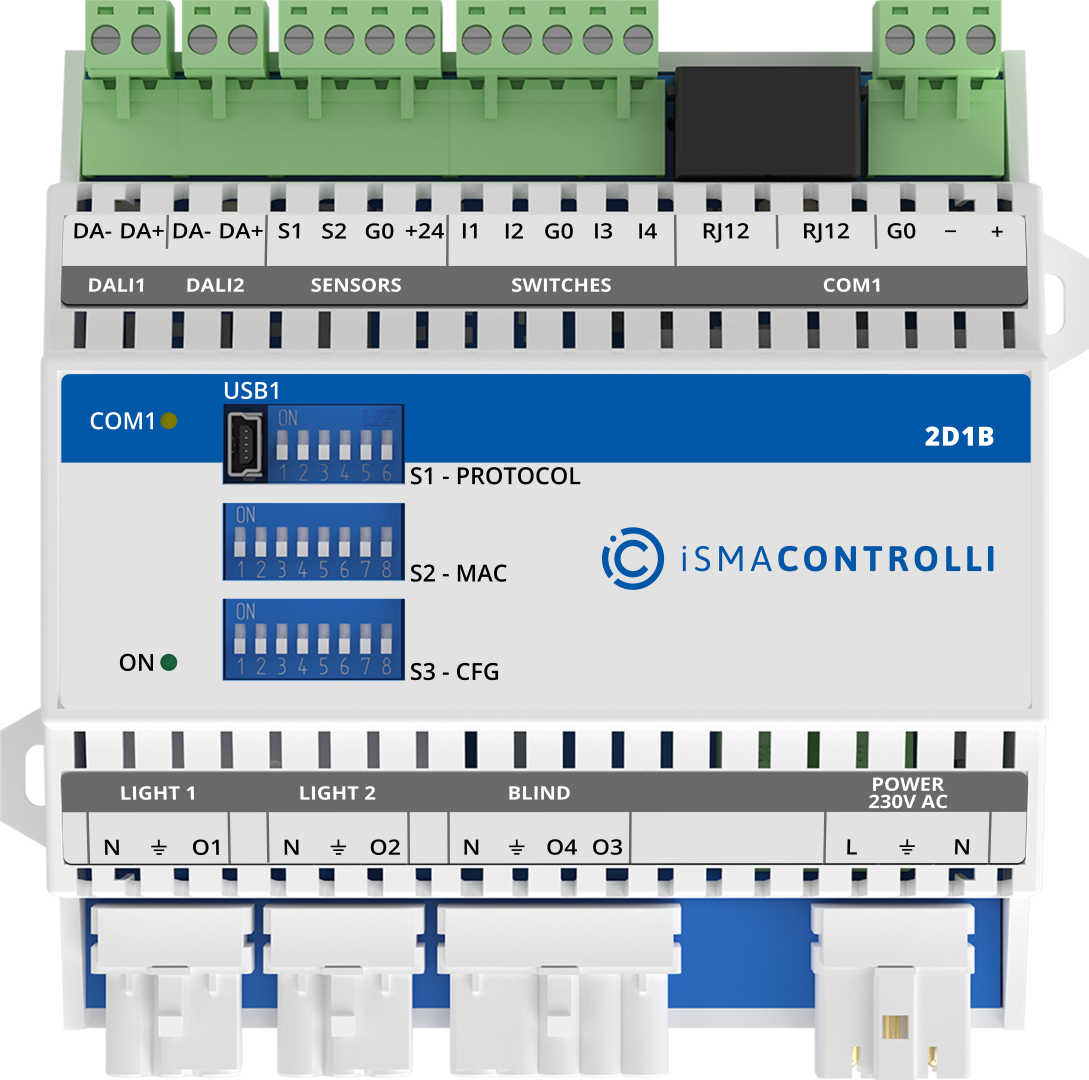

In addition, the iSMA-B-2D1B-(WD) device has a blind/shutter control function implemented, which allows for controlling a blind/shutter with a common double-switch.
|
|
|
2D1B controllers
Revision History
|
Rev. |
Date |
Description |
|---|---|---|
|
1.0 |
16 Aug 2017 |
First edition |
|
1.1 |
29 Mar 2021 |
Company data update |
|
1.2 |
25 May 2022 |
Rebranded |
Revision history
