Introduction
The iSMA-B-2D device has been built in order to control the light in a single space in the building. The device is designed for controlling two separate DALI light areas with up to 32 DALI ballasts (16 ballasts for each DALI interface). Two built-in special inputs and two digital inputs are designed to connect the presence detectors and light switches. A dedicated DIP switch allows for activating a predefined inputs configuration. The device allows for controlling DALI ballasts by a common light switch and a common presence detector without the need of programming, which makes the device a unique plug & play type device designed for DALI network control.
|
|

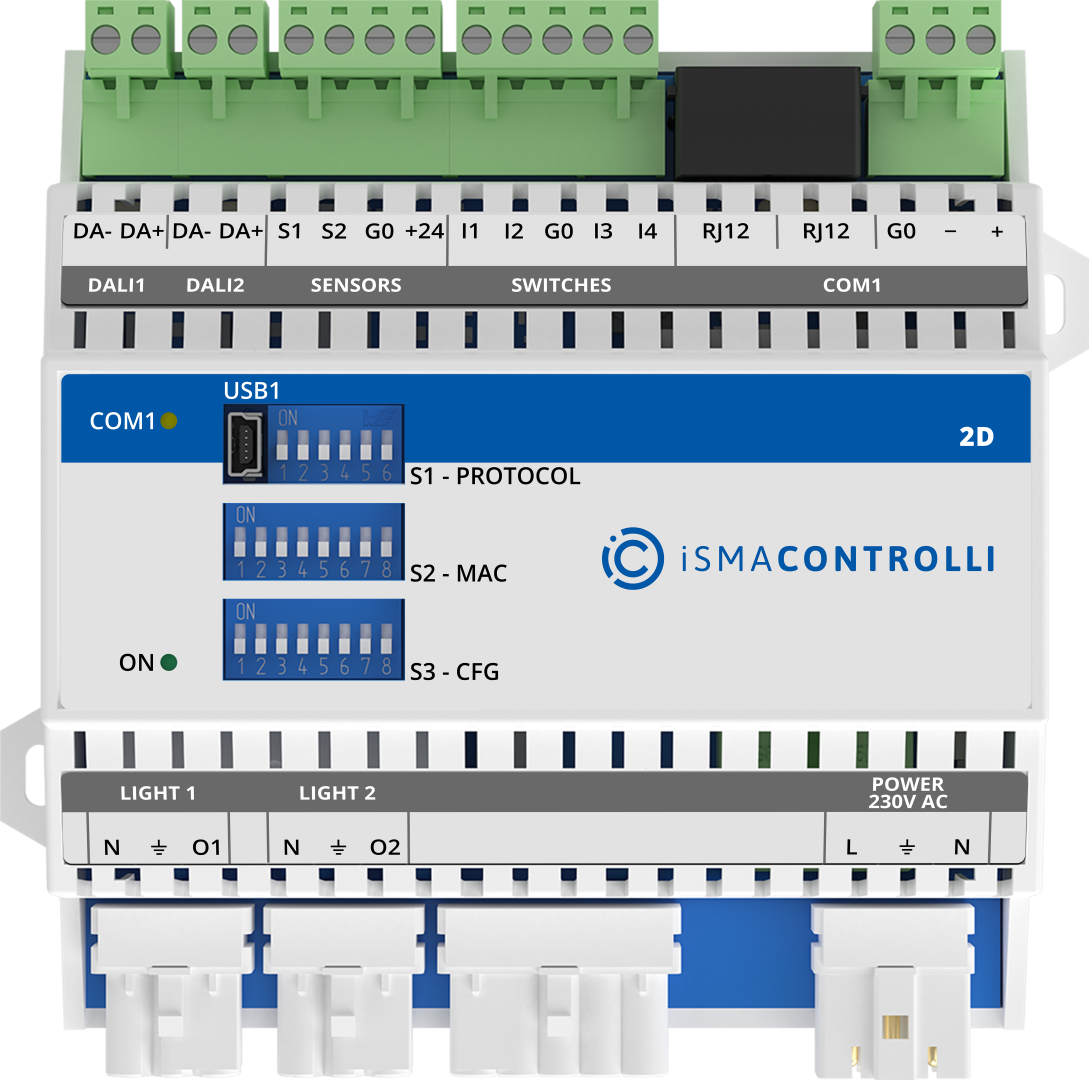

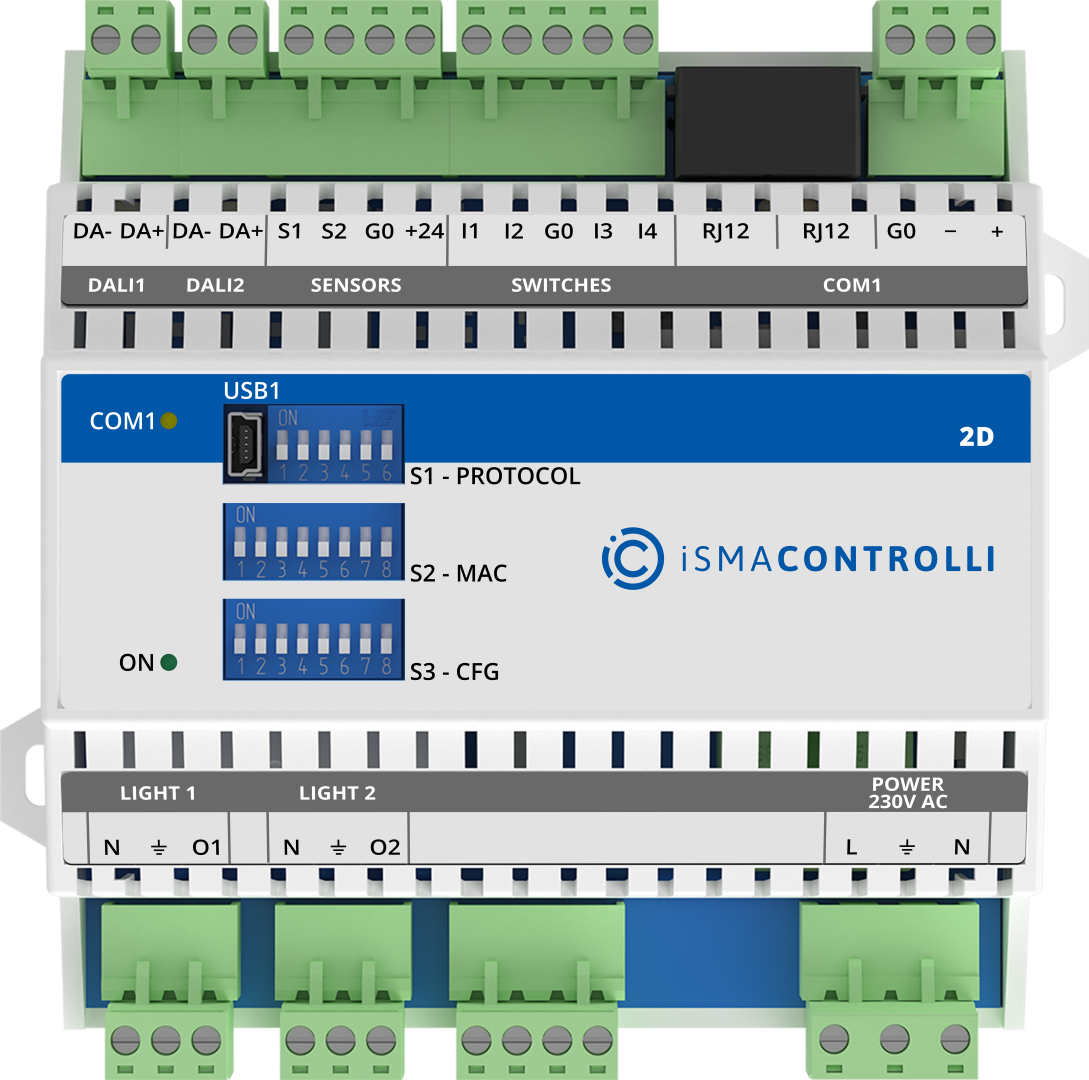

2D controller
Revision History
|
Rev. |
Date |
Description |
|
|---|---|---|---|
|
1.0 |
29 Mar 2021 |
First edition |
|
|
1.1 |
4 May 2021 |
New renders |
|
|
1.2 |
25 May 2022 |
Rebranded; corrections in the Sensors and Switches section (digital input number) |
|
Revision history
