Purpose and Description of the Module

The SfAR-S-16DO module is an innovative device that provides a simple and cost-effective extension of the number of outputs in popular PLCs.

The module has 16 digital outputs. All outputs are isolated from the logic using optocouplers.

The module is connected to the RS485 bus with a twisted-pair wire. Communication is via Modbus RTU or Modbus ASCII. The use of 32-bit ARM core processor provides fast processing and quick communication. The baud rate is configurable from 2400 to 115200.

The module is designed for mounting on a DIN rail in accordance with DIN EN 5002.

The module is equipped with a set of LEDs to indicate the status of outputs, power supply, and communication, which is useful for diagnostic purposes and helping to find errors.

Module configuration is done via USB by using a dedicated computer program. It also allows for changing the parameters using the Modbus protocol or set the Modbus address using the DIP switches under the front panel.

Technical Specification

Power Supply



Voltage

10-38 V DC; 10-28 V AC

Power consumption
(with active Modbus transmission and high state on all outputs)

2.4 W at 24 V DC

3 VA at 24 V AC

Digital Outputs





No. of outputs

16

Max Voltage

30 V

Max current

500 mA

Output Type

PNP

Isolation

1500 Vrms

Temperature


Work

-10 °C to +50°C (14°F to 122°F)

Storage

-40 °C to +85°C (-40°F to 185°F)

Connectors





Power Supply

2 pin

Communication

3 pin

Outputs

10 pin

Quick connector

IDC10

Configuration

mini USB

Size



Height

119.1 mm (4.689 in)

Length

110.9 mm (4.366 in)

Width

22.7 mm (0.894 in)

Interface

RS485

Up to 128 devices

Technical specification

Dimensions

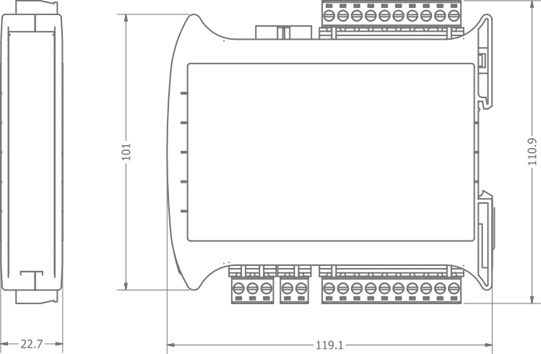

The appearance and dimensions of the module are shown below. The module is mounted directly to the rail in the DIN industry standard. Power connectors, communication and IOs are at the bottom and top of the module. USB connector configuration and indicators are located on the front of the module.

Dimensions
