Indicators
Indicators
Indicator | Description |
|---|---|
ON | The LED indicates that the module is correctly powered |
TX | The LED lights up when the unit received the correct packet and sends the answer |
DI1, DI2 | The LED indicates that on the input is high state |
DO1, DO2 | The LED indicates that the output is on |

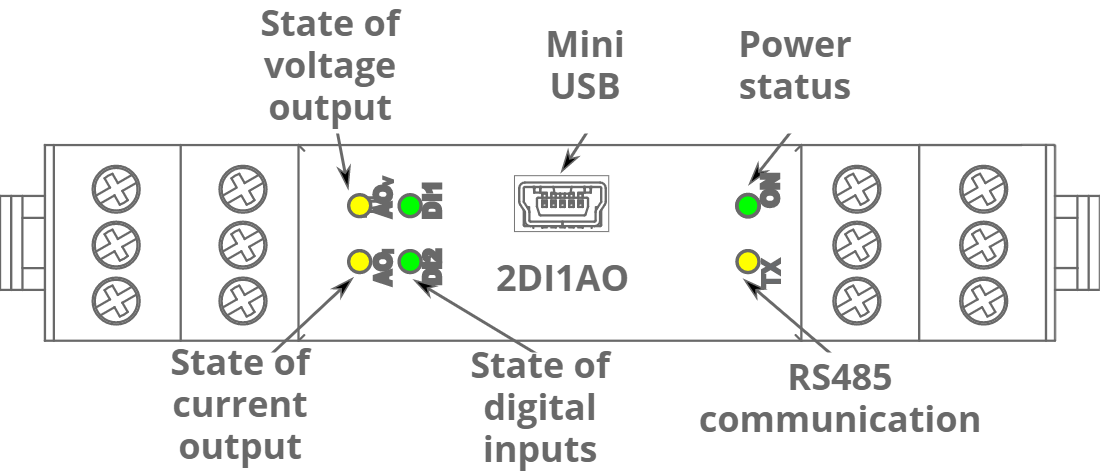

Description of indicators
