Inputs and Outputs
The RAC18-IP is equipped with 18 inputs and outputs:
- 4 universal inputs;
- 4 digital inputs;
- 3 analog outputs;
- 5 digital outputs;
- 2 triac outputs.
Universal Inputs
The RAC18-IP device is equipped with 4 universal inputs.
Universal inputs support four types of input signals:
- voltage (0-10 V DC, input impedance 100 kΩ);
- current (0-20 mA);
- resistance and temperature measurement (10k thermistor, a full list of supported temperature sensors is available here: List of Supported Temperature Sensors);
- dry contact (output current 1 mA).
Current measurement is realized by voltage measurement and 200 Ω resistance. According to Ohm’s law, the current is directly proportional to the voltage, and the resistance is the constant of proportionality. (I = U / R). According to the Ohm’s law equation, for 20 mA current with 200 Ω resistance the output voltage is 4 V. It means that the 4 V voltage measured on the universal input corresponds to 20 mA current. The result is expressed in millivolts.

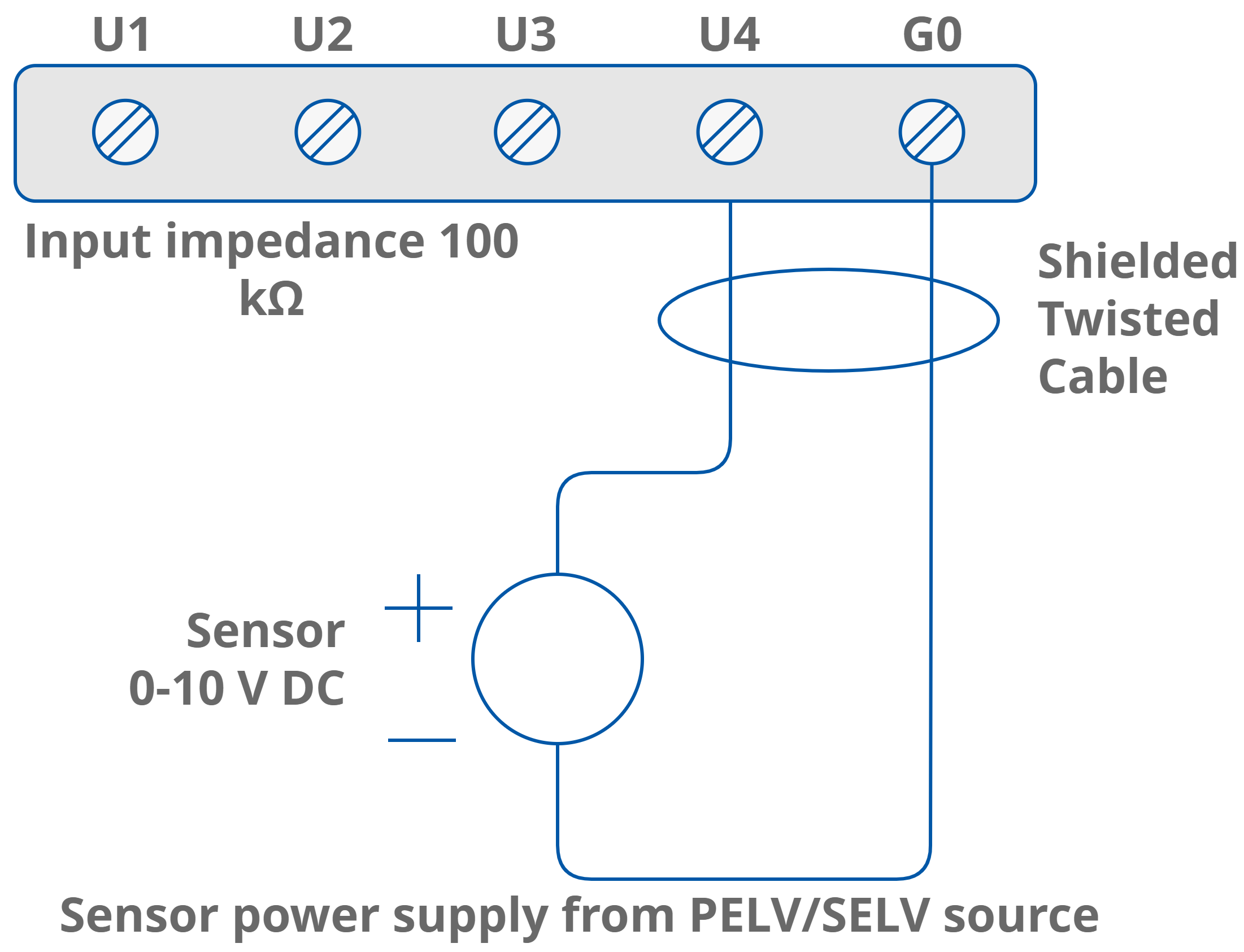

Universal Input Voltage Connection

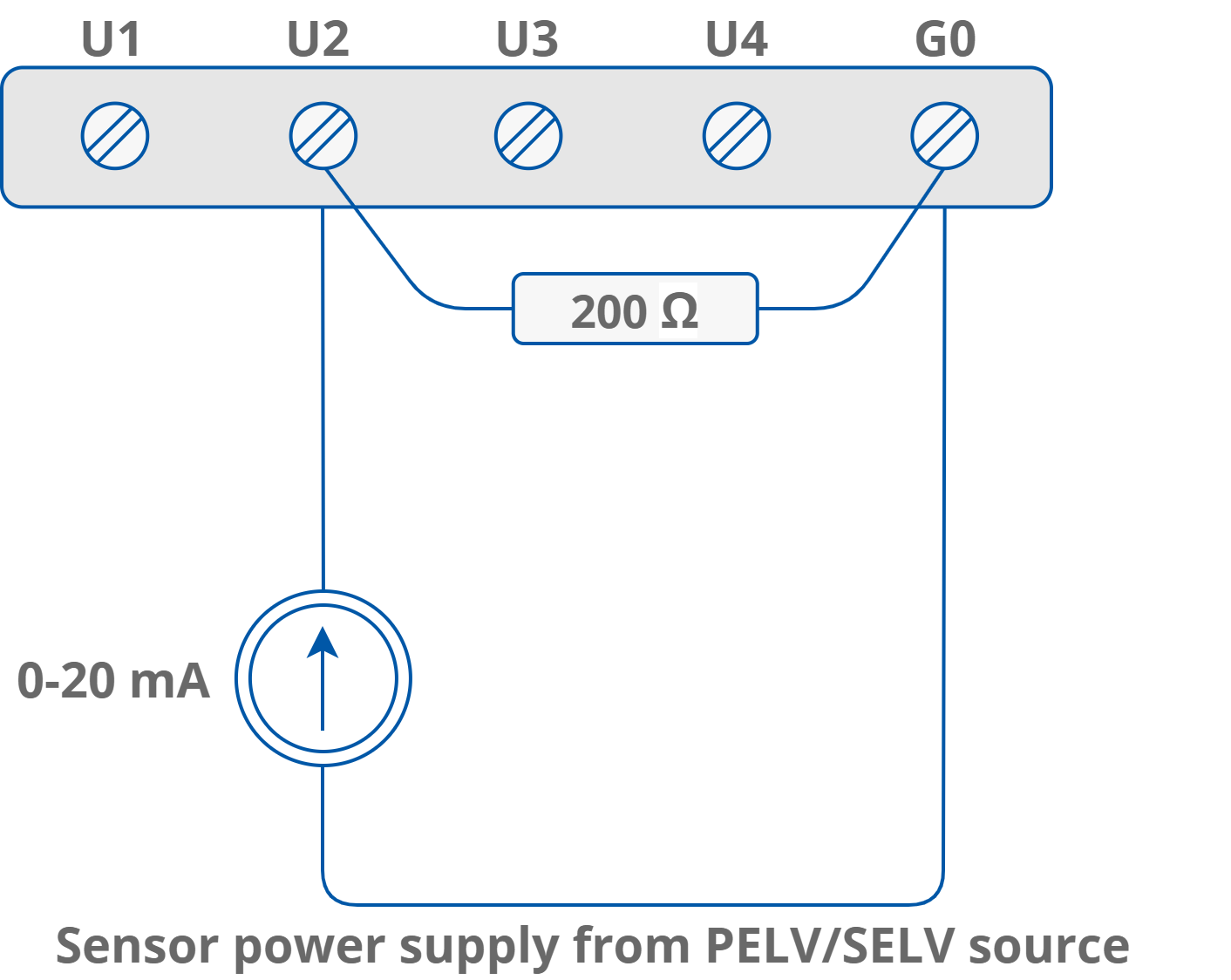

Universal Input Current Connection

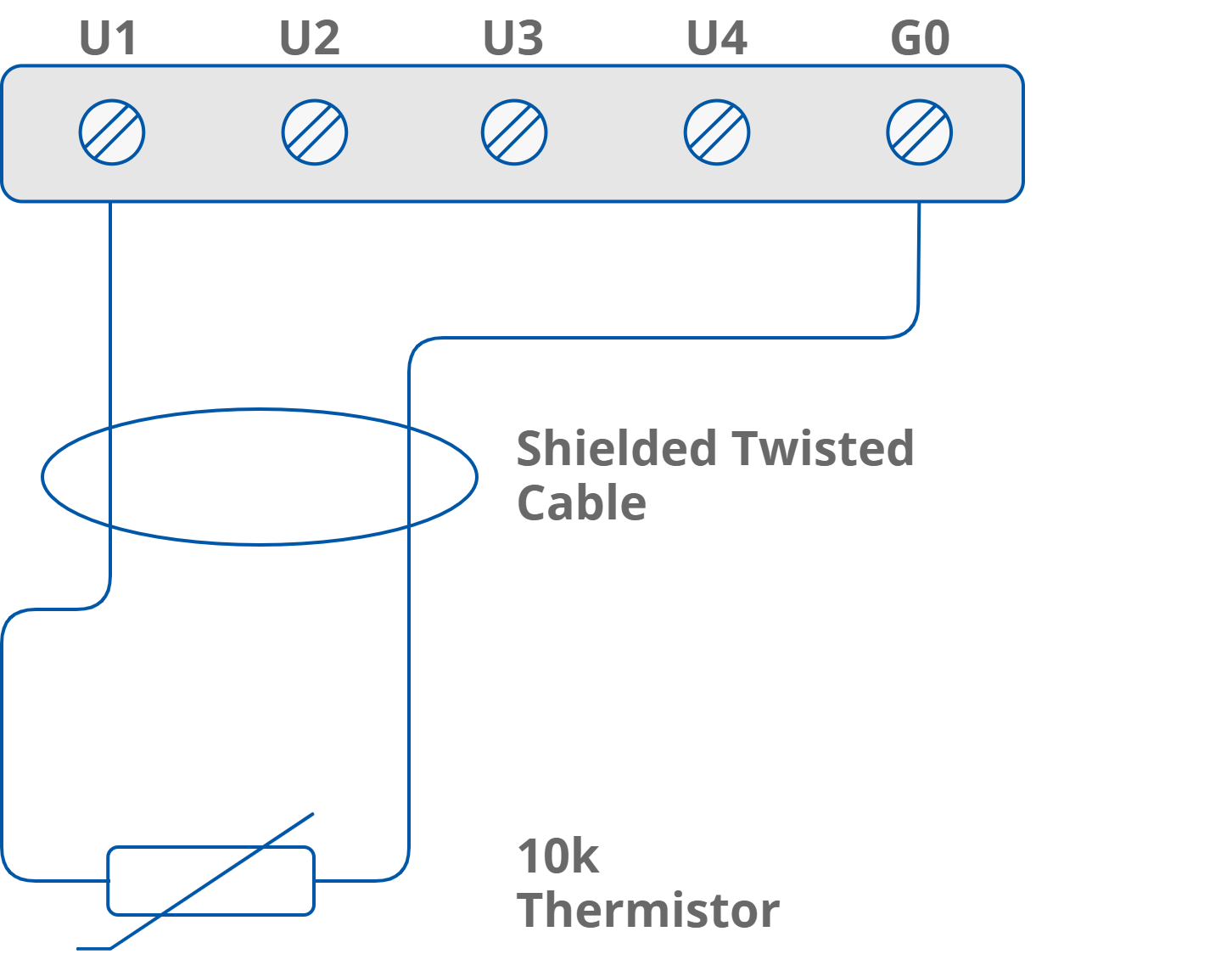

Universal Input Resistance Connection

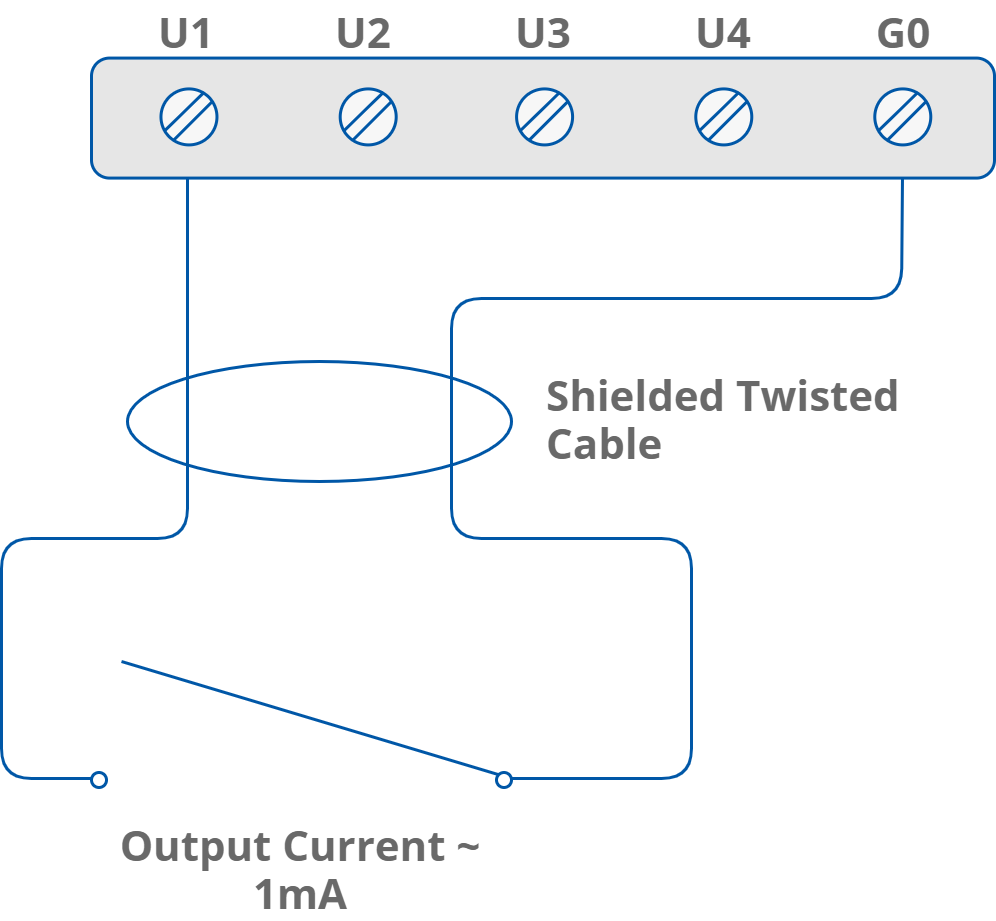

Universal Input Dry Contact Connection

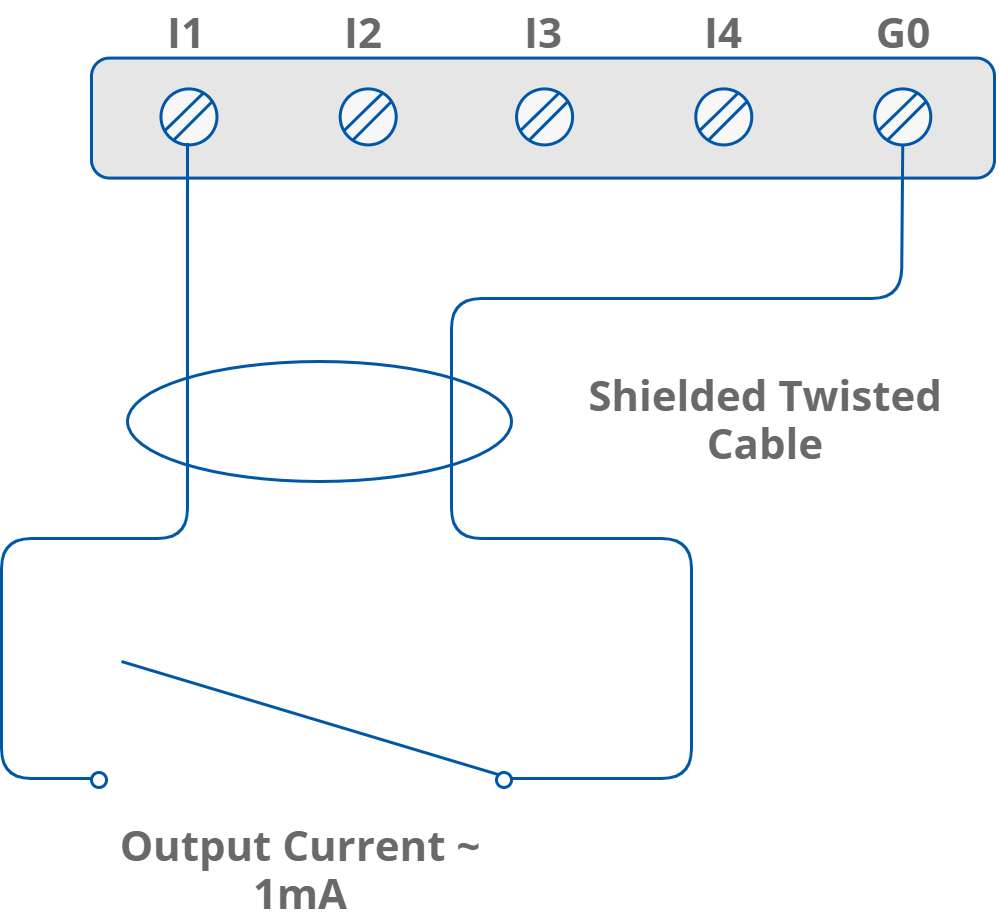

Digital Inputs
The RAC18-IP device is equipped with 4 digital inputs.
Digital inputs operate as standard dry contact inputs and, additionally, as high speed pulse counters up to 100 Hz.
Digital Input Counter
A digital input can work as a counter of dry contact pulses up to 100 Hz. The connection is identical as in case of the dry contact input.
Analog Outputs
The RAC18-IP is equipped with 3 analog outputs.
Analog outputs provide a 0-10 V DC output with maximum load up to 20 mA. They support three types of output signals:
- voltage (0-10 V DC) with maximum load up to 20 mA;
- digital;
- Pulse Width Modulation (PWM) 0,01 Hz, 0,1 Hz, 1 Hz, 10 Hz, 100 Hz.

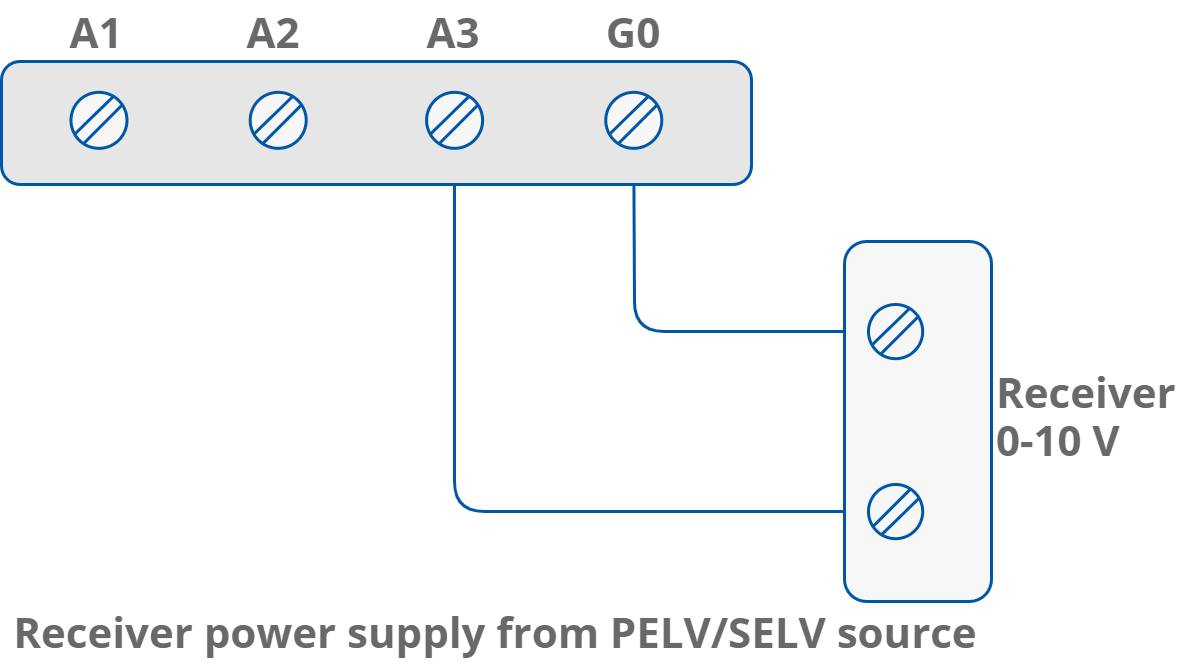

Analog Output Voltage Connection

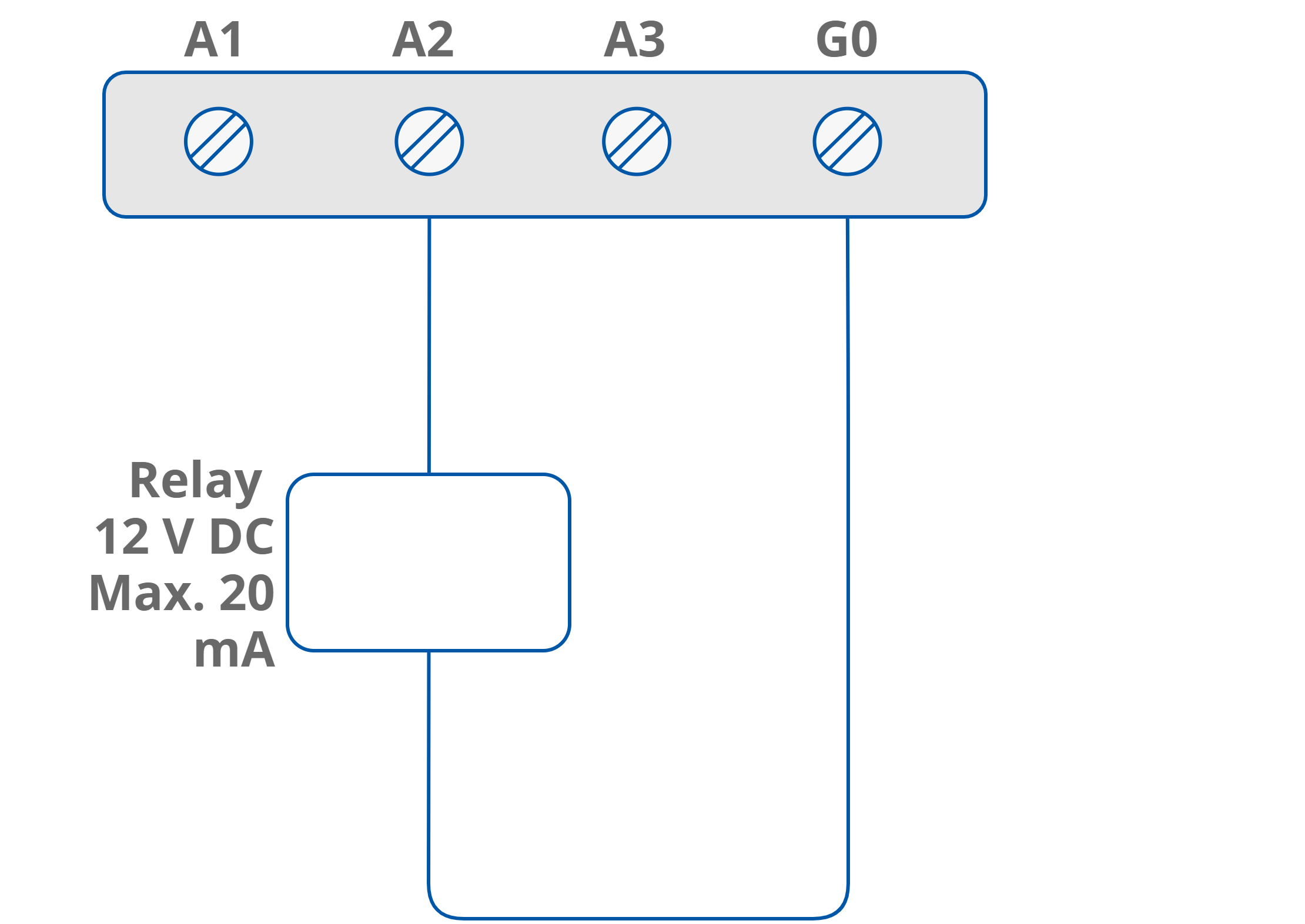

Analog Output Relay Connection

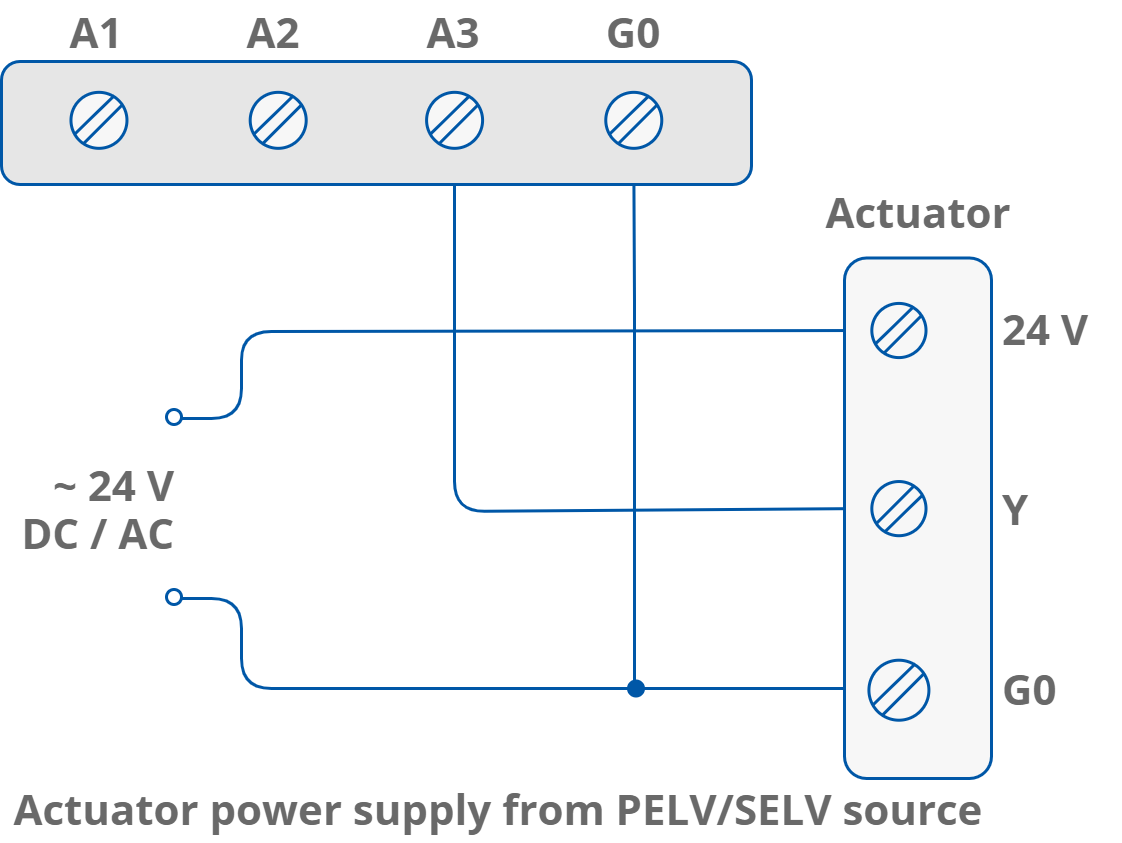

Analog Output Actuator Connection
Digital Outputs
The RAC18-IP is equipped with 5 digital outputs.
Digital outputs operate as relay outputs with maximum loads of:
- resistive load: 3 A @ 230 V AC, and 3 A @ 30 V DC;
- inductive load: 75 VA for 230 V AC and 30 W for 24 V DC.

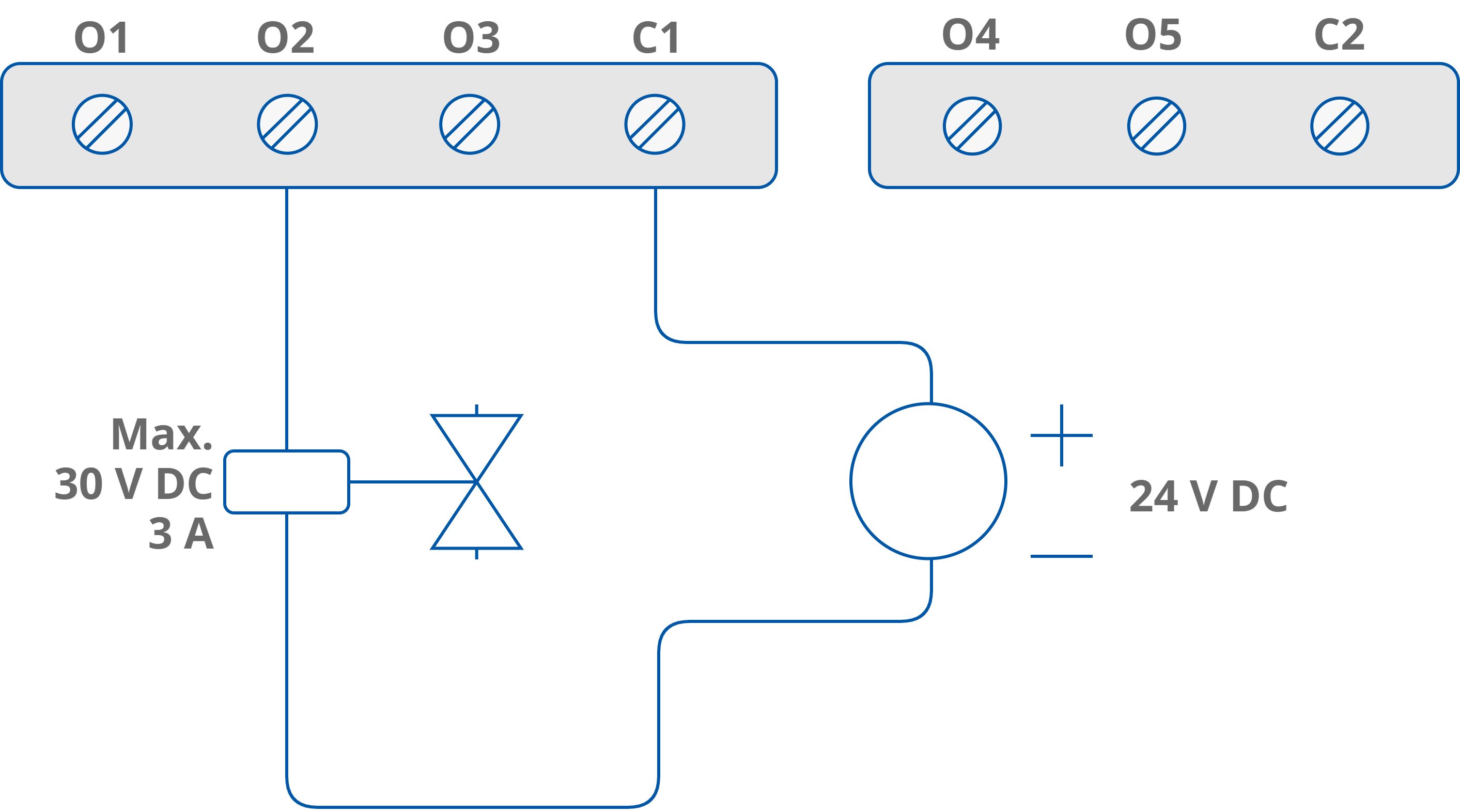

Digital Output Electrovalve Connection

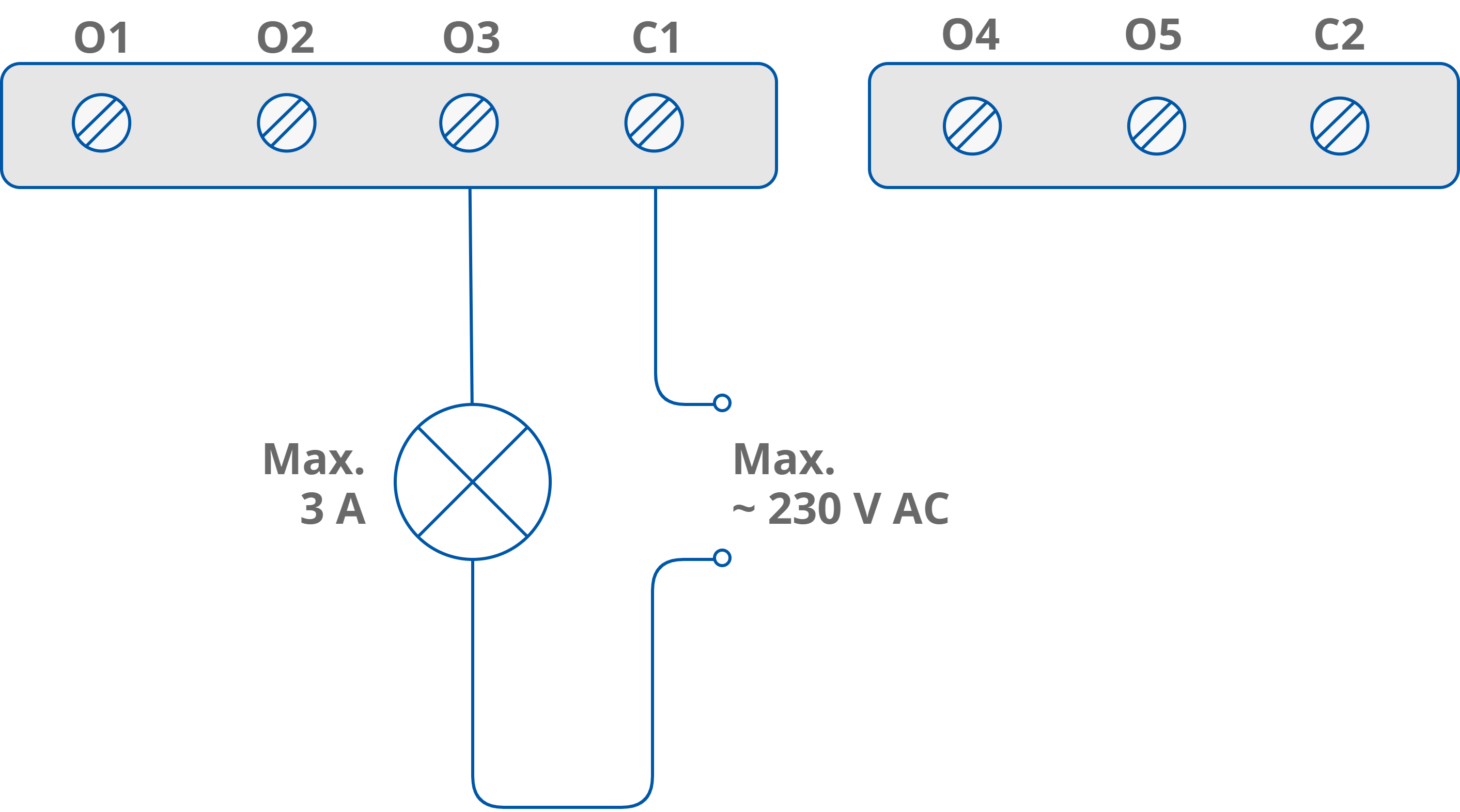

Digital Output Resistive Load Connection

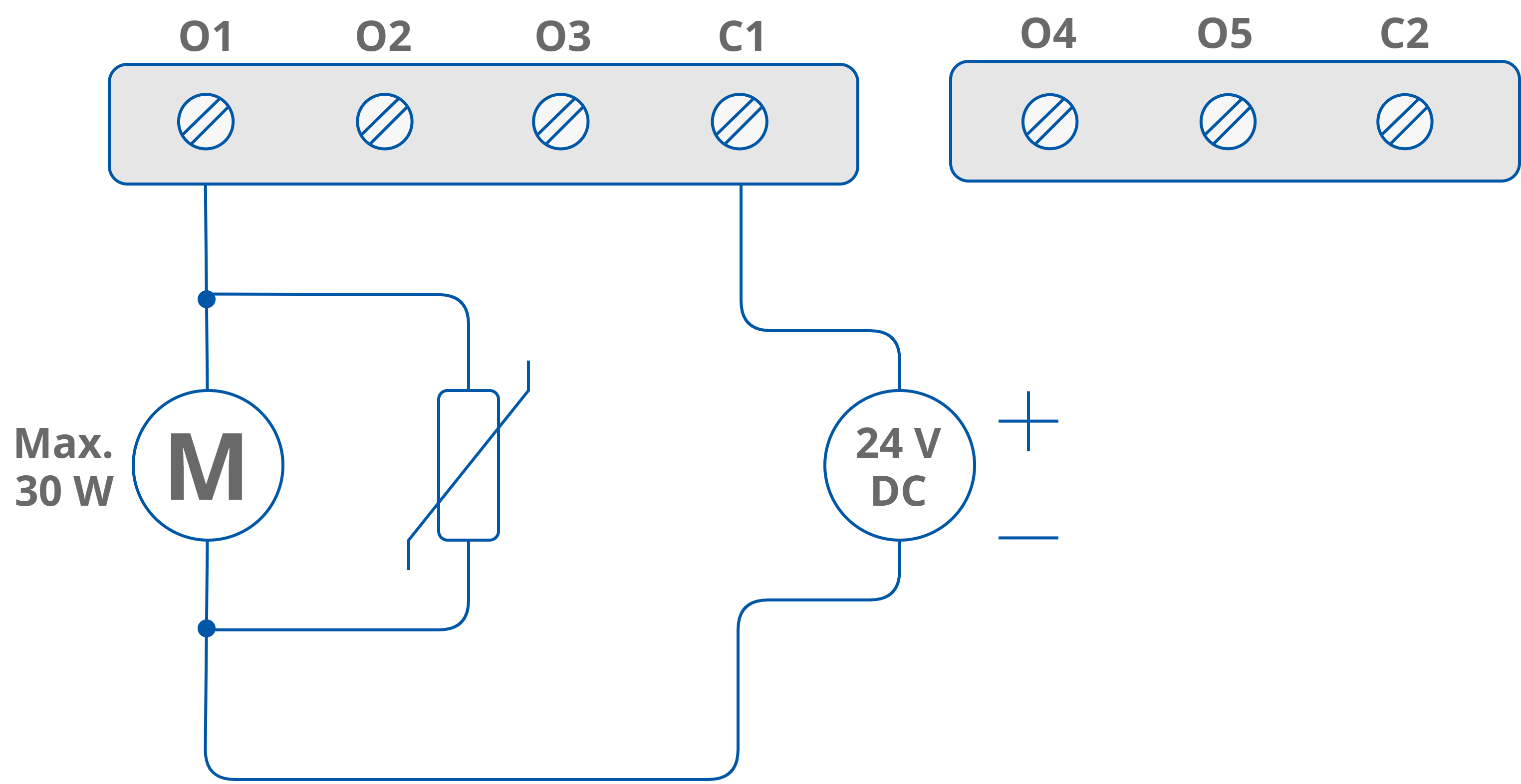

Digital Output Inductive Load Connection (DC)

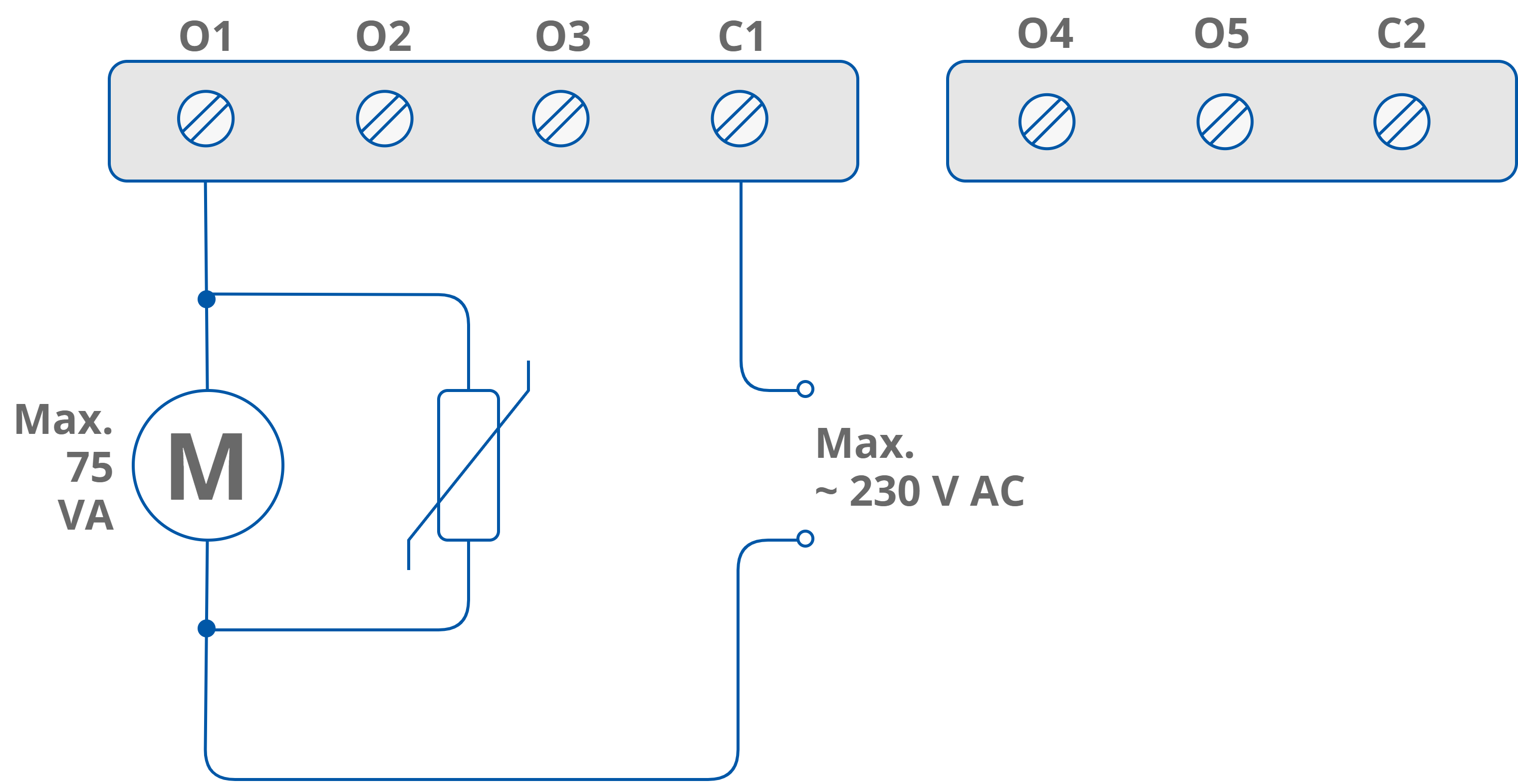

Digital Output Inductive Load Connection (AC)

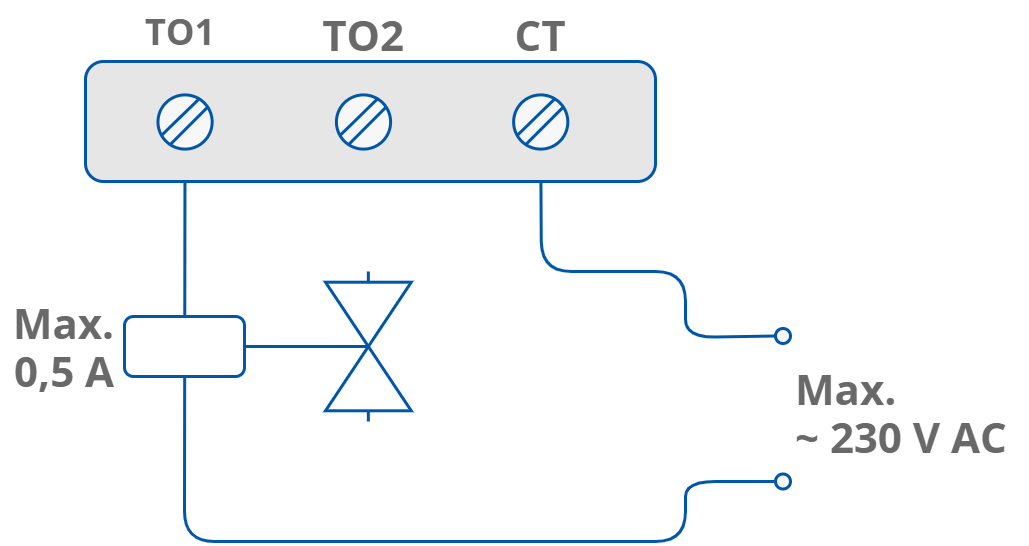

Triac Outputs
The RAC18-IP device is equipped with 2 triac outputs.
Triac outputs work as typical binary outputs or in Pulse Width Modulation (PWM) mode: 0,01 Hz, 0,1 Hz, 1 Hz, 10 Hz.
