Hardware Specification

The RAC18-IP is equipped with:

  • 18 inputs and outputs;
  • 2 Ethernet fail-safe protected ports;
  • RJ45, RS485 interfaces.

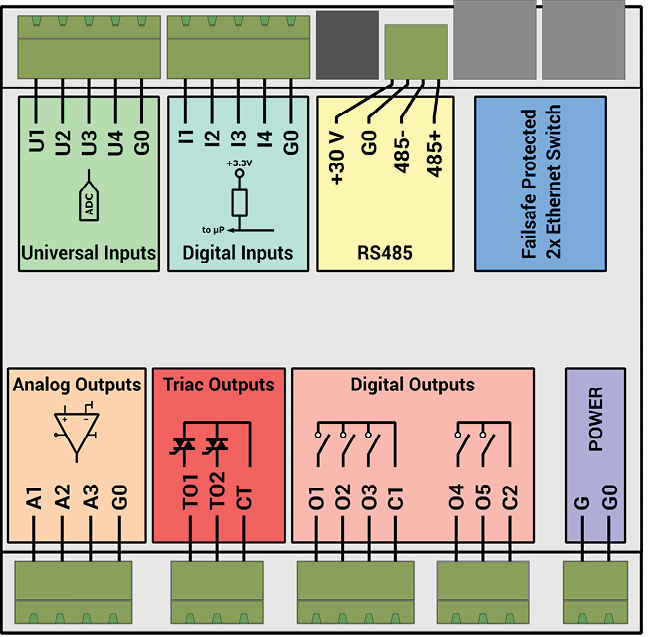

The RAC18-IP diagram

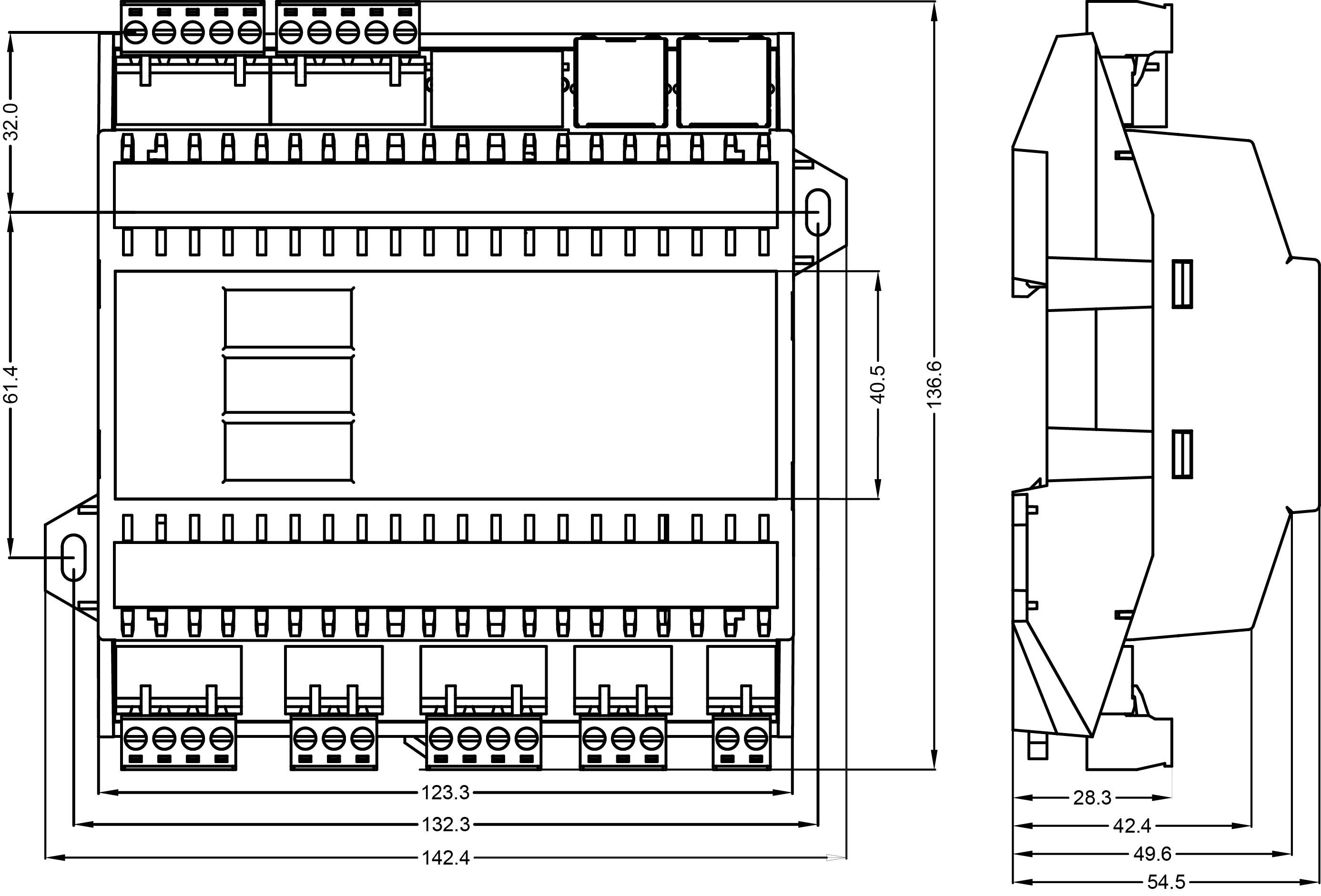

Dimensions in mm

Power Supply

The RAC18-IP device requires 24 V AC/DC power supply.

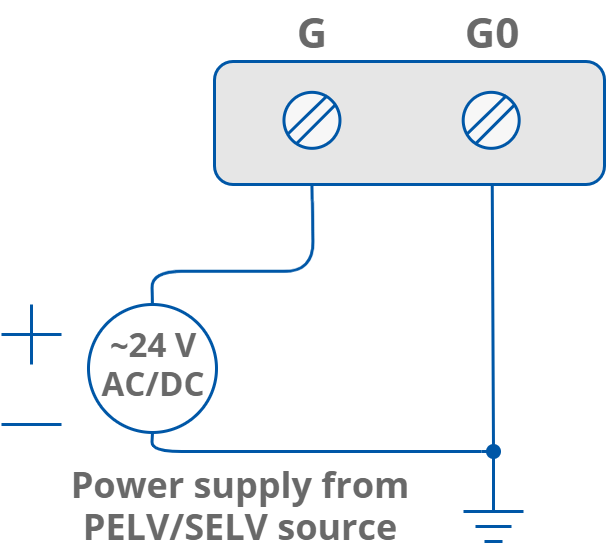

The power supply connection
