Operation Guide
Rear Navigation Buttons
The rear navigation buttons are used to turn the device on and off. Brightness +/- buttons are prepared for future development:

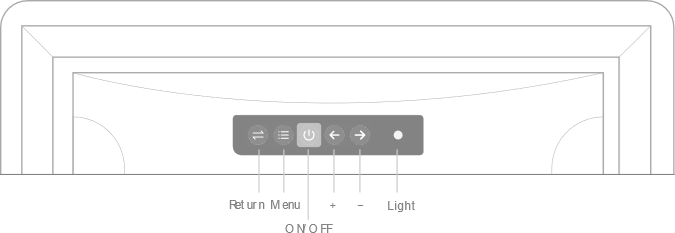

Rear navigation buttons
Symbol | Name | Instruction |
|---|---|---|
Left | Choose + | Choosing different submenus, the function of this button is the change of data quantity. |
Right | Choose - | |
ON/OFF | On / off button | Start-up/Shut down the monitor. |
Return | Back button | Return to the up level menu. |
Menu | Main menu | First time this button is pressed, OSD will pop-up. |
Operating of rear navigation buttons
OSD Options - Adjustment
OSD menu's basic functions:
- Screen display effect adjustment;
- Brightness adjustment;
- Contrast ratio adjustment;
- Color adjustment;
- etc.
If order to enter the OSD menu interface, go into trial testing of below parameters by clicking main MENU options.

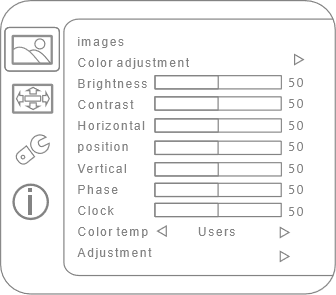

Images adjustment

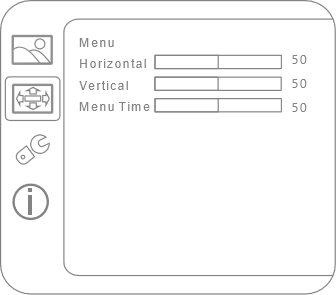

Menu adjustment
Settings adjustment
Information menu
