Applicable to OS V1.0-1.6

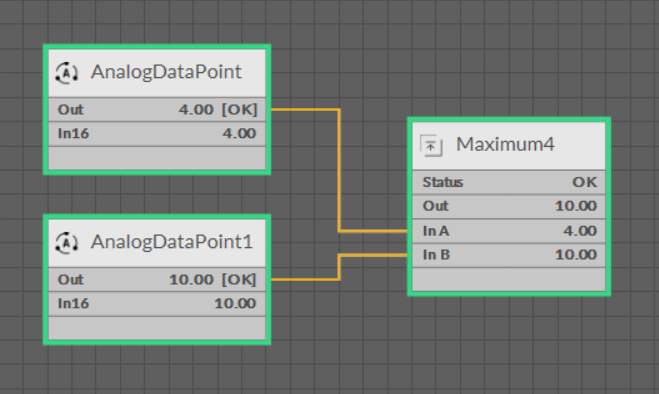

The Maximum component returns the greatest value of the In slots values.
The Maximum component has the following slots:
-
Status: indicates the current status of the component (OK, Fault);
-
Out: the maximum value of the In slots values;
-
InA-InJ: input slots (depending on the component's variant).
The Maximum component comes in two variants—with 10 or 4 In slots. The 4 slots variant uses less memory within application.
-
Maximum10: component with 10 In slots;
-
Maximum4: component with 4 In slots.
