Applicable to OS V1.0-1.10
The Binary2Numeric component returns a binary sum of Bit0 to Bit15 slots (2^0+2^1+...+2^15).

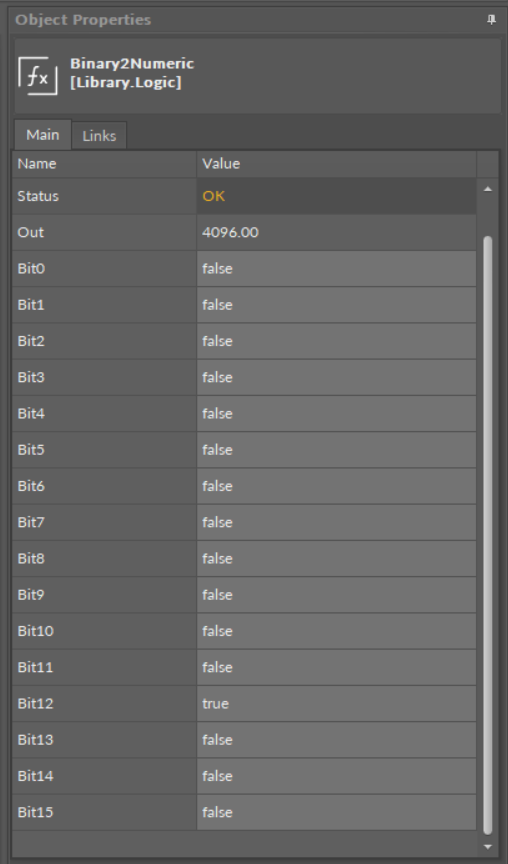

The Binary2Numeric component has the following slots:
-
Status: indicates the current status of the component (OK, Fault);
-
Out: calculates the binary sum of the Bit0–Bit15 slots values;
-
Bit0–Bit15: the Boolean input slots.
