Applicable to OS V1.0-1.10

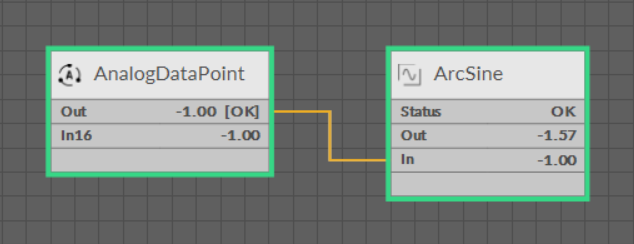

The ArcSine component returns an arcsine (an inverse sine function) value of the In slot.
The ArcSine component has the following slots:
-
Status: indicates the current status of the component (OK, Fault);
-
Out: the arcsine value of the In slot expressed in radians to two decimal places;
-
In: the input value; the possible range of input values is -1 to 1.
