RS485 Configuration

This page allows to enter configuration parameters and show information of the device’s COM1 port.

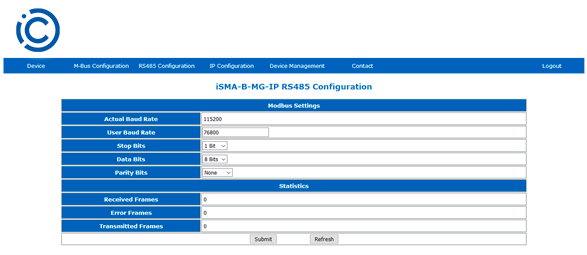

RS485 configuration page

This page allows to set parameters such as:

• Baud rate: read-only, the RS485 baud rate from 2400 up to 115200;
• Modbus Config: read-only, the Modbus protocol type–RTU or ASCII;
• Stop Bits: read/write, the number of stop bits (1 or 2);
• Data Bits: read/write, the number of data bits transmitted in a single byte
  (7 or 8);
• Parity Bits: read/write, transmission protection as a parity bit added before stop bit (bits);
• Received Frames: read-only, the number of received frames;
• Transmitted Frames: read-only, the number of transmitted frames;
• Error Frames: read-only, the number of error frames.

WARNING!  To save changes, please use the Submit button.
