iSMA-B-MG-IP WEB Configuration

Web Server Access

The iSMA-B-MG-IP device has a built-in web server, which allows to show device status and to change configuration.

To access the web server, open a browser and enter an IP address of the device, default address for new device (default IP address is 192.168.1.123). Please use the following credentials:

Username: platform

Password: 1000 (default)

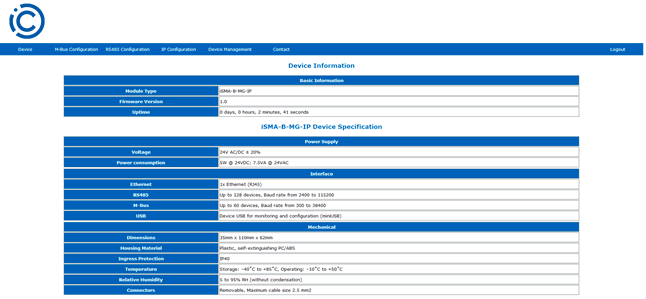

Device Page

This page contains information and technical specification of the device. The Basic Information section includes information about a device type, firmware version, and uptime. In the Device Specification section there are information about power supply, inputs/outputs parameters, interfaces, and mechanical specification.

Device page
