List of Devices with List of Errors

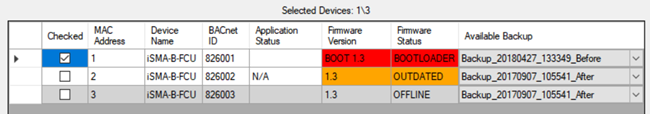

The main window of the FCU Updater shows the table with lists of devices. The list represents the physical devices collected either by using the discovery function or manually by adding device option in an opened project. Each row in the table represents one physical device.

The table shows the following information for each instrument:

MAC address: address set inside the device;
Device Name: type of device;
BACnet ID: BACnet ID address for BACnet network;
Application Status: current status of running application on the controller (the following are available: ANY ERROR (see explanation bellow), N/A, OK);
Firmware Version: firmware version running on the device;
Firmware Status: firmware status (the following are available: offline, online, outdated, not compatible, bootloader, USB);
Available Backup: backup files already stored in the project.

ANY ERROR: The FCU Updater from version 2.1.1 can read the Application Status from ithe SMA-B-FCU controller starting from firmware version 1.4.

From now, it is possible to see if the application (app) in the controller is running without any issue even though the controller is online. The Application State shows the current state of SVM (Sedona Virtual Machine) including details information related to bootstrap, image, system, application, component and runtime errors.

Below, there is a full list of possible errors (ANY ERROR) getting from Modbus register 99 or BACnet device property 5002:

Group	Type	Code
iC Ok	INIT OK	65535 0
Non-recoverable: Bootstrap	MALLOC IMAGE MALLOC STACK MALLOC STATIC DATA INPUT FILE NOT FOUND CANNOT READ INPUT FILE	1 2 3 4 5
Non-recoverable: Bad Image	BAD IMAGE MAGIC BAD IMAGE VERSION BAD IMAGE BLOCK SIZE BAD IMAGE REF SIZE BAD IMAGE CODE SIZE	6 7 8 9 10
Non-recoverable: Runtime Errors	UNKNOWN OPCODE MISSING NATIVE	11 12
Non-recoverable: Sys	INVALID ARGS CANNOT INIT APP	40 41
Non-recoverable: App	CANNOT OPEN FILE INVALID MAGIC INVALID VERSION INVALID SCHEMA UNEXPECTED EOF INVALID KIT ID INVALID TYPE ID CANNOT MALLOC CANNOT INSERT CANNOT LOAD LINK INVALID APP END MARKER NO PLATFORM SERVICE BAD PLATFORM SERVICE	42 43 44 45 46 47 48 49 50 51 52 53 54
Non-recoverable: Component	INVALID COMP END MARKER NAME TOO LONG	60 61
Recoverable: Runtime Errors	NULL_POINTER STACK_OVERFLOW INVALID_METHOD_PARAMS	100 101 102
Special Codes	YIELD RESTART HIBERNATE	253 254 255
