RaiseLower

The RaiseLower component simplifies a control of 3-point valve actuators. This component has the following functions:

• analog input, works with PID regulators;

• 2 digital outputs for 3-point direct control valve actuators;

• analog output for 3-point control valve actuators by voltage level (additional device required);

• midnight reset function to automatically adjust physical and virtual valve position.

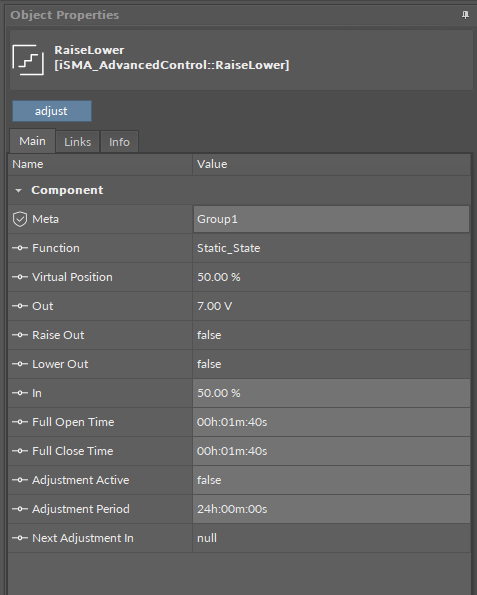

The RaiseLower component has the following slots:

• Function: the current function description (Lower_State, Static_State, Raise_State, Adjustment_Opening, Adjustment_Closing);

• Virtual Position: shows the valve virtual position in %;

• Out: the analog output slot;

• Rise Out: the digital output for the rising function;

• Rise Low: the digital output for the lowing function;

• In: allows to set the valve position demand;

• Full Open Time: allows to set the time for opening valve position from 0% to 100%;

• Full Close Time: allows to set the time for closing valve position from 100% to 0%;

• Adjustment Active: triggers the remote adjustment procedure;

• Adjustment Period: allows to set the adjustment procedure recall period in hours;

• Next Adjustment In: shows the time (in minutes) to the next adjustment procedure.

The RaiseLower component has the following action:

• Adjust: valve adjustment procedure recall (adjusts physical and virtual valve position).
