iSMA-B-FCU Programming User Manual


Introduction

This user manual describes programming of the iSMA-B-FCU controller.

Revision History

Rev.

Date

Description

1.5

19 Jul 2024

  • Updated iSMA Room Devices Modbus kit components

1.4

21 Feb 2023

  • Corrections in the iSMA Room Devices Modbus kit

  • FP panel references

  • Editorial corrections

1.3

21 Apr 2022

  • Rebranded

  • Updated iSMA Room Devices Modbus kit

  • Touch Point panel references

1.2

27 Jan 2020

  • The replaced environment of programming from the Workplace to iC Tool

  • Added description of the iSMA Building kit

1.1

20 Aug 2017

The reason for the creation of the new version of the document:

  • Rebuilt main algorithm of FCU default application (several components of iSMA_FCU kit rebuilt).

  • New functionality added (new components to iSMA_FCU kit).

Changes in Document:

  • The new way of switching Heating and Cooling Modes by FCU_HeatingCoolingSwitch component.

  • Added: description of FCU_PI component

  • Added: description of FCU_PID component

  • Added: description of FCU_TemperatureAnalog component

  • Added: description of FCU_TemperatureBinary component

  • Added: description of FCU_ValueHolder component

  • Added: description of FCU_WindowStatusSwitch component

  • Added: description of PWM component

  • Added: description of Room Device kit

  • Added: description of Advance Control kit

1.0

20 Dec 2016

First edition


Revision history

Overview

Each new iSMA-B-FCU device is equipped with a default application, firmware, and kits. The default application can be modified for individual purposes, used with no changes, or the user can create a new, custom application.

Modifying the default application, or creating a new one, can be done only online (in real time), using the SOX protocol and iC Tool. The size of application cannot exceed 64 kB. Available memory can be checked in the Mem Available slot (under the plat component).

Using the FCU Updater, the modified or created application can be downloaded from one iSMA-B-FCU device and uploaded to other iSMA-B-FCU device(s). The iSMA-B-FCU device has two built-in RS485 ports:

  • COM1: port with the screw connector; the port can be used for communication using the Modbus RTU/ASCII or BACnet protocol (including BACnet client-server communication);

  • COM2: port with two RJ12 connectors; the port can be used for communication using the Modbus Async protocol.

Each iSMA-B-FCU device has a set of kits, which are installed with the firmware. These kits are required for proper operation of default application, and can be also used to develop a custom application. The kits cannot be changed or delayed. The iSMA-B-FCU device is equipped with the following kits:

  • sys: the Sedona core system module;

  • control: basic function blocks library;

  • inet: IP and UDP/TCP socket APIs;

  • sox: the Sox service for remote management;

  • iSMA_BACnetMasterSlave: the kit for master-slave communication.

The iSMA-B-FCU device can work in defined groups, where one device is master and the remaining devices (slaves) follow the master parameters. This way, it is possible to share up to 100 points. This function is available only in the BACnet MS/TP protocol, using the RS485 port (COM1). Each master device can have up to 5 slave devices.

  • iSMA_FCU: the kit includes components used to develop the FCU application; it consists of components controlling temperature outputs, fan, etc. ;

  • iSMA_ModbusAsyncNetwork: the kit includes components for the Modbus Async communication;

The Modbus Async can be used to communicate with other devices connected to the built-in RS485 port (COM2). It is possible to read/write up to 200 points this way. There is no restriction about the number of connected devices.

  • iSMA_platFCU: the kit includes components for all types of inputs and outputs servicing, components for communication with the higher-level system (using Slave Network component), and NV components.

The SlaveNetwork component is used to manage the BACnet MS/TP or Modbus RTU/ASCII protocol, using the RS485 port (COM1). The SlaveNetwork component allows for sharing of up to 200 Analog Value and up to 128 Binary Value objects.  A total number of memory cells for NV numeric (and integer) components cannot exceed 200. A total number of memory cells for NV Boolean components cannot exceed 128.

Note: Method of calculating memory cells for NV components is described in the Plat service chapter.

The iSMA-B-FCU device has 18 built-in physical inputs and outputs:

  • 4 special inputs;

  • 4 digital inputs;

  • 3 analog outputs;

  • 5 digital outputs;

  • 2 triac outputs.

The device is equipped with a S3 - CFG DIP switch, which allows to manage the eight binary signals. Using the DIP switch is recommended to manage the configuration of the device.

The device is also equipped with the alarm LED (ALM), which allows for signalizing states of the iSMA-B-FCU device predefined in the application. For example, it can be used for signalizing alarms.

The components for servicing of all inputs, outputs shown below are placed under the iSMA_platFCU palette.

Programming in iC Tool

As a significant part of the end-to-end iSMA CONTROLLI solution, the iC Tool gives the customer a convenient way to create and manage custom applications for the Sedona-based controller.

The iC Tool covers all requirements to create and manage applications: it has a wire sheet for convenient visual programming, property sheets for details; it offers kits management, real-time monitoring of system states and slots values, logs and historical data, deployment and backup.

iC Tool Installation

The iC Tool is a software created for Microsoft Windows system. The oldest supported version of the operating system is Windows 7. The iC Tool is delivered as a compressed folder, which needs to be extracted in a chosen location on a hard drive, unless the access to the extracted folder is restricted by the system (e.g., Program Files is not a recommended location).

In order to download the iC Tool software bundle, which includes all files necessary to run the program efficiently (a zipped file iCTool_Vx.x.x.zip), go to the iSMA CONTROLLI web page ismacontrolli.com and to the iC Tool/Software Bundle folder.

Extracting the zipped package reveals the folders and additional files described below. In order to run the iC Tool, open the iCTool.exe file.

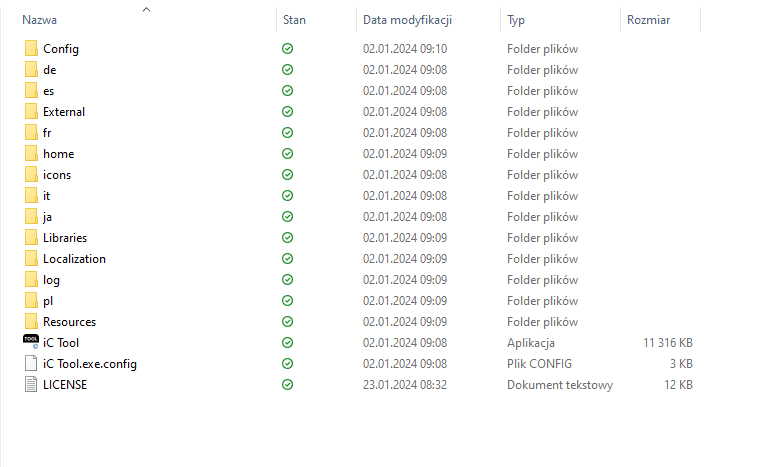

iC Tool folders

The extracted folders have the following functions:

  • Config: a folder containing a record of user’s individual settings regarding windows location and other iC Tool work settings, such as a language chosen for the iC Tool interface.

  • External: a folder containing an API .dll file.

  • home: a folder where all the data created by user are saved, i.e., device backups, applications, etc. It is also a folder where the kits library, available the in iC Tool, is located.

  • icons: a folder with graphical files such as the iC Tool interface icons.

  • Localization: a folder with the text files providing the iC Tool language sources.

  • log: a folder, where the logs of the iC Tool, which also appeared in Console window, are saved. When contacting iSMA CONTROLLI technical support, it is advised to copy the last file with logs form that folder

  • de, es, fr, it, ja, pl, Resources, ru: folders with system libraries.

To properly install and work with the iC Tool the computer must meet the following minimal requirements:

  • processor (CPU): Intel Core i3-3xxx or equivalent;

  • memory: 4 GB RAM;

  • storage: 50 GB internal hard driver;

  • Ethernet 100 Mbit or 1 Gbit NIC;

  • MS Windows 7 (recommended MS Windows 10);

  • .NET Framework 4.6.2 or higher.

WARNING! If the iC Tool is being run for the first time, it asks to accept the EULA license. The license must be accepted to run the program. Failure to do so closes the iC Tool.

Note: For the iC Tool to work properly it needs to be run periodically at least once a month, on a computer connected to the Internet for about an hour, depending on the data transfer rate. It enables the iC Tool to automatically download the latest data, such as kits and updates.

The iC Tool is a portable software. It is transferable and it can be installed on a portable data storage device, such as a USB memory stick. It allows the iC Tool to be run directly from a portable data storage device on any PC, including offline ones.

Connecting to Device

WARNING! Before starting to program the iSMA-B-FCU device using the SOX protocol, it is recommended to connect the device to 230 V AC power supply.

  • Before connecting the iSMA-B-FCU device to the iC Tool, run the FCU Updater.

Connect the iSMA-B-FCU device to the USB port in your computer–SOX and Console buttons should be active, which means that the FCU Updater is communicated with the iSMA-B-FCU device.

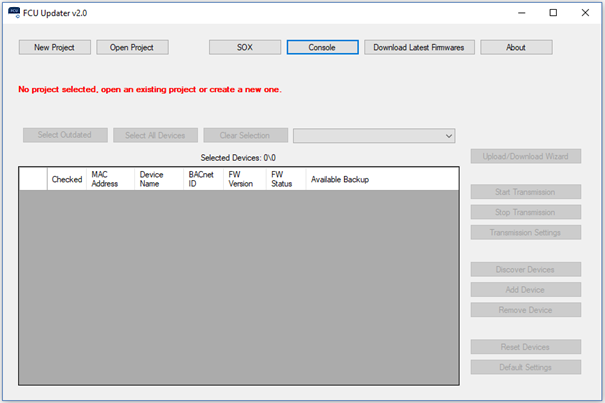

FCU Updater

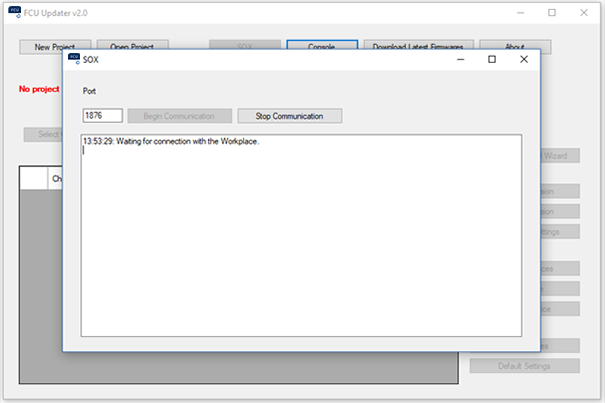

  • Click the SOX button to open a pop-up window, and then click the Begin Communication button.

Beginning communication in the FCU Updater

  • Open the iC Tool.

  • In order to connect to the device, select the following options:

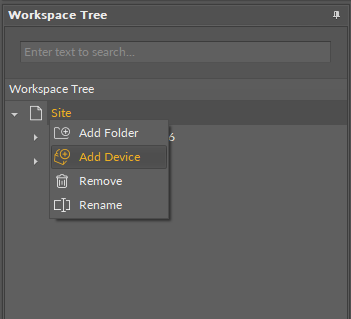

Right-click on the project folder and select the  Add Device option.

Adding device

Note: The newest version of the iC Tool should be installed on the PC for connection with the newest version of the iSMA-B-FCU.

  • Upon selecting the above option, an authorization window pops up.

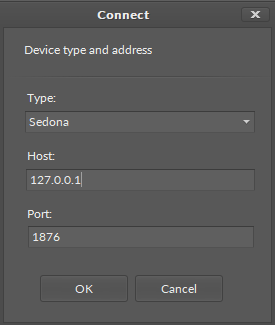

Connect window

Please enter the following values:

  • type: Sedona;

  • IP address: 127.0.0.1;

  • port: 1876.

Log in using the following username and password:

  • username: admin

  • password: empty box (no characters).

Authentication window
