The TOutPWM is a component designed for servicing the triac output working in the PWM mode. The TOutPWM component has to be placed under the LocalIO component.

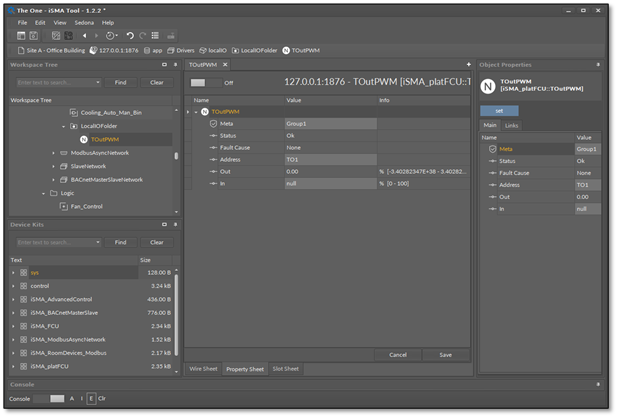

The TOutPWM component

The TOutPWM component has the following slots:

  • Status: indicates the status of the TOutPWM component;
  • Fault Cause: shows the fault cause description;
  • Address: sets the number of the physical triac output of the iSMA-B-FCU device (TO1, TO2);
  • Out: displays the actual value of the output;
  • In: the input slot.

The TOutPWM component offers the following action, available in the context menu:

  • Set: writes a value to the Out slot, and sends it to the device.
