SIVoltage

The SIVoltage is a component designed for servicing the special input in the voltage read mode. For proper operation of the component, the type of servicing input has to be set to the Voltage_Measurement. The SIVoltage component has to be placed under the LocalIO component.

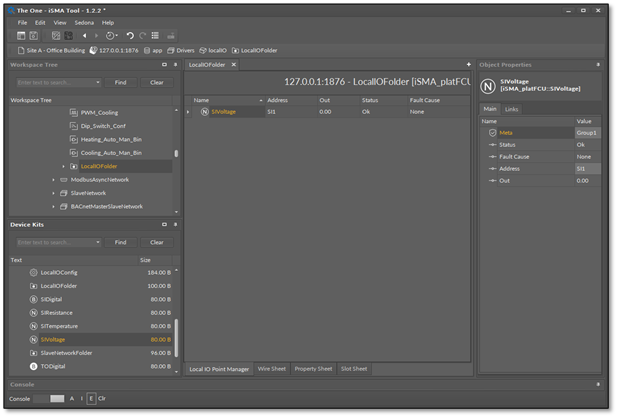

The SIVoltage component

The SIVoltage component has the following slots:

• Status: indicates the status of the SIVoltage component;
• Fault Cause: shows the fault cause description;
• Address: sets the number of the physical input of the iSMA-B-FCU device (SI1, SI2, SI3, SI4);
• Out: displays the actual value of the input. If the temperature measurement is enabled, measuring of voltage is disabled, and the Out slot displays the last value of voltage, measured before switching to the temperature measurement.
