SIResistance

The SIResistance is a component designed for servicing special input in the resistance read mode. The SIResistance component has to be placed under the LocalIO component.

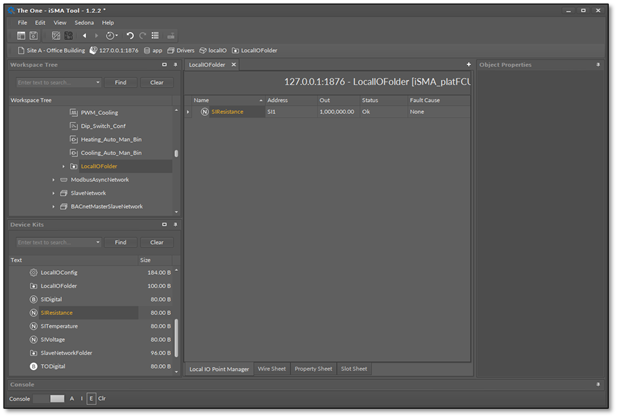

The SIResistance component

The SIResistance component has the following slots:

  • Status: indicates the status of the SIResistance component;
  • Fault Cause: shows the fault cause description;
  • Address: sets the number of the physical input of the iSMA-B-FCU device (SI1, SI2, SI3, SI4);
  • Out: displays the actual value of the input; if the voltage measurement is enabled, measuring of resistance is disabled, and the Out slot displays the last value of resistance.
