The SIDigital is a component designed for servicing special inputs in the dry contact read mode. The SIDigital component has to be placed under the LocalIO component.

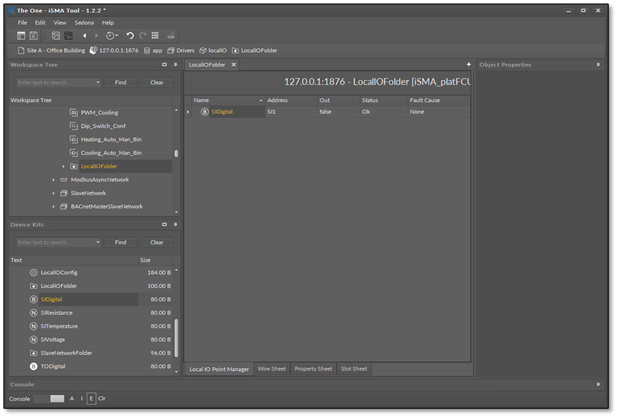

The SIDigital component

The SIDigital component has the following slots:

  • Status: indicates the status of the SIDigital component;
  • Fault Cause: shows the fault cause description;
  • Address: sets the number of the physical input of the iSMA-B-FCU device (SI1, SI2, SI3, SI4);
  • Invert: shows the value negative to the value read from the special input (in dry contact mode) of the iSMA-B-FCU device,
  • Out: displays the actual value of the input (true or false).
