FCU_MasterSlave

The FCU_MasterSlave component allows to automatically calculate the BACnet device ID of slave devices in the BACnet master-slave network, depending on the BACnet device ID of master devices. This function is called Auto Binding. The table below shows values of the master BACnet device ID and the corresponding BACnet device IDs of slave devices for the Auto Binding function:


Master Id

Slave 1 ID

Slave 2 ID

Slave 3 ID

Slave 4 ID

Slave 5 ID

826101

826001

826002

826003

826004

826005

826102

826006

826007

826008

826009

8260010

826103

826011

826012

826013

826014

826015

826104

826016

826017

826018

826019

826020

826105

826021

826022

826023

826024

826025

826106

826026

826027

826028

826029

826030

826107

826031

826032

826033

826034

826035

826108

826036

826037

826038

826039

826040

826109

826041

826042

826043

826044

826045

826110

826046

826047

826048

826049

826050

826111

826051

826052

826053

826054

826055

826112

826056

826057

826058

826059

826060

826113

826061

826062

826063

826064

826065

826114

826066

826067

826068

826069

826070

826115

826071

826072

826073

826074

826075

826116

826076

826077

826078

826079

826080

826117

826081

826082

826083

826084

826085

826118

826086

826087

826088

826089

826090

826119

826091

826092

826093

826094

826095

826120

826096

826097

826098

826099

826100

Other

0

0

0

0

0

The MasterSlave Id

The Auto Binding function can be disabled (by setting the Local Remote Auto Binding slot to true). In this case, the IDs of slave devices have to be set by the user (in the Remote Slave 1 Device Id-Remote Slave 5 Device Id slots).

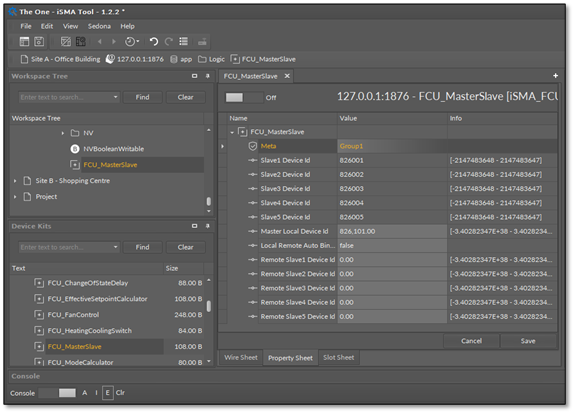

The FCU_MasterSlave component

The FCU_MasterSlave component has the following slots:

  • Slave1 Device Id-Slave5 Device Id: display the IDs calculated or set for five slave devices;
  • Master Local Device Id: sets the ID of the master device.

Note:  If the component uses the Auto Binding function, the value of the Master Local Device Id slot has to be set to the value ranged from 826101 to 826120. For other values, all output slots (Slave1 Device Id-Slave5 Device Id) will be set to 0.

  • Local Remote Auto Binding: allows to switch between Auto Binding and Remote Binding functions;
    • Available settings: true (Remote Binding–IDs of each slave device are set to the corresponding values of the Remote Slave1 Device Id-Remote Slave5 Device Id slots), false (Auto Binding–IDs of each slave device are calculated according to the table above);
  • Remote Slave1 Device Id-Remote Slave5 Device Id: allows to set remote IDs of slave devices. If the Local Remote Auto Binding slot is set to true, these values are set to corresponding outputs (slots Slave1 Device Id-Slave5 Device Id).
