The DO is a component designed for servicing digital output. The DO component has to be placed under the LocalIO component.

The DO component

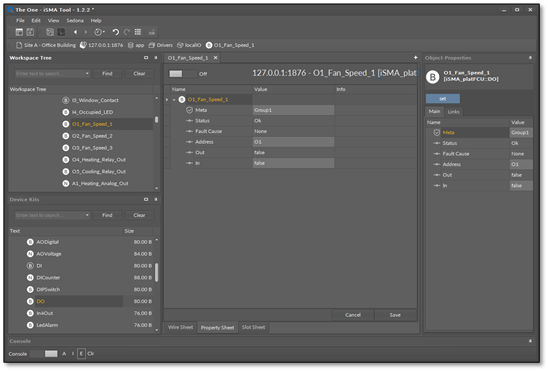

The DO component has the following slots:

  • Status: indicates the status of the DO component;

  • Fault Cause: shows the fault cause description;

  • Address: sets the number of the physical output of the iSMA-B-FCU device (O1, O2, O3, O4, O5);

  • Out: displays the actual state of the output (true/false);

  • In: the input slot.

The DO component offers the following action, available in the context menu:

  • Set: writes a value to the Out slot, and sends it to the device.
