Room Panel Settings
Warning!
This section applies to all Control Point series: the Control Point and Control Point VAV.
The panel’s UI gives access to a number of room panel settings, which are available in the panel’s active mode.
Panel Access to Settings

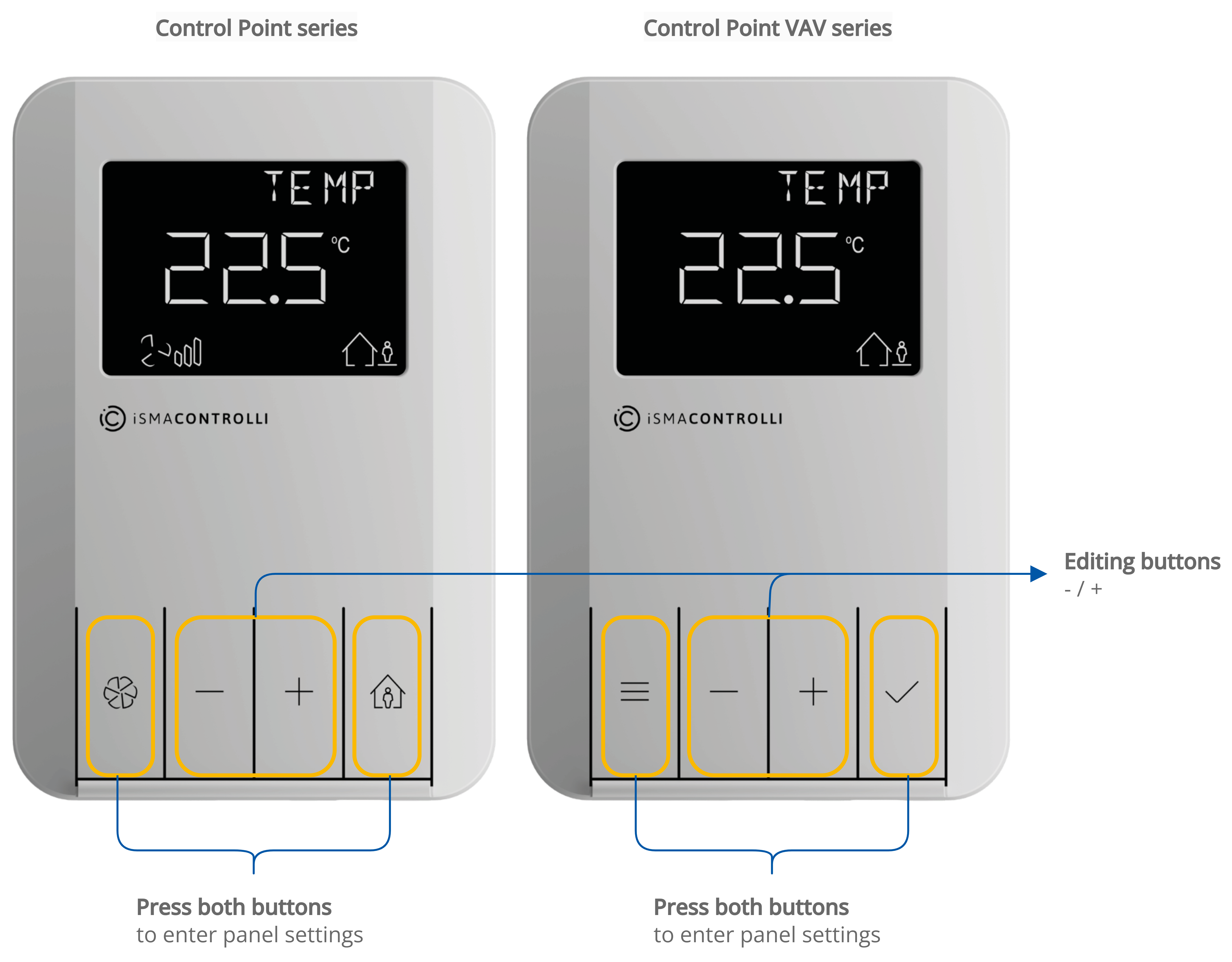

Accessing settings directly from the panel
Accessing settings directly from the panel
Step 1: In order to enter the settings:
Control Point series:
long-press the fan and occupancy buttons together;
Control Point VAV series:
long-press the menu and OK buttons together.
Long-press duration is set in the parameter:
ENTER_MENU_TIME:
Modbus register: 40223;
BACnet object: AO16, property: Present value.
Step 2: Log in to the settings menu. Access to the settings menu is protected by a password stored in the parameter:
PANEL_PASSWORD:
Modbus register: 40028;
BACnet object: AO0, property: Present value.
Default password is 1000.
The password to the settings menu is displayed in the editing mode from the start (the first character is blinking). To edit the password characters:
use -/+ buttons;
confirm the entered value and move to the next character pressing the occupancy/OK button;
confirm the entered password with the occupancy/OK button.
Step 3: Select a required setting using:
Control Point series:
-/+ buttons to select a setting and the occupancy button to enter it;
Control Point VAV series:
-/+ buttons to select a setting and the OK button to enter it.
Step 4: Edit the required setting using -/+ buttons. Confirm the entered value using the occupancy/OK button.
To exit the selected setting without changing its value, use the fan/menu button.
To exit the Settings mode, wait until the EXIT_MENU_TIME elapses:
EXIT_MENU_TIME: allows to set the time after which the panel exits the editing mode:
Modbus register: 40225;
BACnet object: AO18.
Available Parameters
Configuration (CONF)
The configuration menu contains parameters responsible for the device configuration.
Most of the parameters available in the configuration menu are the communication registers:
baud rate,
Modbus address,
stop bits,
parity bits,
and protocol selection.
The user can also change the panel’s password and check the firmware version. All available parameters are presented in the table below:
Parameter number | Parameter name | Modbus address | BACnet object | Access | Description |
|---|---|---|---|---|---|
1.1 | BAUD_RATE | 40017 | Device, 3084 | Read/write | 4800-115200 |
1.2 | ADDRESS | 40023 | Device, 3201 | Read/write | Default value: 1 |
1.3 | STOP_BITS | 40018 | N/a | Read/write | 1: one stop bit 2: two stop bits |
1.4 | PARITY_BITS | 40020 | N/a | Read/write | 0: disabled 1: odd 2: even |
1.5 | PROTOCOL | 40024 | N/a | Read/write | 0: Modbus RTU 1: Modbus ASCII 2: BACnet MS/TP |
1.6 | PANEL_PASSWORD | 40028 | AO0, Present value | Read/write | Default value: 1000 |
1.7 | FIRMWARE_VERSION | 30001 | Device | Read-only | Software version |
Warning!
Change of value in the PROTOCOL parameter is only effective for switching between Modbus RTU and Modbus ASCII protocols. Changing between Modbus and BACnet protocols can only be performed using the DIP switch. Then, the PROTOCOL parameter can be used to remotely check the set protocol.
Device (DEV)
The Device settings menu contains parameters responsible for global settings.
Warning!
Changing any parameter in the Device menu impacts modes and functions of the room panel.
The Device menu contains parameters for:
time settings (time format, menu enter or exit time, or refresh time);
switching the buzzer on or off;
background illumination of the LCD display;
keypad.
All available parameters are presented in the table below:
Parameter number | Parameter name | Modbus address | BACnet object | Access | Description |
|---|---|---|---|---|---|
2.1 | DEVICE CONFIGURATION, BUZZER | 40205, bit 0 | BO0, Present value | Read/write | 0: inactive 1: active(def) |
2.2 | DEVICE CONFIGURATION, TIME_FORMAT | 40205, bit 1 | BO1, Present value | Read/write | 0-24 h(def) 1-12 h |
2.3 | DEVICE CONFIGURATION, TEMPERATURE_UNIT | 40205, bit 2 | BO2, Present value | Read/write | Not supported |
2.4 | DEVICE CONFIGURATION, BACKGROUND_ILLUMINATION_LCD_ACTIVE | 40205, bit 3 | BO3, Present value | Read/write | 0: inactive 1: active(def) |
2.5 | DEVICE CONFIGURATION, BACKGROUND_ILLUMINATION_KEYPAD_ACTIVE | 40205, bit 4 | BO4, Present value | Read/write | 0: inactive(def) 1: active |
2.6 | ENTER_MENU_TIME | 40223 | AO16, Present value | Read/write | Default: 2 sec |
2.7 | EXIT_EDIT_TIME | 40224 | AO17, Present value | Read/write | Default: 5 sec |
2.8 | EXIT_MENU_TIME | 40225 | AO18, Present value | Read/write | Default: 10 sec |
2.9 | REFRESH_TIME | 40217 | AO13, Present value | Read/write | Default: 2 sec |
Temperature (TEMP)
The Temperature settings menu contains parameters referring to:
the temperature sensor display, and
the temperature control settings.
The user is able to switch on/off the temperature sensor value display, set the temperature sensor filter, or change the temperature sensor offset.
All available parameters are presented in the table below:
Parameter Number | Register Name | Modbus Address | BACnet object | Access | Description |
|---|---|---|---|---|---|
3.1 | TEMPERATURE_ CONFIGURATION, ACTIVE | 40316, bit 0 | AO4, 4200 | Read/write | 0: inactive 1-active(def) |
3.2 | TEMPERATURE_CONFIGURATION, THIRD_POINT_ACTIVE | 40316, bit 4 | AO4, 4202 | Read/write | 0: inactive 1: active(def) |
3.3 | TEMPERATURE_FILTER | 40307 | AO4, 4203 | Read/write | Default: 10 sec |
3.4 | TEMPERATURE_OFFSET | 40304 | AO4, 4205 | Read/write | Default: 0 |
Humidity (HUM)
The Humidity settings menu contains registers referring to:
the humidity sensor display and
the humidity control settings.
The user is able to switch on/off the humidity sensor value display, set the humidity sensor filter, or change the humidity sensor offset. All available parameters are presented in the table below:
Parameter number | Parameter name | Modbus address | BACnet object | Access | Description |
|---|---|---|---|---|---|
4.1 | HUMIDITY_CONFIGURATION, ACTIVE | 40317, bit 0 | AO5, 4200 | Read/write | 0: inactive 1: active(def) |
4.2 | HUMIDITY_CONFIGURATION, THIRD_POINT_ACTIVE | 40317, bit 4 | AO5, 4202 | Read/write | 0: inactive 1: active(def) |
4.3 | HUMIDITY_FILTER | 40308 | AO5, 4203 | Read/write | Default: 10 sec |
4.4 | HUMIDITY_OFFSET | 40305 | AO5, 4205 | Read/write | Default: 0 |
CO2 (CO2)
The CO2 settings menu contains registers referring to:
the CO2 sensor display and
CO2 control settings.
The user is able to switch on/off the CO2 sensor value display, set the CO2 sensor filter, or change the CO2 sensor offset. All available parameters are presented in the table below:
Parameter number | Parameter name | Modbus address | BACnet obejct | Access | Description |
|---|---|---|---|---|---|
5.1 | CO2 CONFIGURATION, ACTIVE | 40318, bit 0 | AO6, 4200 | Read/write | 0: inactive 1: active(def) |
5.2 | CO2_FILTER | 40309 | AO46, 4003 | Read/write | Default: 10 sec |
5.3 | CO2_OFFSET | 40307 | AO6, 4203 | Read/write | Default: 0 |
5.4 | CO2_SETPOINT | 40226 | AO19, Present value | Read/write | Default: 1500 ppm |
Setpoint (SETP)
In the Setpoint settings menu, the user has access to the main setpoint parameters. It is possible to adjust the most useful setpoint parameters:
default setpoint;
low and high setpoint limits;
setpoint step, or
offset range.
The user can also decide if the setpoint value should be displayed in the main menu, or if the setpoint or offset should be changed during a setpoint edition. All available parameters are presented in the table below:
Parameter number | Parameter name | Modbus address | BACnet obejct | Access | Description |
|---|---|---|---|---|---|
6.1 | SETPOINT_CONFIGURATION, ACTIVE | 41513, bit 0 | AV56, Out of service | Read/write | 0-inactive 1-active(def) |
6.2 | SETPOINT_CONFIGURATION, EDITABLE | 41513, bit 1 | AV56, 4200 | Read/write | 0-inactive 1-active(def) |
6.3 | SETPOINT_CONFIGURATION, OPERATING_MODE | 41513, bit 2 | BO55, Present value | Read/write | 0-changing offset 1-changing setpoint(def) |
6.4 | SETPOINT_CONFIGURATION, SETPOINT_DISPLAY | 41513, bit 3 | BO56, Present value | Read/write | 0-changing offset 1-changing effective setpoint(def) |
6.5 | SETPOINT_CONFIGURATION, THIRD_POINT_ACTIVE | 41513, bit 4 | AV56, 4202 | Read/write | 0-inactive 1-active(def) |
6.6 | SETPOINT_CONFIGURATION, FAST_EDIT_MODE | 41513, bit 5 | BO57, Present value | Read/write | 0-inactive(def) 1-active |
6.7 | DEFAULT_SETPOINT | 41503 | AV57, Present value | Read/write | By default 210 |
6.8 | SETPOINT_LOW_LIMIT | 41505 | AV56, Low limit | Read/write | By default 180 |
6.9 | SETPOINT_HIGH_LIMIT | 41506 | AV56, High limit | Read/write | By default 240 |
6.10 | OFFSET_RANGE | 41507 | AV59, Present value | Read/write | By default 30 |
6.11 | SETPOINT_STEP | 41508 | AV56, Default step increment | Read/write | By default 10 |
Fan (FAN)
The Fan settings menu contains the registers of fan configuration settings. The user can change:
the fan type or
decide if the fan status is displayed in the main menu.
Editable parameters determine if the user can change particular fan modes. All available parameters are presented in the table below:
Parameter number | Parameter name | Modbus address | BACnet object | Access | Description |
|---|---|---|---|---|---|
7.1 | FAN_CONFIGURATION, VISIBLE_FAN_CURRENT_SPEED | 41614, bit 0 | MV1, Out of service | Read/write | 0: inactive 1: active(def) |
7.2 | FAN_CONFIGURATION, EDITABLE | 41614, bit 1 | MV1, 4200 | Read/write | 0: inactive 1: active(def) |
7.3 | FAN_CONFIGURATION, PART_EDITABLE | 41614, bit 2 | BO59, Present value | Read/write | 0: inactive(def) 1: active |
7.4 | FAN_CONFIGURATION, FAST_EDIT_MODE | 41614, bit 5 | BO60, Present value | Read/write | 0: inactive(def) 1: active |
7.5 | FAN_ICON_FLASHING_TIME | 41615 | AO21, Present value | Read/write | Default: 500 ms |
7.6 | FAN_TYPE | 41603 | MV2, 1602 | Read/write | 0: 0-10 V(def) 1: 1-Speed 2: 2-Speed 3: 3-Speed |
Occupancy (OCCU)
The Occupancy settings menu contains registers referring to the occupancy configuration. The user can decide if the current occupancy status is displayed in the main menu.
Editable parameters determine if the user can change the occupancy mode. All available parameters are presented in the table below:
Parameter Number | Register Name | Modbus Address | BACnet object | Access | Description |
|---|---|---|---|---|---|
8.1 | OCCUPANCY_CONFIGURATION, VISIBLE_OCCUPANCY_CURRENT_STATUS | 41707, bit 0 | MV4, Out of service | Read/write | 0: inactive 1: active(def) |
8.2 | OCCUPANCY_CONFIGURATION, EDITABLE | 41707, bit 1 | MV4, 4200 | Read/write | 0: inactive 1: active(def) |
8.3 | OCCUPANCY_CONFIGURATION, FAST_EDIT_MODE | 41707, bit 5 | BO61, Present value | Read/write | 0: inactive(def) 1: active |
