Default Submenu

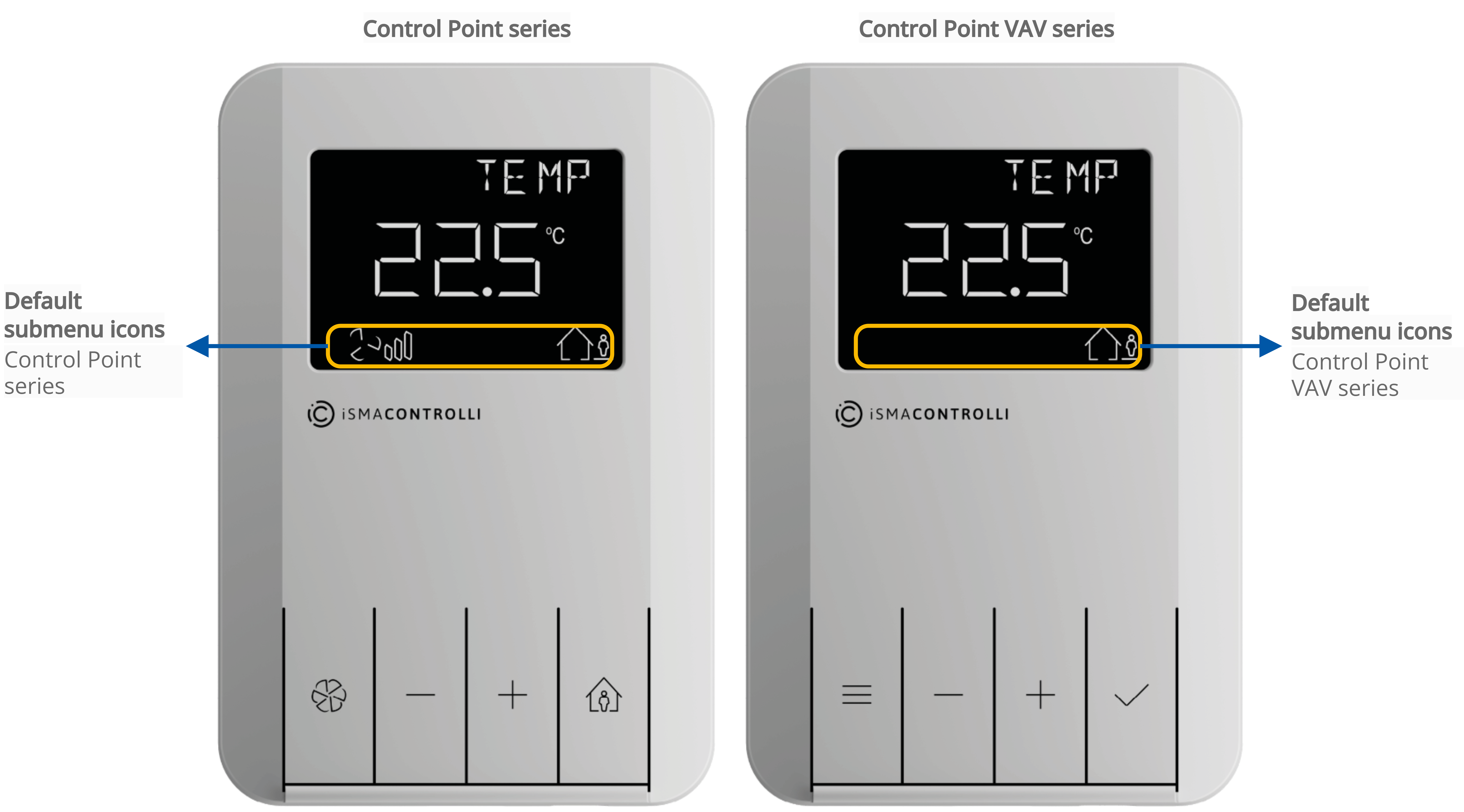

The default submenu displays:

• in the Control Point series:

  • fan mode;

  • occupancy status;

• in the Control Point VAV series:

  • occupancy status.

The default submenus are editable in both series.

Panel Access to Default Submenu

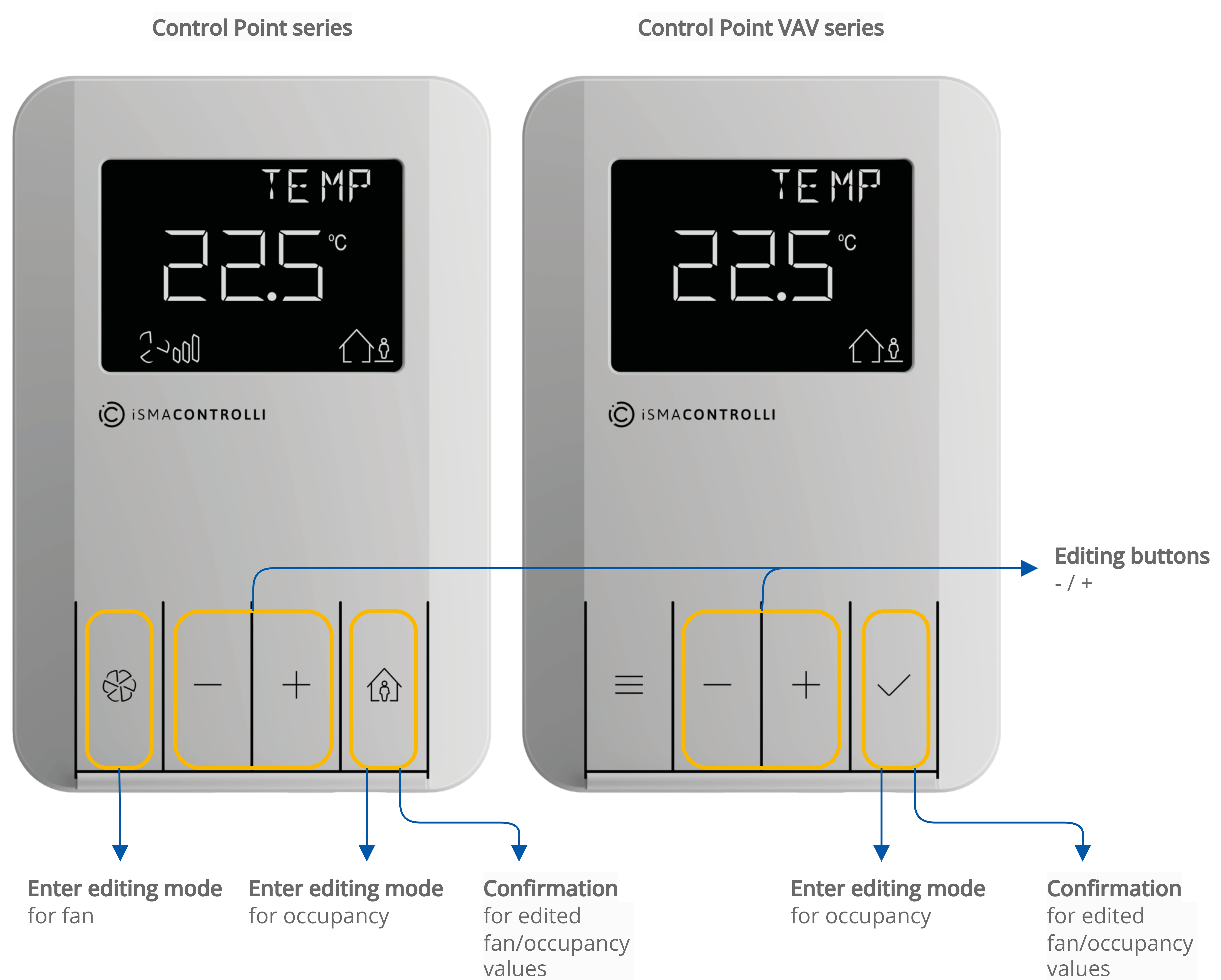

To enter editing mode of the default submenu parameters:

• Control Point series:

  • press the fan or occupancy button;

    • if there are more than one submenu for a single submenu type (for example, two fans are connected), select a required submenu with -/+ buttons;

  • press the occupancy button to activate editing (the main value starts blinking);

  • change value using -/+ buttons;

  • confirm the new value with the occupancy button.

• Control Point VAV series:

  • press the OK (✓) button;

  • press the OK button to activate editing (the main value starts blinking);

  • change value using -/+ buttons;

  • confirm the new value with the OK button.

It is possible to change the default elements displayed in the submenu – remove default parameters, edit parameters of default elements.

There are 2 ways of editing default submenu parameters:

• using components in the iC Tool (recommended if the panel is connected to a controller);

• using Modbus registers/BACnet objects (directly).

Using Components in the iC Tool

Editing and Removing Default Elements of the Submenu

The kit including components necessary to edit of remove default elements in the submenu is the iSMA_RoomDevices_Modbus kit. The components in question are the component representing sensors available in the panel:

• FanSpeed (only for Control Point series);

• Occupancy.

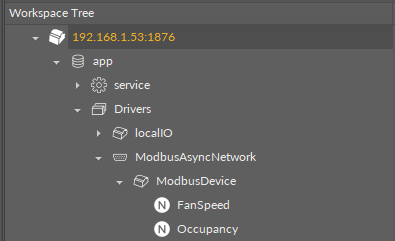

To use any of these components, add them to the ModbusDevice component in the ModbusAsyncNetwork:

To remove the element from the submenu:

• set the Visibility slot in the FanSpeed/Occupancy component to false, save the new setting using the Save button, and send the configuration to the panel using the writeConfig action.

To edit the way default elements of the submenu are displayed, use the remaining slots of the components. This way it is possible to change if the element is editable from the submenu, change the displayed name, and more.

Using Modbus Registers/BACnet Objects

Editing and Removing User-defined Elements of the Submenu

To edit or remove default elements of the submenu using Modbus registers or BACnet objects, use the following parameters:

• Fan Control (Only Control Point Series)

• Occupancy Control.
