iSMA-B-AAC20 Visualization Web Server User Manual


Introduction

This user manual contains information about the visualization web server for the iSMA-B-AAC20 controllers.

The visualization web server allows to present basic information about an application controlled by the iSMA-B-AAC20 controllers. The web server is based on .html files and works together with an existing built-in web server administrator platform. Visualizations can be customized and must be loaded separately.
The visualization web server is composed of a main page and up to four subpages intended for time schedules control.

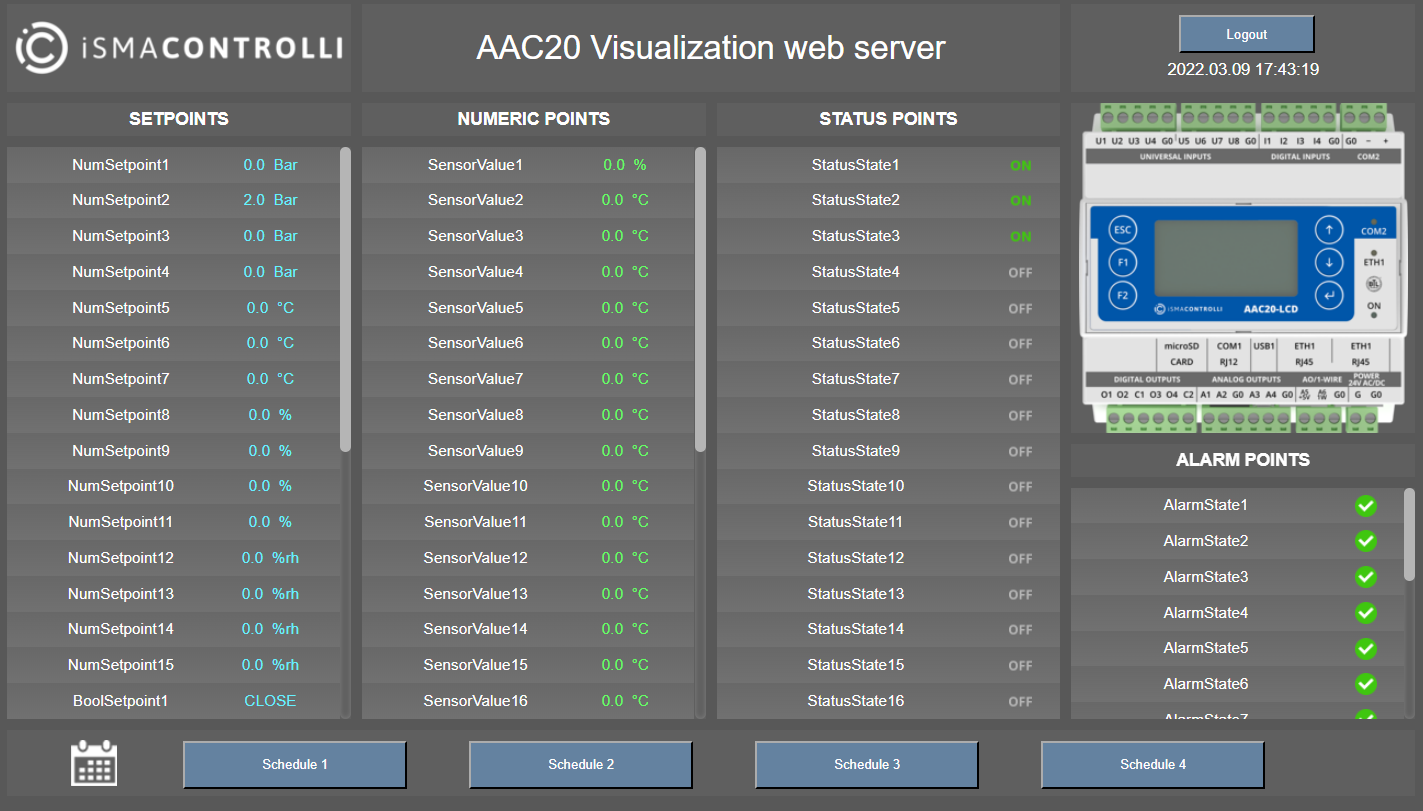

Main page of the visualization web server

Revision History

Rev.

Date

Description

1.2

19 Jun 2024

Improvements:

  • possibility to add up to 10 web users;

  • enum variables for numeric points, setpoints, and schedules;

  • light theme configured in the visualization configurator.

1.1

17 Apr 2023

Improvements:

1.0

28 Feb 2022

First edition

Revision history

Overview

Worth to notice:

The configuration file of the visualization web server file is an .xlsm file. Please note that it works only on the Microsoft Excel 2010 and higher versions.

On the default main page there are 4 containers, which can be fully adjusted with the Visualization_configurator.xlsm file:

  • setpoints;

  • numeric points;

  • status points;

  • alarm points.

There are also 4 buttons opening additional subpages, responsible for schedules, which types (numeric or Boolean) can also be configured using the iSMA Tool software.

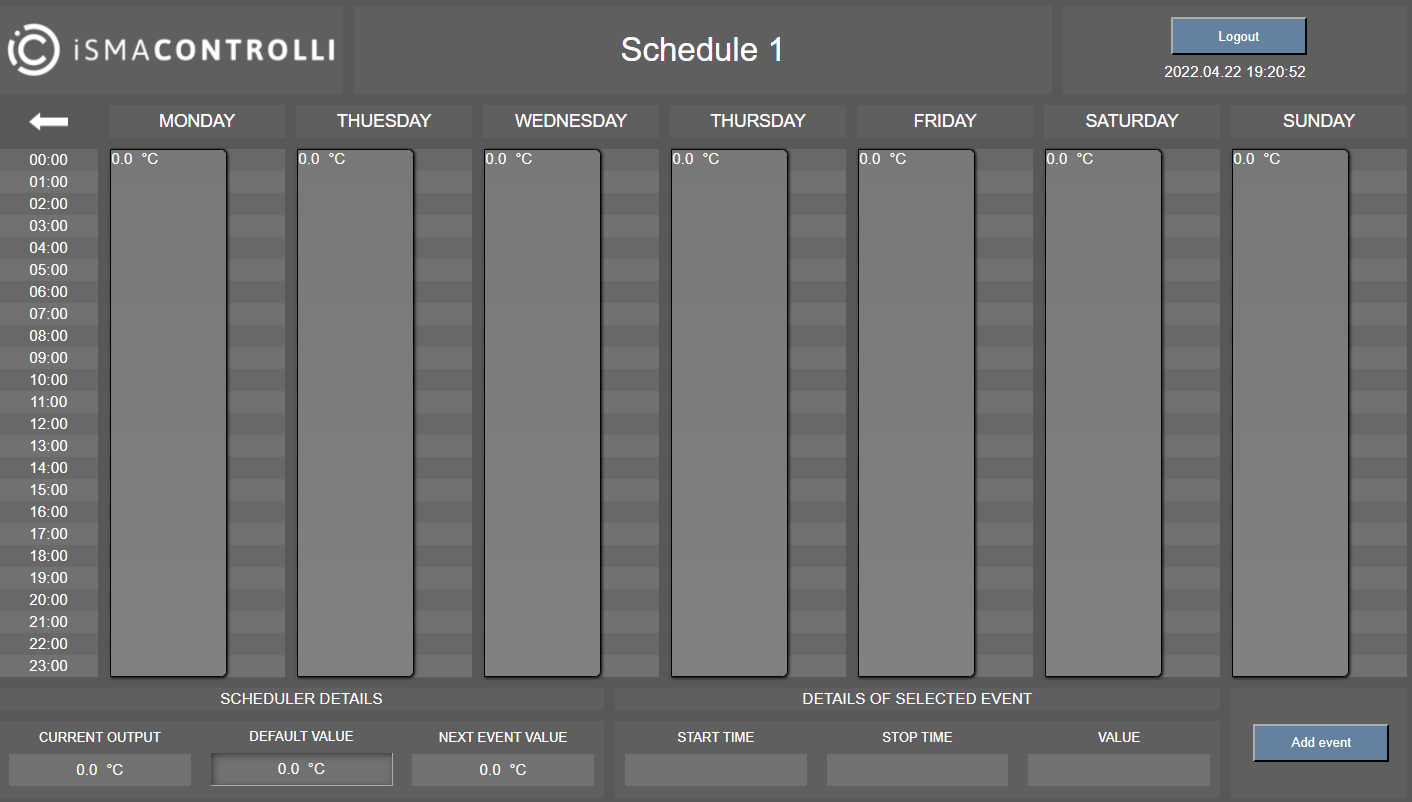

Schedule view of visualization
