EMailAlarmRecipient

The EMailAlarmRecipient component defines e-mail recipients.

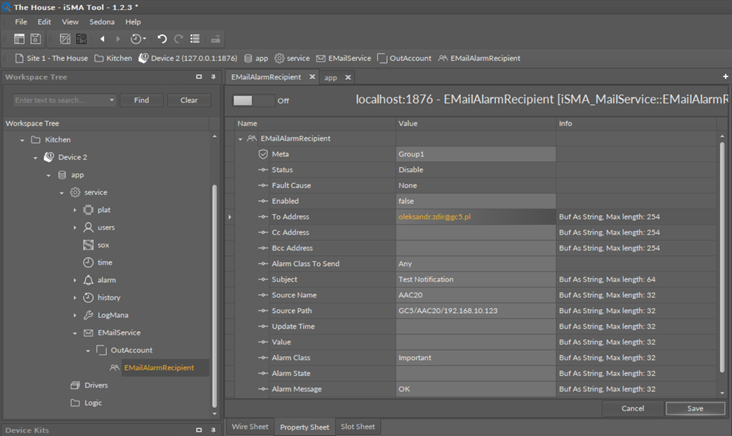

EMailAlarmRecipient component

The EMailAlarmRecipient component has the following slots:

• Status: component’s status, available statuses:
  • OK: component is working properly,
  • Disabled: component is disabled (the Enabled slot is in false);
  • Fault;
• Fault Cause: fault cause description:
  • Could not connect: no connection could have been established;
  • Timeout: the maximum connection time has been exceeded;
  • Some Error with Alarm Database: the Alarm Db Status slot indicates database error;
  • None: service is working properly;
• Enabled: switches the component on/off;
• To Address: first recipient’s e-mail address;
• Cc Address: carbon copy recipient’s e-mail address;
• Bcc Address: blind carbon copy recipient’s e-mail address;
• Alarm Class To Send: restriction by alarm class:
  • Any (default): all alarms will be sent regardless of their classes,
  • Life Safety: only alarms with the Life Safety class will be sent,
  • Critical: only alarms with the Critical class will be sent,
  • Maintenance: only alarms with the Maintenance class will be sent;
• Subject: subject for recipient’s message;
• Source Name: source name information for the recipient’s message;
• Source Path: source path information for the recipient’s message;
• Update Time: date and time of the alarm event;
• Value: alarm value which caused the event;
• Alarm Class: alarm class information for the recipient’s message;
• Alarm State: state of alarm value;
• Alarm Message: additional text information for the recipient’s message;
• Alarm Db Status: alarm database status information.

Note: In order to send out alarm notifications, the iSMA-B-AAC20 controller needs to be equipped with a memory SD card.
