BooleanToFloat

The BooleanToFloat component converts 16 Boolean signals to 1 float signal.

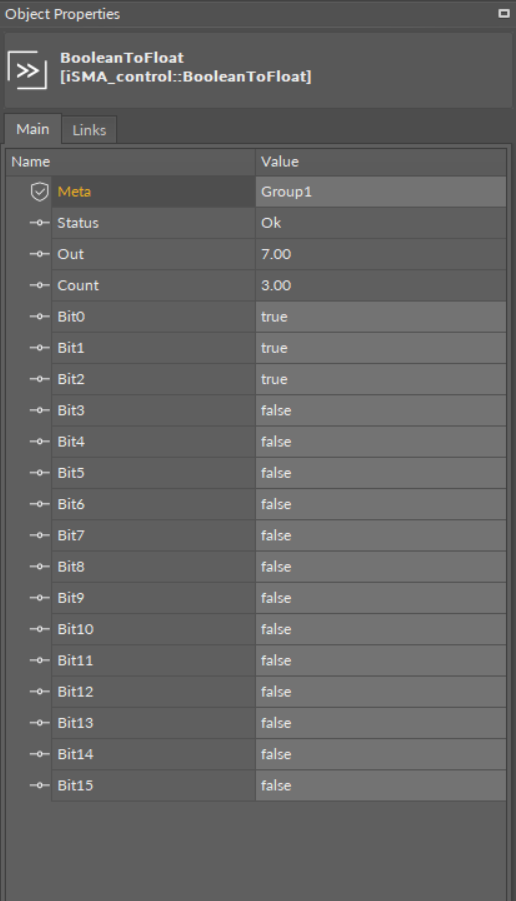

BooleanToFloat component

Slots

The BooleanToFloat component has the following slots:

  • Status: shows the component's status;

  • Out: encoded value of inputs with bit 15 (MSB) and bit 0 (LSB);

  • Count: sum of active inputs;

  • Bit0-Bit16: any bit of true (1, +) or false (0, -) value.
