Universal FCU Application User Manual

Introduction

This user manual outlines the configuration steps of the universal FCU application designed for the RAC18-IP controller. The application is based on the nano EDGE ENGINE components and is fit for most types of fan coil units.

The application covers the following modes of FCU operation:

  • pipe mode;

  • 2-stage heating;

  • 2-stage cooling;

  • heating/cooling control mode;

  • CV temperature source;

  • fan type.

The application works with the following types of dedicated panels:

  • LP room panel;

  • SP room panel;

  • FP room panel;

  • Touch Point series panels.

Configuration is carried out with an 8-position DIP switch.

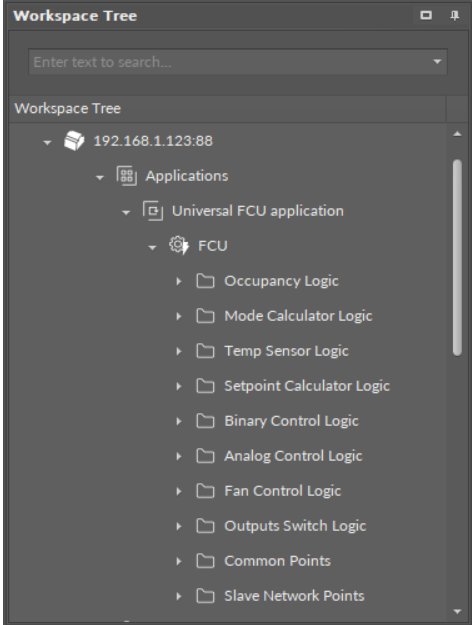

Universal FCU application in the iC Tool

Revision History

Date

Rev.

Description

18 Jul 2024

1.0

First edition

Revision history
