Mounting and Installation

Mounting Without a Back Box

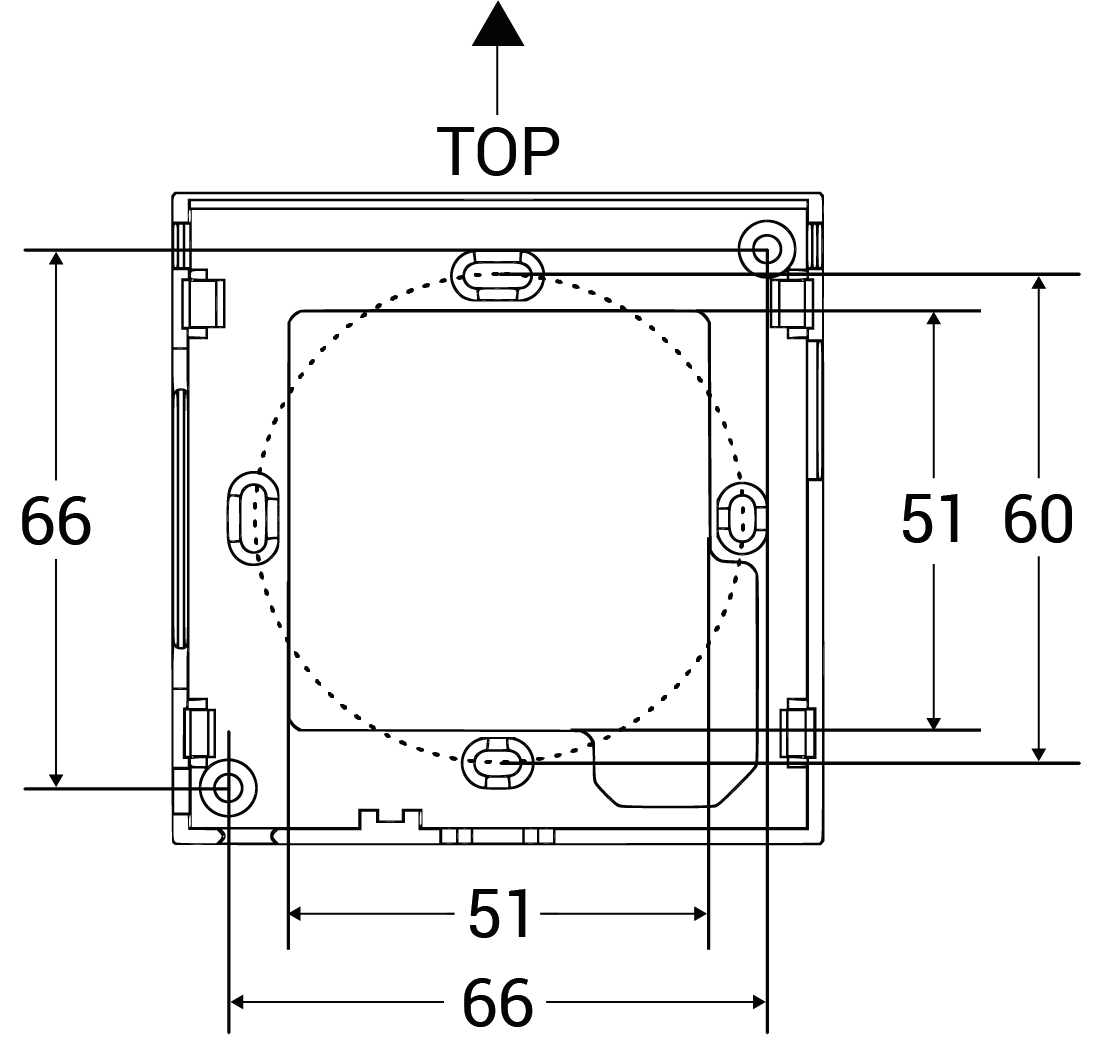

It is possible to mount the Touch Point panel without a back box in walls where a square hole of at least 51 x 51 mm can be cut directly in the wall. Then, it is required to securely install the installation screws in the wall in the position of the installation holes on the frame.

Mounting With a Back Box

For other cases, it is recommended to follow the below steps of installation with a wall back box.

The back box of the panel – junction box fittings

Step 1: Fit the back box to the junction box.
Step 2: Fit the panel to the back box, starting from up corners. Make sure the USB port is headed downwards. Make sure that the screw is flush with a mounting frame.

Fitting the junction box, back box, and the panel

Step 3: Gently push in the bottom corners of the panel to the back box.

Fitting down corners in the back box

Step 4: Screw the panel to the back box. Turn the screw clockwise.

Screw the panel to the back box
