Connections

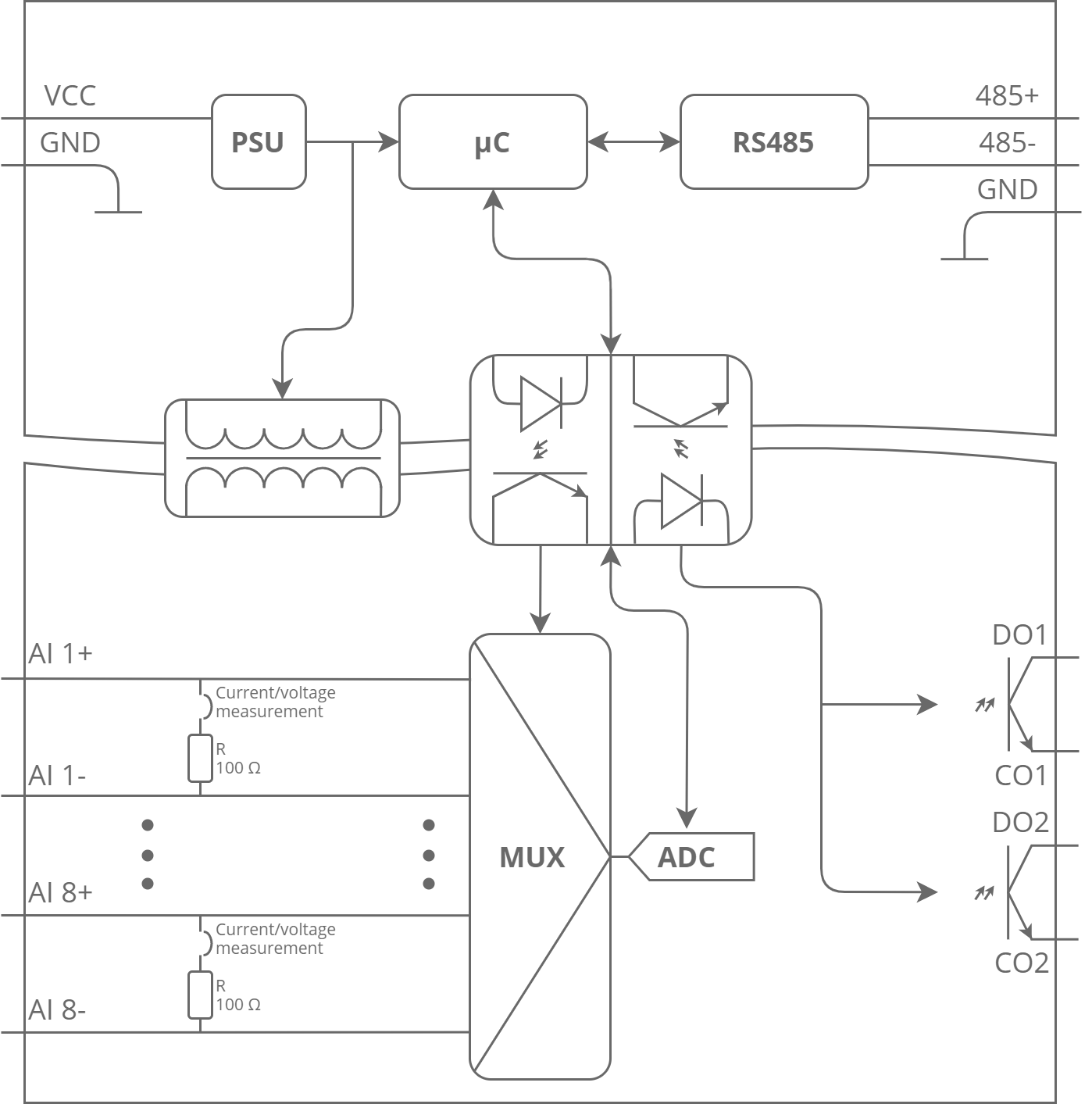

Block Diagram

Block diagram

Power Supply Connection

DC Power Connection

DC power connection

AC Power Connection

AC power connection

Communication Bus Connection

Communication bus connection

Connection of Analog Inputs

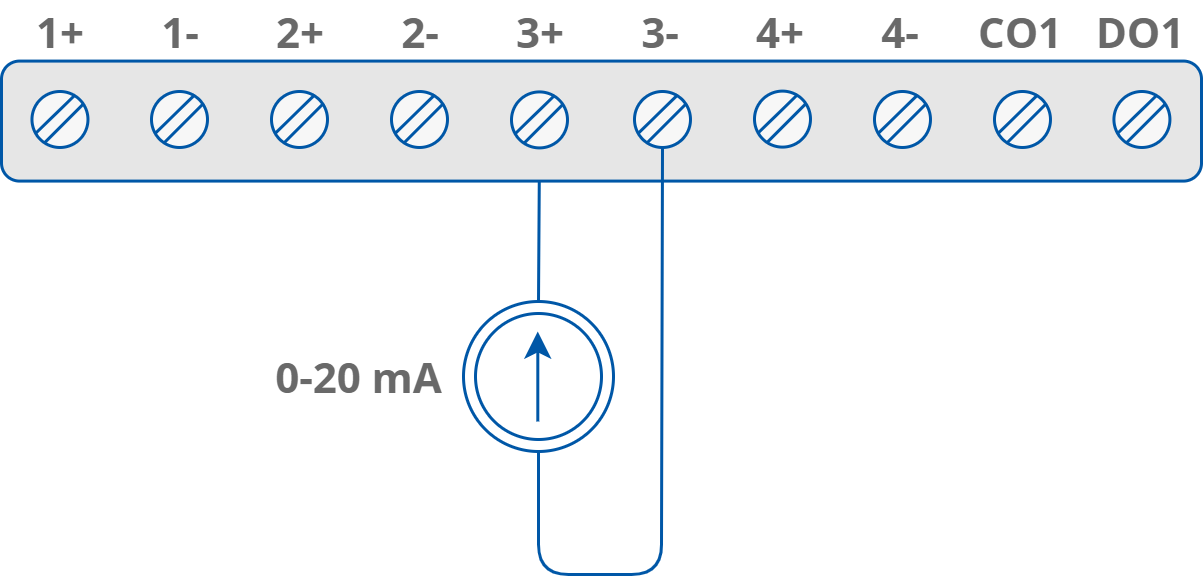

Connection of Current Measurement

Connection of current measurement

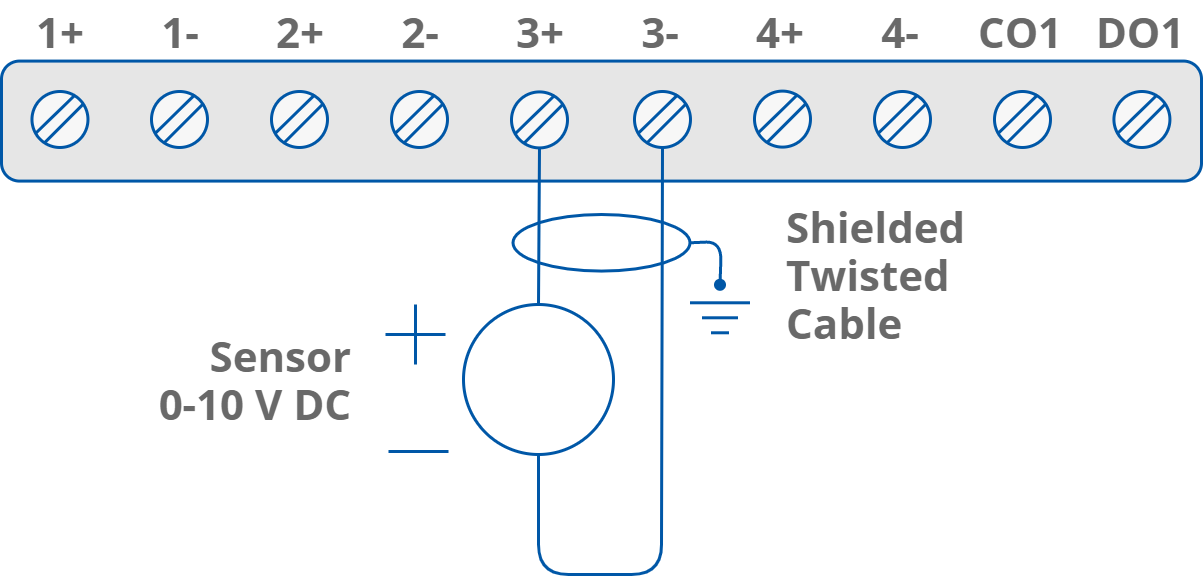

Connection of Voltage Measurement

Connection of voltage measurement

Connection of Digital Outputs

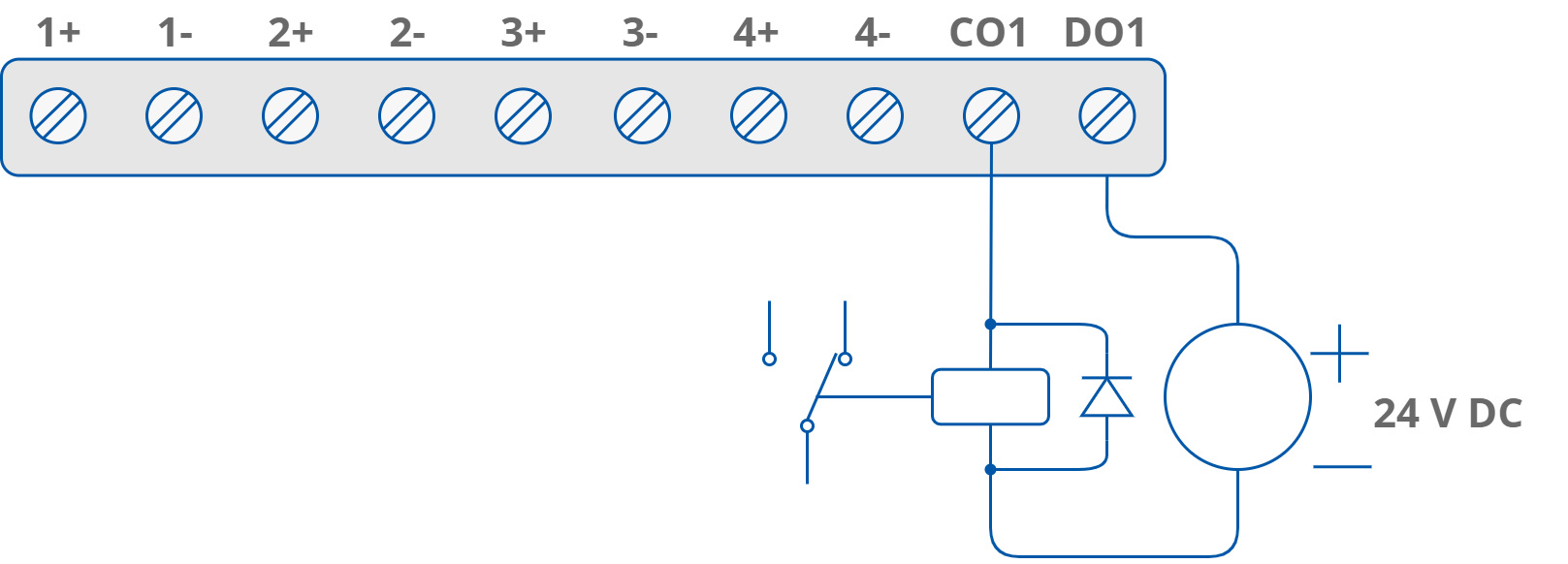

Connection of PNP Output

Connection of PNP output

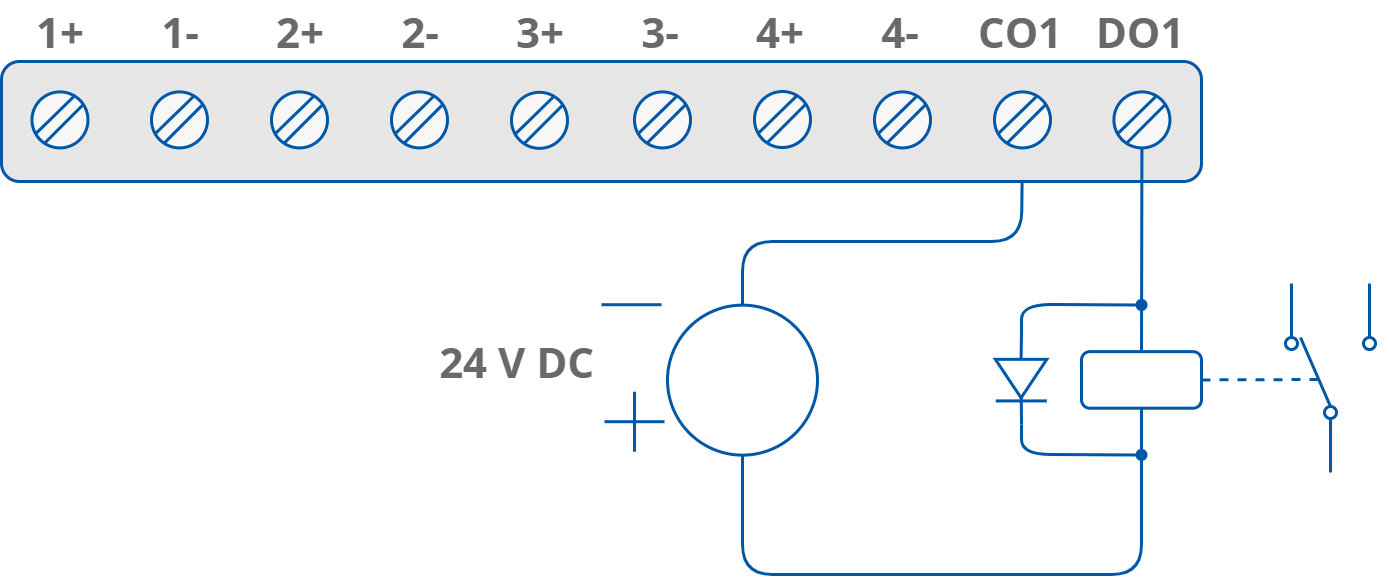

Connection of NPN Output

Connection of NPN output

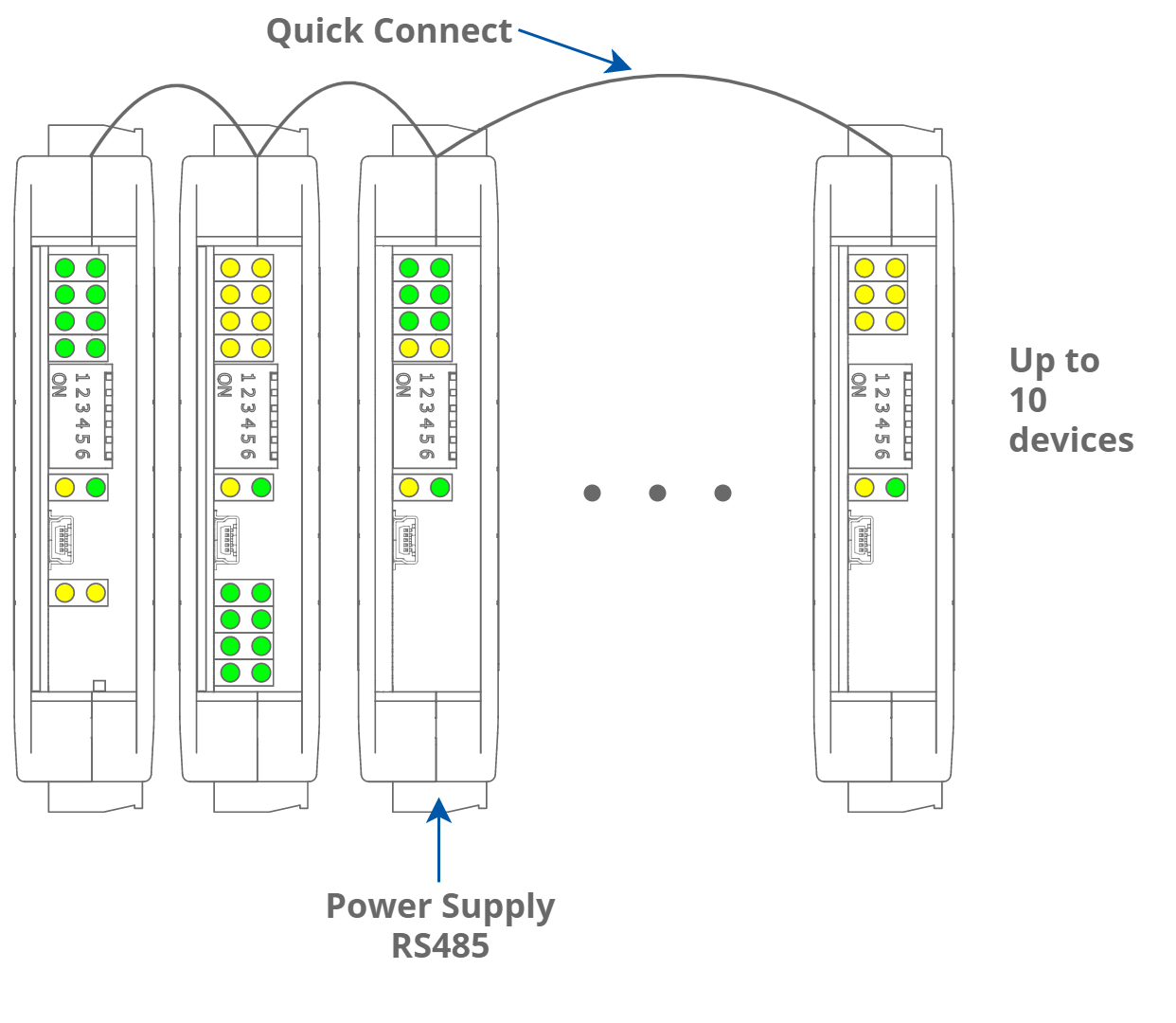

Quick Connector

The Quick Connector is an unique feature of modules that allows for quickly connecting a group of devices with a flat ribbon cable.

Thanks to this solution, it is enough to the power supply and RS485 communication to one of the devices in the group, and the others will be powered and communicated with ribbon cable. The Quick Connector is sufficient to connect up to 10 devices next to each other. It is important that the various types of modules in the SfAR-S family can be connected with the ribbon cable.

Quick Connector
