Connections

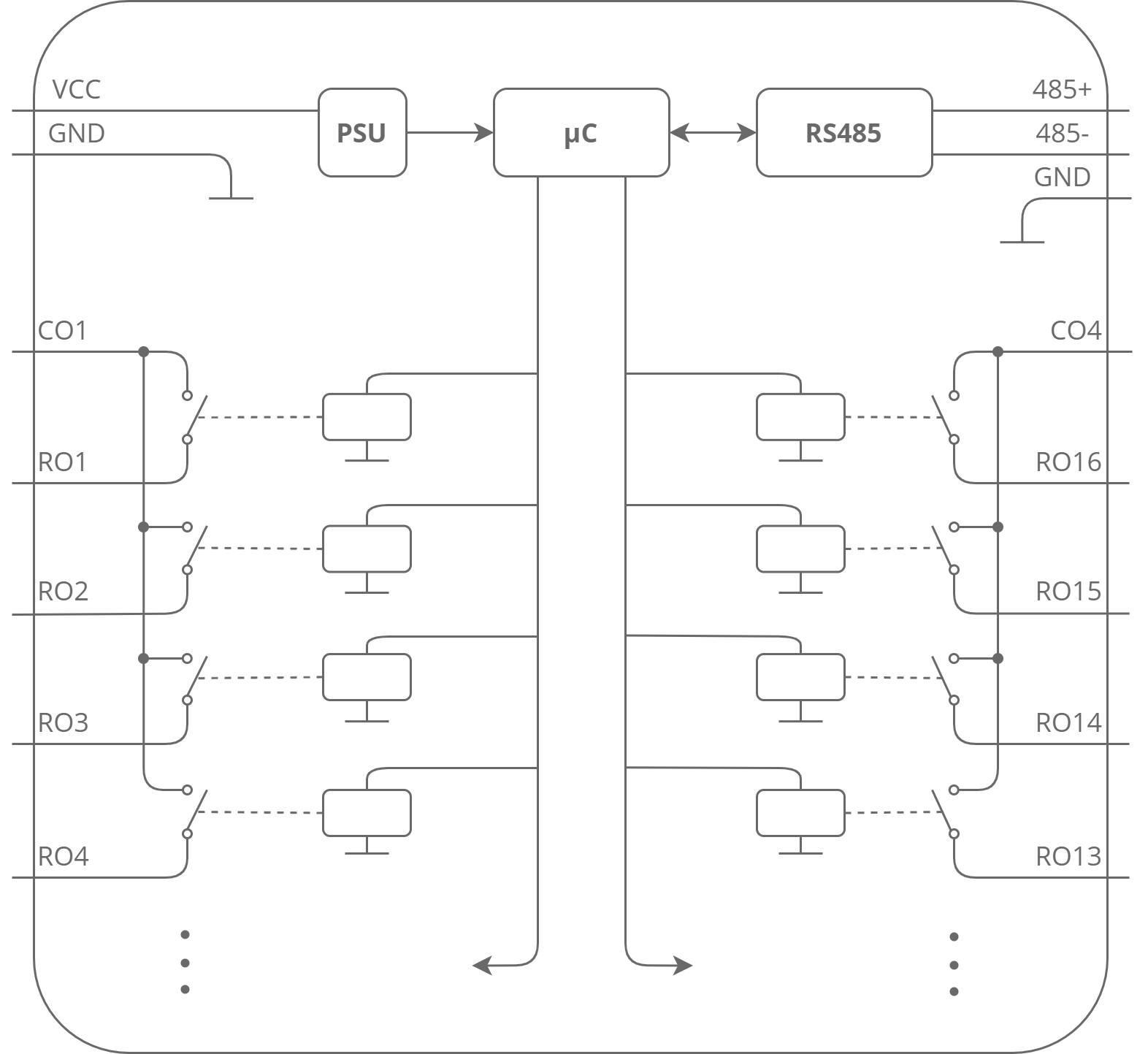

Block Diagram

Block diagram

Power Supply Connection

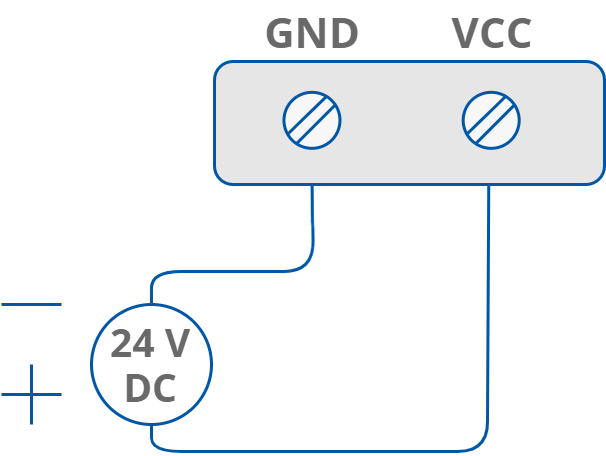

DC Power Connection

DC power connection

AC Power Connection

AC power connection


Communication Bus Connection

Communication bus connection


Connection of Relay Outputs

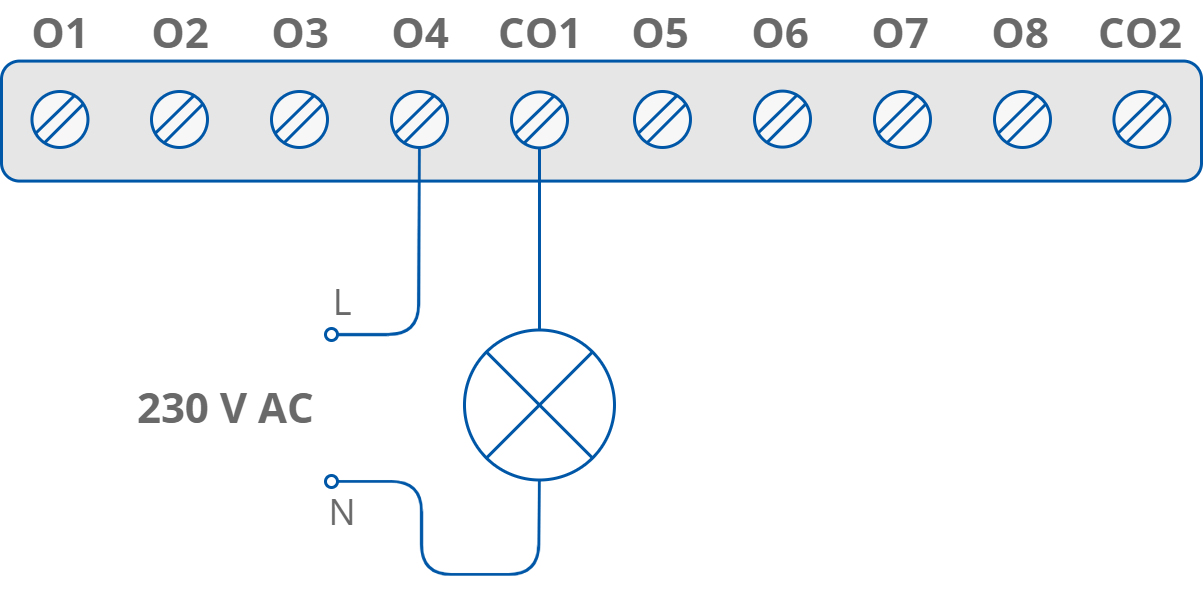

Connection of Resistive Load

Connection of resistive load

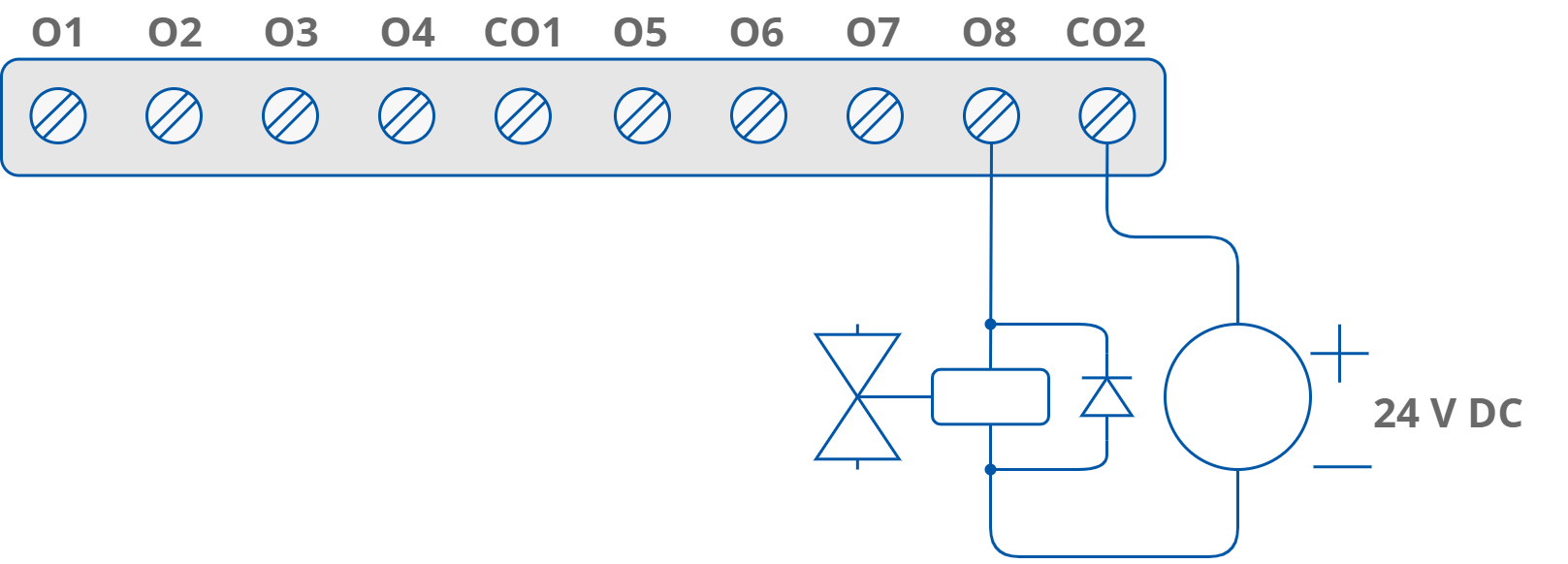

Connection of Electrovalve

Connection of electrovalve

Quick Connector

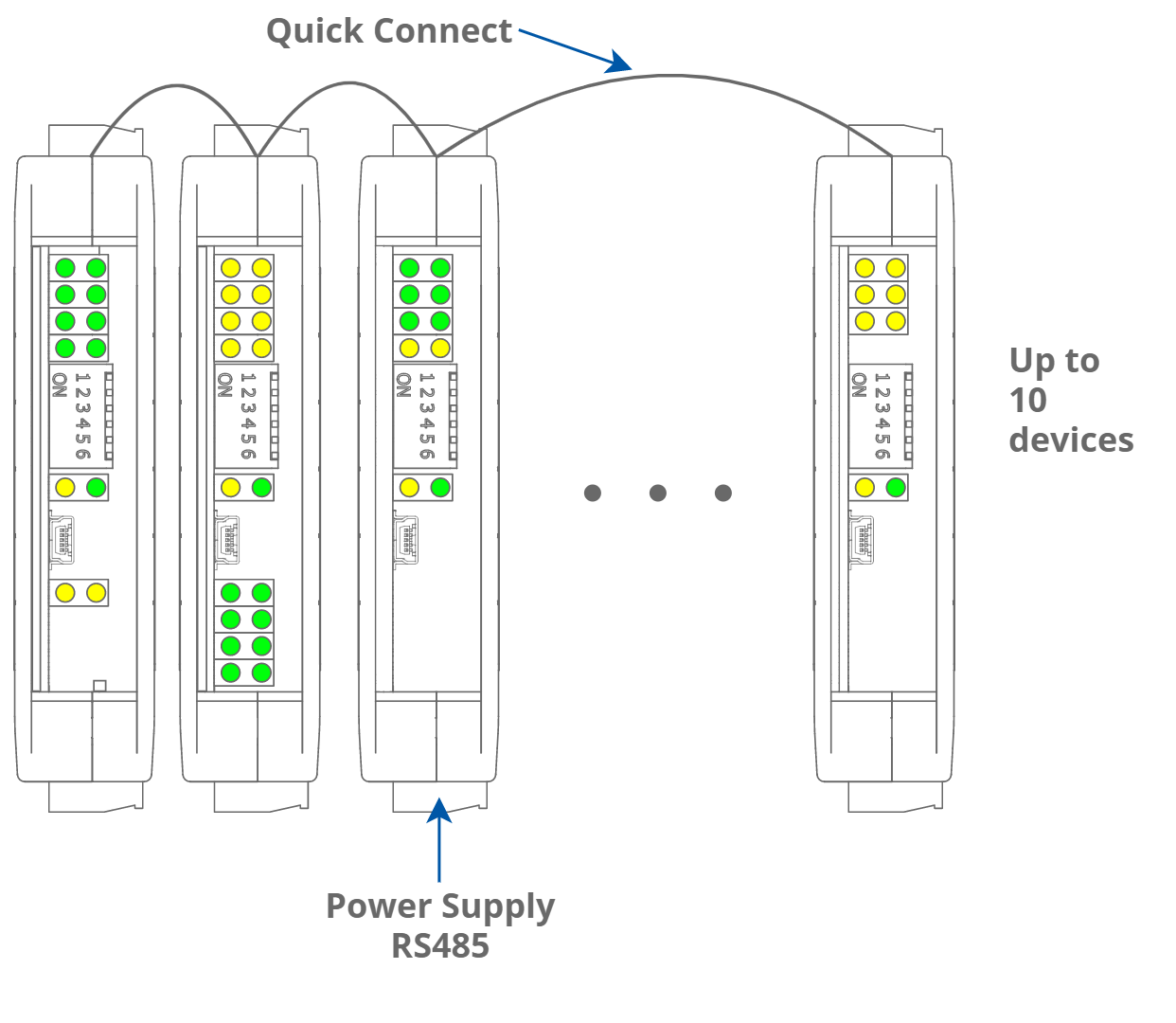

The Quick Connector is a unique feature of modules that allows for quickly connecting a group of devices with a flat ribbon cable. Thanks to this solution, it is enough to connect power and RS485 communication to one of the devices in the group, and the others will be powered and communicated with ribbon cable. The Quick Connector is sufficient to connect up to 10 devices next to each other. It is important that the various types of modules in the SfAR-S family can be connected with the ribbon cable.

Quick Connector
