Point Manager for LocalIO
The LocalIO Point Manager view is available for the LocalIO component. It lists all I/O points added to the LocalIO component, and shows their:
Out slot value;
unit (for analog values);
status;
number;
enabled or disabled state.

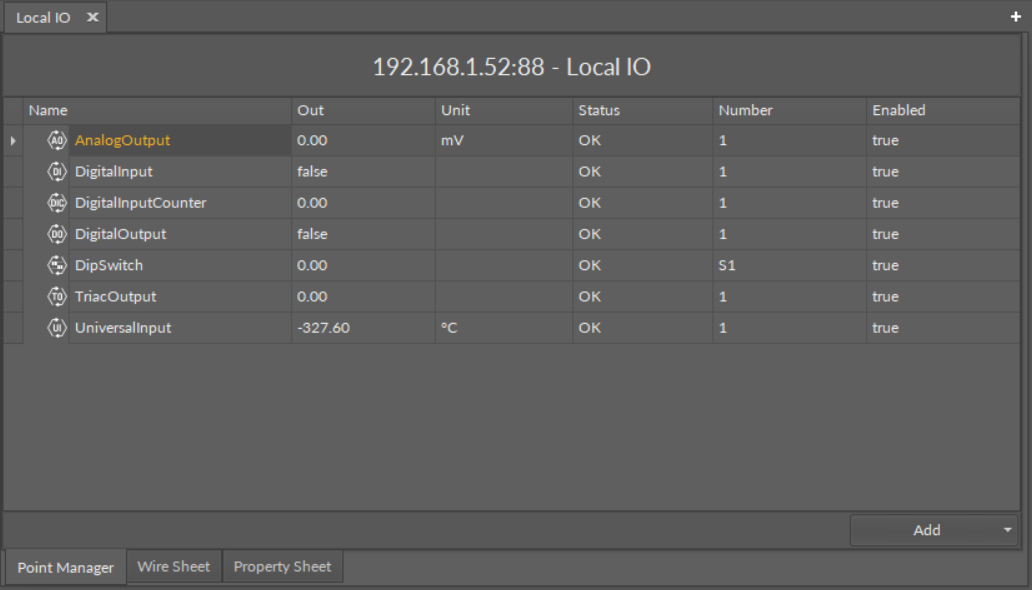

Point Manager view
Opening Point Manager
The Point Manager view is accessible from the context menu of the LocalIO component. It is also automatically opened if the LocalIO component is double-clicked in the Workspace Tree window.

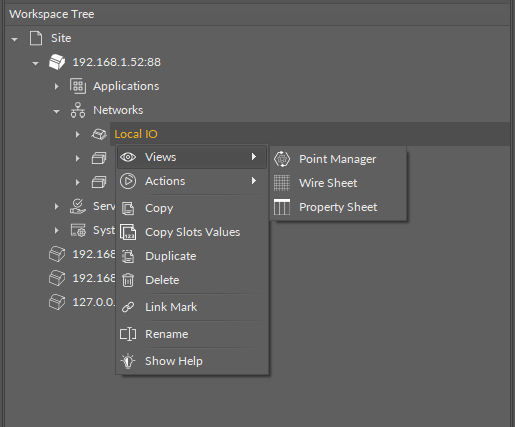

Opening the Point Manager
Adding I/O Points
The I/O points may be added twofold: dragging and dropping the I/O points to the LocalIO component from the IO library (in the Device Libraries window), or using a special Add function in the LocalIO Point Manager view available in the bottom right corner. The Add function allows to add any of the I/O points available in the IO library.

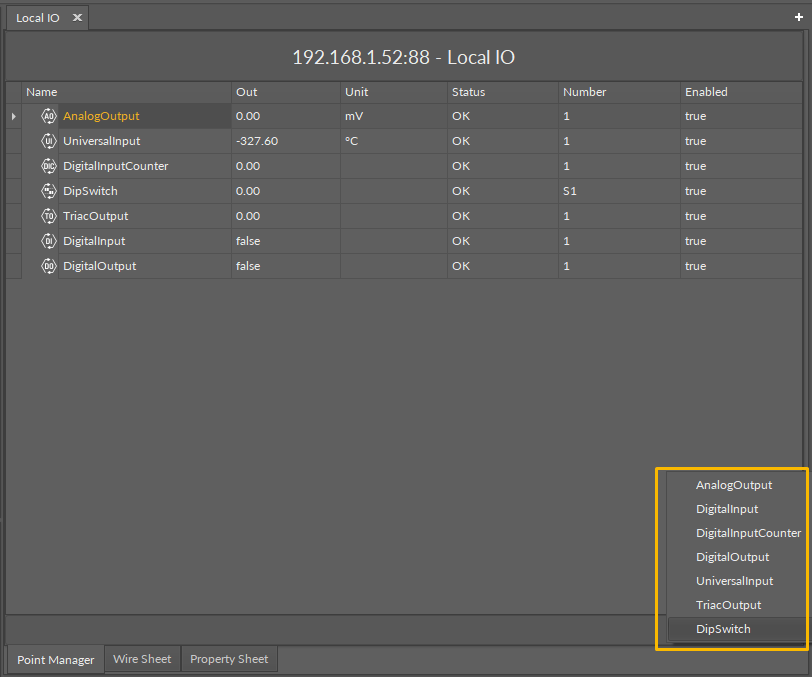

Add button in the Point Manager

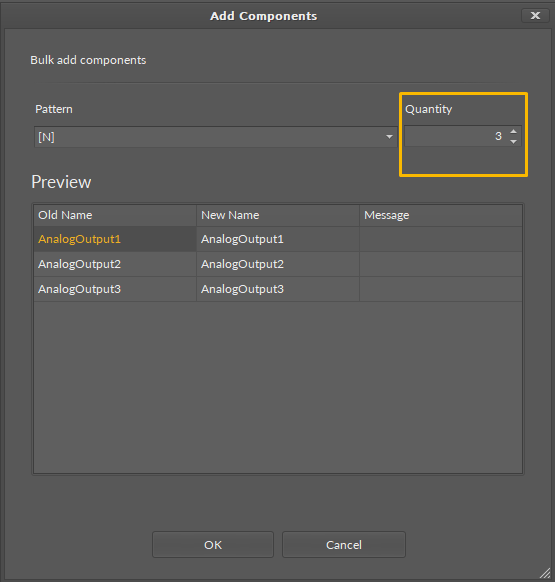

Using this Add button opens the dialog window, which allows to adjust the quantity of I/O points to be added.
Adjusting quantity of added IO points
Multiediting of Common Slots
The Point Manager view allows multiediting of common slots in components of the same type, for example, to enable all one-type components at once. Multiediting is available in the Object Properties window, upon selecting one-type components in the Point Manager with Ctrl or Shift keys.
